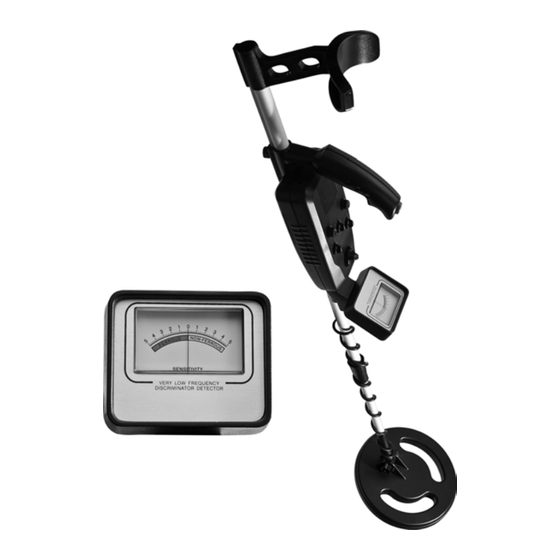

Master Edition Metal Detector
Three-Tone Audio Discrimination
Distinctive tones for different types of metals
Analog Meter
Shows the probable type of metal being
detected
Auto Tune
Tune your detector quickly for accuracy
Arm Support
Operate your detector comfortably
Adjustable Stem
Adjust the detector's length for comfortable use
BC194
Waterproof Search Coil
Lets you use the detector to search under
water. Note: The search coil is waterproof, but
the detector's control housing is not waterproof
Headphone Jack
Lets you connect headphones (not supplied) to
the detector
Low Battery Indicator
Lets you know when it is time to replace the
batteries
Operates on two 9V alkaline batteries (not
supplied)
6/11
Advertisement
Table of Contents
Related Manuals for Barska Master Edition
Summary of Contents for Barska Master Edition
- Page 1 Master Edition Metal Detector Waterproof Search Coil Three-Tone Audio Discrimination Lets you use the detector to search under Distinctive tones for different types of metals water. Note: The search coil is waterproof, but the detector’s control housing is not waterproof...
-
Page 2: Table Of Contents
ˆ Contents Features ..........................3 Treasure Hunter’s Code of Ethics ..................3 Preparation ..........................4 Assembling the Detector ....................4 Installing Batteries ......................4 Using Headphones ......................5 Listening Safely ......................5 Traffic Safety ......................6 A Quick Look at Your Metal Detector ................... 6 Operation .......................... -
Page 3: Features
ˆ Features With your metal detctor, you can hunt for TREASURE HUNTER’S coins, relics, jewelry, gold, and silver just CODE OF ETHICS about anywhere. The Metal Detector is versatile and easy to use. Its features All treasure hunters might be judged by the include: example you set. -
Page 4: Preparation
Preparation ASSEMBLING THE housing so the pins on the plug are DETECTOR aligned with the holes in the jack. Cautions: Assembling your detector is easy and requires no special tools. Just follow these • The search coil’s plug fits into the steps. -
Page 5: Using Headphones
1. If the detector is on, turn Notes: MODE Note: When you turn the mode switch to • For better life, exchange the two batter- , the LOW BATT indicator flashes ies periodically. once. • You can extend battery life by using 2. -
Page 6: Traffic Safety
Traffic Safety • Do not listen at extremely high volume levels. Extended high-volume listening Do not wear headphones while operating a can lead to permanent hearing loss. motor vehicle or riding a bicycle. This can • Once you set the volume, do not create a traffic hazard and could be illegal in increase it. -
Page 7: Operation
ˆ Operation Your metal detector distinguishes between 3. Set , and GROUND DISCRIMINATION ferrous and non-ferrous metals. Ferrous to mid-range. SENSITIVITY metals contain iron, while non-ferrous 4. Hold the search coil at least 1 foot away metals such as gold, silver, copper, from the ground and any metal object, platinum, aluminum, lead, and zinc do not. -
Page 8: Outdoor Testing And Use
Search Coil Sweeping Hints: or a coin) about 2 inches above the search coil. • Never sweep the search coil as if it Notes: were a pendulum. Raising the search coil while sweeping or at the end of a • The search coil will not detect without sweep causes false readings. -
Page 9: Fine-Tuning The Detector
FINE-TUNING THE Adjusting Discrimination DETECTOR Discrimination is the detector’s ability to dif- ferentiate between types of metal. The de- After you become familiar with how your de- tector’s setting determines DISCRIMINATION tector works, you can fine-tune it to make it whether the detector will distinguish between less sensitive to interference and more se- different types of ferrous and non-ferrous... -
Page 10: Detection Hints
DETECTION HINTS Notes: • If trash in an area is so heavy that you No detector is 100 percent accurate. Various get false signals, slow your sweep conditions influence metal detection. The de- speed and use shorter sweeps. tector’s reaction depends on a number of factors: •... -
Page 11: Troubleshooting
Troubleshooting If your detector is not working as it should, follow these suggestions to see if you can eliminate the problem. Problem Suggestion The detector displays or The sensitivity might be set too high. Adjust SENSITIVITY sounds false signals. You might be sweeping the detector’s search coil too fast or at the wrong angle. -
Page 12: Warranty
This warranty is limited to the original purchaser and is not transferable. This warranty applies only to products purchased in the United States of America and Canada. In the event of a defect within 30 days, the consumer must return the defective unit to the WINBEST ®...
