Outform iDISPLAY User Manual

7”
Hide thumbs Also See for iDISPLAY:

Advertisement

Quick Links

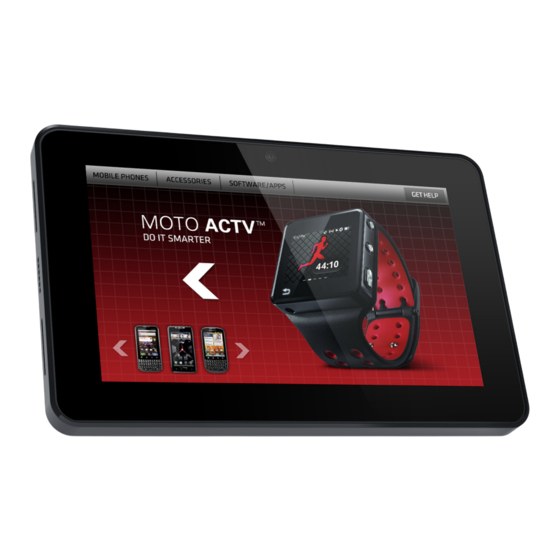

iDISPLAY Tablet 7"
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the iDISPLAY and is the answer not in the manual?

Questions and answers

Related Manuals for Outform iDISPLAY

Summary of Contents for Outform iDISPLAY

  • Page 1 Tablet 7” User Manual...
  • Page 3 “Introducing the iDISPLAY Tablet 7” - introduces the iDISPLAY Tablet and components. “Getting Started” - describes how to set up and start the iDISPLAY Tablet. • “Playing Content” - lists the various options for displaying videos, pictures and applications.

  • Page 4: Table Of Contents

    INDEX Safety and Warnings Introducing the iDISPLAY Tablet Getting Started Standby Mode and ON Mode Playing Content Main Android Home Screen iDISPLAY Tablet Accessories...

  • Page 5: Safety And Warnings

    SAFETY AND WARNINGS NOTE This mark is applied to indicate that the equipment conforms to European safety and other standards. WARNING! Main Supply: This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC mains supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V.

  • Page 6: Introducing The Idisplay Tablet 7

    This chapter introduces the iDISPLAY Tablet 7”and its components. What is the iDISPLAY Tablet 7”? The iDISPLAY Tablet 7” is an interactive digital display designed to be used in commercial environments. The Tablets are powered by Pulse, OUTFORM’s™ own technology platform that combines hardware and software features to create an ideal “out-of-the-box”...
  • Page 7 Tablet 7” Top View iDISPLAY Tablet 7” Front View iDISPLAY Tablet 7” Back View iDISPLAY Tablet 7” Side View (left and right are identical) Introducing the iDISPLAY Tablet 7”...
  • Page 8 Tablet 7” Back View (close-up) iDISPLAY Tablet 7” with back panel removed Introducing the iDISPLAY Tablet 7”...
  • Page 9 3G/4G/LTE Micro SIM Card Slot Brightness Control USB 2 Headphone Jack (with Audio Out and Mic In) Volume Control PB-Molex connector for Optional Connect Box, Push Buttons, or Motion Sensor PCIe slot for 3G/4G/LTE Wireless Data Modem Introducing the iDISPLAY Tablet 7”...

  • Page 10: Getting Started

    Tablet Turning On the iDISPLAY Tablet Selected models of the iDISPLAY Tablet have an internal battery that allows the unit to operate on the battery without the power supply. Please check product identification or with your distributor to identify this feature.
  • Page 11 Tap in the white field to display a virtual keyboard. Type in the password. If this is the first time you are using the iDISPLAY Tablet, the default password is: 11223344 Tap the “Done”...
  • Page 12 NOTE - Password Settings: As explained above, when in default mode, the iDISPLAY Tablet is password protected, to ensure that only authorized personnel can modify and configure it. You have the option to disable/enable this password feature, using the “Enable/ Disable Password”...

  • Page 13: Standby Mode And On Mode

    The following describes how the Tablet operates in each of these modes. When Turning on the Tablet When you power on the iDISPLAY Tablet by pressing the On/Off button at the back of the Tablet, the Tablet behaves as follows depending on which mode the user selected in the iDISPLAY-Settings application.
  • Page 14 The tablet plays all the content in Folder 0 repeatedly in an endless loop (see ‘Playing Content on page 15 for explanation). NOTE: There is no visible option for this in iDISPLAY-Settings. By turning off the Standby Mode, the Tablet automatically reverts to ON Mode.

  • Page 15: Playing Content

    (Android APK’s) on the iDISPLAY Tablet. Default AutoPlay – Folder 0 The iDISPLAY Tablet disk drive contains a Root folder that can contain sub-folders. By default, the Tablet plays the content from a folder named 0 (number zero). This folder is located in the Root, SD Card folder.
  • Page 16 Enter the password and tap the OK button. If this is the first time you are using the iDISPLAY Tablet, then the password is: 11223344. The following window is displayed: n play the discount-car.mpeg video and then play the top-of-range.mpeg video.
  • Page 17 (apk) is stored on a USB stick, you can simply locate it on the USB stick and then tap on it once. ES Explorer will then copy the application on to the iDISPLAY Tablet and install it. A shortcut to the apk will then appear on the main home page screen.
  • Page 18 Browser and Market – Downloading Content You can download content using Wi–Fi (or the optional 3G Cellular Data modem) to the Root folder of the tablet and then move the content to Folder 0 (or Folders 1 through 12) using the ES File Explorer application, which can be accessed from the Android Applications Menu.

  • Page 19: Main Android Home Screen

    The password window pops up. Enter the password and tap the OK button, followed by the Exit button. The standard Android Home screen will appear. This is useful when the iDISPLAY Tablet is built into a kiosk or other enclosure, and the back button cannot be accessed.
  • Page 20 Tablet. NOTE: This is different from the iDISPLAY-Settings Application. iDISPLAY-Settings Application is used only to configure settings that affect the iDISPLAY-Player and iDISPLAY Add-Ons (when attached). In contrast, the Android Settings function is...

  • Page 21: Idisplay Tablet Accessories

    The flashing Add-On Push Button accessory can be attached on either the left or right side of the iDISPLAY Tablet. No cables are required and it is secured with two screws on the back of the tablet. The purpose of the flashing Push Button accessory is to activate the iDISPLAY Tablet to revert from Power Saving Standby Mode when the button is pressed, as explained on page 14.
  • Page 22 Fixed Wall Bracket Rotating Wall Bracket Fixed Shelf Bracket iDISPLAY Tablet Accessories...
  • Page 23 Adjustable Shelf bracket Table Bracket Counter Display iDISPLAY Tablet Accessories...
  • Page 24 Floor Display iDISPLAY Tablet Accessories...
  • Page 26 For further information or support, please contact us at: idisplay@outform.com...
