Page 1: User Manual

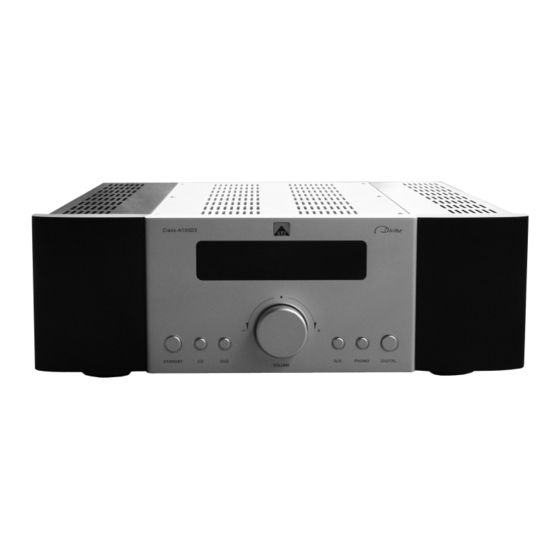

XTZ CLASS-A100D3 CLASS A INTEGRATED HIGH-END AMPLIFIER User manual © 2008 XTZ AB , www.xtz.se Page: 1 / 14... -
Page 2: Table Of Contents
Table of contents Page: Contents About XTZ Technical presentation Preparations Practice of sound / Installation and placement tips Mounting Functional reference Technical specifications Service & Support Page: 2 / 14... -
Page 3: Contents
Contents Contents Congratulations of your purchase of the CLASS A100 D3. CLASS A100D3 provides many possibilities, in order to utilize this product in the best way, please read the manual carefully before using Room Analyzer. It takes patience to optimize a hifi system. -
Page 4: About Xtz
About XTZ Philosophy Our reference and starting point is to recreate a natural sound, taking into account that acoustics always is a matter of taste. XTZ Goal Our main goal is to provide the best value for money. Our concept:... -
Page 5: Technical Presentation
Technical presentation Amplifier CLASS A100D3 is the third generation of this amplifier. The amplifier is designed to provide maximum sound quality. All inputs and speaker connections are gold plated and of the highest quality. A powerful ring-coil transformer contributes to an effective power supply. -
Page 6: Preparations
Preparations Unpacking Carefully unpack the product, and pay attention so you don't break anything. If possible, save the packing box for future transportations. Should there be any damage on the product, please contact your retailer. Check that the mains voltage marking on the back panel matches your local mains voltage. -
Page 7: Practice Of Sound / Installation And Placement Tips
Practice of sound / Installation and placement tips This chapter contains common information on loudspeaker placement and installation. These are general rules, so there are exceptions. In which room do No matter how good the equipment is, in the wrong you achieve the best listening environment it will inevitably sound bad. - Page 8 Front speakers To achieve the best results the front speakers should be placed symmetrically in front of the listener. The distance between the front speakers should be about 80% of the distance to the listener. In other words, the recommended angle between the front speakers is 45°.
-
Page 9: Mounting
Mounting Connect with the Always connect using the correct phase, from the If you by accident connect the other way, there is no risk of damage. However, the correct phase +-pole on the amplifier to the +-pole on the phase of the signal will be not correct, loudspeaker and respectively for the minus (-) pole resulting in improper sound. -
Page 10: Functional Reference
Functional reference STANDBY 13. DIGITAL Inputs 2. CD 14. SUB OUT 3. DVD 15. REC OUT 4. AUX 16. PRE OUT PHONO 17. AMP IN 6. DIGITAL 18. PHONO MM/MC VOLYM 19. PHONO IN 8. IR 20. CD 9. DISPLAY 21. -
Page 11: Remote Control
Remote control 25. STANDYBY 26. DIM 27. MUTE 28. OPERATION MODE 29. INPUTS 30. VOLUME 1 STANDBY To set the product in standby mode, without turning it off 2 CD CD as source 3 DVD DVD as source 4 AUX Aux as source Normally used to connect a TV or decoder 5 PHONO... - Page 12 14 SUB OUT For connecting active subwoofers 15 REC OUT Non volume controlled output. For TAPE/MD recording 16 PRE OUT Volume controlled output, from the preamp. Normally connected to AMP IN. Can be used for connecting other power amps 17 AMP IN Input to the power amp.
-
Page 13: Technical Specifications
Technical specifications Integrated amplifier Construction type 158 x 445 x 468 mm (HxWxD) Inc Feet & Terminals Dimensions 27kg including cardboard box 22 kg Weight 5 Hz- 50kHz (non-flatness < 0.5dB) Frequency response >100dB (A Weighted, 100W, 8ohm) SNR Ratio 20 kOhms Impedance (input) 42dB... -
Page 14: Service & Support
Support Please contact our “free-of-charge” support if you need installation advice, or if any problems occur during the installation. Contact us by e-mail support@xtz.se and include your phone number if you require help, and we will ring you back. Guarantee...
