EnGenius ENH210EXT Datasheet
EnGenius ENH210EXT Datasheet

EnGenius ENH210EXT Datasheet

Long range wireless 11n outdoor ap/cb, ieee802.11b/g/n 2t+2r 300mbps high performance
Hide thumbs Also See for ENH210EXT:

Advertisement

Quick Links

Package Contents
- ENH210EXT
- PoE Injector (EPE-48GR)
- Power Adaptor
- 5dBi Omni Antenna x 2
- CD with User's Manual
- QIG
- Mounting Set
- Special screw set
LONG RANGE WIRELESS 11N OUTDOOR AP/CB
IEEE802.11b/g/n

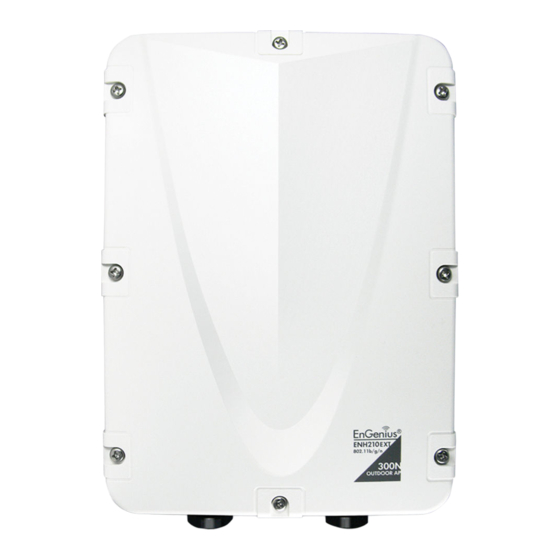

ENH210EXT Wireless Outdoor Enterprise Access Point features 2 x
N-type external connectors with high output power and high
sensitivity can extend the transmission range to deliver a stable
wireless connection. ENH210EXT integrates 4 operation modes:
Access Point, Client Bridge, Client Router and WDS.
Use external connectors with high output power to combine flexible
antenna, it's convenient to build long range wireless link while
reducing dead spots. Advanced multi-function operation modes offer
flexibility in constructing scalable wireless networks for all possible
applications. ENH210EXT is designed to deliver reliable service under
harsh outdoor environment with certified IP67 protection and tailored
to accommodate multimedia streaming services with data-rate up to
300Mbps. Most importantly, it is built-in encryption standards (WEP,
WPA, WPA2, TKIP/AES and IEEE802.1x) ensure maximum security
and compatibility.
ENH210EXT
2T+2R 300Mbps
High Performance

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENH210EXT and is the answer not in the manual?

Questions and answers

Summary of Contents for EnGenius ENH210EXT

  • Page 1 IEEE802.11b/g/n 2T+2R 300Mbps High Performance ENH210EXT Wireless Outdoor Enterprise Access Point features 2 x N-type external connectors with high output power and high sensitivity can extend the transmission range to deliver a stable wireless connection. ENH210EXT integrates 4 operation modes: Access Point, Client Bridge, Client Router and WDS.
  • Page 2 ENH210EXT LONG RANGE WIRELESS 11N OUTDOOR AP/CB IEEE802.11b/g/n 2T+2R 300Mbps High Performance Features Specification Transmit high output power programmable for different country selections High output power High speed transmitting rate up to 300Mbps with 2T2R 802.11n High Data Rate Transmit power control and distance control (ACK timeout)
  • Page 3 ENH210EXT LONG RANGE WIRELESS 11N OUTDOOR AP/CB IEEE802.11b/g/n 2T+2R 300Mbps High Performance 1 x Gigabit Ethernet Port 2 x External N-type Connector Power Requirements - Active Ethernet (Power over Ethernet) - 802.3af/at support - Power Adapter 48V / 0.375A RF Specification 802.11b/g/n...
  • Page 4 ENH210EXT LONG RANGE WIRELESS 11N OUTDOOR AP/CB IEEE802.11b/g/n 2T+2R 300Mbps High Performance Auto Channel Selection (Setting varies by Regular Domains) Wireless Distance Control (802.1x Ack timeout) Multiple SSID (4 SSID) VLAN Function WDS AP / WDS Bridge / WDS Station...
