CAR
BATTERY CHARGER
User Guide
After Sales Support
Specially made for ALDI Stores to our stringent
quality specifications. If you are not entirely sa-
tisfied with this product, please return it to your
nearest ALDI store within 60 days from the date
of purchase for a full refund or replacement, or
take advantage of our after sales support by
calling the Customer Service Hotline.
Advertisement
Table of Contents
Summary of Contents for ALDI Auto XS CPL 2054
- Page 1 If you are not entirely sa- tisfied with this product, please return it to your nearest ALDI store within 60 days from the date of purchase for a full refund or replacement, or take advantage of our after sales support by...
-
Page 2: Guarantee Conditions
In the unlikely event of such an occurrence, or if you require any information about the product please contact us via our sales support services, details of which can be found in this manual and on the product itself. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... -
Page 3: Table Of Contents
Starting the charging process Charging process Disconnecting the charger Special functions of charger Technical specification Cleaning and maintenance III. Guarantee Card Scope of supply Battery charger CPL-2054 • Operating Instructions with warranty information • AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... -
Page 4: Parts List
13. Mains light: green light lit when connected to mains 14. Fault light: lights up red in case of incorrect polarity, short-circuit and overheating. 15. Symbol for standby mode 16. Battery voltage display: shows current voltage of connected battery. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... -
Page 5: Safety Instructions
Prior to starting the charger, remove all protective foil from the charger. • Install the mains cable in such a way that it does not cause an obstruction and nobody can pull on the cable accidently. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... -
Page 6: Special Safety Instructions
• Carry out the charging operation in a well-ventilated, weather-protected room. • Ensure that explosive or combustible substances such as fuel or solvents cannot be set alight when using the charger. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... -
Page 7: Use Of Rechargeable Batteries
The positive (+) and negative (-) symbols on the cells, batteries and charger must be observed. The correct connection must be ensured. • Store cells and batteries out of reach of children. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... -
Page 8: Operation
Always ensure that you connect the battery to the charger before connec- ting the mains plug. Caution Explosion hazard due to gas. Highly explosive gas can be produced during charging of lead-acid batteries. Only charge batteries in well ventilated areas. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... - Page 9 Using the remaining terminal clamp of the battery charging cable, create a connec- tion to the vehicle. Clamp to a bolt or blank metal, as far away from the battery and fuel pipe as possible. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054...
-
Page 10: Starting The Charging Process
If the battery voltage is between 3.8 and 7.3 V, the battery is identified as a 6 V battery. By pres- sing the MODE key (7) the 6V charging program is started. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... - Page 11 If after the 1.5 minute pause the battery is still within the critical range of 7.3 and 7.5 V, the battery is defective and the charger switches to the stand- by-mode for safety reasons. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054...
-
Page 12: Charging Process
The battery is fully charged when all bars are filled, and the frame has stopped flashing. The charger then switches to trickle charging to maintain the battery in its fully charged condition. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... - Page 13 The battery is fully charged when all bars are filled, and the frame has stopped flashing. The charger then switches to trickle charging to maintain the battery in its fully charged condition. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054...
-
Page 14: Disconnecting The Charger
Then remove battery clamp from positive terminal of battery (red clamp) or clamp connected to the battery. Note The easiest method is to exactly reverse the steps used for connecting the charger. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... -
Page 15: Special Functions Of Charger
(0.8 / 0.07 A). Note A battery can remain permanently connected to the charger without damage or adverse effect on its performance. The trickle charge can be used to maintain a battery. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... -
Page 16: Technical Specification
When necessary, clean charger with a soft, dry, lint-free cloth. Only when heavily soiled use a damp, well wrung-out cloth and mild, non-abrasive cleaning agent. After cleaning, thoroughly dry charger. AFTER SALES SUPPORT 1 800 898 750 Aldi.aftersales@axima.com.au CPL-2054... - Page 17 Congratulations! You have made an excellent choice with the purchase of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, and during private use within the warranty period (starting from the date of purchase), experience defects due to manufacturing faults, we shall be liable for warranty in accordance with statutory warranty regulations provided that: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from...
- Page 18 Please ensure that you have the product details (as shown on this card) at hand so that we are able to respond as quickly and efficiently as possible. Helpline Phone Number 1800 898 750 Helpline Fax Number 02-9765 8555 Helpline Email Address Aldi.aftersales@axima.com.au Helpline Hours 8:30am – 6:00pm AEST...
Need help?
Do you have a question about the Auto XS CPL 2054 and is the answer not in the manual?
Questions and answers

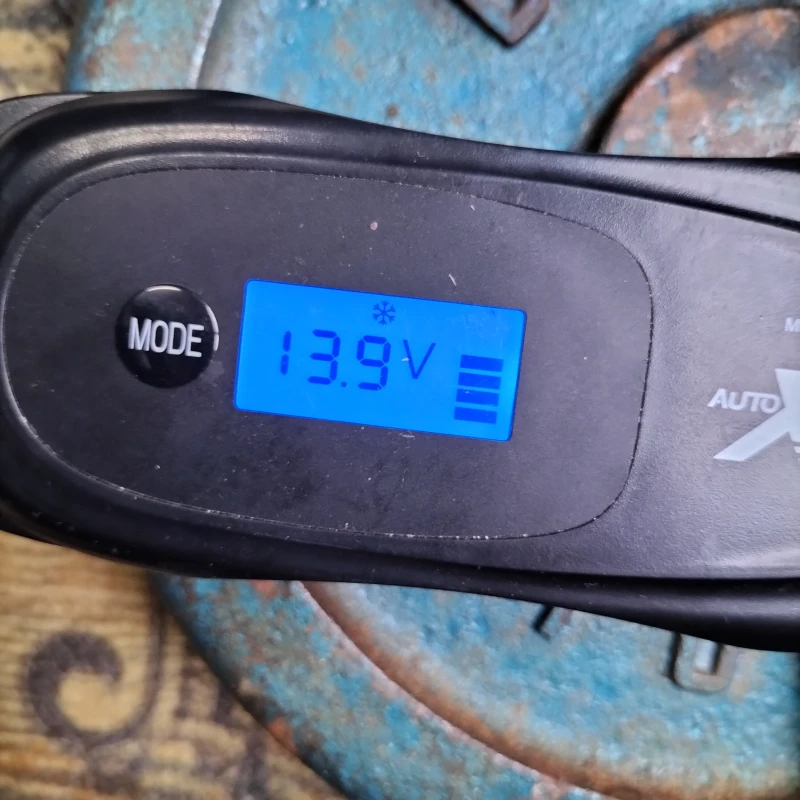

Which symbol is for trickle charging
The trickle charging symbol for the ALDI Auto XS CPL 2054 is indicated when all bars in the battery symbol are filled, and the flashing frame around the battery symbol has stopped flashing.
This answer is automatically generated
Charger will not start
The ALDI Auto XS CPL 2054 charger may not start for the following reasons:
1. The battery voltage is too low (below 3.8 V) or too high (above 15 V), making the battery unsuitable or defective. In this case, the charger displays the error message “Err”.
2. The battery terminals are connected incorrectly (positive and negative mixed up), which causes the red fault light to turn on. The charger must not be connected to the mains if this light is on.
3. The mains cable is damaged, or the charger is suspected to be faulty. In such cases, the charger should not be used.
4. The charger is not connected to a correctly installed mains socket with the correct voltage (240V~50/60Hz).
5. The clamps are not connected properly to the battery and vehicle chassis as instructed.
Any of these issues can prevent the charging process from starting.
This answer is automatically generated
