Jag Grill Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

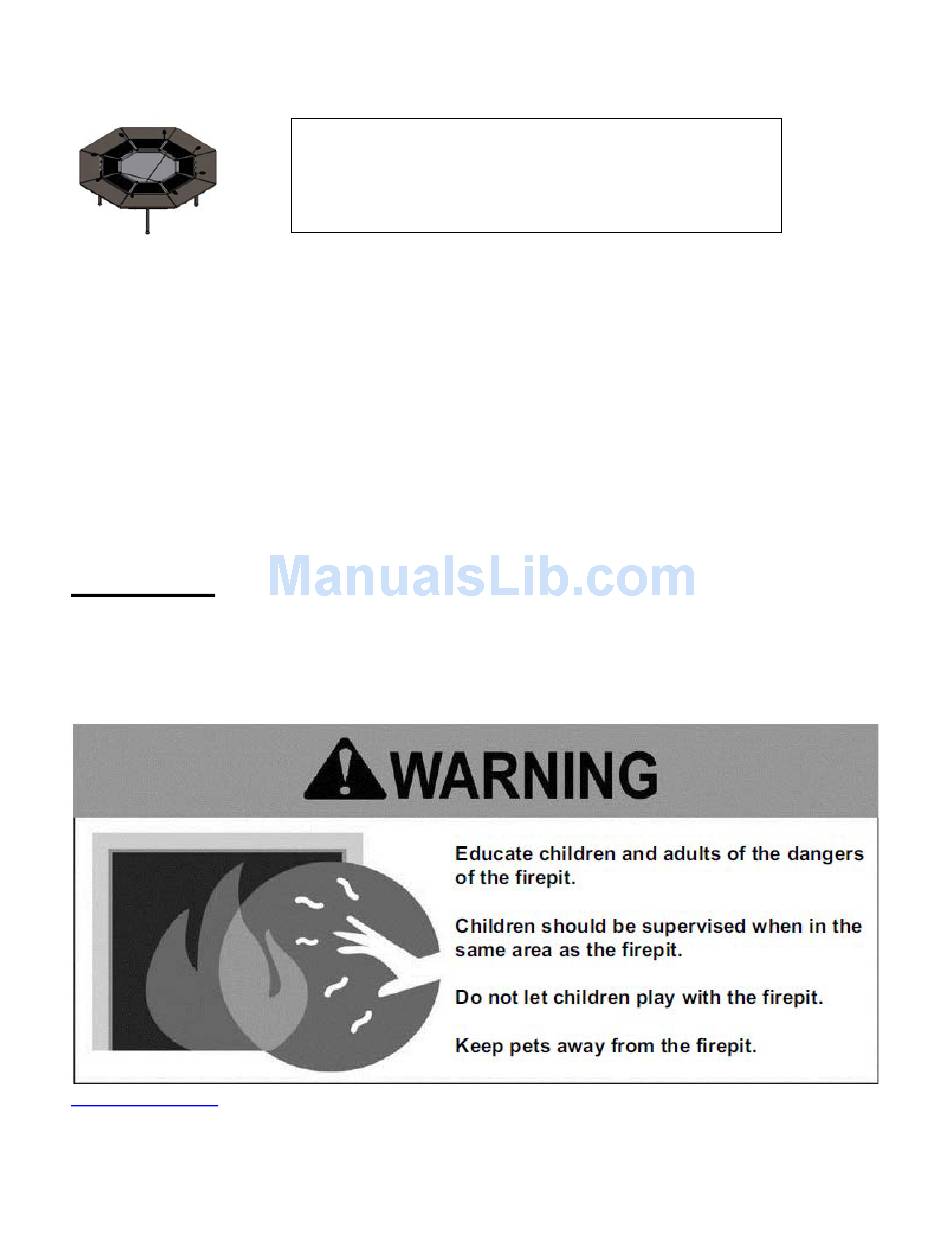

The JAG Grill
Owner's Manual
WARNING: For Outdoor Use Only
WARNING:
If the information in this manual is not followed exactly, an
uncontrolled fire may result, causing property damage,
personal injury or loss of life.
www.jaggrill.com
1
FORM #006310 REV. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grill and is the answer not in the manual?

Questions and answers

Summary of Contents for Jag Grill

  • Page 1 The JAG Grill Owner’s Manual WARNING: For Outdoor Use Only WARNING: If the information in this manual is not followed exactly, an uncontrolled fire may result, causing property damage, personal injury or loss of life. www.jaggrill.com FORM #006310 REV. 1...

  • Page 2: Safety Precautions

    This manual details the assembly, operation, and maintenance for the JAG Grill Firepit. Important Service Information No other JAG Grill Firepit has the same serial number as yours. The serial number is on the inside of the side door attached to the firepit .
  • Page 3 Death, serious injury, or damage to property may occur if the above are not followed exactly. The JAG Grill, LLC. grants no warranty, implied or stated, for the installation or maintenance of your firepit, and assumes no responsibility of any consequential damage(s).

  • Page 4: Before You Begin

    Assembly Standard Operation Procedure Placement Requirements ! For Outdoor Use Only. Install only in well-ventilated areas. Do not locate the firepit: In high traffic areas Under or near trees, plants and buildings where debris may constantly fall into the firepit. Excessive debris will require high maintenance and/or cause malfunctioning of the firepit.
  • Page 5 1/2 FLAT WASHER 001211 1/2-13 HEX NUT 2201-103578 5/8 BARREL BOLT, FEMALE 001462 #8-18 x 5/8 SQUARE DRIVE PAN HEAD SCREW 2201-103573 PANEL STANDOFF 2201-103550 STOVE HANDLE, GRILL 2201-103542 GRILL FRAME WLDMT 2201-103549 GRILL 2201-103557 FLOOR PLATE 2201-103558 PLAIN SIDE WLDMT 2201-103561...
  • Page 6 0.531 0.344 0.344 Color and size are not representative of actual part. FORM #006310 REV. 1...

  • Page 7: Tools Required

    TOOLS REQUIRED 7/16" Wrench 1/2" Wrench 9/16" Wrench 5/8" Wrench 3/4" Wrench #2 Square (Robertson) Drive 3/8" Allen Wrench 5/32" Allen Wrench 3/16" Allen Wrench FORM #006310 REV. 1...
  • Page 8 3/16" AllenWrench 1/2" Wrench .344 .547 .344 x .532 .344 x .532 .344 .344 CAUTION: Proper assembly requires 2 people. Assemble four floor plates (T) loosley with three 5/16-18 x 3/4 button hd bolts (G), three 5/16 flat washers (H) and three 5/16 nuts (I) into each as shown. Tighten all hardware.
  • Page 9 3/16" AllenWrench 1/2" Wrench Assemble side plate (U) to floor plates loosely with two 5/16-18 x 3/4 button hd bolts (G), two 5/16 flatwashers (H) and two 5/16 nuts (I). Assemble leg plate (V) to floor plates and side plate (U) loosely with four 5/16-18 x 3/4 button hd bolts (G), four 5/16 flatwashers (H) and four 5/16 nuts (I).
  • Page 10 7/16" Wrench Assemble stove handle (Q) onto door handle (X). Assemble door handle to fire pit door with two 1/4 nuts (C) and latch (Y) as shown. FORM #006310 REV. 1...
  • Page 11 1/2" Wrench 3/4" Wrench Assemble one 1/2-13 nut (M) onto one leveling mount (AA) and assemble to each leg (Z). Repeat on remaining three legs keeping all heights the same. Once fire pit is on the ground adjust leveling mounts to level fire pit and tighten nuts to lock.
  • Page 12 Caution: Requires at least two adults to lift and set base on ground. Safely lift fire pit base and place on ground. FORM #006310 REV. 1...
  • Page 13 9/16" Wrench Assemble four panel standoffs (P) to a side plate with four 3/8-16 X 3/4" screws (D), four 3/8" lock washers (F) and 3/8" flat washers (E) as shown. Repeat on all side plates. FORM #006310 REV. 1...
  • Page 14 5/32" Allen Wrench 7/16" Wrench Assemble for each grill frame (R) loosely with two 1/4-20 x 5/8" button hd bolts (A), two 1/4" flatwashers (B) and two 1/4" nuts (C) as shown. Tighten all hardware. FORM #006310 REV. 1...
  • Page 15 Assembled grill frames (R). Turn over and place assembled grill frames with tabs up onto base. Place each grill (S) into place by sliding first one side into slot then sliding second side into the opposite slot. Assemble one stove handle (Q) Repeat for all grills.
  • Page 16 #2 Square (Robertson) Drive Assemble tables by laying out the boards labeled (1), (2), (3) and (4) with pre-drilled holes facing up in the order shown. Place table bracket (AB) on boards and line up holes in hinge with holes in boards and screw in eight #8 x 5/8 Pan Head Hex Socket Drive screws (O).
  • Page 17 Swing grill up out of the way. Assemble each table by lining up and inserting all four large keyslot holes with panel standoff (P) slots, then press down to lock into place. Repeat for all tables. WOOD MAINTENANCE: Periodically reapply an oil finish to wood that appears dry to restore the beauty. Allow the oil to penetrate for 30 minutes then reapply additional oil finish for 15 minutes to penetrate.
  • Page 18 Parts List ITEM PART NUMBER DESCRIPTION 2201-103586 FRAME ASSEMBLY 2201-103592 TOP SCREEN 2201-103593 HANDLE BRACKET 2201-103595 CLAMP STRIP 2201-103594 STOVE HANDLE, DOME 001468 3/8-16 X 6-1/2 CB 001469 3/8-16 HIGH CROWN CAP NUT 001170 1/4 HELICAL SPRING LOCK WASHERS 001466 1/4-20 x 5/8"...
  • Page 19 7/16" Wrench 5/32" Allen Wrench Handle Assembly Assemble handle assembly with two 1/4 x 5/8" button hd bolts (A), two 1/4 lockwashers (AK) and two 1/4 nuts (C) to fire screen. Repeat with remaining handle assemblies on opposite sides as shown. FORM #006310 REV.

  • Page 20: Operating Instructions

    ! Failure to inspect and maintain may lead to malfunctioning of the firepit and potentially dangerous situations. Your JAG Grill Firepit is designed to be cleaned and maintained easily. Inspect the firepit before each use. Use a broom to clean cold dry ash , and rinse with hose (water) if needed.
  • Page 21 9. The JAG Grill, LLC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.
  • Page 22 The JAG Grill, LLC. The JAG Grill, LLC at its option, will repair or replace, free of charge, your JAG Grill Firepit appliance if it is found to be defective in material or workmanship within the time frame stated within this 90-Day warranty...
