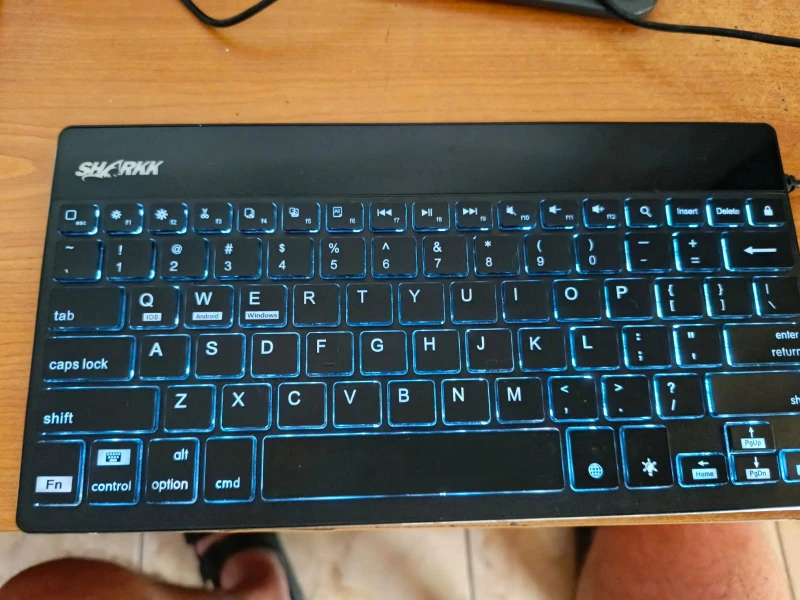

- Page 1 .Sharkk. Backlit Bluetooth Keyboard Owner’s Guide...
- Page 2 Introduction Thank you for your purchase of the SHARKK Backlit Bluetooth Keyboard. Please take the time to read this manual carefully before you begin using your new item. In this age of mobile device proliferation, the wire- less keyboard has become an almost ubiquitous phone and tablet companion.
- Page 3 SHARKK Backlit Bluetooth Keyboard was crafted with the intent to blend convenience and utility into the ultimate mobile accessory. In addition to the Backlit Bluetooth Keyboard, the SHARKK Lifestyle Brand is pleased to be able to offer a wide range of consumer accessories across many different product categories.
- Page 4 Here at SHARKK, the quality of our products and the satisfaction of our customers are the two great- est passions of our enterprise, as we endeavor to...
-
Page 5: Getting Started
Getting Started Box Content • 1x Wireless Back-lit Bluetooth Keyboard • 1x Micro-USB charging cable • 1x User Manual • 1x Pouch Instructions Before you begin using your new keyboard, please use the micro-USB charging cable (included) to... - Page 6 Getting Started charge the keyboard for 1 - 4 hours or until the battery status light ( ) turns off. OFF/ON Power Switch The power switch for your device is located on the underside of the keyboard. When powering on, the status indicator ( ) will briefly turn blue, Status...
- Page 7 Getting Started Connect Bluetooth Connection • While the keyboard is powered on, press the connect button located on the underside of the keyboard to begin bluetooth pairing with your device. • After pressing the connect button, the blue keyboard status indicator light ( ) will begin Status to blink, and will continue to do so until pairing...
- Page 8 • Once the scan is complete, the keyboard will appear on your screen as “SHARKK Keyboard”, select this option and input the displayed code on the keyboard then press enter to complete...
- Page 9 Getting Started Charging/Battery • The charging indicator light ( ) located on the underside of the keyboard will turn red when the keyboard is plugged in and charging. The charging indicator will turn off when the key- board is fully charged. •...
- Page 10 Getting Started keyboard will begin to blink. When blinking, please charge battery for no less than 2 hours. • Use the Micro-USB cable (included) to charge your keyboard by inserting the larger end of the cable into the USB port of a computer or power adapter.
-
Page 11: Sleep Mode
Getting Started Sleep Mode • To conserve energy and maximize battery life, the keyboard will automatically enter sleep mode if left on and unused for approx. 1 minute. • Simply press any key on the keyboard to reawaken. Note: The keyboard will also automatically enter sleep mode if it is turned on and there is no attempt made to pair it with a device. - Page 12 Getting Started Backlight • Press the backlight button ( ) to turn on. • Press the backlight button a second time to increase the level of backlighting. • Press a third time to turn off. • Press ( + ) or ( + ) to change backlight colors.
- Page 13 Product Overview OS Function Keys The keyboard contains a unique OS settings button for each of the three operating systems it supports. Note: because the keyboard supports multiple operating systems, it includes buttons that are nessecary for some but may not be nessecary for others, such as the cmd key for IOS and the Fn key for Windows.
- Page 14 Product Overview After pairing your device with the keyboard, press the OS button that matches the operating system of your device. IOS ( press IOS is the default keyboard setting. IOS does not currently support the “Insert” key. Virtual Keyboard Control Only available for use with IOS...
- Page 15 Product Overview Search Press to activate the search function of your device. Home Pressing this button will take you back to the home/main screen of your device. Brightness - Press to darken screen. Brightness + Press to increase the level of screen brightness.
- Page 16 Product Overview Cut (cmd + X) Press to cut text from screen and copy to clipboard. Copy (cmd + C) Press to copy selected text to clipboard. Paste (cmd + V) Press to paste clipboard contents. Copy All (cmd + A) Press to copy all text from screen to clipboard.
- Page 17 Product Overview Previous Track Press to skip to the previous media track. Play/Pause Press to play or pause the current track. Next Track Press to skip to next track. Mute Press to mute all media.
- Page 18 Product Overview Volume Down Press to lower media volume. Volume Up Press to raise media volume. Lock Press to lock the screen of your device. Switch Language Press to switch between languages on your device.
- Page 19 Product Overview Android ( press Note: Multi-media keys are intended for use with Samsung Android Tablets and may not work with other devices. Addi- tionally, Andorid does not support the “Insert” key. Home Press to go to the home/main screen of your device. Search Press to activate the search function of your device.
- Page 20 Product Overview Cut (control + X) Press to cut text from screen and copy to clipboard. Copy (control + C) Press to copy selected text to clipboard. Paste (control + V) Press to paste clipboard contents. Copy All (control + A) Press to copy all text from screen to clipboard.
- Page 21 Product Overview Previous Track Press to skip to the previous media track. Play/Pause Press to play or pause the current track. Next Track Press to skip to next track. Mute Press to mute all media.
- Page 22 Product Overview Volume Down Press to lower media volume. Volume Up Press to raise media volume. Lock Press to lock the screen of your device. Switch Language Press to switch between languages on your device.
- Page 23 Product Overview Windows ( press For a windows based OS please use the Fn key together with the function keys. Lock and Brightness function keys not supported. Launch Browser Press to device web-browser. Cut (control + X) Press to cut text from screen to clipboard. Copy (control + C) Press to copy selected text to clipboard...
- Page 24 Product Overview Paste (control + V) Press to paste clipboard contents. Copy All (control + A) Press to copy all text from screen. Previous Track Press to skip to the previous media track. Play/Pause Press to play or pause the current track.
- Page 25 Product Overview Next Track Press to skip to next track. Mute Press to mute all media. Volume Down Press to lower media volume. Volume Up Press to raise media volume.
-
Page 26: Specifications
Product Overview Switch Language Press to switch between languages. Search Press to activate the search function of your device. Specifications • Bluetooth 3.0 interface standard • Operating Distance of 33 feet • Modulation system: GFSK • Operation Voltage: 3.0-4.2V... - Page 27 Product Overview • Operating current: < 2.5mA • Standby Current: < 0.3mA • Sleeping Current: < 40uA • Charging Current: 200mA • Standby Time: 330 days • Charging Time: < 4 hours • Lithium Battery Capacity: 800mA • Uninterrupted Working Time: 180 days •...
- Page 28 Product Overview • Lithium Battery Specification: 3.8*27*74mm • Key Strength: 80±10g • Key life: 5 million strokes • Operating Temperature: -10 - +55 C • Backlight open Working Current: < 170mA • Backlight open Standby Time: 300 days • Backlight open Charging Time: < 4 hours •...
-
Page 29: Cleaning Instructions
Appendix Cleaning Instructions To clean your keyboard, lightly wet a soft cloth with either water, alcohol or an alcohol based dis- infectant and wipe gently. Caution • Keep away from sharp or damaging objects. • Do not place heavy objects on top of the keyboard. - Page 30 Appendix • Avoid exposure to microwave fields. • Keep away from oils, chemicals and other organ- ic liquid items. • Do not attempt to bend or distort the keyboard in any way. • When not in use for a prolonged period, it is recommended that the keyboard be powered off to lengthen the life of the battery.
-
Page 31: Troubleshooting
Appendix Troubleshooting • Make sure that the power switch is in the “on” position. • Make sure the keyboard is with range of your device (approx. 30 feet). • Make sure that the bluetooth setting on your mobile device is enabled, and that the keyboard is showing as “paired”. - Page 32 Appendix Satisfaction Guarantee As with all SHARKK products, the Backlit Blue- tooth Keyboard comes with our quality assurance and satisfaction guarantee. If you should expe- rience any issues with your keyboard, or if you simply have a question or inquiry, we invite you to contact our customer service department by email at support@sharkk.com, and we will do everything...
- Page 33 Appendix Warranty Your new SHARKK Keyboard is covered by a Limited Manufacturer’s Warranty. Details of the warranty are as follows: for a period of one (1) year from the date of retail purchase, SHARKK warrants that this product is free of any defects in manufacturing, materials and workman- ship.
- Page 34 By joining the SHARKK Facebook community you will be eligible for special promotions and give- aways, as well as being among the first to know...
-
Page 35: Thank You
Thank You Once again, thank you for choosing SHARKK for your electronic and accessory needs. We hope you enjoy your Backlit Bluetooth Keyboard, and we look forward to hearing from you again soon. - Page 36 .Sharkk. Support@sharkk.com All rights reserved © Sharkk...
