Husqvarna CT131 Instruction Manual

Husqvarna ride-on mower instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction manual
Please read these instructions care-
ful ly and make sure you understand
them before using this machine.
Anleitungshandbuch
Bitte lesen Sie diese Anleitungen sorg-
fältig durch und vergewissern Sie sich,
daß Sie diese verstehen, bevor Sie die
Maschine in Betrieb nehmen.
CT131
Manuel d'instructions
Merci de lire trés attentivement le man-
uel d'instructions. Assurez-vous d'avoir
tout compris avant d'utiliser ce tracteur.
Manual de las instrucciones
Por favor lea cuidadosamente y com-
prenda estas intrucciones antes de
usar esta maquina.
Manuale di istruzioni
Prima di utilizzare la macchina leggete
queste istruzioni con attenzione ed ac-
certatevi di averle comprese bene.
Instructieboekje
Lees deze instructies aandachtig en
zorg dat u ze begrijpt voordat u deze
ma chine gebruikt.

Advertisement

Table of Contents
loading

Related Manuals for Husqvarna CT131

Summary of Contents for Husqvarna CT131

  • Page 1 Bitte lesen Sie diese Anleitungen sorg- fältig durch und vergewissern Sie sich, daß Sie diese verstehen, bevor Sie die Maschine in Betrieb nehmen. CT131 Manuel d’instructions Merci de lire trés attentivement le man- uel d'instructions. Assurez-vous d'avoir tout compris avant d'utiliser ce tracteur.
  • Page 2 Safety rules. Sicherheitsvorschriften. Règles de sécurité. Assembly. Zusammenbau. Montage. Functional description. Funktionsbeschreibung. Description du fonctionnement. Before starting. Maßnahmen vor dem Anlassen. Avant de démarrer. Driving. Betrieb. Conduite. Maintenance, adjustment. Wartung (Instandhaltung), Einstellung. Manutenzione. Entretien, réglages. Troubleshooting. Störungssuche. Recherche des pannes. Storage.

  • Page 3: Safety Rules

    Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I. TRAINING • Read the instructions carefully. Be familiar with the con- trols and the proper use of the equipment.
  • Page 4 • Stop the engine and disengage drive to attachment - before refueling; - before removing the grass catcher; - before making height adjustment unless ad just ment can be made from the op er a tor’s position. • Reduce the throttle setting during engine run-out and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.
  • Page 5 Regeln für die sichere Bedienung von Rasentraktoren WICHTIG: DIESE MÄHMASCHINE KANN HÄNDE UND FÜSSE ABTRENNEN UND GEGENSTÄNDE MIT HOHER GESCHWINDIGKEIT SCHLEUDERN. NICHTBEACHTUNG DER FOLGENDEN SICHERHEITSVORSCHRIFTEN KÖNNTE SCHWERE ODER TÖDLICHE VERLETZUNGEN ZUR FOLGE HABEN. I. SCHULUNG • Die Anleitungen sorgfältig durchlesen. Mit den Bedien- ungselementen und der vorschriftsmäßigen Bedienung der Maschine vertraut machen.
  • Page 6 • Vor dem Verlassen der Bedienungsstation: - Die Zapfwelle abstellen und alle Anbaugeräte absen- ken. - In Leerlauf schalten und die Feststellbremse einle- gen. - Den Motor abstellen und den Zündschlüssel abzie- hen. • Alle Anbaugeräte-Antriebe ausschalten, den Motor abstel- len und das (die) Zündkerzenkabel abziehen bzw.
  • Page 7 Conseils pour l’utilisation en toute sécurité des tracteurs de pelouse ATTENTION: CE TRACTEUR DE PELOUSE EST CAPABLE D’AMPUTER MAINS OU PIEDS ET DE PROJETER DES OBJETS. L ’INOBSERVATION DES RÈGLES DE SÉCURITÉ CI-DESSOUS PEUT ÊTRE LA CAUSE DE BLESSURES SÉRIEUSES VOIRE MORTELLES.
  • Page 8 • Débrayer les lames, arrêter le moteur, et débrancher le (s) fil (s) de (s) bougie (s) d’allumage ou retirer la clef de contact : - avant de retirer l’insert broyeur ou avant de retirer la goulotte d’éjection pour la nettoyer. - avant de contrôler, nettoyer ou travailler sur le carter de coupe, - avant de retirer un objet coincé...
  • Page 9 Prácticas de Operación Seguras para las Segadoras Conducibles IMPORTANTE: ESTA MAQUINA CORTADORA ES CAPAZ DE AMPUTAR LAS MANOS Y LOS PIES Y DE LANZAR OBJETOS. SI NO SE OBSERVAN LAS INSTRUCCIONES DE SEGURIDAD SIGUIENTES SE PUEDEN PRODUCIR LESIONES GRAVES O LA MUERTE. I.
  • Page 10 • Antes de dejar la posición del operador: - desenganche la fuerza motriz y baje los acceso- rios; - cambie a neutro y enganche el freno de estaciona- miento; - pare el motor y remueva la llave. • Desenganche la transmisión a los accesorios, pare el mo- tor, y desconecte el (los) cable (s) de la bujía o remueva la llave de ignición - antes de limpiar bloqueos o desatrancar del con-...
  • Page 11 Regole di sicurezza per trattorini da prato ATTENZIONE: QUESTO TRATTORINO TOSAERBA HA UNA POTENZA SUFFICIENTE AD AMPUTARE MANI E PIEDI E A SCAGLIARE OGGETTI. LA MANCATA OSSERVANZA DELLE SEGUENTI ISTRUZIONI ANTINFORTUNISTICHE POTREBBE CAUSARE LESIONI GRAVI E PERSINO IL DECESSO DELLA VITTIMA. I.
  • Page 12 • Disinnestare la trasmissione del moto agli accessori, spegnere il motore e scollegare i fili delle candele oppure togliere la chiavetta di accensione: - prima di pulire eventuali intasamenti e pri ma di stasare lo scivolo; - prima di interventi o controlli sul tosaerba e prima delle operazioni di pulizia;...
  • Page 13 Veilige bedieningsmethoden voor zittrekkers BELANGRIJK: DEZE MAAIMACHINE KAN HANDEN EN VOETEN AMPUTEREN EN VOORWERPEN WEGSLINGEREN. HET NIET OPVOLGEN VAN DEZE VEILIGHEIDSINSTRUCTIES KAN ERNSTIG OF DODELIJK LETSEL TOT GEVOLG HEBBEN. I. TRAINING • Lees de instructies aandachtig. Zorg dat u vertrouwd bent met de bedieningselementen en het juiste gebruik van de machine.
  • Page 14 ISO 3744 ISO 11094 Vibration Vibration Vibración SERIAL NO. Vibrering Vibrasjon As rated by the engine manufacturer 02682 CT131 12,5/9,2 0-6,7 38-102 98/37/EC LpA < 90 dBa LpA < 90 dBa 2002/44/EC LwA < 100 dBa LwA < 100 dBa EN 1033 A (8) ≤...
  • Page 15 These symbols may appear on your machine or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole finden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut. Ces symboles peuvent figurer sur tracteur ou dans les publications fournies avec le produit.
  • Page 16 These symbols may appear on your machine or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole finden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut. Ces symboles peuvent se montrer sur votre machine ou dans les publications fournies avec le produit.
  • Page 17 01738 GEFAHR AUGEN SCHÜTZEN EXPLOSIVE GASE KÖNNEN ERBLINDUNG UND KÖRPERVERLET- ZUNGEN VERURSAC- HEN. GEVAAR OGEN BESCHERMEN EXPLOSIEVE GASSEN KUNNEN BLINDHEID OF LETSEL VERO- ORZAKEN. PELIGRO PROTEJE SUS OJOS GASES EXPLOSIVOS PUEDEN CAUSAR CEGUE-DAD O LESIO- NES. PERICOLO RIPARARE GLI OCCHI VAPORI ESPLOSIVI PUO’...
  • Page 18 2. Assembly. 2. Zusammenbau. 2. Montage. 2. Montaje 2. Montaggio. 2. Montering. Before the tractor can be used certain parts must be as- sem bled, which for transportation reasons are enclosed in the packing. Vor der Anwendung des Aufsitzmähers müssen gewisse Teile eingebaut werden, die aus Transportgründen in der Verpack-ung lose beigefügt sind.
  • Page 19 VOLANTE DE DIRECCIÓN • Introduzca el eje de extensión (1). Apriete en forma segura. • Montar la cubierta del eje del volant. Assegurarse de que las espigas de guía de la cubierta encajan en los orificios respectivos. • Remueva el adaptador del volante y deslice el adaptador sobre la extensión del eje de dirección.
  • Page 20 Seat Remove the hardware securing seat to the cardboard pack ing and set the hardware aside for assembly of seat to tractor. Pivot seat upward and remove from cardboard packing. Remove the cardboard packing and discard. Place seat on seat pan so head of shoulder bolt is positioned over large slotted hole in pan (1).
  • Page 21 1. Battery Cover 1. Tapador del acumulador 2. Cable Positive (+) 2. Cable positivo (+) 3. Cable Negative (-) 3. Cable negativo (-) 4. Fender 4. Protección 5. Battery terminal 5. Terminal de batería 6. Battery 6. Batería 1. Batterieabdeckung 1.
  • Page 22 WARNING: Positive terminal must be con nect ed first to prevent sparks from ac ci den tal grounding. Remove terminal caps and discard. Connect the red cable to + and then the black earth ca ble to -. Screw tight the cables.
  • Page 23 To install bagger com po nents to tractor 1. Dis charge chute 2. 3/8 nut 3. Flat washer • Remove discharge chute from rear of tractor. Unhook the two (2) straps and pull chute out and away from tractor. • Remove the two (2) 3/8 nuts and flat washers from the bolts at the tractor back plate.
  • Page 24 1. Front bagger tube 2. Vinyl binding 3. Spreader bars 4. Retainer spring 5. Vinyl binding 6. Dump handle tube 7. Clevis pin 10 x 44 mm 8. Retainer spring 9. Cap 1. Top surfaces even 2. Horizontal adjustment brack et 3.
  • Page 25 Installation der Aufhängung der Grasfangbox des Traktors 1. Auswurfkanal 2. Kontermutter 3/8 3. Flache unterlegscheibe • Nehmen Sie den Auswurfkanal aus dem hinteren Teil des Traktors. Lösen Sie beide (2) Klammern und ziehen Sie den Kanal aus dem Traktor. • Entfernen Sie die zwei (2) 3/8-Zoll-Muttern und flachen Unterlegscheiben von den Schrauben an der hinteren Platte des Traktors.
  • Page 26 Vorderer Rahmen der Grasfangbox Vinylverkleidung Spreizstäbe Splintstift Vinylverkleidung Rohr des Handgriffs zum Entleeren der Grasfangbox Fixierfeder 10 x 44mm Splintstift Kappe Ausgleichende Oberfläche Höhenjustierung Seitenjustierung Baggerklinke • • • • • HINWEIS: Der Splintstift kann entfernt werden, um den Handgriff zur Reinigung des Auswurfkanals zu verwenden, sollte dieser verstopft sein Um die einwandfreie Funktion der Grasfangbox zu gewährleisten, ist es notwendig, daß...
  • Page 27 Assemblage des composants du collecteur 1. Goulotte d'éjection 2. Ecrou 3/8 3. Rondelle plate • Retirer la goulotte d'éjection (1). Pour cela, libérer les deux attaches élastiques à l'arrière du tracteur et tirer la goulotte d'éjection hors du tracteur. • Dévisser et retirer les deux écrous ainsi que les deux rondelles plates des vis situées sur le panneau arrière du tracteur (Voir figure).
  • Page 28 Armature frontale Bande d’étanchéité en vinyle Entretoises Epingle Bande d’étanchéité en vinyle Levier de vidage du col- lecteur Cheville de fixation 10 x 44mm Epingle Chapeau Le capotage du collecteur doit être aligné sur le capotage des ailes arrières du tracteur Crochet réglable pour la fixation du collecteur Etrier de réglage de la...
  • Page 29 Para montar los componentes del contenedor para costales al tractor 1. Descarga de adaptarse 2. Tuercas de 3/8 3. Arandelas planas • Quite el colector de la parte trasera del tractor. Desbloquee las dos (2) grapas y tire el colector fuera del tractor. •...
  • Page 30 Tubos frontales del contenedor Capas de vinil Barras extendedoras Clavija hendida Capas de vinil Tubo de la manilla Resorte fijador 10 x 44mm Clavija hendida Tapón Superficies superiores Soporte de ajuste hor i zon tal Soporte de ajuste vertical Gancho del saco •...
  • Page 31 Per montare i componenti del cesto di raccolta 1. Convogliatore di scarico 2. Dadi 3/8 3. Rondella Piatta • Rimuovere il convogliatore dalla parte posteriore del trattore. Allentare le due graffe, sganciare ed estrarre il convogliatore. • Rimuovere i due (2) dadi da 3/8 e le rondelle piatte dai bulloni sulla piastra posteriore del trattore.
  • Page 32 1. Piastrina d'arresto dell'asta di scarico 2. Rivestimento in plastica 3. Barre distanziatrici 4. Coppiglia 5. Rivestimento in plastica 6. Asta di scarico 7. Perno di fissaggio 10 x 44mm 8. Coppiglia 9. Tappo 1. Controllare che la superficie sia allineata 6MM (1/4") - 9MM (3/8") 2.
  • Page 33 Hetmonteren van componenten van de grascontainer op de trekker 1. Afvoertrechter 2. 3/8 borgmoer 3. Vlakke sluitring • Verwijder de afvoertrechter van de achterzijde van de trek ker. Haak de twee (2) riemen los en trek de trechter van de trekker af. •...
  • Page 34 1. Voorstenn 2. Vinylafdichting 3. Spreiders 4. Sluitveer 5. Vinylafdichting 6. Hendel voor legen 7. Vorkbout 10 x 44mm 8. Sluitveer 9. Hetten 6MM (1/4") - 9MM (3/8") 1. Bovenoppervlakten gelyk 2. Horizontale bijstellingsbeugel 3. Verticale bijstellingsbeugel 4. Vergrendeling zakkenvuller De grascontainer monteren •...
  • Page 35 To assemble and install mulcher plug • Remove spring retainer and pin from handle. • Insert plug into handle. Make sure that the letter "A" on both the plug and handle are on the same side and that they can both be seen from the top when laying on the ground.
  • Page 36 TO ADJUST GAUGE WHEELS Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain con di tions. •...
  • Page 37 3. Functional description. 3. Funktionsbeschreibung. 3. Description du fonctionnement. 3. Descripción del funcionamiento. 3. Funzionamento. 3. Beschrijving van functies Positioning of controls 1. Light Switch . 2. Throttle control. 3. Brake and clutch pedal. 4. Gear shift lever. 5. Connection/disconnection of the cutting unit. 6.
  • Page 38 Emplacement des commandes 1. Interrupteur de commande des phares 2. Commande des gaz (Accélérateur) 3. Pédale d'embrayage et de frein 4. Levier de commande de la boîte de vitesses 5. Embrayage/débrayage du carter de coupe 6. Relevage et abaissement du carter de coupe 7.
  • Page 39 1. Light switch 1. Lichtschalter 1. Interrupteur des phares 1. Interruptor de alumbrado 1. Interruttore luci 1. Schakelaar verlichting 2. Throttle control The throttle control regulates the engine revs and thus the rotation speed of the blades. = Full speed = Idling speed 2.
  • Page 40 3. Brake and clutch pedal When the pedal is pushed down the brake is applied and the motor is disengaged. 3. Brems- und Kupplungspedal Beim Vorwärtsdrücken des Pedals wird das Fahrzeug abge- bremst. Gleichzeitig wird der Motor ausgekuppelt und das Fahrzeug rollt aus.
  • Page 41 4. Gear shift lever The gear box has positions forward, neutral and re verse. Gear changing can take place from neutral to top gear with- out stopping in each gear position. Disengage the motor at each gear position! Start can take place irrespective of the gear lever position.
  • Page 42 01842 5. Connection/disconnection of the cutting unit Move the lever forward to connect the drive to the cutting unit, whereby the drive belt is tensioned and the blades begin to rotate. If the lever is moved backwards the drive will be disconnected and the rotation of the blades slowed down by the action of the brake shoes on the pulley.

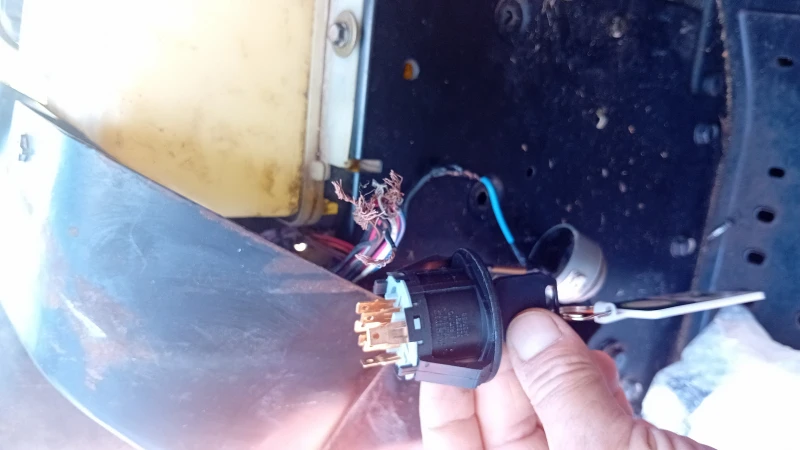

  • Page 43 7. Ignition Lock There are three different positions for the ignition key: All electric current bro ken. ROS ON Reverse Operation System (ROS) connected Electric current connected. START Start motor connected. Reverse Operation System (ROS) - Allows operation of mower deck or other powered attachment while in reverse (See section 5 - "Driving") WARNING! Never leave the key in the ignition lock when leaving the...
  • Page 44 8. Parking brake Connect the parking brake in the following way: 1. Press down the brake pedal to bottom position. 2. Move the parking brake lever upwards and hold in this position. 3. Release the brake pedal. To release the parking brake all that is nec es sary is to push down the brake pedal.
  • Page 45 9. Cutting height setting The required cutting height is set with the aid of the wheel. The cutting height is increased when it is turned clockwise. The wheel is easier to turn if the lever for lifting/lowering of the cutting unit is pulled backwards at the same time. 9.
  • Page 46 4. Before starting. 4. Maßnah men vor dem Anlassen. 4. Avant de démarrer. 4. Antes del arranque. 4. Prima dell’avviamento. Filling up The en gine should be run of pure (not oil mixed) un lead ed petrol. Do not fill beyond the lower edge of the filling hole. Do not fill over max level.
  • Page 47 Oil level The combined oil refilling cap and the oil stick is ac ces si ble when the bonnet is lifted for wards. The oil level in the engine should be checked before each run. Make sure that the tractor is ho ri zon tal.
  • Page 48 5. Driving. 5. Betrieb. 5. Conduite. 5. Conducción. 01842 5. Guida. 5. Rijden. Starting of motor Make sure that the cutting unit is in the transport position (top position) and that the lever for connection/disconnection of the cutting unit is in the disconnection position. Anlassen des Motors Darauf achten, daß...
  • Page 49 Pull out the choke control (if engine is cold). Den Kaltstarthebel herausziehen (nur bei kaltem Motor). Si le moteur est froid : Tirer la commande de starter. Extraer el estrangulador (únicamente si el motor está frío). Estrarre il comando dello choke (in caso di partenza a freddo). Trek de choke uit (geldt alleen indien de motor koud is).
  • Page 50 Turn the ignition key to “START position”. NOTE! Do not run the start motor more than 5 sec onds at once. If the engine will not start, wait about 10 sec onds before the next try. Zündschlüssel auf “START” drehen. HINWEIS! Den Anlasser nicht jeweils länger als ca.
  • Page 51 NOTE! The machine is equipped with a safety switch which immediately breaks the current to the en gine if the driver leaves the seat with en gine run ning and with the con- nec tion/dis con nec tion le ver in position “connection”.Your machine is also equipped with a system that will not allow mower to operate if the bagger or op tion al rear discharge deflector is not installed properly.
  • Page 52 ROS "ON" ROS "AN" ROS "ON" ROS "ON" ROS "ON" ROS "ON" Reverse Operation System (ROS) Your tractor is equipped with a Reverse Operation System (ROS). Any attempt by the operator to travel in the reverse direction with the attachment clutch engaged will shut off the engine unless ignition key is placed in the ROS "ON"...
  • Page 53 Sistema per operazioni in retromarcia (ROS) Il Vostro trattore possiede un Sistema per operazioni in re- tromarcia (ROS). Qualsiasi tentativo da parte dell’operatore di guidare nella direzione opposta con la frizione abbassata comporterà lo spegnimento del motore se la chiave di accen- sione non è...
  • Page 54 Cutting tips • Clear the lawn from stones and other objects which can be thrown away by the blades. • Localize and mark stones and other fixed objects to avoid collision. • Begin with a high cutting height and reduce until the required cutting result is obtained.
  • Page 55 Consejos para el corte • Limpie el césped de piedras y otros objetos que puedan ser proyectados por las cuchillas. • Localice y marque piedras y otros objetos a fin de evitar el choque con ellos. • Empiece con una altura de corte alta y vaya disminuyé- ndola hasta alcanzar el resultado deseado.
  • Page 56 02207 To Dump Bagger Your tractor is equipped with a Dump Bag Alarm. To turn off the alarm disengage the attachment clutch switch. • Position tractor in location you wish to dump bagger. • Place motion control lever in Neutral position and set parking brake.
  • Page 57 To convert mower (Converting to mulching or rear discharging will re quire the purchase of these ac ces so ries.) To mulching • Place deck into the high cut position. • Remove bagger or optional rear discharge deflector. • Unhook the two (2) straps and remove discharge chute.
  • Page 58 Para cambiar el ajuste de la segadora (Un cambio de ajuste para no recoger la hierba o usarla tipo mulching requiere la compra de los mecanismosdispositivos siguientes) Para cortar tipo mulching • Meta la plataforma en posicion de siega alta •...
  • Page 59 WARNING! • Do not drive in terrain at an angle of more than max. 5°. The risk for roll-over back wards is large. • In steep terrain the risk for tipping is considerable. • Avoid stopping and starting in sloping terrain. WARNUNG! •...
  • Page 60 WARNING! Do not leave the ignition key in the machine when not in use to prevent children and other unauthorized persons starting the en gine. WARNUNG! Den Zündschlüssel niemals im Zündschloß sitzen lassen, wenn die Machine unbeaufsichtigt verlassen wird, damit nicht Kinder und unbefugte Personen den Motor anlassen können.
  • Page 61 6. Maintenance, adjustment. 6. Wartung (Instandhaltung), Einstel- lung. 6. Entretien, réglages. 6. Mantenimiento, ajuste. 6. Manutenzione. 6. Onderhoud, afstelling. WARNING! Before servicing the engine or cutting unit the fol low ing shall be carried out: • Press down the clutch/brake pedal and engage the parking brake lever.
  • Page 62 01536 (1) Hood (2) Headlight wire connector (1) Motorhaube (2) Scheinwerferanschluß (1) Capot (2) Connexion des phares (1) Cubierta (2) Conector de cables de los faros delanteros (1) Cofano (2) Connettore cavo luci (1) Motorkap (2) Aansluitkabel koplampen Engine hood •...
  • Page 63 Maintenance NOTE: Periodic maintenance should be performed on a regular basis in order to keep your tractor in good running condition. WARNING: Disconnect spark plug wire to prevent ac ci - den tal starting before attempting any repair, inspection, or main te nance.
  • Page 64 To service engine See engine manual. Oil drain valve • Remove cap and install drain tube. • To open valve, push in slightly, turn counterclockwise and pull out. • To close valve, push in and turn clockwise. • Remove drain tube and install cap. 1.
  • Page 65 SERVICE RECORD Fill in dates as you complete regular service Change engine oil (without oil filter) ... Change engine oil (with oil filter) ... Lubricate pivot points ... Check brake operation ... Clean air screen ... Clean air filter and pre-cleaner ... Replace air cleaner paper cartridge ...
  • Page 66 SCHEMA D'ENTRETIEN Consigner les dates d'intervention après chaque opération d'entretien. Vidange de l'huile moteur (sans filtre à huile Vidange de l'huile moteur (avec filtre à huile) ... Graissage des articulations ... Vérification des freins ... Nettoyage de la grille d'aération ... Nettoyage du filtre à...
  • Page 67 DATI DI SERVIZIO Compilare ogni qualvolta si esegue un regolare servizio Cambio dell'olio (Senza filtro dell’olio)... Cambio dell'olio (Con filtro dell’olio) ... Lubrificazione punti di articolazione ... Controllo freni ... Pulizia schermo aria ... Pulizia filtro aria e prefiltro ... Sostituzione depuratore aria ...
  • Page 68 Operator Presence System and Reverse Opera- tion System (ROS) Be sure operator presence and reverse operation sys tems are work ing properly. If your tractor does not function as described, repair the problem immediately. • The engine should not start unless the brake pedal is fully de pressed, and the attachment clutch con trol is in the dis en gaged position.
  • Page 69 Sistema de Presencia Operador y Sistema de Funcionamiento Atrás (ROS) Asegurarse de que los sistemas de presencia operador y funcionamiento atrás funcionen adecuadamente. Si tu trac- tor no funciona como descrito, hay que reparar el problema inmediatamente. • El motor no tiene que arrancar hasta que le pedal del freno no esté...
  • Page 70 Blades The blades should be sharp to achieve best cutting results. Sharpening can be carried out with a file or grinding disc. NOTE: It is very important that both blades are sharpened equally to avoid imbalance. Messerbalken Für ein gutes Mähergebnis müssen die messcrbalken scharf sein.
  • Page 71 1. Hex bolt right hand 5. 5 Star Center Hole thread ed. 6. 5 Star Pattern 2. Lock Washer 7. Trailing Edge 3. Flat Washer 8. Mandrel As sem bly 4. Blade 5. Fünfeckige Zentrier- 1. Sechskantschraube bohrung mit Rechtsgewinde 6.
  • Page 72 5. Orifico de centraje-es- 1. Tornillo de cabeza de trella de cinco puntas cinco facetas, dextro- giro 6. Mandril-estrella de cinco puntas 2. Arandela elastica 7. Canto(auxiliar corta- 3. Arandela plana dor) trasero 4. Filo cortador 8. Nudo del mandril 1.
  • Page 73 For best results mower blades must be kept sharp. Re place bent or damaged blades. BLADE REMOVAL • Raise mower to highest position to allow access to blades. • Remove hex bolt, lock washer and flat washer se cur ing blade.
  • Page 74 To Check Brake If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved sur- face, then brake must be serviced. You may also check brake by: 1.
  • Page 75 Dismantling of the cutting unit Work from the right side of the machine. 1. Take off the belt from the engine pulley (1). 2. Remove the two rear retainer springs (2) and knock off the axle taps with a hammer. Demontage des Mähdecks Arbeiten Sie auf der rechten Seite der Maschine.
  • Page 76 3. Remove the retainer springs (3), (4), (5) and axles. 4. Pull the lever for lifting/lowering the cutting unit back- wards. 5. Pull out the cutting unit from the machine. 3. Die Federklammern (3), (4), (5) und die jeweiligen Bolzen ausbauen.
  • Page 77 Replacement of drive belt for cutting unit 1. Dismantle the cutting unit as described previously. 2. Work off the belt from the unit's left pulley and then from the other wheels. 3. Pull the belt away from the cutting unit. 4.
  • Page 78 Adjustment of the cutting unit A. In the direction of travel 1. Check that the air pressure is correct in all four tires. 2. Make sure that the machine is on a horizontal surface. 3. Lift up the cutting unit to its highest position. 4.
  • Page 79 00598 “A” (1) Bottom edge of mower (2) Lift link adjustment nut (1) Unterkante des Mähwerks (2) Hubstangen-Stellmutter (1) Extrémités du carter de coupe (2) Ecrou de réglage du bras de suspension arrière (1) Parte inferior de la esquina de la segadora (2) Tuerca de ajuste del várillaje de levantamiento (1) Bordo inferiore del tagliaerba (2) Dado di regolazione dell'articolazione di sollevamento...
  • Page 80 Replacement of drive belt 1. Dismantle the cutting unit as described pre vi ous ly. 2. Dismantle the motion restrainer for the clutch (1). 3. Engage the parking brake and work off the belt upwards from the pulley (2), the clutch pul ley (3). 4.
  • Page 81 1. Gear Shift Lever 2. Neutral Lock Gate 3. Adjustment Bolt 1. Steuerknüppel 2. Verschlussperre in Leerlaufstellung 3. Einstellbolzen 1. Levier de changement de vitesse 2. Encoche de position neutre (point mort) 3. Vis de réglage TRANSAXLE GEAR SHIFT LEVER NEUTRAL AD JUST MENT The transaxle should be in neutral when the gear shift lever is in neutral (N) (lock gate) position.
  • Page 82 1. Palanca de Velocidades del Cambio mecÁnico 2. Neutro Cierre Metálico 3. Perno de Regulación 1. Leva del Cambio 2. Blocco In Posizione Folle 3. Bullone Di Regolazione 1. Versnellingshendel 2. Vrijloop-Sluitboomgrendel 3. Stelbout REGULACIÓN DE LA PALANCA DE VELOCID- ADES DEL CAMBIO MECÁNICO CON DIFEREN- CIAL Y TRACCIÓN AN TE RI OR El cambio mecánico con diferencial y tracción anterior tiene...
  • Page 83 7. Troubleshooting 7. Störungssuche. Engine will not start 1. No fuel in fuel tank. 2. Plug defective. 3. Plug connection defective. 4. Dirt in carburetor or fuel pipe. Start motor will not turn engine 1. Battery flat. 2. Poor contact between cable and battery pole. 3.
  • Page 84 7. Recherche des pannes. 7. Búsqueda de averías. Le moteur ne démarre pas 1. Manque de carburant dans le réservoir. 2. Bougie d'allumage défectueuse. 3. Le câblage de la bougie d'allumage défectueux. 4. Il y a des impuretés dans le carburateur ou dans le circuit du carburant.
  • Page 85 7. Ricerca guasti. 7. Het localiseren van fouten. Il motore non parte 1. Manca il carburante. 2. Difetto di candela. 3. Collegamento della candela difettoso. 4. Sporco nel sistema di alimentazione e o nel carbura- tore. Il motorino di avviamento non fa girare il mo- tore 1.
  • Page 86 8. Storage. 8. Aufbewahrung. 8. Remisage. 8. Conservación. The following steps should be taken when mowing season is over: • Clean the entire machine, especially underneath the cutting unit cover. Do not use high pressure washer for cleaning. Water can enter engine and transmission and shorten the useful life of the machine.
  • Page 87 8. Rismessaggio. 8. Stallen. Al termine della stagione effettuare i seguenti inter- venti: • Pulire tutto il tagliaerba e particolarmente sotto il co per chio della falciatrice. Per le operazioni di pulizia, non utiliz- zare acqua ad alta pressione. L ’acqua può infiltrarsi nel motore e nel sistema di trasmissione, riducendo quindi così...
  • Page 88 532 41 55-73 Rev. 1 04.30.08 AP Printed in the U.S.A.
