Introduction

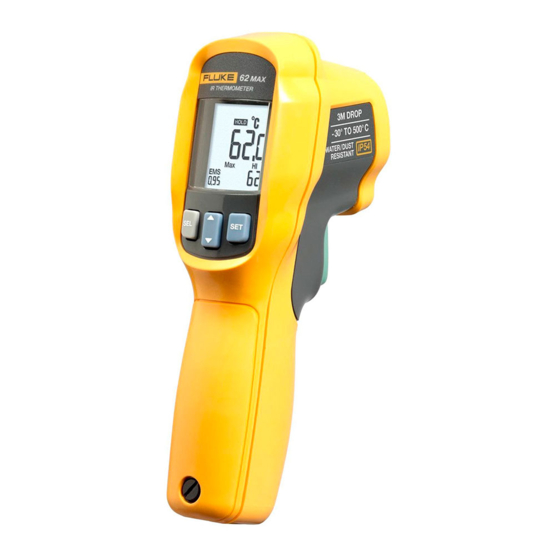

The Fluke 62 MAX and 62 MAX + Infrared Thermometers (the Product) can determine the surface temperature by
measurement of the infrared energy radiated from the target surface.
To prevent personal injury, read all safety information before you use the
Product.

Contact Fluke

To contact Fluke, call one of the following telephone numbers:
•
Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
•
Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
•
Canada: 1-800-36-FLUKE (1-800-363-5853)
•
Europe: +31 402-675-200
•
Japan: +81-03-6714-3114
•
Singapore: +65-6799-5566
•
Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
To download manuals, or to see, print, or download the latest manual supplement, visit
http://us.fluke.com/usen/support/manuals.
June 2013
©2013 Fluke Corporation. All rights reserved.
Note
Japanese models indicate Celsius only.
Warning
62 Max/62 Max +
Infrared Thermometer
Calibration Information
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 62 Max and is the answer not in the manual?

Questions and answers

Related Manuals for Fluke 62 Max

Summary of Contents for Fluke 62 Max

  • Page 1: Contact Fluke

    62 Max/62 Max + Infrared Thermometer Calibration Information Introduction The Fluke 62 MAX and 62 MAX + Infrared Thermometers (the Product) can determine the surface temperature by measurement of the infrared energy radiated from the target surface. Note Japanese models indicate Celsius only.

  • Page 2: Safety Information

    WEEE Directive Annex I, this See Manual. product is classed as category 9 "Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste. Go to Fluke’s website for recycling information.  ...

  • Page 3: Maintenance

    Infrared Thermometer Maintenance Maintenance Caution To prevent damage to the Product, do not leave the Product on or near objects of high temperature. Clean the Product Use soap and water on a damp sponge or soft cloth to clean the Product case. Carefully wipe the lens surface with a moist cotton swab.

  • Page 4: Change The Battery

    62 Max/62 Max + Calibration Information Change the Battery To install or change the AA IEC LR06 battery, use a flat-head screwdriver to remove the battery compartment door. Replace the battery as shown in Figure 2. Be sure to observe the correct polarity.

  • Page 5: Specifications

    Infrared Thermometer Specifications Specifications 62 MAX 62 MAX + -30 °C to 500 °C -30 °C to 650 °C Temperature Range (-22 °F to 932 °F) (-22 °F to 1202 °F) ≥0 °C: ±1.5 °C or ±1.5 % of reading, ≥0 °C: ±1 °C or ±1 % of reading,...

  • Page 6: Performance Verification Tests

    Product specifications. If the Product fails any part of the test, calibration adjustment and/or repair is necessary. Product calibration can only be adjusted at the Fluke factory. To return your Product for calibration adjustment, call one of the numbers in the “Contact Fluke” section of this document.

  • Page 7: Performance Verification Test Procedures

    4180 Blackbody. Although the purge box is recommended, it is optional. If temperature measurements are made without a purge box, refer to the 4180 User Manual for how to make proper temperature measurements below ambient. See Figure 3. hiy003.eps Figure 3. Aim the 62 Max + for Verification...

  • Page 8: Blackbody Layout

    2. Position the UUT at the correct the distance from the blackbody listed in Table 3. Center the UUT laser(s) on the blackbody emitter plate. For the 62 MAX +, make sure that the midpoint of the two laser spots is centered on the blackbody plate.

  • Page 9: User-Replaceable Parts

    LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for three years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
  • Page 10 62 Max/62 Max + Calibration Information...
