InvaMed Sovereign S888NR User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Model S888NR
&
Model S889NR

USER MANUAL

Please ensure this manual is read and understood
before using the scooter.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sovereign S888NR and is the answer not in the manual?

Questions and answers

Related Manuals for InvaMed Sovereign S888NR

Summary of Contents for InvaMed Sovereign S888NR

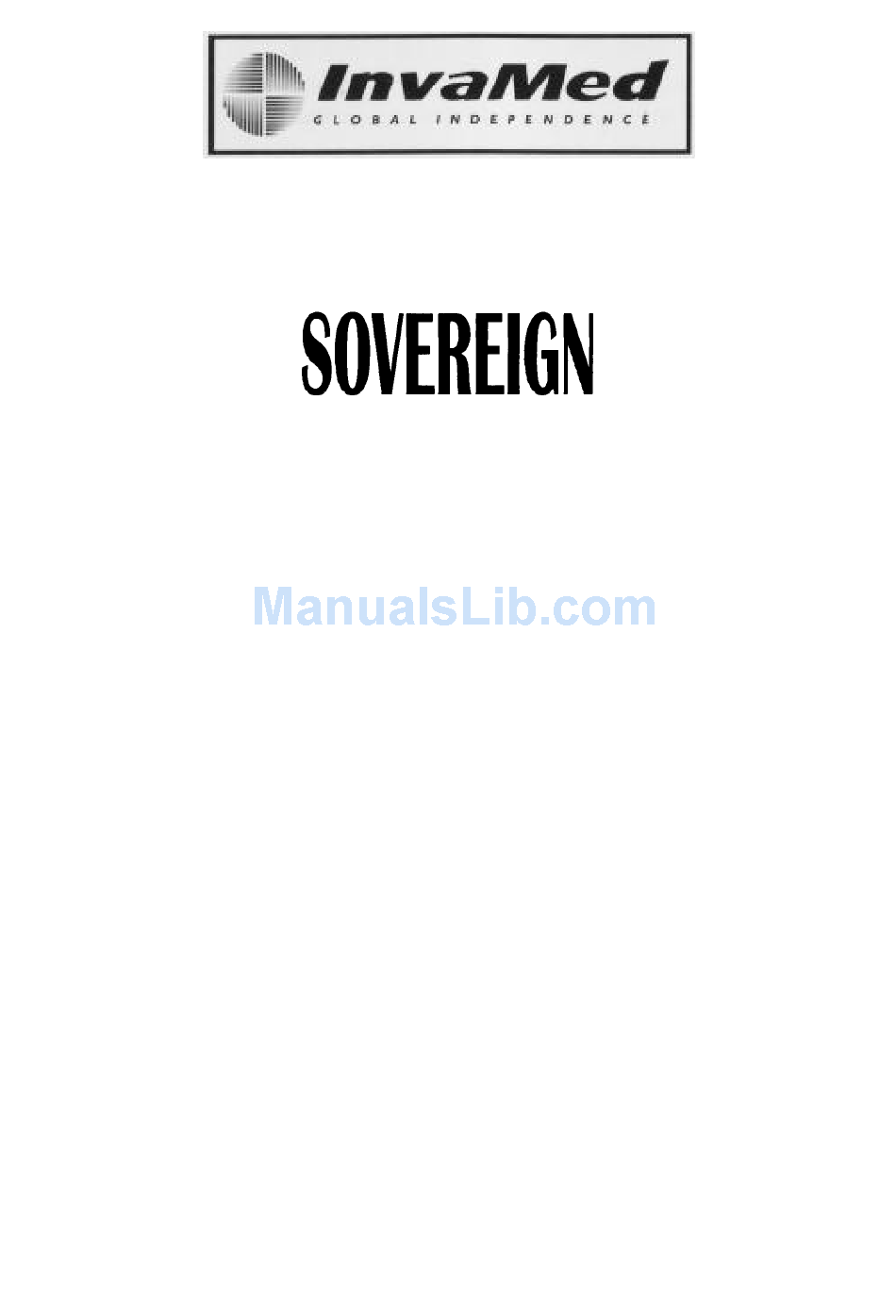

  • Page 1: User Manual

    Model S888NR & Model S889NR USER MANUAL Please ensure this manual is read and understood before using the scooter.

  • Page 2: Table Of Contents

    CONTENTS Introduction Feature Guide Safety Advice Adjustments Tiller angle Seat slide Seat swivel Armrest width Armrest angle Seat height Tiller Controls Speed Controls Battery Level Indicator Lights Front Lights Rear Horn Thumb Lever Controls On/Off Key Switch Freewheel Operation Starting To Drive Getting Started Moving Off Steering...

  • Page 3: Introduction

    INTRODUCTION Congratulations on your purchase of the Invamed Sovereign Scooter. This scooter incorporates comfort and style with the latest in technology. The Sovereign Scooter is compact for easy use in confined spaces both indoors and out. Direct drive sealed transaxles and electromagnetic brakes give a safe and efficient ride.

  • Page 4: Safety Advice

    • Consult your doctor if there is any doubt about your ability to use a scooter. • Always proceed carefully when traveling over rough or uneven ground. Invamed are not responsible for damage or injury incurred due to improper or misuse of their scooters.

  • Page 5: Seat Slide

    Seat Slide adjustment (Fig. 3) Pulling up on the lever allows the seat position to be adjusted forward or backward. Release the lever and the seat will lock in that position. Seat Swivel Adjustment (Fig. 3) Under the right side of the seat there is a spring loaded red lever.

  • Page 6: Tiller Controls

    SCOOTER TILLER CONTROLS (Fig. 7) Speed control The speed control allows you to set a speed between 1 (minimum) and 10 (maximum). Battery Level Indicator The number of LED bars lit shows the amount of charge left in your batteries. The amount of charge will only show at its true level when the scooter is in drive.

  • Page 7: On/Off Key Switch

    On/Off Key Switch (Fig. 6) Insert the key in the right side of the tiller control. Turn the key and the LED bars will light up. There is a delay before the thumb lever control can be operated, while the controller is checking the circuits.

  • Page 8: Starting To Drive

    STARTING TO DRIVE YOUR SCOOTER Getting started Select a level area with plenty of space. Mount the scooter, either by lifting the arm and sliding on to the seat or rotate the seat outwards and then rotate the seat back to face the tiller. Adjust the tiller and seat as described previously.

  • Page 9: Dismantling

    EXTRA GUIDE LINES IN THE CONTROL OF YOUR SCOOTER Ramps The stability of your scooter is governed by several factors such as the seating position, the angle of the slope and your height and weight. When approaching an incline, do so directly and not at an angle and where ever possible avoid making turns.

  • Page 10: Re-Assembly

    BATTERIES AND BATTERY CHARGER The INVAMED SOVEREIGN Scooter is supplied with 2 maintenance free, gel type 30 A/h sealed lead acid batteries. Battery performance can be affected by temperature, terrain and the weight of the user etc. The battery level indicator is only a guide and is most effective when the scooter is moving, only then is the true discharge level displayed.
  • Page 11 Indicator Switch Operates indicators left or right. Hazard Warning Switch Operates all indicator flashers. Electromagnetic Brake The brake is automatically operated when the control levers are released. There is a slight delay when the scooter decelerates, this allows the scooter to come to a smooth stop. FREE WHEEL OPERATION (Fig.

  • Page 12: Getting Started

    STARTING TO DRIVE YOUR SCOOTER Getting started Select a level area with plenty of space. Mount the scooter, either by lifting the arm and sliding on to the seat or rotate the seat outwards and then rotate the seat back to face the tiller. Adjust the tiller and seat as described previously.

  • Page 13: Maintenance

    MAINTENANCE Lubrication At six monthly interval you should lubricate the following parts with a light oil or a similar lubricant. Seat pivot post. Seat release lever pinion. Wheel bearings. Axle of scooter. The transaxle/gear box are sealed units and do not need lubricating. In the event of any difficulties please consult your dealer.

  • Page 14: Warranty

    WARRANTY The INVAMED PEREZ Scooter is guaranteed for one year from date of purchase. The warranty is not transferable. The guarantee excludes tyres and all items that have been subject to undue wear and tear or misuse. Changes or modifications undertaken without the written authority of InvamedfRMA will invalidate the warranty.

This manual is also suitable for:

Sovereign s889nr
