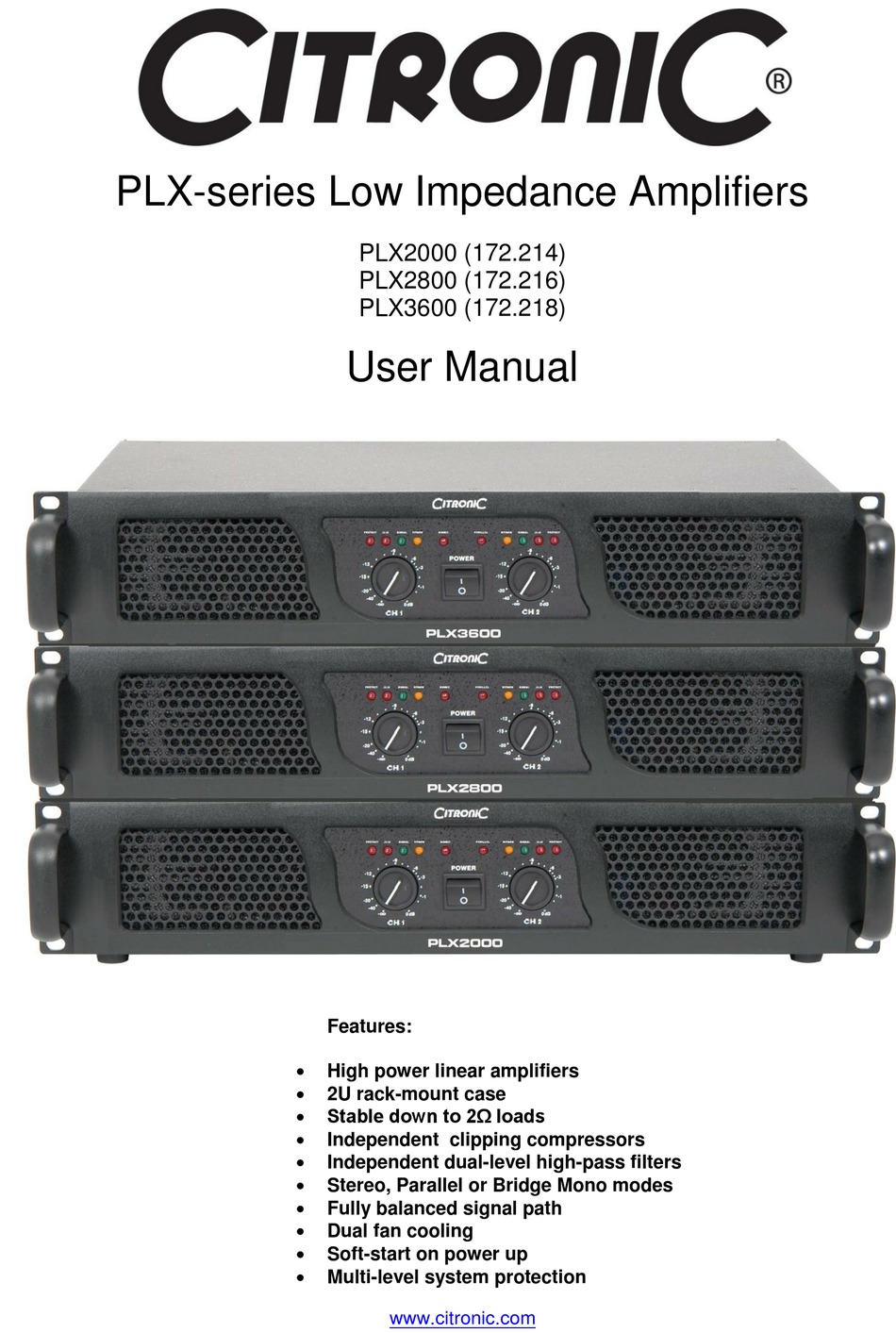

PLX-series Low Impedance Amplifiers
PLX2000 (172.214)
PLX2800 (172.216)
PLX3600 (172.218)
User Manual
Features:
High power linear amplifiers
2U rack-mount case
Stable down to 2Ω loads
Independent clipping compressors
Independent dual-level high-pass filters
Stereo, Parallel or Bridge Mono modes
Fully balanced signal path
Dual fan cooling
Soft-start on power up
Multi-level system protection
www.citronic.com
Advertisement
Table of Contents
Related Manuals for Citronic PLX2000
Summary of Contents for Citronic PLX2000
-
Page 1: User Manual
PLX-series Low Impedance Amplifiers PLX2000 (172.214) PLX2800 (172.216) PLX3600 (172.218) User Manual Features: High power linear amplifiers 2U rack-mount case Stable down to 2Ω loads Independent clipping compressors Independent dual-level high-pass filters Stereo, Parallel or Bridge Mono modes ... - Page 2 Introduction: Thank you for choosing this Citronic PLX amplifier. This product has been designed to exacting standards to provide accurate, immediate high power on demand whilst remaining very lightweight and compact for easy portability. The class H architecture and innate protection circuitry are designed to provide reliable service for many years.
- Page 3 Rear Panel 12. Cooling vent 18. PARALLEL/STEREO/BRIDGE mode switch 13. Parallel Signal Outs 19. Speaker outputs OUT 1 & OUT 2 14. Signal Inputs 20. 4mm binding post speaker outputs 15. GROUND LIFT switch 21. IEC mains inlet 16. Clipping COMPRESS switch 22.
- Page 4 Increase input level from audio source Output is working but at very low level Turn up CH1 and CH2 level controls Switch SENSITIVITY at rear to a lower voltage Note: for further troubleshooting, refer equipment to qualified service personnel for testing © Citronic 2011...
