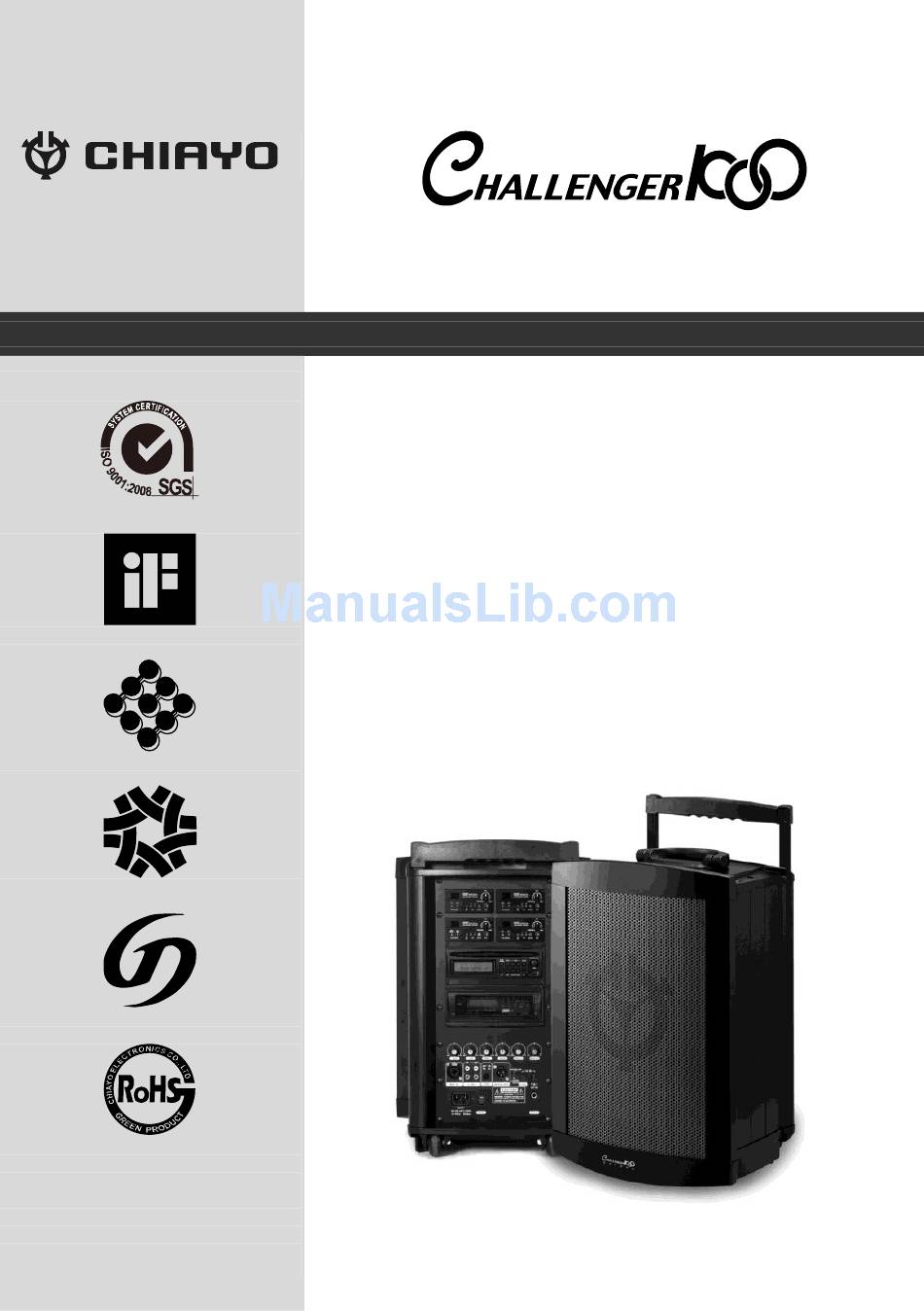

    Modulized Wireless Portable Amplifier System Operation manual ISO 9001:2008 IF DESIGN AWARD HKEIA AWARD TAIWAN EXCELLENCE TAIWAN GOOD DESIGN GREEN PRODUCT IC: 3563A-CHALLENGER I C : 3 5 6 3 A - S Q 5 0 1 6 I C : 3 5 6 3 A - S M 5 0 1 6...
  • Page 2 CHALLENGER 1000 (Master) A,B&D. Slot for receiver/MP3/Bluetooth module C. Slot for receiver/transmitter/MP3/Bluetooth module E. Slot for CD player/DVD player F. Slot for Digital recorder player 1. Wired microphone volume control 2. Line-in volume control 3. Tape/DVD power+volume control 4. Tone volume control (BASS) 5.
  • Page 3 ISO 9001 / ISO 14001 / OHSAS 18001 CHALLENGER Companion powered speaker A. Slot for receiver/MP3/Bluetooth module B. Slot for receiver/transmitter/MP3/Bluetooth module 1. Audio link input 2. Audio link output 3. Volume control 4. Speaker out (switched) 5. Speaker out (unswitched) 6.
  • Page 4 CHALLENGER Companion passive speaker 1. Speaker input 2. Speaker output...
  • Page 5 Battery Charging Internally, the CHALLENGER 1000 contains two 12V/5AH maintenance free lead acid batteries, which have no memory effect. When the batteries are weak, the battery low indicator LED will stay RED. To charge the batteries, simply plug in the AC power supply, the charging process will start automatically.
  • Page 6 Master/Slave selector switch. However, the CHALLENGER Slave can only be operated as SLAVE. In order to operate Audio Link, you must have a CHALLENGER 1000 unit that operates as a MASTER. Only one unit is allowed to act as MASTER and the other(s) MUST operate as SLAVE(s).
  • Page 7 ISO 9001 / ISO 14001 / OHSAS 18001 Wireless Audio Link Different from Wired Audio Link, with new SLAVE's capability of installation of receiver and transmitter modules it eliminates all cable connection and largely extends the number limit of SLAVEs. Application: For crowds of 1000 to 2000.
  • Page 8 Operating the CD player Parts and functions 2 3 4 5 6 7 8 9 10 1. LCD display 5. Eject 9. Infrared receiving LED 2. Play/pause 6. CD/USB selector 10. USB input 3. Stop 7. Repeat 11. Power/volume control 4.
  • Page 9 ISO 9001 / ISO 14001 / OHSAS 18001 FOLDER-UP In stop mode: Skip the starting play folder to next folder during stop mode, cyclic to the first folder if it is in the last folder. In program entry mode: Change the file for program select to next folder’s first file, cyclic to the first folder if it is in the last folder.
  • Page 10 Operating the DVD player Parts and functions POWER / VOL PLAY PAU SE REV-SKIP-CU E STOP EJECT VIDEO FU NC REPEAT N /P SD/MM C CARD 1. Power/volume control 7. Video output 13. LCD display 2. Eject 8. N/P 14. IR LED 3.
  • Page 11 ISO 9001 / ISO 14001 / OHSAS 18001 PROGRAM 1--:-- 5--:-- 9--:-- 13--:-- 2--:-- 6--:-- 10--:-- 14--:-- 3--:-- 7--:-- 11--:-- 15--:-- 4--:-- 8--:-- 12--:-- 16--:-- play clear In the picture T means TITLE, C means CHAPTER. The divided unit of DVD disc is title, and can divide the title for several chapters.
  • Page 12 minimum volume is 0dB. When this key is pressed, the volume will increase by 1dB per step, the VOL.+ maximum volume is 40dB. 0~9;10+ You can use these keys to select the track you want directly. -11-...
  • Page 13 ISO 9001 / ISO 14001 / OHSAS 18001 Operating the Digital recorder player Parts and functions 1. Play/Pause 8. Program/Repeat 15. Copy 2. Stop 9. Forward 16. Record 3. SD/USB selector 10. Reverse 17. Infrared detector 4. Track number button "1" 11.
  • Page 14 Press FOLDER button, LCD screen display F, then REW or F. FWD button with the numbers 0 to 9 button to select the directory . Double-click the Cancel catalog select, LCD screen, "F" disappears -Recording quality adjustment: Press FOLDER button more than 3 seconds can choose the recording quality.
  • Page 15 ISO 9001 / ISO 14001 / OHSAS 18001 - To play folder “CPY” of the tracks, press FOLDER button, LCD display F. Press REV keys F. WD button to select the directory CPY, press PLAY/II to start playing - The time required to copy according to the file size and track the numbers -Copy function is copying without folder.
  • Page 16 ■REV I: Backwards. Press to backward to last track. Press for 3 seconds to fast reverse the track ■F. WD I: Fast forward. Press to forward to next track. Press for 3 seconds to fast forward the track ■IR sensor: Infrared remote control eye. ■DEL: Delete single/folder/all of the files.
  • Page 17 ISO 9001 / ISO 14001 / OHSAS 18001 (2nd): Display the current playing track. 88:88:88 : Display the time for the current playing track or the recording. THE FUNCTIONS ON THE REMOTE CONTROLLER The remote controller shall be appointed to the receiving hole of face plate. The optimal receiving distance is 3 meters.
  • Page 18 - The tracked recorded through COPY function are stored in the folder “CPY” - To Play folder “CPY” of the tracks, press FOLDER button, LCD display F. Press REV keys and F. WD button to select the directory CPY, press PLAY/II to start playing - The time required to copy according to the file size and track the numbers - Copy function is copying without folder.
  • Page 19 ISO 9001 / ISO 14001 / OHSAS 18001 Delete a folder: To delete the specified folder, press FOLDER button to select the folder you want to delete, click the DEL, LCD display flashes DEL FOLDER , reminding whether you want to delete the folder, and then press DEL again to confirm the deletion, LCD displays DEL END, the folder is removed Delete all the files: In the stop-play mode operation...
  • Page 20 SDR-5116M/SDR-5100M IrDA receiver modules 1. Channel indicator 2. Diversity A/B indicator 3. Audio signal indicator 4. IR sensor area (SDR-5100M IrDA) 5. Channel Selector 6. IRDA synchronizing button (SDR-5100M IrDA) 7. Squelch control 8. Power switch/volume control First turn on the Power of the main unit. Then turn on the individual power of the receiver module.
  • Page 21 ISO 9001 / ISO 14001 / OHSAS 18001 RP-5016M/RP-5100M transmitter module 1. Channel indicator 2. Antenna socket (TNC type) 3. Channel selectors: Press ▲(up)▼(down) to increase/decrease channel number. Please select a non-interfering frequency channel to those used in the receiver modules. 4.
  • Page 22 8. IR sensor area 9. USB input 10. USB/SD indicator: The LED flashes during play and extinguishes when stop. 11. SD card input 12. Power switch/volume control To use the USB/SD digital player, simply plug your USB/SD card into the port after the player is turned on.
  • Page 23 ISO 9001 / ISO 14001 / OHSAS 18001 2. Press to return to previous track, press and hold to fast reverse. 3. Press to play/pause. 4. Press to go to next track, press and hold to fast forward. 5. Press to record. 6.
  • Page 24 BT-500m Bluetooth receiver module 1. Power/volume control 2. LOCK LED 3. SCAN LED 4. PAIRING button Matching instruction 1. Turn on BT-500m and both SCAN and LOCK LEDs will flash alternatively. 2. Activate Bluetooth on your device and search new external Bluetooth devices. 3.

  • Page 25: Parts And Functions

    ISO 9001 / ISO 14001 / OHSAS 18001 UHF handheld microphones（SQ-1016/SQ-1016V/SQ-5016/SQ-6100/SQ-7100） Parts and functions SQ-1016/1016V (UHF 16-freq) SQ-5016/6100/7100 (UHF LCD16/100/100-freq) Microphone parts and functions SQ-1016 SQ-1016V SQ-5016 SQ-6100 SQ-7100 Cartridge Battery weak/power LED Power switch Channel switch Battery compartment Bottom cap Locking button Audio mute switch Setting button...
  • Page 26 Other settings (SQ-5016/6100/7100) 1. Channel setting Use UP or DOWN button to go to the CHANNEL/ FREQUENCY page. The cursor will flash to allow changes to be made. Pressing UP or DOWN button will increase or decrease the channel number. The corresponding frequency will change accordingly. When a desired channel is selected, it will be automatically saved and stored in the memory.
  • Page 27 ISO 9001 / ISO 14001 / OHSAS 18001 UHF belt-pack transmitters（SM-1016/SM-5016/SM-7100） Parts and functions Transmitter parts and functions SM-1016 SM-5016/SM-7100 Antenna Battery weak/audio mute indicator Power switch (Lavalier microphone) Mini XLR connector Audio mute switch Charging port Cover release button Charging contacts Setting button Up button...
  • Page 28 Battery installation Insert or replace the batteries according to the correct polarity after opening the compartment. Many batteries are known to have leakage problem of conductive and corrosive liquid. So please remove the batteries if they are not to be used for a long period. CHANNEL and GAIN setting (SM-1016) Please use the attached small screw driver to set the channel.
  • Page 29 ISO 9001 / ISO 14001 / OHSAS 18001 UHF handheld microphones (SQ-2100 IrDA/SQ-1100 IrDA) Parts and functions SQ-2100 IrDA SQ-1100 IrDA 1. Cartridge 4. IrDA synchronizing button 7. IrDA sensor area 2. Battery power LED 5. Battery compartment 3. Power switch 6.
  • Page 30 UHF belt-pack transmitter (SM-1100 IrDA) Parts and functions 1. Antenna 2. Battery power LED 3. Power switch 4. IrDA sensor area 5. Mini XLR connector 6. Cover release button 7. IrDA synchronizing button 8. High-impedance gain control (GT) 9. Low-impedance gain control (MT) 10.
  • Page 31 ISO 9001 / ISO 14001 / OHSAS 18001 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
  • Page 32 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan / Tel: 886-2-27415741 / Fax: 886-2-27525242...
