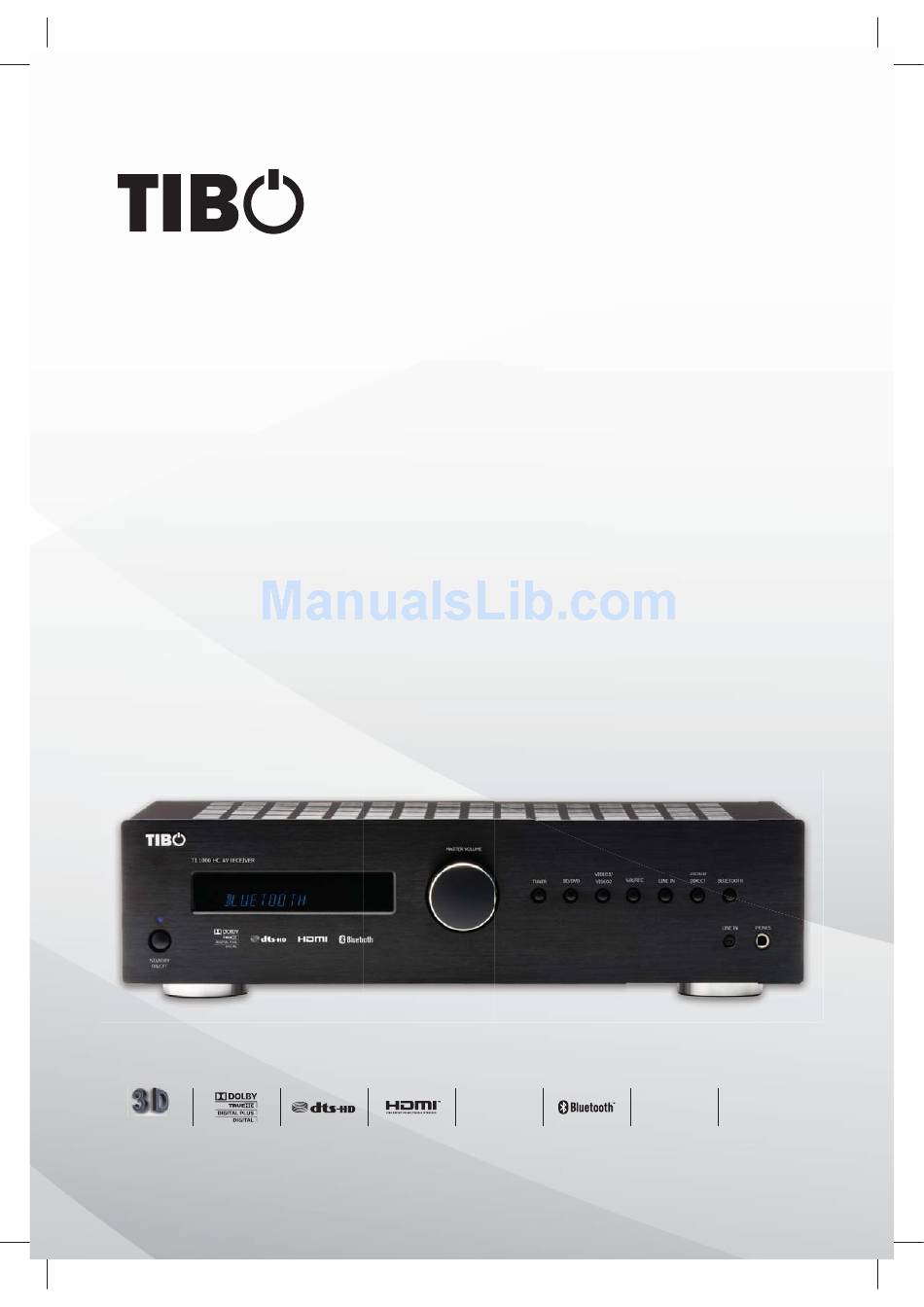

Page 1: User Guide
Turn it back on User Guide TI 1000 HC 5.1CH Coax-in Optical Stereo System READY Please read this user manual carefully before using your TI 1000 HC and retain for future reference. -
Page 2: Table Of Contents
Turn it back on CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........3 - 5 INCLUDED IN THE BOX . -
Page 3: Important Safety Instructions
Turn it back on SAFETY Safety precautions A triangle with a A triangle with an ex- lighting symbol draws clamation mark draws the user’s attention to the user’s attention to “dangerous voltage” important instructions without insulation in the cabinet, for use and maintenance in the ac- which may be high enough to companying manual, which should entail a risk of an electric shock. - Page 4 Turn it back on SAFETY Important safety instructions Penetration of objects and liquid Never push any foreign objects through the openings into the unit, as they may touch dangerous voltage points or short-circuit parts and cause fi re or an electric shock. Do not spill liquid onto the unit. Accessories Do not place the unit on unstable surfaces such as a trolley, stand, tripod, shelf or table.
-
Page 5: Important Safety Instructions
Turn it back on SAFETY Important safety instructions Overloading Do not overload wall outlets or extension cords as this can result in the risk of fi re or electric shock. Overloaded AC outlets, extension cords, frayed power cables, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in electric shock or fi re hazard. -
Page 6: Included In The Box
5.1CH Coax-in Optical READY Stereo System Please read this user manual carefully before using your TI 1000 HC and retain for future reference. Battery for remote control 1 x FM Antenna 1 x Main Plugs 1 x Set up microphone Please save your packaging as you will need this in the event of warranty/service repair or support. -
Page 7: Remote Control / Remote Control Information
Turn it back on REMOTE CONTROL Connecting to the mains By using the provided remote control, the receiver can be controlled from your listening position. To use the remote control, point it at the REMOTE SENSOR window of the receiver. Notes: Even if the remote control is operated within the effective range, remote control operation may be impossible if there are any obstacles between the unit and the remote control. - Page 8 Turn it back on REMOTE CONTROL 1. Power - Push this button to turn the unit into standby 29. DTS/Dolby - mode, push it again to turn off the unit. When playing 2. APS - In tuner mode, press this button to allocate and 5.1CH source, memorize radio station automatically.
-
Page 9: Loudspeaker Positioning
Turn it back on LOUDSPEAKER POSITIONING Standard speaker setup for surround sound 1. TV or Screen 2. Front Left Speaker 3. Subwoofer 4. Center speaker 5. Front Right Speaker 6. Surround Left Speaker 7. Surround Right Speaker 8. Listening Position Standard speaker setup for surround sound 1. -

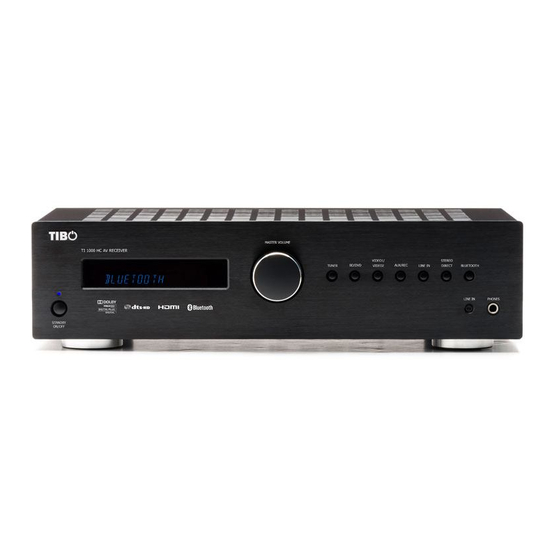

Page 10: Front Panel Information
Turn it back on FRONT PANEL CONTROLS 1. Display - Displays the status of the unit. 2. Volume - Use to increase/decrease the level of the sound from the output of the TI1000 HC. 3. Tuner - Press to select the tuner. 4. - Page 11 Turn it back on FRONT PANEL DISPLAY 1. HDMI inputs - Indicates the current HDMI source input. 2. M- & PCM - Indicates the unit is receiving two channel or multi-channel PCM. 3. Surround decoding mode indicators (PCM, Dolby Digital, DTS etc) - Shows the current decoding mode, Dolby Digital, DTS etc.
-
Page 12: Rear Panel Information
Turn it back on REAR PANEL CONNECTIONS 1. Main Power Lead - Once you have completed all connections, plug the AC power lead into an appropriate mains socket. The AV receiver is now ready for use. 2. Speaker Terminals (8Ω) - Connect to loudspeakers. 3. -
Page 13: Connections
Turn it back on CONNECTIONS Loudspeaker Connections Caution: To avoid damaging the speakers with a sudden high-level signal, be sure to switch the power off before connect- ing the speakers. Check the impedance of your speakers. er’s red speaker terminals are the + (posi- tive) terminals and the black terminals are the –... -
Page 14: Analogue Audio Connections
Turn it back on CONNECTIONS Analogue Audio Connections Note: Do not plug in the mains power lead or turn on the unit until all connections have been made. Connect to source equipment using phono cables (stereo 2RCA-2RCA). Digital Audio Connections Two types of digital audio connections can be made to this unit, coaxial (S/P DIF) and optical (Toslink). -
Page 15: Hdmi Input Connections
Turn it back on CONNECTIONS HDMI Input Connections nition Multi-Media Interface) is an all digital connection that can carry both audio and video in and high resolution audio make this the best connection type to use. The 4 HDMI inputs can be assigned to the BD/DVD, Video 1, Video 2, CD/Aux/TV, Tape/MD/CDR. - Page 16 Turn it back on CONNECTIONS Front Input Connections For private listening, you can connect a pair of stereo headphone (1/4-inch phone plug) to the AV receiver’s PHONES jack. Aerial Connections FM aerial Connect an aerial to the FM 75 ohm socket (a simple wire aerial is supplied for temporary use).
-
Page 17: Basic Operations
DD/DTS material VIDEO 1 (ANA, COAX, HDMI) VIDEO 2 (ANA, OPT, HDMI) Note: TI 1000 HC is unable to auto-detect this kind AUX/ REC (ANA, OPT) of source material as it does not include embedded LINE IN ags so manual selection is required. - Page 18 Turn it back on BASIC OPERATIONS Radio Operations Manual Memory Presetting Automatic Tuning 1. Press the Tuner button on the front panel or on the 1. Press the Power On/Off button on the front panel to remote control. turn this unit on. 2.
-
Page 19: Radio Data System
Turn it back on RADIO DATA SYSTEM RADIO DATA SYSTEM (RDS) PTY SEARCH (Program Type Search) 1. Press the “PTY” on remote control, RDS is a method for the transmission of additional “PTY SEL” ash on the display. information from local Radio Stations. It can only be 2. -
Page 20: Osd Menu
For any out of phase speakers check that the relevant + (positive) terminal of TI 1000 HC goes to the + (positive) terminal of that speaker and similarly the - (negative) terminal of TI 1000 HC goes to the - (negative) terminal the speaker for that channel. - Page 21 2. Centre speaker - For dialogue and centre sounds. To exit the auto setup menu of TI 1000 HC continue Ideally position at a similar height to the front to press the OSD button on the remote control to exit left and right speakers (above or below the TV/ all menus or until “OSD”...
- Page 22 To tell the unit the type of package you have, turn no sub is being used make sure this setting is set to on the On-Screen Display via the remote button as Off to allow TI 1000 HC to re-direct the bass informa- shown. Highlight the “ guration” menu tion in this channel to other speakers.
-
Page 23: Speaker Setup
The speed of sound is approx 340 metres per second, the remote control then select the ”Level Calibration” TI 1000 HC thus introduces approx 3mS of delay per menu. Now turn on the test signal by highlighting this metre of distance set.. -
Page 24: Audio Connection Type
Analogue inputs will require a stereo phono/RCA to phono/RCA cable connection to TI 1000 HC. Digital inputs will require either a 75ohm digital type phono/ RCA to phono/RCA co-axial cable (SPDIF) or an bre cable (TOSLINK). - Page 25 Off. speaker setup selected and the decode mode se- lected. Before we describe how to operate TI 1000 HC, Bass Augment can be On or Off separately for DD/ below is a brief guide to the Surround Sound formats DTS or PLII/IIx/Neo:6 operation.
- Page 26 TI 1000 HC as multi-channel sion providing backwards compatibility. PCM. In both cases an HDMI connection is required to TI 1000 HC and a suitable Blu-ray player as Dolby True HD is only ever transmitted over HDMI. Dolby Digital Known also as DD (3/2) or DD 5.1, provides (up to)
- Page 27 Note: Pro Logic does not include a Low Frequency (Surround Back giving 5.1), matrix encoded into the Effects channel for the Subwoofer, but TI 1000 HC can rear surrounds for greater image depth and more create a Subwoofer output (for 5.1) via Bass manage- solid sound localisation behind the listener.
-
Page 28: Other Modes
Turn it back on OSD MENU If a digital source is selected TI 1000 HC will be pro- On - Compression is always applied for all Dolby cessing either LPCM stereo (from the digital outputs soundtracks. (reduced dynamic range playback). - Page 29 TI 1000 HC has a function that preserves the preset memory and other settings. In the event of a power As covered in TI 1000 HC Setup section TI 1000 HC failure, or if the power cord of the unit is disconnected...
-
Page 30: Bluetooth
1. Open the bluetooth pairing interface in your device equipped with Bluetooth wireless technology (portable cell phone, digital music player, etc.). 2. Search the supported device “TI 1000 HC” . 3. Switch on the device that you want to make pairing, place it near the system and set it into the pairing mode. -
Page 31: Troubleshooting
Turn it back on TROUBLE SHOOTING Problem Probable Cause Suggestion Amplifi er When listening to the music Speakers are connected wrong. After checking, if needed, reconnect. in stereo. Left/right speakers reversed. Low hum or buzz sound. Power cords or lighting placed near this Place this product as far as possible from product. -
Page 32: Specifications
Turn it back on SPECIFICATION DOLBY TRUE HD / DOLBY DIGITAL PLUS DTS-HD MASTER AUDIO HDMI 1.4 (SUPPORT 3D Video and Audio Return / Play) Audio Features Power Output: All Channels 100W per channel HDMI 1.4 (1080P), Support 3D TV and BD. - 5 channels, 8ohms (2 channels driven). - Page 33 Turn it back on CONTACTS Tibo Ltd. DSV House, Maidstone Road, Milton Keynes MK10 0AJ United Kingdom tel.: +44 (0) 845 2711 906 e-mail: info@tibo-electronics.com Proof of purchase (attach your receipt here).
- Page 34 Turn it back on www.tibo-electronics.com...
