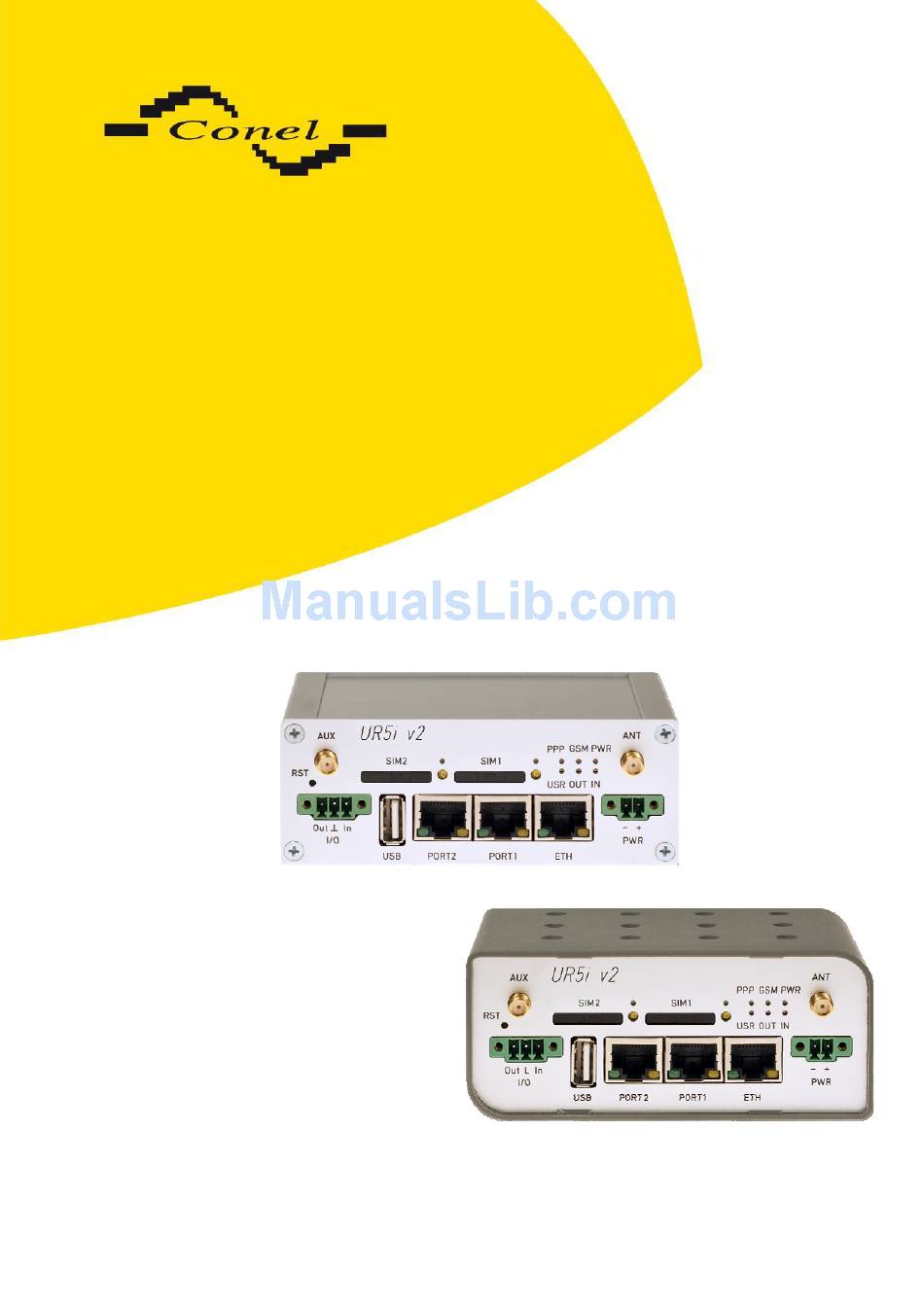

  • Page 1 UR5i v2 UMTS router UR5i v2 SL USER’S GUIDE...
  • Page 2 Information, notice – information, which contains useful advice or special interest. GPL license Source codes under GPL license are available free of charge by sending an email to info@conel.cz. Declared quality system ISO 9001 Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual issued in CZ, 12/15/2011...

  • Page 3: Table Of Contents

    CONTENTS Contents Safety instruction Product disposal instructions Router description Contents of package Router design 5.1. Version 5.2. Delivery identification 5.3. Ordering code 5.3.1. Basic version 5.3.2. Full version 5.4. Basic dimensions plastic box 5.5. Basic dimensions metal box 5.6. Mechanical external dimensions and mounting recommendations 5.7.
  • Page 4 IMAGE LIST Image list Fig. 1: Contents of package Fig. 2: Front panel UR5i v2B Fig. 3: Front panel UR5i v2B SL Fig. 4: Front panel UR5i v2F SL Fig. 5: Front panel UR5i v2F SL Fig. 6: Label UR5i v2B Fig.
  • Page 5 TABLE LIST Table list Table 1: Expansion port possibilities Table 2: Router version Table 3: Delivery identification Table 4: Ordering code of basic version Table 5: Ordering code of full version Table 6: Front panel description Table 7: Router status indication Table 8: Connection of power connector Table 9: Connection of Ethernet connector Table 10: Connection of USB connector...

  • Page 6: Safety Instruction

    SAFETY INSTRUCTION 1. Safety instruction Please, observe the following instructions: • The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. •...

  • Page 7: Product Disposal Instructions

    PRODUCT DISPOSAL INSTRUCTIONS 2. Product disposal instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 8: Router Description

    (ATM) and other self-service terminals, etc. s a standard, this exceptionally fast 3G UR5i v2 wireless router is equipped with one Ethernet 10/100, one USB Host port, one binary Input/output (I/O) port and one SIM card To save and backup communication data a version with 2 x SIM cards is available.

  • Page 9: Contents Of Package

    ROUTER DESCRIPTION Contents of package Basic delivered set of router includes: • router, • power supply, • crossover UTP cable, • external antenna, • clips for the DIN rail, • installation CD containing instructions, • paper start guide. Fig. 1: Contents of package The router box and DIN mount are supplied in a metal case in the SL version of the router.

  • Page 10: Router Design

    ROUTER DESCRIPTION 5. Router design 5.1. Version SIM1 SIM2 PORT1 PORT2 UR5i v2B set Plastic UR5i v2B SL set Metal UR5i v2F set Plastic UR5i v2F SL set Metal Table 2: Router version Fig. 2: Front panel UR5i v2B Fig. 3: Front panel UR5i v2B SL Fig.

  • Page 11: Ordering Code

    ROUTER DESCRIPTION Fig. 8: Label UR5i v2F Fig. 9: Label UR5i v2F SL 5.3. Ordering code 5.3.1. Basic version Expansion port Ordering code Version without expansion port UR5i v2B set Version with expansion Ethernet port UR5i v2B set ETH Version with expansion RS232 port UR5i v2B set RS232 Version with expansion RS485 port UR5i v2B set RS458...

  • Page 12: Basic Dimensions Plastic Box

    ROUTER DESCRIPTION 5.4. Basic dimensions plastic box Fig. 10 Basic dimensions plastic box 5.5. Basic dimensions metal box Fig. 11: Basic dimensions metal box...

  • Page 13: Mechanical External Dimensions And Mounting Recommendations

    ROUTER DESCRIPTION 5.6. Mechanical external dimensions and mounting recommendations Mounting recommendations: • possibility to be put on a work surface, • DIN rail with clips CPD2 (Elpac clip SL for SL version) are included. For the most of applications with a built-in router in a switch board it is possible to recognize two kinds of environments: •...

  • Page 14: Fig. 14: Cable Routing

    ROUTER DESCRIPTION • for every cables we recommend to bind the bunch according to the following picture, we recommend for this use: length of the bunch (combination of power supply and data cables) can be maximum 1,5 m, if the length of data cables exceeds 1,5 m or in the event of, the cable leads towards the switch - board, we recommend installing over - voltage protectors (surge suppressors), with data cables they mustn't carry cables with reticular tension...

  • Page 15: User Interfaces (Connectors)

    ROUTER DESCRIPTION 5.7. User interfaces (connectors) On the front panel is located: Label Connector Description 2-pin Connector for connection the power supply adapter. RJ45 Connector for connection into the local computer network. Connector for connection equipment over RS232, RS458/422, PORT1 RJ45 ETHERNET, M-BUS or CNT.

  • Page 16: Status Indication

    ROUTER DESCRIPTION Status indication 5.7.1. About router status inform eight led indicators on the front panel and on every port are two LED indicators, which inform about port status. Label Color State Description Blinking Router is ready Green Starting of the router Blinking Communication in progress Signal strength is from –50 dBm to –69 dBm...

  • Page 17: Power Connector Pwr

    ROUTER DESCRIPTION Power connector PWR 5.7.2. Panel socket 2-pin. Signal Description number mark VCC (+) Positive pole of DC supply voltage (+10 to +30 VDC) GND (-) Negative pole of DC supply voltage Table 8: Connection of power connector Fig. 20: Power connector Power supply for router is required between +10 V to +30 V DC supply.

  • Page 18: Antenna Connector Ant And Aux

    ROUTER DESCRIPTION Antenna connector ANT and AUX 5.7.3. The antenna is connected to the router using the SMA connector on the front panel. The router can not operate without the main antenna connected labeled as ANT. ANT connector used to connect the main antenna router. To connect the second antenna for diversity income is used second connector AUX.

  • Page 19: Sim Card Reader

    ROUTER DESCRIPTION SIM card reader 5.7.4. The SIM card reader for 3 V and 1.8 V SIM cards is located on the front panel of the router. To initiate the router into operation it is necessary to insert an activated SIM card with unblocked PIN in the reader.

  • Page 20: Fig. 27: Connection Ethernet Cable

    ROUTER DESCRIPTION Ethernet cable plug into the RJ45 connector labeled as ETH. (See bellow picture) Fig. 27: Connection Ethernet cable The ETH router connection: Fig. 28: Example of router connection...

  • Page 21: Port1

    ROUTER DESCRIPTION PORT1 5.7.6. The PORT1 is equipped with one of the offered options ports. For PORT1 are available on the interface. PORT1 RS232, RS485/422, ETHERNET, M-BUS, CNT Description, connection and examples of expansion connection ports can be found in separate manuals expansion ports. PORT1 cable plug into the RJ45 connector labeled as ETH.

  • Page 22: Usb Port

    ROUTER DESCRIPTION USB port 5.7.8. Panel socket USB-A. Signal mark Description Data flow direction number Positive pole of 5V DC supply voltage USB data - USB data signal – negative pole Input/Output USB data + USB data signal – positive pole Input/Output Negative pole of DC supply voltage Table 10: Connection of USB connector...

  • Page 23: I/O Port

    ROUTER DESCRIPTION I/O port 5.7.9. Panel socket 3pin. Signal Description Data flow mark direction BIN0 Binary input Input Signal ground OUT0 Binary output Output Table 11: Connection of I/O port Fig. 34: I/O connector The user interface I/O is for processing of binary input signal and to control (settings) of binary output signal.

  • Page 24: Reset

    ROUTER DESCRIPTION 5.7.10. Reset It is important to distinguish between reset and reboot the router. Action Router behavior Invoking events Reboot Turn off and then turn on router Disconnect and connect the power. Press the reboot button in the web configuration.

  • Page 25: First Use

    ROUTER DESCRIPTION 6. First use 6.1. Connecting the router before first use Before you give up the router, it is necessary to connect all components needed for the operation of your applications and the SIM card must be inserted. (See bellow picture) The router can not operate without connected antenna, SIM card and power supply.

  • Page 26: Start Router

    ROUTER DESCRIPTION 6.2. Start router The router is set up connecting the power supply to the router. In the default setting the router starts to login automatically to the preset APN. Device on the Ethernet port DHCP server will assign addresses. The behavior of the router can be modified by means of the web or Telnet interface, which is described in the configuration manual.

  • Page 27: Technical Parameters

    3,5 W (GPRS transmission) UMTS/HSDPA to 5,5 W (UMTS/HSDPA transmission) Dimensions 42x76x113 mm (DIN 35mm) Weight UR5i v2 – 150 g UR5i v2 SL – 280 g Antenna connector SMA– 50 Ohm User interface Ethernet (10/100 Mbit/s) USB 2.0 type A host PORT1...

  • Page 28: Technical Parameters Of Processor

    TECHNICAL PARAMETERS 7.3. Technical parameters of processor 32b ARM microprocessor Memory 512Mb DDR SDRAM 128Mb FLASH 1Mb MRAM Interface Serial interface RS232 Ethernet interface 10/100Mbit/s USB 2.0 interface Table 15: Technical parameters of processor 7.4. Technical parameters of I/O port Port IO Input/Output Binary input...

  • Page 29: Recommended Literature

    8. Recommended literature [1] Conel: Start guide, [2] Conel: Configuration manual, [3] Conel: User’s manual - Expansion port RS232, [4] Conel: User’s manual - Expansion port RS485/RS422, [5] Conel: User’s manual - Expansion port M-BUS, [6] Conel: User’s manual - Expansion port CNT, [7] Conel: User’s manual - Expansion port ETH,...

  • Page 30: Faq

    10. FAQ I can’t get from internet on equipment, which is connected to router and I have NAT enabled. The device's gateway has to be configured as the router. Router resets itself, connection on Ethernet fails. It is necessary to use an antenna, which will be situated far from power supply. I don’t get on web server at NAT.
  • Page 31 L2TP or IPSec isn’t establishing. Verify the reason in the log system. I switched the router to offline mode by the SMS messag e, but the router is in online mode after restart. Control SMS message doesn’t change the router configuration. If the router is switched t o offline mode by the SMS message the router will be in this mode up to next restart.

  • Page 32: Customers Support

    During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Conel Company hereby declares that the router narrated in this user’s guide fits all basic demands of directive 1999/5/EC (R&TTE).
