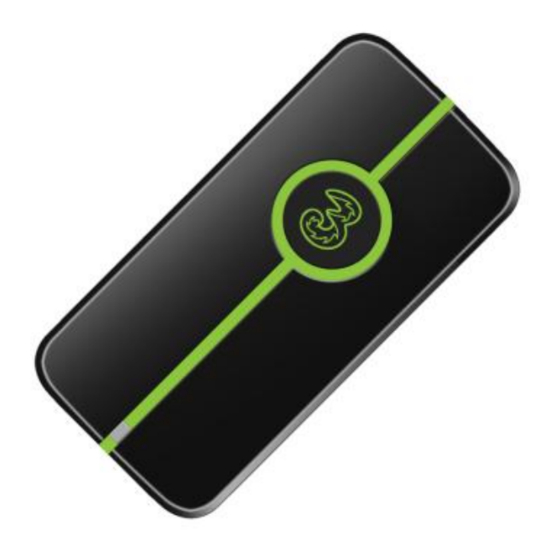

ZTE HSDPA USB Modem
User Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSDPA and is the answer not in the manual?

Questions and answers

Related Manuals for Zte HSDPA

Summary of Contents for Zte HSDPA

  • Page 1 ZTE HSDPA USB Modem User Guide...

  • Page 2: Table Of Contents

    Contents 1 Modem Introduction ............3 1.1 Introduction .............. 3 1.2 Warning and Notice ..........3 1.3 Applicability .............. 5 1.4 System requirements ..........5 1.5 Functions ..............5 1.6 Specification ............. 5 2 Installation ................. 7 2.1 Package Checking ........... 7 2.2 Software Installation ..........

  • Page 3: Modem Introduction

    1 Modem Introduction 1.1 Introduction Thank you for using ZTE HSDPA USB Modem. To guarantee the modem is always in its best condition, please read this manual carefully and keep it for further use. The ZTE HSDPA USB Modem is a type of multi-mode, 3G modem, suitable for GSM/GPRS/EDGE/WCDMA/HSDPA networks.
  • Page 4  Treat the modem carefully. Do not expose to shock or attempt to bend or twist it, this could lead to irreversible damage.  Do not dismantle the modem. Any maintenance or repair should be carried out by a ZTE approved agent. Please consult your distributor.

  • Page 5: Applicability

    The performance of the modem may be influenced if configuration below recommended requirement. 1.5 Functions Functions: Data service, Applications management, etc. 1.6 Specification Networks HSDPA/WCDMA/GSM/GPRS/EDGE HSDPA/UMTS 2100MHz: 1920 MHz-1980 MHz/2110 MHz-2170 MHz (Up/Down-Link) Frequency GSM/GPRS/EDGE 900MHz: 880 MHz-915 MHz/925 Band MHz-960 MHz (Up/Down-Link) GSM/GPRS/EDGE 1800MHz: 1710 MHz-1785...
  • Page 6 MHz/1805 MHz-1880 MHz (Up/Down-Link) GSM/GPRS/EDGE 1900MHz: 1850 MHz-1910 MHz/1930 MHz-1990 MHz (Up/Down-Link) Dimension 43mm*88mm*10mm Weight In HSDPA Mode，max download speed 7.2Mbps； Data Rate In WCDMA Mode，max speed 384 Kbps； In EDGE mode，max speed 236.8Kbps Working 5V（Using the notebook PC power supply）...

  • Page 7: Installation

    2 Installation 2.1 Appearance 2.2 Software Installation Install the software before connecting your modem to your PC.  Insert the CD into your CD-ROM drive.  Download the installation software package, double click it, and then follow the steps to install. ...
  • Page 8  Click Continue. You will be guided through the steps necessary to install this software and click Continue.
  • Page 9  Select a destination volume to install software on the volume “Macintosh HD”, and then click Continue.
  • Page 10  Please enter user name and password to be authenticated, and left click OK to install.  Installation is in progress, after a while, there will be a tip as follows:...
  • Page 11  Left click Restart to restart computer and finish software installation. Note ： If you have problems with installation after the above  operation, please contact the service provider for help.  After the installation, select Finder→Applications and there will be a...

  • Page 12: Running Application Software

    Please quit the application software first, and then pull out the modem USB cable. 2.5 Software Un-install  Close the application program before uninstalling the software.  Select Finder→Applications→ZTE MOBILE CONNECTION and select Move to Trash in right click menu of ZTE MOBILE CONNECTION on the notebook.

  • Page 13: Functions & Operation

    3 Functions & Operation 3.1 Interface Introduction The following diagrams show the main interface of USB modem application software, forming three principal areas of functionality. The related functions can be executed by operation in corresponding areas. 1. Functional Button Area There will be various functional button icons shown in this area.

  • Page 14: Connecting To The Internet

    Letter “P” means supporting packet-switch (P) service, while letter “C” means supporting circuit switch (C) service. Indicates insert status of the modem, “Green” indicates it has been connected to the computer. “Red” indicates disconnected. Indicates insert status of the SIM/USIM card to the mode. Green indicates the card has been inserted, and Red indicates the card has not been inserted.
  • Page 15  To ensure the connection manager connects to Internet properly, configure user’s network information first. You can save different operator’s network configurations in different files.
  • Page 16  Press “+” or “-” to create or delete a configuration file and edit details.
  • Page 18 The user configuration information includes:  Description (Configuration filename), Telephone Number, Account Name, Password, APN, DNS, and PDP address.  If the network supports “Obtain server address automatically”, the connection manager can obtain the assigned IP information automatically.  If the network does not support it, you should fill in the proper address manually.

  • Page 19: Disconnecting From The Internet

    When connected, and it will show all the information of data flow, connection time, etc. During the course of connecting, you can Cancel the connection. With connection successful, the Connect button becomes Disconnect. Note: The modem has the function of network locking the SIM/USIM card. If you use the SIM/USIM card provided by another network service provider, you will not be able to connect to that network.

  • Page 20: Settings

    3. Internet Log Click the Dial Record icon, and switch to the Internet log interface. You can view related information for your operation, such as user name, start time, disconnect time, duration, data received and data sent. 3.3 Settings Click Settings icon to switch to the settings interface. It includes security settings and network settings.

  • Page 21: Security Settings

    3.3.1 Security Settings  Enable the PIN Code...
  • Page 22 When the PIN enable item is selected, you will be asked to enter your PIN code to use the modem. You can click Revise PIN to modify the number.

  • Page 23: Network Settings

    Note: This function needs network support. 3.3.2 Network Settings The system selects the network automatically according to user’s configuration rules and Automatic： network status. User selects network in manual way. Manual：  Select network Automatic, the system will find the network available automatically.

  • Page 24: Help

    3.4 Help Click the Help icon on the application interface to switch to help pop-up windows. Under “Help” you will find USB modem information introducing each function, installation and usage guides, application software hardware information, etc.

  • Page 25: Faq & Answers

    After restarting 2．You are in a place of no Change location, the computer, or very low GSM/ GPRS/ moving to an area with there EDGE/ WCDMA/ HSDPA good signal strength. signal. network coverage. ,This includes underground facilities, tunnels, etc.
  • Page 26 1. After connection, there is 1. Check that the APN in no data transfer, resulting in the Default Configuration the inability to open web is correct. pages. 2. The IE browser may have 2, Upgrade to a new encountered problems. version or reinstall the IE Connected browser.
