Moxa E Series Managed Ethernet Switch

Configuration Virtual LAN

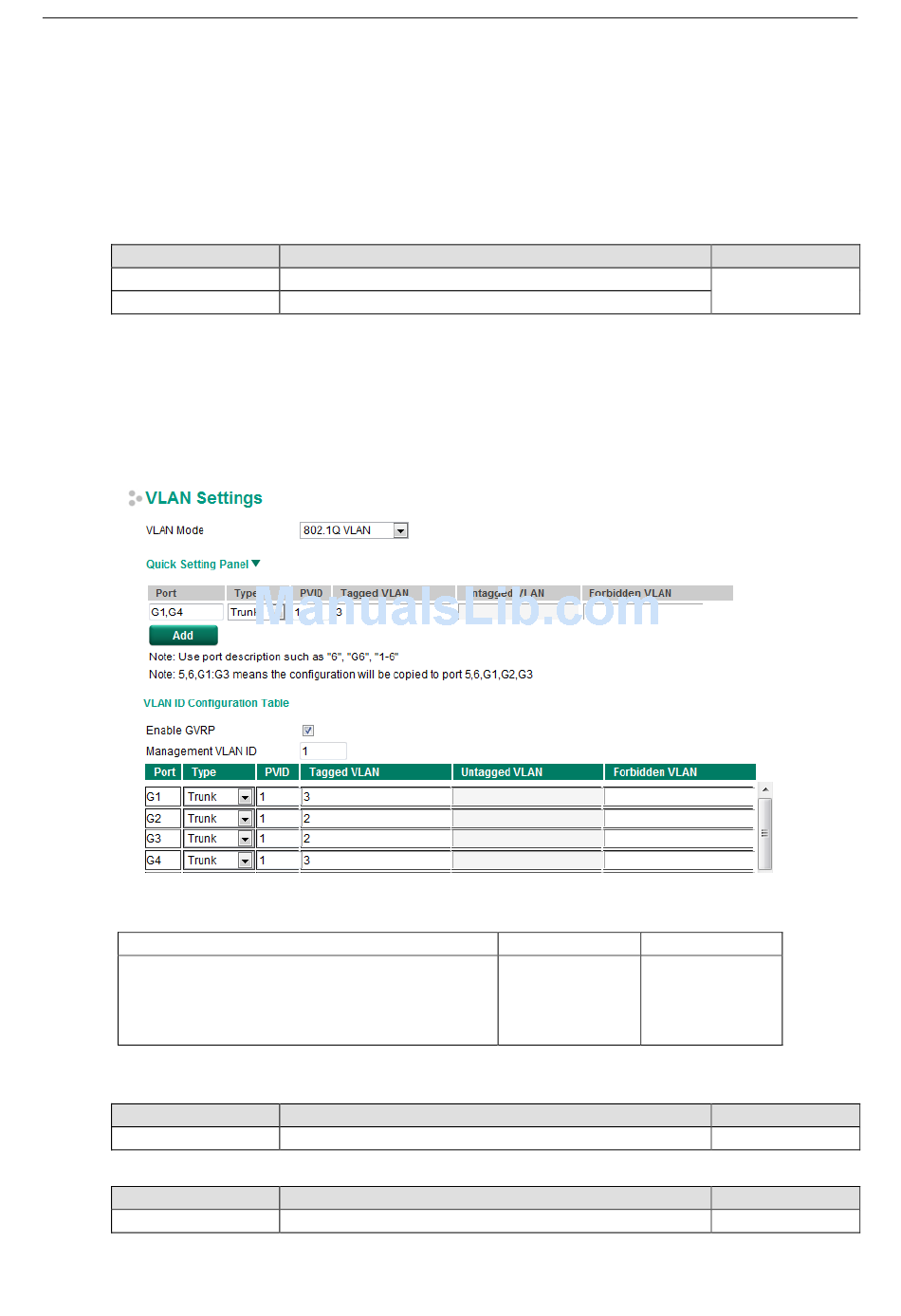

VLAN Settings
To configure 802.1Q VLAN and port-based VLANs on the Moxa switch, use the VLAN Settings page to
configure the ports.
VLAN Mode
Setting
802.1Q VLAN
Port-based VLAN

802.1Q VLAN Settings

The EDS E series support quick setting panel for VLAN setting. Administrator can configure VLAN by ports group and add
the setting to the VLAN ID Configuration Table. Once the configuration is finalized, then activate the final setting to
system by pressing Apply button.
Port Settings
Setting
Port name from 1 to 7 or G1 to G16
Group ports need to separate by "," or ":".
(e.g. "G1, G3" means apply the setting to port G1 and
G3; "G1:G3" means apply the setting from G1 to G3)
Enable GVRP
Setting
Enable/Disable
Management VLAN ID
Setting
VLAN ID from 1 to 4094 Assigns the VLAN ID of this Moxa switch.
Description
Set VLAN mode to 802.1Q VLAN
Set VLAN mode to Port-based VLAN
Description
Enables or disables the GVRP function.
Description
3-26
Description Factory Default
Assign Port name none
for configuration
Featured Functions
Factory Default
802.1Q VLAN
Factory Default
Enable
Factory Default
1
