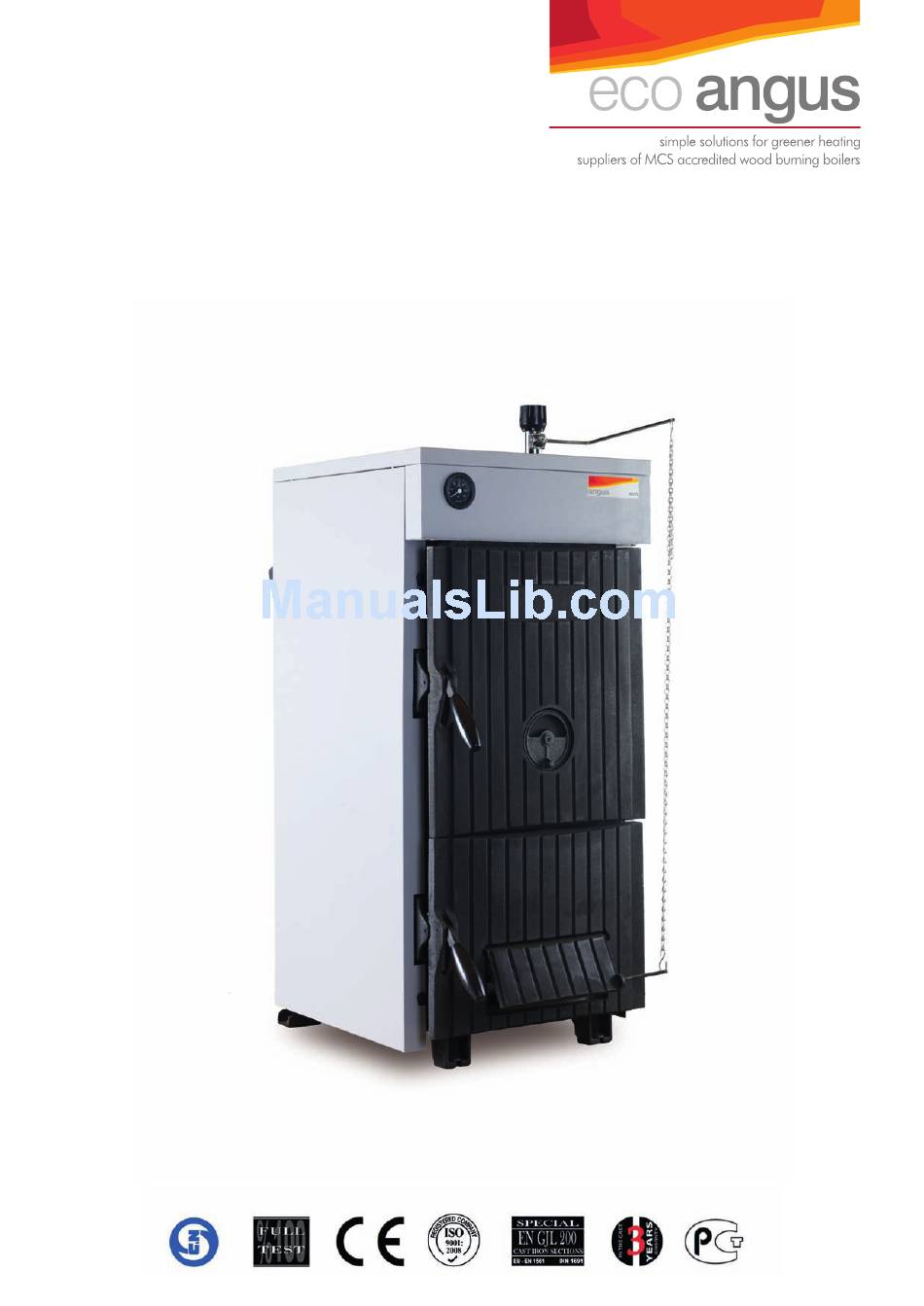

- Page 1 Angus Evo Multi Fuel Boiler Installation, Operation and Maintenance Manual...
-
Page 2: Table Of Contents
Index Information on the boiler plate ......................Boiler dimensions, boiler packaging dimensions . -
Page 3: Information On The Boiler Plate
Information on the boiler plate The boiler Serial No. is shown on the plate which is attached to the cover panel of the cast iron body. fig.01 INSTALLATION, OPERATION AND MAINTENANCE MANUAL 1... -
Page 4: Boiler Dimensions, Boiler Packaging Dimensions
Boiler dimensions fig.02 EV-03 EV-04 EV-05 EV-06 L (mm) Boiler packaging dimensions fig.03 EV-03 EV-04 EV-05 EV-06 L (mm) Notice: Please obey to the meanings of the symbols on packaging for health care INSTALLATION, OPERATION AND MAINTENANCE MANUAL 2... -
Page 5: Technical Parameters
Technical parameters Series Name EV-03 EV-04 EV-05 EV-06 Number of Elements Pcs. Nominal Heat Output (Black Coal – Walnut) 15-17 24-27 31-34 38-41 Nominal Heat Output (Hardwood – Split Logs) kW 12-14 18-20 25-27 30-33 Minimum Heat Output 12.1 14.6 18.5 Heating Water Maximum Temperature ˚C... -
Page 6: A Table Of The Angus Evo Heating Area
A table of the Angus Evo Heating Area SOLID FUEL BOILERS HEAT OUTPUT AND MAX HEATING AREA (M2) FOR COAL MAX HEATING AREA MODEL HEAT OUTPUT (kW) HEAT OUTPUT (kCAL) (UNC) (M2) Solid Fuel – 03 14,617 Solid Fuel – 04 23,216 Solid Fuel –... -
Page 7: Introduction
Introduction The boiler and all associated equipment must be installed and used in accordance with the installation design, all applicable legal regulations and technical standards and with the manufacturer’s instructions. The boiler may be used only for the purpose for which it is intended. The boiler may be installed only in an environment which it is designed for.If the boiler is delivered to the client by the same person who installs it, he must give the user also all accompanying boiler documentation (in particular User Guide, Service Book, etc.). -
Page 8: Head Loses
Head loses fig.04 Operating instructions Angus Evo Series Boiler – general features ■ Angus Evo Series solid fuel fired boiler is designed for heating both residential and industrial buildings. ■ Besides professional installation, precondition for correct functioning of the boiler is the required chimney thrust and correct operation. -
Page 9: Control And Safety Devices
If replacing of safety device and of thermo-mechanical output regulator is necessary, please use ■ recommended devices in case of using any other type of the device negotiate with Eco Angus Ltd. Functionality of thermo-mechanical output regulator (satrom) must be checked or inspected by ■... -
Page 10: Temperature Safety Valve
Supply of secondary combustion air is controlled by an air rosette (Fig. 08), situated in the boiler’s stoking door, which has a direct effect on the level of emission. Hot water temperature can be checked on a thermometer (Fig. 09), which is situated in the front boiler cover above the stoking door. Air rosette Thermometer fig.08... -
Page 11: Hydraulic Connection Diagram
Hydraulic connection diagram It is suggested hydraulic system should be installed according to following schemes. Open expansion tank system fig. 10 1. Safety Heat Exchanger (SHT) 6. Mixing Valve 2. Safety Valve (TS 131, STS 20) 7. CH Pump 3. Cold Water Feed 8. - Page 12 fig. 11 1. Boiler 4. Safety Valve (TS 131, STS 20) 2. Open Expansion Tank 5. Four Way Mixing Valve 3. Radiator fig. 12 1. Boiler 6. Circulating Pump 2. Laddomat 21-60 operated by Flue 7. Room Thermostat Thermostat – 50-300°C 8.
- Page 13 fig. 13 1. Boiler 5. Three Way Mixing Valve 10. DHW Mixing Valve 2. Laddomat 21-60 operated by Flue 6. Circulating pump 11. Solar Coil Thermostat – 50-300°C 7. Room Thermostat 12. Solar 3. NAD or NADO Accumulator Tank 8. Heating System Outlet 13.
- Page 14 fig. 15 fig. 16 1. Boiler 6. Four Way Mixing Valve 2. Safety Group (automatic air vent, pressure 7. NRV reducing valve and pressure gauge) 8. Expansion Vessel 3. DHW Cylinder 9. Accumulator Tank 4. CH Pump 10. Three Way Valve 5.
-
Page 15: Putting The Boiler Into Service
Putting the boiler into service Checking the boiler before turning it on Before putting the boiler into operation, the service technician must check: ■ Whether the installation conforms with the design; ■ Whether the boiler has been filled in and is under pressure (on the thermo-manometer), and whether there are any leakage in the heating system;... -
Page 16: Stoking
Stoking First shut the regulating hatch; this will shut supply of combustion air into the boiler. Then open the chimney flap completely. Partially open the stoking door and wait until all combustion gases have been sucked from the combustion chamber into the chimney. Only then open the stoking door completely and start stoking the boiler. -
Page 17: Boiler Cleaning
Boiler cleaning When the boiler is used, soot and fine ash accumulates on the boiler walls, mainly on heat exchanger ribs and in the flue neck, which reduces heat transfer and the boiler output. The actual quantity of soot and fine ash will depend on the quality of the fuel used and on the boiler operating conditions. - Page 18 fig.19 fig.20 fig.21 fig.22 INSTALLATION, OPERATION AND MAINTENANCE MANUAL 16...
-
Page 19: Boiler Repairs
Boiler repairs The boiler may be repaired by an authorised service technician or organisation only. The user or owner may do only normal maintenance and simple replacements of some parts – e.g. sealing cords. Please note When repairing the boiler, original parts must always be used. Warranty and warranty conditions Angus Evo boilers are covered by warranty specified in the Warranty Certificate, Service Book and User and Installation Guide (chapter Introduction, Installing the boiler). -
Page 20: Installation Instructions
Installation Instructions Boiler installation – general information Angus Evo boilers must be put into service by an authorised services. A network of authorised service organisations which meet these conditions is available for all boiler installations, putting them into service and for warranty repairs. The boiler is designed to supply heating systems with gauge pressure up to 400 kPa which use water that meets the requirements of related standards (under no circumstances may the water be acidic, i.e. -
Page 21: Boiler Location
Boiler location Angus Evo boilers can be located both on non-habitable premises (e.g. in boiler room, cellar, corridor) and in habitable rooms. The room in which the boiler is located must have a permanent supply of air necessary for the combustion process. The air must be free of halogen hydrocarbons and corrosive vapours, and must not be excessively humid and dusty. -
Page 22: Boiler Room Disposition Layout
Boiler room disposition layout Fig. 24 illustrates minimum distances which must be kept in order to ensure safe operation of the boiler room and allow manipulations with the boiler, such as cleaning and stoking. The distance between the front of the boiler and the wall should be at least the boiler length L plus 500mm. -
Page 23: Angus Evo Boiler Parts
Angus Evo boiler parts fig.25 fig.26 INSTALLATION, OPERATION AND MAINTENANCE MANUAL 21... -
Page 24: Spare Parts List
Spare parts list ITEM DESCRIPTION DRAWING PART NUMBER EV-03 EV-04 EV-05 EV-06 Front Section EV 20080100 EV-MD.060 EV-MD.060 EV-MD.060 EV-MD.060 Middle Section EV 20080101 EV-MD.050 EV-MD.050 EV-MD.050 EV-MD.050 Back Section EV 20080102 EV-MD.070 EV-MD.070 EV-MD.070 EV-MD.070 Stoking Door EV 20080103 EV-PD.010 EV-PD.010 EV-PD.010... -
Page 25: Accumulator Tank Capacity
Accumulator tank capacity NOTE: The heat can be supplied for example by an accumulator tank. The following applies as a reference for the minimum storage boiler content: = 15T (1-0,3 x (Q Accumulator tank capacity in L Nominal heat output in kW Burning period in h Heating load of the premises in kW Minimum heat output in kW... -
Page 26: Flue Pipe Installation
Flue pipe Installation Fig. 29 shows the proper flue gas connection with additional air equipment. Observe the following during the installation of the flue gas connection: ■ Install a flue pipe connection with an inspection aperture for cleaning. Fasten the flue gas connector piece to the boiler. ■... -
Page 27: Troubleshooting
Tar existing on surface of Regularly clean the heat exchanger with heat exchanger the brush supplied by Eco Angus Ltd Using fuel which has high moisture Use proper fuel Over condensation on boiler part and formation of black liquid... - Page 28 01934 862642 For more information 07739 174511 please visit our website 07970 901273 www.ecoangus.co.uk ecoangus@aol.com 2068. Designed and produced by...
