Models Covered:
QXD1500
QXD3000
QXD4500
IMPORTANT
SPECIFICATIONS
DIMENSIONS
Installation and Operating Instructions
∗
These instructions should be read and carefully retained by the user.
∗
The installation of these appliances must always be carried out by a competent
electrician and be in accordance with the current wiring regulations and relevant
Building Regulations.
∗
The radiated heat from the heater is considerable and must be taken into account
when locating the heater. Ensure that the heater is not used in close proximity to
the skin or eyes.
∗
Always isolate the heater from the supply before undertaking any maintenance
work on the appliance.
∗
The QXD range of heaters are designed for internal use only. They are not rated as
flame-proof and must not be used when flammable dusts, gases, or vapours, etc.
are likely to be present in the atmosphere. If in doubt, advice should be sought
from the Health and Safety Executive inspectors or local fire officers.
∗
Quartz lamps are extremely fragile and must be handled with extreme care at all
times. Avoid touching the surface of the quartz sleeve with bare fingers. If the
sleeve is accidentally touched remove the finger print with a soft cloth moistened
with methylated spirits.
∗
This heater must not be located immediately above or below a fixed socket outlet
or connection box.
∗
The life expectancy of the halogen lamps in normal operating conditions is over
3000 hours.
∗
The heater must be installed in a location that is free from vibration.
WARNING – THIS APPLIANCE MUST BE EARTHED.
The Dimplex QXD range is available in 1,2 and 3 lamp models with outputs of 1.5kW,
3.0kW and 4.5kW respectively. The three lamp models are supplied as dual voltage units
and are suitable for use on 230-240V and 415V 3N supplies.
General Data:
Model No.
No. of Lamps
QXD1500
1
QXD3000
2
QXD4500
3
Material and Finished
Body Casing – Low carbon steel, powder coated.
Reflectors – 1080 (SIA) 99.8% Alum. Electrochemically brightened specular finish.

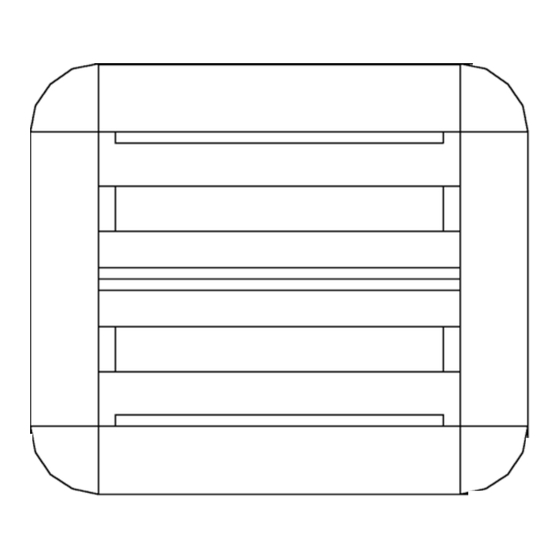

QXD1500/1500ND/1500G
All dimensions in mm
Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email:
northernsales@thorneandderrick.co.uk
Website:
www.heattracing.co.uk
www.thorneanderrick.co.uk
Rating
Voltage
(kW)
(V)
1.5
230-240
3.0
230-240
4.5
230-240
08/50866/2 Issue 2
Weight
(kg)
3.7
4.3
5.8
