G. Positioning the Logs
If the gas logs have been factory installed they should not
need to be positioned. If the logs have been packaged
separately, refer to the following instructions.
1

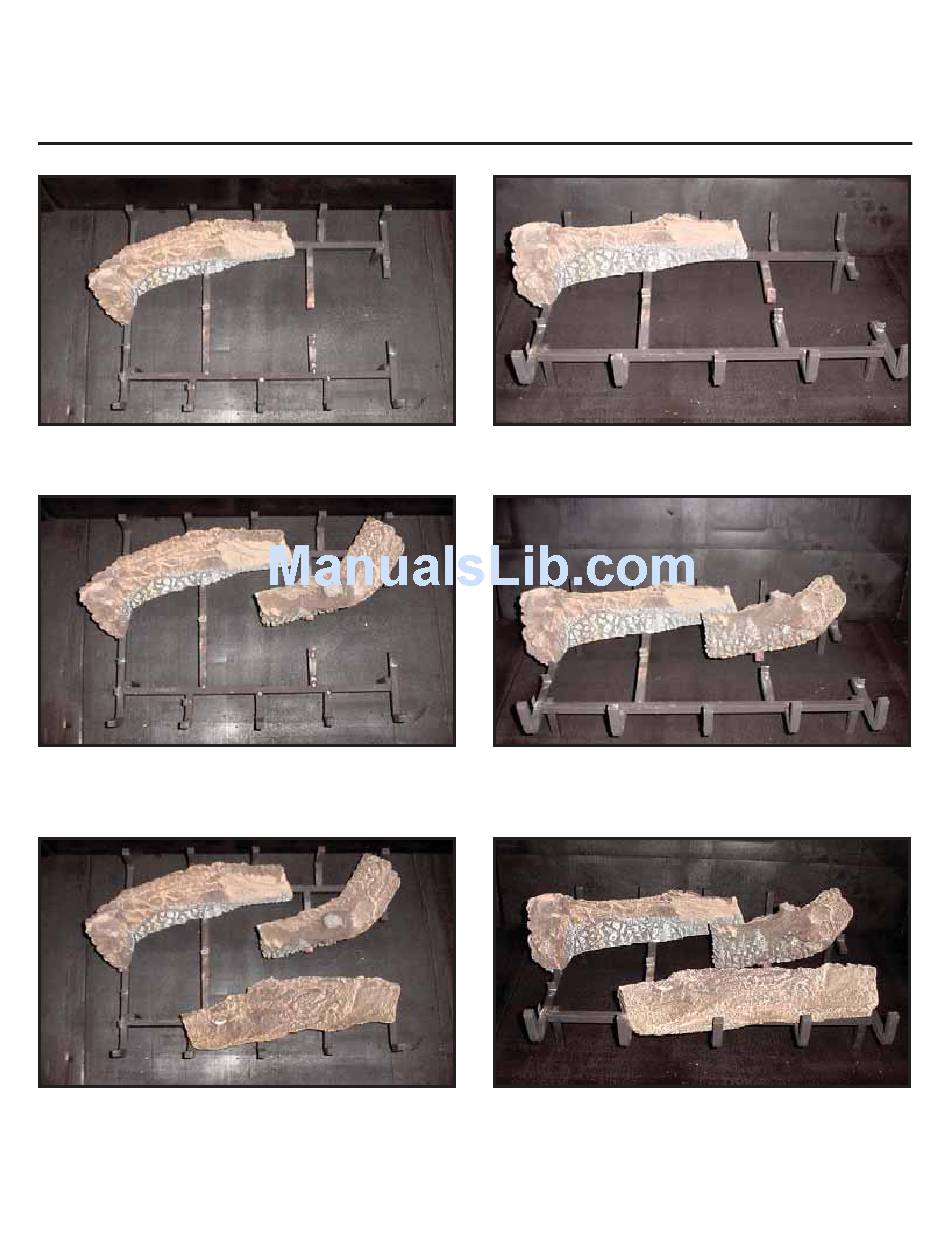

LOG #1 (SRV288-721): Position log #1 at the rear left corner of the grate against three grate stops as shown.
LOG #2 (SRV675-722): Place log #2 so that the slot on the bottom of the log fi ts over the grate tab in the right rear corner.
The left end of log #2 rests against the stop on the right center bar.
LOG #3 (SRV288-726): Position log #3 on the front right hand side of the grate against the 3 stops.
2
3
