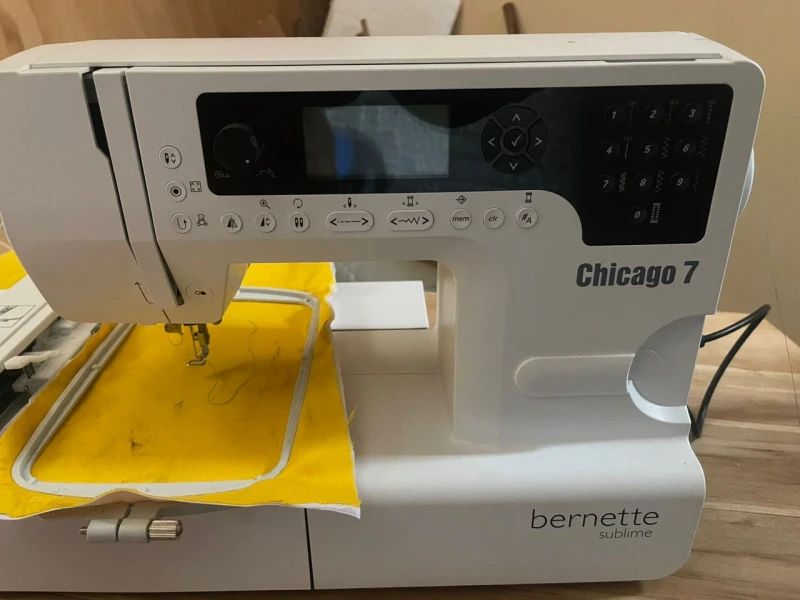

To customize an embroidery design on a Bernette Chicago 7:

1. Load a Design
- Press the button to open the type selection display.
- Use the arrow buttons to choose a design from built-in embroidery designs or a USB stick.
- Press the OK button to confirm the selection.

2. Edit the Design
- Use the arrow buttons or number buttons to select the desired design.
- Make necessary edits such as mirroring, resizing, and rotating.

3. Prepare for Embroidery
- Press the OK button to prepare embroidery.
- A warning message will appear to check the embroidery hoop size.
- Press OK to confirm and enter the embroidery display.

4. Start Embroidery
- Move the design to the last embroidered color or stitch position if needed.
- Lower the presser foot and press the start/stop button to begin embroidery.

This answer is automatically generated

Robert

March 12, 2025

Bonjour s'il vous plaît pourriez-vous m'envoyer le logiciel de la Bernette Chicago7

Summary of Contents for Bernette Chicago 7

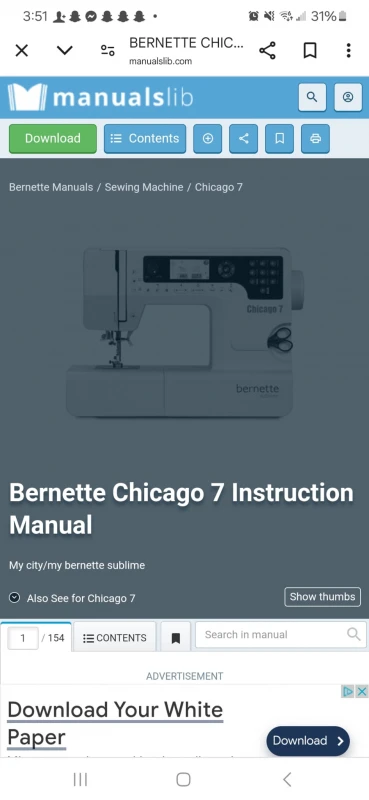

Page 1 Chicago 7 Instruction Manual...
Page 2 502020.83.11_2013_06_bernette chicago 7_EN...
Page 3: Table Of Contents
Contents Safety Instructions Pattern group selection/Colour setup button – How to select a stitch All rights reserved Stitches Overview Machine Overview Stitches Details of the sewing machine Accessories Basic Sewing Procedures Optional – Reverse Machine Setup Free arm Connecting the Machine Sewing corners –...
Page 4 Contents Resizing the Design Special Functions – Rotating the Design – Mirror image stitch pattern Single/ Multi color – Elongation – Advanced settings CutWork Tool Double Needle Sewing – – Inch/mm options Memory Embroidery maximum speed – Overview Memory Enter Mode –...
Page 5: Safety Instructions
Safety Instructions IMPORTANT DANGER! When using an electrical appliance, basic To reduce the risk of electric shock: safety precautions should always be followed, 1. An appliance should never be left unat- including the following: tended when plugged in. 2. Always unplug this appliance from the Read all instructions before using this sewing electric outlet immediately after using and machine.
Page 6: All Rights Reserved
Safety Instruction 16. To disconnect, turn all controls to the off SERVICING OF DOUBLE- («O») position, then remove plug from out- INSULATED PRODUCTS let. 17. Do not unplug by pulling on cord. To In a double-insulated product, two systems of unplug, grasp the plug, not the cord.
Page 7: Machine Overview
Machine Overview Details of the sewing machine Thread guide Presser foot pressure Bobbin winder pre-tension Thread tension dial Spool pin Hole for second spool pin Bobbin winder spindle Bobbin winder stopper LCD display Speed dial Operation buttons Thread cutter One-step buttonhole lever Needle threader Stitch plate cover Sewing table and accessory box...
Page 8: Accessories
Machine Overview Accessories All-purpose foot (T) Buttonhole foot (D) Blind hem foot (F) Button sewing foot (H) Overcasting foot (E) 502020.69.03 502020.70.20 502020.60.09 502020.59.98 Satin stitch foot (A) Zipper foot (I) Simple embroidery foot Darning/Embroidery foot Brush & Seam ripper Needle Set (3 pcs) Bobbin 502020.73.08...
Page 9: Machine Setup
Machine Setup Connecting the Machine Before connecting the power supply, make sure that the volt- age and frequency shown on the rating plate is conforming with your mains power. Place the machine on a stable table. • • Connect the power line cord to the machine by insert- ing the 2-hole plug into the mains plug socket.
Page 10: Sewing Table
Machine Setup Sewing Table Keep the snap-in sewing table horizontal, and pull it in • the direction of the arrow. The inside of the snap-in sewing table is used as an acces- sory box. • 502020.83.11_2013_06_bernette chicago 7_EN...
Page 11: Winding The Bobbin
Machine Setup Winding the Bobbin 5 - 11 Place the thread and spool holder onto the spool pin. • For smaller spools of thread use the small spool holder. • Snap the thread into the upper thread guide. If using special thread which winds quickly off the spool attach a net to the spool before using and use the larger spool holder.
Page 12 Machine Setup Hold the thread tail securely in one hand. • Press on the foot control or the Start/Stop button to • start winding the bobbin. After the bobbin has wound a few turns, stop the – machine. • Cut the thread near the hole of the bobbin. Continue filling the bobbin until it is full.
Page 13: Inserting The Bobbin
Machine Setup Inserting the Bobbin tteNtioN tteNtioN Turn power switch to «O» before threading or unthreading the machine. The thread take-up lever must be in the highest position when threading. Incorrect threading can cause damages to the machine! • When pushing the locking knob (1), the bobbin cover opens.
Page 14: Threading The Upper Thread
Machine Setup Threading the Upper Thread It is important to carry out the threading correctly as by not doing so several sewing problems can occur. 502020.83.11_2013_06_bernette chicago 7_EN...
Page 15 Machine Setup tteNtioN Start by raising the needle to its highest point, and also raise the presser foot to release the tension discs. • Place the thread spool on the spool pin so that the thread comes from the front of the spool, then place the spool cap at the end of the spool pin.
Page 16: Needle Threader
Machine Setup Needle Threader tteNtioN tteNtioN Raise the needle to its highest position and lower the presser foot. Turn power switch to the off position «O»! • Lower the needle threader lever slowly and pull the thread through the thread guide as illustrated and then to the right.
Page 17: Replacing The Needle
Machine Setup Replacing the Needle tteNtioN Turn power switch to off («O») when carrying out the following operation! Change the needle regularly, especially if it is showing signs of wear and tear or of it is causing problems. Insert the needle following the illustrated instructions. Loosen the needle clamp screw and tighten it again after inserting the new needle.
Page 18: Thread Tension
Machine Setup Thread Tension Basic thread tension setting: «4» • To increase the tension, turn the dial to the next num- ber up. loose tight • To reduce the tension, turn the dial to the next number down. Appropriate setting of tension is important to good sew- ing.
Page 19: Altering Presser Foot Pressure
Machine Setup Altering Presser Foot Pressure The presser foot pressure of the machine has been pre-set and requires no particular re-adjustment according to the type of fabric (light-or-heavy weight). However, if you need to alter the presser foot pressure, turn the presser foot pressure adjusting screw using a coin.
Page 20: Changing The Presser Foot
Machine Setup Changing the Presser Foot tteNtioN Turn power switch to off («O») when carrying out any of the following operations! Attaching the presser foot holder • Raise the presser foot bar (a). • Attach the presser foot holder (b) as illustrated. Attaching the presser foot •...
Page 21: Important Sewing Information
Important Sewing Information Needle, Fabric, Thread Selection Guide The thread is chosen according to the purpose. For a perfect sewing result, thread and fabric quality play an important role. It is recommended to use quality brands.Care must be taken when choosing needle and thread. The correct needle size depends on the selected thread and fabric.
Page 22: Important Sewing Information
Important Sewing Information Double needles can be purchased for utility and decorative work. European needles show sizes 65, 70, 80 etc. American and Japanese needles show size 9, 11, 12 etc.Replace needle regularly (approximately after every second garment ) and/or when thread breakage or skipped stitches occur.
Page 23: Presser Foot Application Chart
Important Sewing Information Presser Foot Application Chart The double needle is being suggested with certain stitches for more creativity Presser Foot Application Needle Presser Foot Application Needle All-purpose foot (T) General sewing, Darning/Embroidery Darning, Free Patchwork stitches, foot embroidery Mono- Decorative stitching, gramming Smoking, Fagoting,...
Page 24: Display Explanation & Operating Functions
Display Explanation & Operating Functions Buttons Explanation Start/Stop button Reverse/Exit button Auto-lock/Trace button Needle up/down button The icon on the button is for sewing mode, and the icon on Speed dial the side of the button is for embroidery mode. OK button Arrow buttons Direct pattern selection and Number buttons...
Page 25: Information On The Lcd Display
Display Explanation & Operating Functions Information on the LCD Display Normal Mode Normal mode display Pattern Pattern number Reverse Auto-lock Recommended presser foot Recommended tension Pattern group Needle up position Stitch length Needle position Sound on Auto-stop Mirror image Double needle Needle down position Stitch width Sound off...
Page 26: Memory Mode
Display Explanation & Operating Functions Memory Mode Memory mode display Selected memory (framed) Memory containing stitches Empty memory Current memory Pattern number and pattern Auto-stop Mirror image Needle up position Sound on Elongation Stitch width Stitch length Pattern group Current memory unit Total of memory units Memory cursor Memory Mode display - pattern browser display...
Page 27: Embroidery Mode
Display Explanation & Operating Functions Embroidery Mode Embroidery mode display - type selection display Built-in Embroidery Designs Built-in Embroidery Letters Designs from USB This embroidery machine reads .exp format only Embroidery mode display - type selection display Type mode Indication - select page up/down Current design Total design Operation indication...
Page 28: Function Buttons
Display Explanation & Operating Functions Function Buttons Start/Stop button • Press the Start/Stop button to start the machine. Press again to stop it. The machine will move slowly at the start of sewing. – This way you may operate the machine without foot control.
Page 29: Needle Up/Down Button
Display Explanation & Operating Functions Needle up/down button • By pressing the needle up/down button the needle will either stop in the up position or in the – material when stop sewing. Press the button so the arrow on the LCD points upward –...
Page 30: Arrow Buttons
Display Explanation & Operating Functions Arrow buttons Use the buttons to select desired pattern, function… etc. OK button Press this button to confirm the selection. • – In the Normal Mode press the button to enter the pattern browser. In the Memory Mode press the button to enter the –...
Page 31: Mirror Image Button
Display Explanation & Operating Functions Mirror image button • Except for Direct Group Pattern 0 and the A Group patterns 86-99, the other patterns can be mirror- imaged by pressing the mirror immage button. – The machine will continue to sew the mirrored pat- tern until the mirror button is pressed again.
Page 32 Display Explanation & Operating Functions Stitch length adjustment/ Stitch forward/back- ward button When you select a stitch, the machine will automatically set the recommended stitch length which will be indicated by numbers on the LCD display. The stitch length can be altered by pressing the stitch •...
Page 33: Memory/Setup Button
Display Explanation & Operating Functions Memory/Setup button • Press the memory button to enter the Memory Mode and program the combinations of characters or deco- rative stitches. – The Direct Group Patterns and the A Group pat- terns 86-99 can’t be programed. •...
Page 34: How To Select A Stitch
Display Explanation & Operating Functions How to select a stitch The LCD display shows the Direct Group Patterns when switching on the machine. Press number buttons to select a pattern shown next • to the number buttons or press the pattern group selection button to select the desired pattern group.
Page 35: Stitches Overview
Stitches Overview Stitches Direct Patterns A - Group Patterns Utility stitches 02 03 04 05 06 07 08 09 10 11 13 14 15 16 17 18 19 20 21 22 23 24 25 26 29 30 31 32 33 34 35 36 Satin stitches 37 38 39 40 41 42 43 44 45...
Page 36 Stitches Overview A - Group Patterns Eyelet stitches Button sewing stitches Darning stitches B - Group Patterns Decorative stitches 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51...
Page 37 Stitches Overview C - Group Patterns C1 Group Patterns: Block Style Alphabet C2 Group Patterns: Script Style Alphabet 502020.83.11_2013_06_bernette chicago 7_EN...
Page 38: Basic Sewing Procedures
Basic Sewing Procedures Reverse Reverse stitching is used to secure the threads at the begin- ning and at the end of a seam. Press the reverse button and sew 4-5 stitches. • The machine will sew forward when the button is –...
Page 39: Sewing On The Heavy Fabric
Basic Sewing Procedures Sewing on the heavy fabric The black button on the left side of the presser foot will lock the presser foot in a horizontal position if you push it in before lowering the presser foot. This ensures even feeding at the beginning of a seam and helps when sewing multiple layers of fabric such as sewing over seams when hemming jeans.
Page 40: Straight Stitches And Needle Position
Basic Sewing Procedures Straight Stitches and Needle Position Changing the needle position A-00 These settings apply to the Direct Group Pattern 1-4 and the A Group Pattern 00 only. The pre-set position is «3.5», center position. A-00 A-00 • Press the stitch width button to enter the stitch width A-00 adjustment mode.
Page 41: Triple Straight Stretch Stitch
Basic Sewing Procedures Triple Straight Stretch Stitch The triple straight stretch stitch is strong and flexible and ensures a durable seam without breaking. Suitable for highly elastic and knit fabrics but also for heavy fabrics such as denim. These stitches can also be used as a decorative top stitching. The triple straight stretch stitch is used to add triple reinforce- ment to stretch and hardwearing seams.
Page 42: Overlock Stitches
Basic Sewing Procedures Overlock Stitches Change the presser foot to the overlock foot (E). Sew the fabric with the fabric edge against the guide of the overlock foot. tteNtioN The overlock foot should be used to sew with Direct Group Patterns 5 and 8 only.
Page 43: Blind Hem
Basic Sewing Procedures Blind Hem : Blind hem/ lingerie for firm fabrics A-03 : Blind hem for stretch fabrics A-04 : Blind hem for stretch fabrics Fold the fabric as illustrated with the wrong side up. First perform an overlock stitch as shown in left picture. It takes practice to sew blind hem.
Page 44: Button Sewing-On
Basic Sewing Procedures Button Sewing-on Change the presser foot to the button sewing-on foot. • Move the feed dog control to lower the feed dog (b). • Position the work under the foot. Place the button in the desired position, lower the foot. •...
Page 45: Buttonhole Stitching
Basic Sewing Procedures 0.3~1.0 2.5~7.0 Buttonhole Stitching A-86 A-88 A-89 0.3~1.0 2.5~7.0 : For thin or medium fabric 0.3~1.0 2.5~5.5 A-86 : For thin or medium fabric A-86 A-88 A-89 0.3~1.0 2.5~7.0 A-87 : For suits or overcoats A-87 A-90 A-91 A-88 : For horizontal buttonholes on thick fabrics A-86 A-88 A-89...
Page 46 A-87 A-90 A-91 0.3~1.0 2.5~5.5 Basic Sewing Procedures 0.3~1.0 5.5~7.0 A-90 A-91 A-92 A-93 A-92 0.3~1.0 5.5~7.0 1.0~2.0 3.0~7.0 Position the fabric under the presser foot so that the • centerline‘s mark is aligned with the center of the but- A-93 tonhole foot.
Page 47 Basic Sewing Procedures A-86 A-88 A-89 A-91 A-87 A-90 A-92 A-93 Buttonholes are sewn from the front of the presser foot to the back, as shown. 502020.83.11_2013_06_bernette chicago 7_EN...
Page 48 A-92 A-93 A-92 A-93 Basic Sewing Procedures Raise the presser foot and cut the thread. • To sew over same buttonhole, raise the presser foot (it • will return to original position). After sewing the buttonhole, raise the buttonhole lever •...
Page 49: Buttonholes On Stretch Fabrics
A-92 A-93 Basic Sewing Procedures A-92 A-93 Buttonholes on stretch fabrics When sewing buttonholes on stretch fabric, hook a heavy thread or a cord under the buttonhole foot. Attach the buttonhole foot and hook the cord at the • back of the presser foot. •...
Page 50: Bartack Stitch
Basic Sewing Procedures A-94 A-94 Bartack stitch A-94 0.4~1.0 1.0~3.0 0.4~1.0 1.0~3.0 A-94 A-94 0.4~1.0 1.0~3.0 0.4~1.0 1.0~3.0 0.4~1.0 1.0~3.0 • Extend the button guide plate and set to the desire bartack length. Adjust the stitch width and stitch length to personalize •...
Page 51: Eyelet Stitch
Basic Sewing Procedures Eyelet Stitch A-95 A-96 * The eyelet punch tool is not included with the machine. A-95 A-96 Select pattern 60 to obtain the eyelet stitch. A-95 A-96 Attach the satin stitch foot (A). • Press the «-» or «+» stitch width adjustment button to select the eyelet size.
Page 52: Darning Stitch
Basic Sewing Procedures Darning Stitch A-98: Simple darning stitch in thin and medium fabrics A-98 A-99 A-98 A-99 A-99: Reinforced darning stitch in heavy fabrics A-98 A-99 A-98 A-99 Select the A Group Patterns 98 or 99 to obtain the •...
Page 53 Basic Sewing Procedures Position the fabric so that the needle is 2mm (1/16 inch) in front of the area to be darned, and then lower the presser foot. When lowering the presser foot, do not push the front of the presser foot, otherwise the darning will not be sewn in the correct size.
Page 54: Zipper Insertion
Basic Sewing Procedures Zipper Insertion* tteNtioN The zipper foot should be used for sewing with center needle position, straight stitch only. It is possible that the needle could hit the presser foot and break when sewing other patterns. Inserting a centered zipper Baste the zipper opening on the garment.
Page 55: Inserting A Side Zipper
Basic Sewing Procedures Inserting a side zipper Baste the zipper opening on the garment. Fold seam allowance back to the left. • • Form a 3mm-fold of the right seam allowance. • Attach the zipper foot. • Attach the right side of the presser foot pin to the holder when sewing the left side of the zipper.
Page 56: Invisible Zipper Insertion
Basic Sewing Procedures 1.0~3.0 Invisible zipper insertion * The invisible zipper foot accessory is optional. It is not included with this machine. 1.0~3.0 This foot is used to insert invisible zippers so that they are covered by the seam, and therefore hidden. 1.0~3.0 •...
Page 57: Narrow Hemming
Basic Sewing Procedures Narrow Hemming * The hemmer foot accessory is optional. It is not included with this machine. • Fold the edge of the fabric over about 3mm, then fold it over again 3mm for about 5cm along the edge of the fabric.
Page 58: Cording
Basic Sewing Procedures A-09 A-28 Cording A-09 A-28 * The cording foot accessory is optional. It is not included with this machine. Sew over one strand of cording to create a pretty swirled design on a jacket or vest or sew over three strands of cord- ing for border trims.
Page 59: Satin Stitch Sewing
Basic Sewing Procedures A-15 A-16 A-17 A-18 A-19 A-20 A-21 A-22 A-23 A-24 Satin Stitch Sewing A-15 A-16 A-17 A-18 A-19 A-20 A-21 A-22 A-23 A-24 0.3~2.0 2.5~7.0 A-25 A-26 A-27 A-28 A-29 A-30 A31 A-32 A-33 A-34 A-35 A-36 A-25 A-26 A-27 A-28 A-29 A-30 A31 A-32 A-33 A-34 A-35 A-36 Use the satin stitch foot for satin stitching and sewing decora- tive stitches.
Page 60: Quilting
Basic Sewing Procedures Quilting * The 1/4“ quilting foot accessory is optional. It is not included with this machine. Patchwork stitching Align the edges of the fabric with the inside edge of the guide on the side of the foot for accurate 1/4“ piercing of the needle. Only the straight stitch in center position can be used.
Page 61: Hand Look Quilting
Basic Sewing Procedures Hand look quilting You can imitate the look of a hand look quilt stitch by using monofilament thread in the needle, 30 or 40 weight cotton thread in the bobbin, and by increasing the thread tension. The thread tension depends on the thickness of your batting. Blanket (Quilting Applique) For all fabrics and all types of work.
Page 62: Fagoting
Basic Sewing Procedures Fagoting A-07 Separate the folded edges of the fabric pieces with a gap of A-07 4mm (1/8 inch) and baste them onto a piece of thin paper or water-soluble stabilizer sheet. Align the center of the presser foot with the center of the two pieces of fabric and begin sewing.
Page 63: Gathering
Basic Sewing Procedures Gathering * The gathering foot accessory is optional. It is not included with this machine. Gathered fabric • Remove the presser foot holder and attach the gather- ing foot, lowering the tension setting to below 2. Place the fabric to be thered under presser foot to the •...
Page 64: Smoking
Basic Sewing Procedures Smoking Adjust the stitch length to 4mm and loosen the thread • tension. • Use the All-purpose foot to sew straight lines 1cm (3/8 inch) apart from each other, across the area to be smoked. Knot the threads along one edge. •...
Page 65: Free Motion Darning, Embroidery And Monogramming
Basic Sewing Procedures Free Motion Darning, Embroidery and Monogramming Move the feed dog control to lower the feed dog (b). • Remove the presser foot holder, and attach the darning • foot to the presser foot holder bar. The lever (a) should be behind the needle clamp screw •...
Page 66: Embroidery
Basic Sewing Procedures * The embroider hoop is not included with the machine. Embroidery Select the zig-zag stitch pattern and alter the stitch • width as desired. • Stitch along the outline of the pattern by moving the embroidery hoop. –...
Page 67: Walking Foot
Basic Sewing Procedures Walking Foot * The walking foot accessory is optional. It is not included with this machine. Always try to sew without the walking foot accessory first as it should be used only when necessary. It is easier to guide the fabric and you have a better view of the seam when using the standard, regular foot on your machine.
Page 68: Special Functions
Special Functions Mirror image stitch pattern Direct Group Pattern 0 and A Group Patterns 86-99 can’t be mirrored. Mirrored patterns can also be combined with other patterns. • Select the desired pattern. Press the mirror image button. • – The symbol for mirroring appears on the LCD dis- play.
Page 69: Elongation
A-15 A-16 A-17 A-18 A-19 A-20 A-21 A-22 A-23 A-24 Special Functions Elongation A-15 A-16 A-17 A-18 A-19 A-20 A-21 A-22 A-23 A-24 A-25 A-26 A27 A-28 A-29 A-30 A-31 A-32 A-33 A-34 A-35 A-36 A-15 A-16 A-17 A-18 A-19 A-20 A-21 A-22 A-23 A-24 A-25 A-26 A27 A-28 A-29 A-30 A-31 A-32 A-33 A-34 A-35 A-36 A-25 A-26 A27 A-28 A-29 A-30 A-31 A-32 A-33 A-34 A-35 A-36 The stitch can be elongated up to five times its normal length...
Page 70: Double Needle Sewing
Special Functions Double Needle Sewing Double needles must be purchased separately. They are not include with this machine. • Insert the double needle. tteNtioN When using double needles, use the All- purpose foot. Use only double needle assemblies with max. 2mm •...
Page 71 Special Functions Press the double needle button. • The LCD display shows the double needle symbol – (1) and the machine reduces the maximum stitch width for double needle sewing to 2mm automati- cally. • Start to sew and two lines of stitches are sewn parallel to each other.
Page 72: Memory
Special Functions Memory Several stitch patterns can be combined in one sewing sequence using the memory function. – These pattern sequences can be stored for later use. Even when the sewing machine is switched off the – memory contents are retained. Multiple patterns selecting from pattern groups can be com- bined together.
Page 73: Overview Memory Enter Mode
Special Functions Overview Memory Enter Mode Enter Mode Enter a sequence of stitch patterns & sew memo- rized patterns Enter a sequence of stitch patterns in Memory Enter Mode Requirement: Empty Memory (see page 83 to clear Memory). Press the memory button to enter the Memory Enter •...
Page 74 Special Functions Press the OK button to enter the selected Memory • Module. The cursor is at first memory position for the first pattern to be programmed. The upper left corner of LCD display shows the number of the Memory file. •...
Page 75 Special Functions Press the desired pattern number or use the arrow but- • tons to select the desired pattern. • When using the arrow buttons, press the OK button to store the selected stitch. The selected pattern appear on the LCD display –...
Page 76: Overview Memory Review/Edit Mode
Special Functions Overview Memory Review/Edit Mode Review/Edit Mode Add a sequence of stitches (Switch to Mem Enter Mode) page 77 Change a stored stitch or its parameters see page 79 Review stored stitches Insert an additional page 74 stitch page 80-81 Switch to Normal Mode &...
Page 77 Special Functions Use the arrow buttons to choose the desired Memory • file. • Press OK button to enter the selected Memory file. The cursor stays at the first position. Use the arrow buttons to move from position to posi- •...
Page 78: Switch From Memory Mode To The Normal Mode
Special Functions Switch from Memory Mode to the Normal Mode When Memory Mode is active. Press the memory button to leave the Memory Mode • and return to the Normal Mode. Sew memorized patterns • Press the memory button to enter the Memory Mode. Use the arrow buttons to choose the desired Memory •...
Page 79: Memory Editing Functions - Add A Sequence Of Stitches
Special Functions Memory Editing functions - Add a sequence of stitches Press the memory button to enter the Memory Mode. • • Use the arrow buttons to select the number of the Memory file (e.g. M3). Press the OK button to enter the selected Memory file •...
Page 80 Special Functions Use the arrow buttons to move the cursor to next • empty position. • Press the pattern group selection button to enter the pattern group selection display. Proceed according to page 73 to add multiple new • stitches. 502020.83.11_2013_06_bernette chicago 7_EN...
Page 81: Memory Editing Functions - Change A Stored Stitch Or Its Parameters
Special Functions Memory Editing functions - Change a stored stitch or its parameters Requirement: with existing patterns in Memory. • Press the memory button to enter the Memory Mode. • Use the arrow buttons to choose the desired Memory file. •...
Page 82: Memory Editing Functions - Insert An Additional Stitch
Special Functions Memory Editing functions - Insert an additional stitch Requirement: with existing patterns in Memory. Press the memory button to enter the Memory Mode. • • Use the arrow buttons to choose the desired Memory file. Press the OK button to enter the selected Memory file. •...
Page 83 Special Functions Use the arrow buttons to move the cursor to the posi- • tion where you want to insert a new stitch. Press the pattern group selection button to enter the • pattern group selection browser and choose a new stitch.
Page 84: Memory Editing Functions - Delete A Stored Stitch
Special Functions Memory Editing functions - Delete a stored stitch Press the memory button to enter the Memory Mode. • Use the arrow buttons to choose desired Memory file. • Press the OK button to enter the selected Memory file. •...
Page 85: Memory Editing Functions - Delete All
Special Functions Memory Editing functions - Delete ALL • Repeat steps from «Delete a stored stitch». • When pressing the clr button keep it pressed for a few seconds until the machine asks again if everything should be deleted. • Press the OK button if all patterns should be deleted and the machine returns to the previous Memory file which is empty now.
Page 86: Embroidery
Embroidery 502020.83.11_2013_06_bernette chicago 7_EN...
Page 87: Important Embroidery Information
Embroidery Important Embroidery information Embroidery threads A good quality thread is essential for embroidery to avoid poor stitch formation, thread breakage, etc. Embroidery is particularly effective if you use 40wt glossy rayon or polyester embroidery threads as upper threads. They are available in a wide range of colors for beautiful embroidery.
Page 88: Lower Threads
Embroidery Lower threads Bobbin Fill (special bobbin thread) Bobbin Fill is an especially soft and light polyester thread suit- able for bobbin thread. This special bobbin thread ensures a steady thread tension and an optimal intertwining of the upper and bobbin thread. Darning and embroidery thread Fine mercerized cotton thread which is suitable for embroider- ing on cotton.
Page 89: Embroidery Setup
Embroidery Setup Details of Embroidery module Embroider Embroidery arm USB port Embroidery module release lever Embroidery hoop attachment brackets Hoop-securing lever Embroidery module connection Embroidery module connector plug Do not touch the embroidery arm. The connector could be damaged, and it may cause malfunctions. Do not lift up on the embroidery arm, and do not forcefully move it.
Page 90: Attaching The Embroidery Foot
Embroidery Setup Attaching the embroidery foot tteNtioN Turn power switch to off («O») when carrying out any of the following operations! • Raise the presser foot. • Press the black lever (a) and the foot will disengage. • Remove the presser foot holder (c) by unscrewing (counter-clockwise) the presser foot bar attaching screw (b).
Page 91: Connecting The Embroidery Module
Embroidery Setup Connecting the embroidery module tteNtioN Turn power switch to off («O») when carrying out any of the following operations! • Remove the sewing table to the left side. • Move the feed dog control to lower the feed dog (b). •...
Page 92: Removing The Embroidery Unit
Embroidery Setup Removing the embroidery unit tteNtioN Turn power switch to off («O») when carrying out any of the following operations! • Remove the embroidery module connector plug. • Press the embroidery module release button on the left, underneath the embroidery module and slide the module to the left to remove it.
Page 93: Embroidery Hoop
Embroidery Setup Embroidery hoop Inner hoop Centering ribs for embroidery template Center mark Outer hoop Embroidery hoop connector Hoop size Adjustment screw 502020.83.11_2013_06_bernette chicago 7_EN...
Page 94: Hooping The Fabric
Embroidery Setup Hooping the fabric Loosen the embroidery hoop adjustment screw on the • outer hoop. • Separate the inner and outer hoop by removing the inner hoop upward. The fabric is hooped with the right side up. • • Place the fabric with the stabilizer material on top of the outer hoop.
Page 95: Using Embroidery Templates
Embroidery Setup Using embroidery templates Mark the center position of the design to be embroi- • dered using a chalk pen. Place the embroidery template on the inner frame. • Align the fabric with the base line of the embroidery •...
Page 96: Attaching The Embroidery Hoop
Embroidery Setup Attaching the embroidery hoop • Raise the presser foot. • Place the embroidery hoop under the presser foot. • Attach the embroidery hoop, plug the embroidery hoop connector into the hoop securing lever from the front to the back until it clicks. Removing the embroidery hoop •...
Page 97: Stabilizer
Embroidery Setup Stabilizer Tear-away stabilizers Excess is easily torn away. • • One or more layers can be used. Available in different weights. • For more stability, apply to the wrong side of the mate- • rial with temporary adhesive spray before hooping. Carefully tear away excess stabilizer from the back of •...
Page 98: Adhesive Spray
Embroidery Setup Adhesive Spray Avoid using spray adhesive next to your embroidery system. • At a distance of 25-30 cm use adhesive spray carefully. • Spray the stabilizer and adhere to the wrong side of the material carefully smoothing material so that there are no puckers.
Page 99: Iron-On Interfacing
Embroidery Setup Iron-on interfacing Iron-on interfacings are available in a variety of weights. Iron- on interfacings should be selected to suit the material being used. Use an iron-on interfacing which is easily removable from the material. • Iron-on interfacings are pressed (fused) to the wrong side of the material Application: –...
Page 100: Embroidery Selection
Embroidery Selection Embroidery Design types An embroidery design can be selected from the following types available. Built-in Embroidery Designs – Built-in Embroidery Letters – – Designs from USB stick • Use the right/ left arrow buttons to select and press the OK button.
Page 101: Built-In Embroidery Designs
Embroidery Selection Built-in Embroidery Designs Use the arrow buttons to choose the built-in embroi- • dery designs and press the OK button. There will be 3 designs on the display. • Use the right/left arrow buttons to switch. To move forward or back by 3 designs. •...
Page 102: Built-In Embroidery Letters
Embroidery Selection Built-in Embroidery Letters Use the arrow button to choose the built-in Embroidery • Letters and press the OK button. • Press the arrow buttons to choose the letters. Press the OK button to select the desired letter. • •...
Page 103: Designs From Usb Stick
Embroidery Selection Press the OK button to prepare embroidery. • A warning message appears reminding you to – check the embroidery hoop size. Press the OK button to confirm and enter the embroi- • dery display. Now you can start to embroider. Designs from USB stick The embroidery module provides a USB port to connect your USB stick.
Page 104: Starting To Embroider
Embroidery Selection Starting to embroider After the preparations are done, you can start embroidering. Select the embroidery thread according to the information shown on the display. When using pure .exp designs from the internet you may find the color information in their document. Prepare the embroidery thread, thread the needle and •...
Page 105 Embroidery Selection Raise the presser foot. • Cut the thread at the beginning of the stitching. • • Lower the presser foot. Press the Start/Stop button to continue embroidering. • When the first colour is completed, the machine stops auto- matically.
Page 106: Editing The Embroidery Design
Embroidery Selection Editing the Embroidery Design Basic setting You can edit and combine designs to create original embroi- dery. After selecting the embroidery design. • Press the OK button to open the editing display. Embroidery hoop These icons start flashing if the design has been resized, the layout has been altered or the recommended embroidery hoop size has been changed.
Page 107: Resizing The Design
Embroidery Selection Resizing the Design • Press the button to resize the embroidery design. You can change the size of embroidery design from 80% to 120% of the original size. When you press the button, the resizing display will open. Use the arrow buttons to alter the size, the size will change in 5%-steps each time you press the arrow button.
Page 108: Rotating The Design
Embroidery Selection Rotating the Design • Press the button to rotate the embroidery design. It will rotate 90 degrees clockwise each time when pressing the button, the angle of the design will be shown. The icon to rotate the design appears. Single/ Multi color Press the button to set the single or multi color for the •...
Page 109: Advanced Settings
Embroidery Selection Advanced settings • Press the button to open the setup program and alter the embroidery mode settings. Press the button again to save the settings and leave • the setup program. In the setup program, the machine settings or function for embroidery can be customized or executed.
Page 110: Acoustic Signal
Embroidery Selection Acoustic signal The acoustic signal sound can be set on/ off by pressing the arrow buttons. Embroidery arm return • Press the OK button and the arm will move to the home position. tteNtioN Do not return the arm with the embroidery hoop attached. 502020.83.11_2013_06_bernette chicago 7_EN...
Page 111: Load A Design After Interruption
Embroidery Selection Load a Design after interruption Press the button to open the type selection display. • • Use the arrow buttons to choose the design from Built- in Embroidery designs or from USB stick. Press the OK button to confirm the selection. •...
Page 112 Embroidery Selection Press the OK button to prepare embroidery. • A warning message appears reminding you to – check the embroidery hoop size. • Press the OK button to confirm and enter the embroi- dery display. Press the button to move the design to the last embroi- •...
Page 113: Bernina Cutwork Tool
Embroidery Selection BERNINA CutWork Tool* * The BERNINA CutWork Tool accessory is optional. It is not included with this machine. tteNtioN Turn power switch to off («O») when carrying out any of the following operations. Preparation Attach the Darning/Embroidery foot Loosen the needle clamp screw (a) to remove the •...
Page 114: Switch From Embroidery Mode To Cutting Mode
Embroidery Selection Switch from Embroidery Mode to Cutting Mode Depending on the selected designs, the machine is making all necessary settings automatically. • Switching from Embroidery Mode to Cutting Mode can be made manually too. • Open the Setup program and use the arrow buttons to choose the CutWork Tool or to choose the sewing needle.
Page 115: Start To Cut
Embroidery Selection Start to Cut Upload the CutWork Design via the USB Stick to the machine. The display will show the CutWork Design with „Cut 1“. • • Press Start/Stop button and start to cut. – When Cut 1 is completed, the machine stops auto- matically The message „Raise presser foot“...
Page 116: Warnings
Warnings Warning functions Warning message Warning display Presser foot is not lowered This message is displayed when the Start/stop button or the needle up/down position button is pressed while the presser foot is raised. Presser foot is not raised This message is displayed when the embroidery module will initialize while the embroidery foot is lowered.
Page 117 Warnings Warning message Warning display Bobbin thread is low This message is displayed when the bobbin thread is running out. BH lever is not lowered This message is displayed when the buttonhole or darning stitch was selected and the start/stop button was pressed while the buttonhole lever is raised.
Page 118 Warnings Warning message Warning display Press the needle up/down position button to raise the needle. This message is displayed when the embroidery module is attached and the power is turned on with the needle in the down position. Delete design? This message is displayed when the machine is in embroidery mode and you pressed the button The embroidery design can‘t be imported.
Page 119: Warning Message
Warnings Warning message Warning display The embroidery design is completed. Cannot recognize the data. This message is displayed when the data of the selected design is defective. Loading. An embroidery design is loading. Turn off the machine, the plug is not attached cor- rectly.
Page 120 Warnings Warning message Warning display Embroidery model is not attached correctly. This message is displayed when the embroidery module is not attached correctly. The arm of the embroidery module will move This message is displayed when the embroidery module is initializing. The sewing machine is blocked The exclamation message means that the thread is twisted or jammed or the fabric is too thick and the hand...
Page 121: Warning Sound
Warnings Warning sound When operating correctly: 1 beep When the memory is full with 20 units of designs: • – 3-short beeps When operating incorrectly: • 3-short beeps – • When the sewing machine is in trouble and can‘t sew: 3-short beeps –...
Page 122: Maintenance
Maintenance Cleaning the display tteNtioN Disconnect the power cord from the wall socket before cleaning the display and the sewing machine surface, otherwise injury or electrical shock may result. If the front panel is dirty, wipe it gently with a soft, dry cloth. Do not use any organic solvents or detergents.
Page 123: Environmental Protection
Maintenance Clean the bobbin holder with a brush. • • Remove the needle, presser foot and presser foot holder. Remove the bobbin cover plate. • • Remove the screw holding the stitch plate and remove the stitch plate. • Clean the feed dog and bobbin case with a brush. Also clean them, using a soft, dry cloth.
Page 124: Trouble Shooting
Trouble Shooting Trouble shooting guide Before calling for service, check the following items. If the problem can't be solved, contact the place of purchase or your nearest authorized dealer. Problem Cause Correction Reference The machine is not threaded correctly. Rethread the machine. •...
Page 125: Trouble Shooting
Trouble Shooting Problem Cause Correction Reference The needle is damaged. Insert a new needle. • – • The needle is not correctly inserted. – Insert the needle correctly (flat side towards the back). 19/20 • Wrong needle size for the fabric. –...
Page 126 Trouble Shooting Problem Cause Correction Reference The upper thread tension is too tight. Loosen the thread tension. • – The upper thread is not threaded cor- Rethread the machine. • – rectly. 19/20 The needle is too heavy for the fabric Choose a needle to suit the thread •...
Page 127 Trouble Shooting Problem Cause Correction Reference The machine is not turned on. Turn on the machine. • – The machine is not plugged in. Connect the power line plug to the • – power outlet. The embroidery module is not set up Set the embroidery module up cor- •...
Page 128 Trouble Shooting Problem Cause Correction Reference 120/121 The thread is tangled or the bobbin Remove the tangled thread. When • – case, etc., is plugged up. the bobbin case is plugged up, clean the hook area. • The thread tension is incorrect. –...
Page 129: A - Group Stitches
Stitches Overview A - Group Stitches Stitch Pattern Width (mm) Length (mm) Tension Presser  Reverse Auto-Lock (L)  Mirror Width Double needle / • Foot Tie off Auto-Stop (S) T Presser foot T Presser foot Auto Manual Auto Manual 0.0~7.0 (0.5) 1.5~3.0 (0.5) 3 - 5...
Page 130 Stitches Overview Stitch Pattern Width (mm) Length (mm) Tension Presser  Reverse Auto-Lock (L)  Mirror Width Double needle / • Foot Tie off Auto-Stop (S) T Presser foot T Presser foot • 2.5~7.0 (0.5) 0.3~1.0 (0.1) 2 - 4 ...
Page 131 Stitches Overview Stitch Pattern Width (mm) Length (mm) Tension Presser  Reverse Auto-Lock (L)  Mirror Width Double needle / • Foot Tie off Auto-Stop (S) T Presser foot T Presser foot • 3.0~7.0 (0.5) 1.0~3.0 (0.5) 3 - 5 ...
Page 132: B - Group Stitches
Stitches Overview B - Group Stitches Stitch Pattern Width (mm) Length (mm) Tension Presser  Reverse Auto-Lock (L)  Mirror Width Double needle / • Foot Tie off Auto-Stop (S) T Presser foot T Presser foot Auto Manual Auto Manual •...
Page 133 Stitches Overview Stitch Pattern Width (mm) Length (mm) Tension Presser  Reverse Auto-Lock (L)  Mirror Width Double needle / • Foot Tie off Auto-Stop (S) T Presser foot T Presser foot • 2.5~7.0 (0.5) 1.0~3.0 (0.5) 3 - 5 ––...
Page 134 Stitches Overview Stitch Pattern Width (mm) Length (mm) Tension Presser  Reverse Auto-Lock (L)  Mirror Width Double needle / • Foot Tie off Auto-Stop (S) T Presser foot T Presser foot • 3.0~7.0 (0.5) 1.0~3.0 (0.5) 3 - 5 ––...
Page 135: Embroidery Design Overview
Embroidery Design Overview Start Screen 00 - Butterfly 01 - Beach Logo 4‘086 5‘622 71.9 mm 100.4 mm 49.2 mm 89.6 mm Colors Colors 02 - Jewel Flower 03 - Night Ballon 3‘741 12‘017 80.8 mm 72.4 mm 95.2 mm 91.8 mm Colors Colors...
Page 136: Seasons
Embroidery Design Overview 06 - Hummingbird 07 - Pop Flowers 7‘637 4‘936 63.4 mm 92.2 mm 64.0 mm 69.8 mm Colors Colors Seasons 08 - Scarecrow 09 - Happy Sun 10‘547 9‘535 77.4 mm 70.4 mm 98.6 mm 69.7 mm Colors Colors 502020.83.11_2013_06_bernette chicago 7_EN...
Page 137 Embroidery Design Overview 10 - Camping 11 - Shells and Starfish 14‘267 8‘675 88.1 mm 88.4 mm 67.5 mm 69.7 mm Colors Colors 12 - Big Fireworks 13 - Fireworks 7‘283 6‘308 80.5 mm 80.8 mm 126.2 mm 99.0 mm Colors Colors 14 - Pumpins &...
Page 138 Embroidery Design Overview 16 - Fall Corner 17 - Fall Leaves 9‘881 10‘704 74.0 mm 101.6 mm 101.6 mm 91.5 mm Colors Colors 18 - Pine Cones 20 - Santa 1 6‘402 33‘204 76.2 mm 107.9 mm 87.2 mm 155.0 mm Colors Colors 19 - Summer...
Page 139 Embroidery Design Overview 21 - Santa 2 22 - Candle 7‘691 8‘271 66.8 mm 100.8 mm 102.0 mm 113.8 mm Colors Colors 23 - Redwork Ornament 24 - Redwork Candy Cane 3‘260 5‘090 98.8 mm 66.0 mm 62.6 mm 97.4 mm Colors Colors 25 - Snowflake...
Page 140: Sports
Embroidery Design Overview Sports 27 - Sunrise on the Greens 28 - Golf 10‘262 10‘465 92.0 mm 94.6 mm 49.9 mm 49.9 mm Colors Colors 29 - Baseball 30 - Soccer Player 9‘704 8‘050 127.4 mm 83.6 mm 41.3 mm 95.2 mm Colors Colors...
Page 141 Embroidery Design Overview 33 - Motorcycle 34 - Sailing 5‘160 14‘716 89.1 mm 87.3 mm 55.6 mm 88.6 mm Colors Colors 35 - Fishing 36 - Hunting 6‘450 5‘158 101.2 mm 104.8 mm 60.8 mm 58.8 mm Colors Colors 37 - Baseball 38 - Snowboarding 4‘452 11‘692...
Page 142: Decoration
Embroidery Design Overview Decoration 39 - Milky Way Ellipse 40 - Pop Flower 1 7‘078 3‘785 101.6 mm 50.2 mm 41.0 mm 50.9 mm Colors Colors 41 - Sewing Border 42 - Heart Monogram 2‘455 3‘734 86.5 mm 98.8 mm 34.2 mm 57.4 mm Colors...
Page 143 Embroidery Design Overview 45 - Lace Heart Border 46 - Flowered Heart 12‘428 5‘192 67.0 mm 70.4 mm 151.6 mm 89.0 mm Colors Colors 47 - Fancy Gizmo Border 48 - Lace Flower 2‘665 7‘276 98.6 mm 56.5 mm 33.2 mm 98.6 mm Colors Colors...
Page 144: Flowers
Embroidery Design Overview Flowers 50 - Lily 51 - Aster 14‘243 8‘531 95.4 mm 72.0 mm 87.4 mm 89.2 mm Colors Colors 52 - Flowers 3 53 - White Daisies 6‘707 15‘642 58.8 mm 76.2 mm 71.9 mm 268.1 mm Colors Colors 54 - Sunflower Border...
Page 145 Embroidery Design Overview 56 - 3 Sunflowers 57 - 2 Roses 16‘592 17‘255 98.6 mm 71.0 mm 71.4 mm 136.0 mm Colors Colors 58 - Magnolia & Dogwood Corner 59 - Flowers 3 23‘636 3‘667 107.0 mm 90.6 mm 138.8 mm 127.0 mm Colors Colors...
Page 146 Embroidery Design Overview 62 - Strawberries 63 - Floral Border 7‘984 3‘437 62.5 mm 98.0 mm 90.5 mm 34.0 mm Colors Colors 64 - Boston Ivy 65 - Flower Chain 6‘944 4‘675 85.3 mm 132.6 mm 88.9 mm 51.8 mm Colors Colors 66 - Flower Frill...
Page 147: Children
Embroidery Design Overview 68 - Edelweiss 69 - Bouquet Applique 8‘198 9‘150 102.9 mm 91.3 mm 58.5 mm 146.6 mm Colors Colors Children 70 - Rocking Horse 71 - Rattle 6‘238 5‘630 70.2 mm 98.6 mm 74.0 mm 76.4 mm Colors Colors 502020.83.11_2013_06_bernette chicago 7_EN...
Page 148 Embroidery Design Overview 72 - Balloons 73 - Teddy Bear 14‘239 15‘877 88.8 mm 78.2 mm 98 mm 106.4 mm Colors Colors 74 - Grizzly 75 - 1910 Locomotive 17‘306 14‘720 72.8 mm 93.2 mm 89.1 mm 47.2 mm Colors Colors 76 - Pirates 77 - Easter Girl in Flowers...
Page 149 Embroidery Design Overview 78 - Gardening Hat 79 - Cute Bunny 9‘629 4‘502 101.8 mm 38.4 mm 59.2 mm 53.8 mm Colors Colors 80 - It's a Girl 81 - It‘s a Boy 8‘201 7‘263 96.0 mm 103.0 mm 99.6 mm 84.1 mm Colors Colors...
Page 150: Animals
Embroidery Design Overview Animals 84 - Moonlit Bats 85 - Dragonfly 6‘888 10‘428 65.2 mm 98.3 mm 51.4 mm 62.4 mm Colors Colors 86 - Hummingbird 2 87 - Eagle 3‘814 14‘401 71.0 mm 89.0 mm 84.8 mm 120.6 mm Colors Colors 88 - Dove...
Page 151 Embroidery Design Overview 90 - Gazelles 91 - Giraffe 15‘215 7‘008 90.7 mm 106.0 mm 94.6 mm 114.3 mm Colors Colors 92 - Lion 93 - Buck 9‘140 18‘699 95.0 mm 88.0 mm 127.0 mm 88.0 mm Colors Colors 94 - Deer Head 95 - Kitty 2 5‘733 1‘380...
Page 152 Embroidery Design Overview 96 - Wolf 97 - Moorish Idol 23‘313 18‘831 99.0 mm 89.0 mm 77.2 mm 85.6 mm Colors Colors 98 - Horse 99 - Dragon 11‘383 17‘151 99.2 mm 68.2 mm 86.8 mm 152.6 mm Colors Colors 502020.83.11_2013_06_bernette chicago 7_EN...
Page 153 502020.83.11_2013_06_bernette chicago 7_EN...
Page 154 EN – 06/2013 – 2nd Edition For more information visit 502020.83.11 / 021H1G0101 www.mybernette.com © BERNINA International AG Steckborn CH, www.bernina.com...
