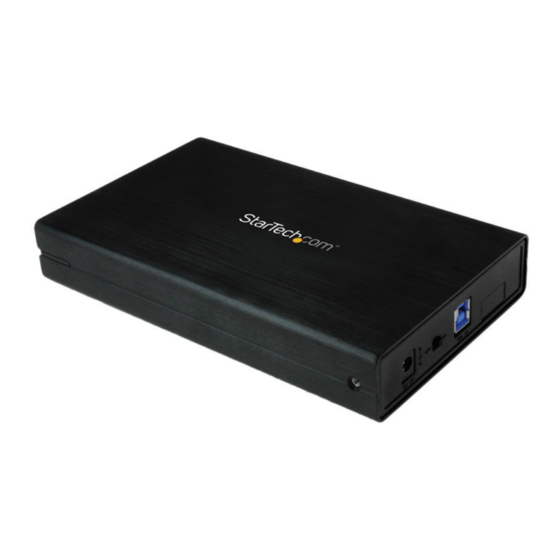

3.5" USB 3.0 to SATA III HDD Enclosure
with UASP Support
S3510BMU33
S3510SMU33
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/30/2013
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com S3510BMU33
Summary of Contents for StarTech.com S3510BMU33
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/30/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................3 How to Use ....................5 Connecting the Hard Drive ........................5 LED Indicator .............................. 5 Disconnecting the Hard Drive ......................5 Initializing the Hard Drive ........................ -
Page 4: Product Diagram
Product Diagram Front View Power Power Jack Switch USB Port Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 3.5” USB 3.0 SATA III HDD Enclosure • 1x Screw Kit • 1x Universal Power Adapter (NA / UK / EU) • 1x USB 3.0 Cable • 1x HDD Stand • 1x Product Manual System Requirements •... -
Page 6: Installation
Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 7 4. Slide the Hard Drive Tray back into the Metal Enclosure. 5. Mount the Hard Drive Tray to the Metal Enclosure by inserting 2 of the smaller included screws into either side of the enclosure. Fix them into place using a Screw Driver.
-
Page 8: How To Use
How to Use Connecting the Hard Drive Once the enclosure has been attached to a computer, and the necessary software has been installed, the drive will be accessible as though it were installed within the system. Prior to using the drive, it will need to be formatted according to your operating system requirements. -
Page 9: Initializing The Hard Drive
Initializing the Hard Drive 1. If the SATA Hard Drive is blank it may need to be initialized and formatted before use. From the main Windows desktop, right-click on “My Computer” (“Computer” in Vista/ 7 / 8), then select Manage. In the new Computer Management window, select Disk Management from the left window panel. -
Page 10: Specifications
Specifications Host Interface USB 3.0 External Connectors 1x USB 3.0 type B male 1x 15 pin SATA Power female Internal Connectors 1x 7 pin SATA Data male Maximum Data Transfer Rate USB 3.0: 5 Gbit/s Windows 2000/XP/Server 2003/Vista/ Compatible Operating Systems Server 2008 R2/7/8 (32/64-bit), Mac OS 9/10, Linux Instruction Manual... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
