Cub Cadet LTX1050/KW Illustrated Parts Manual

Hydrostatic lawn tractor illustrated parts manual
Hide thumbs Also See for LTX1050/KW:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
I
P
M
llustrated
arts
anual

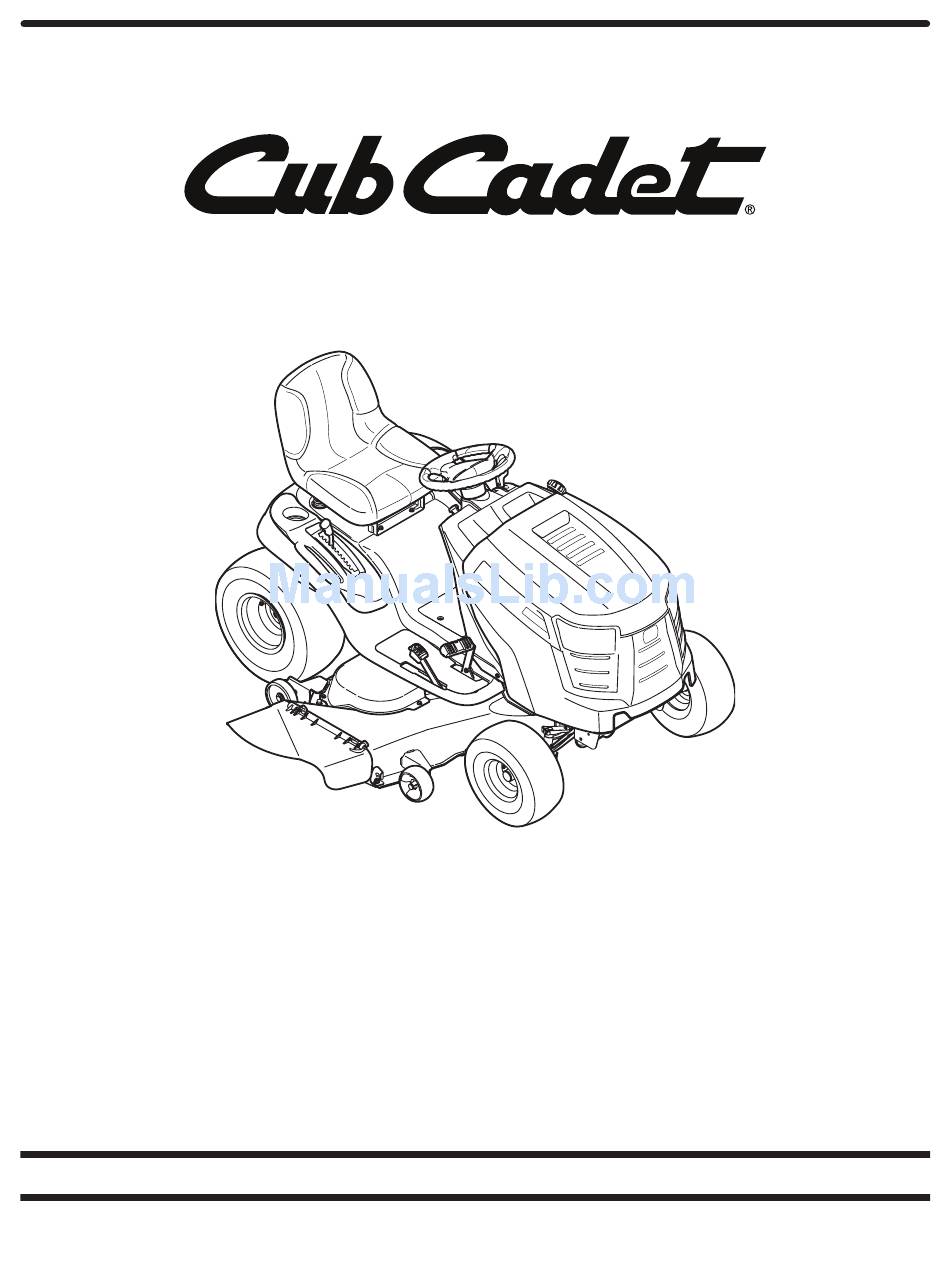

Hydrostatic Lawn Tractor — LTX1050/KW
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Form No. 769-08616
November 06, 2012
