AMERICAN STYLE
FRIDGE FREEZER
FD91185SS User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD91185SS and is the answer not in the manual?

Questions and answers

Related Manuals for SERVIS FD91185SS

Summary of Contents for SERVIS FD91185SS

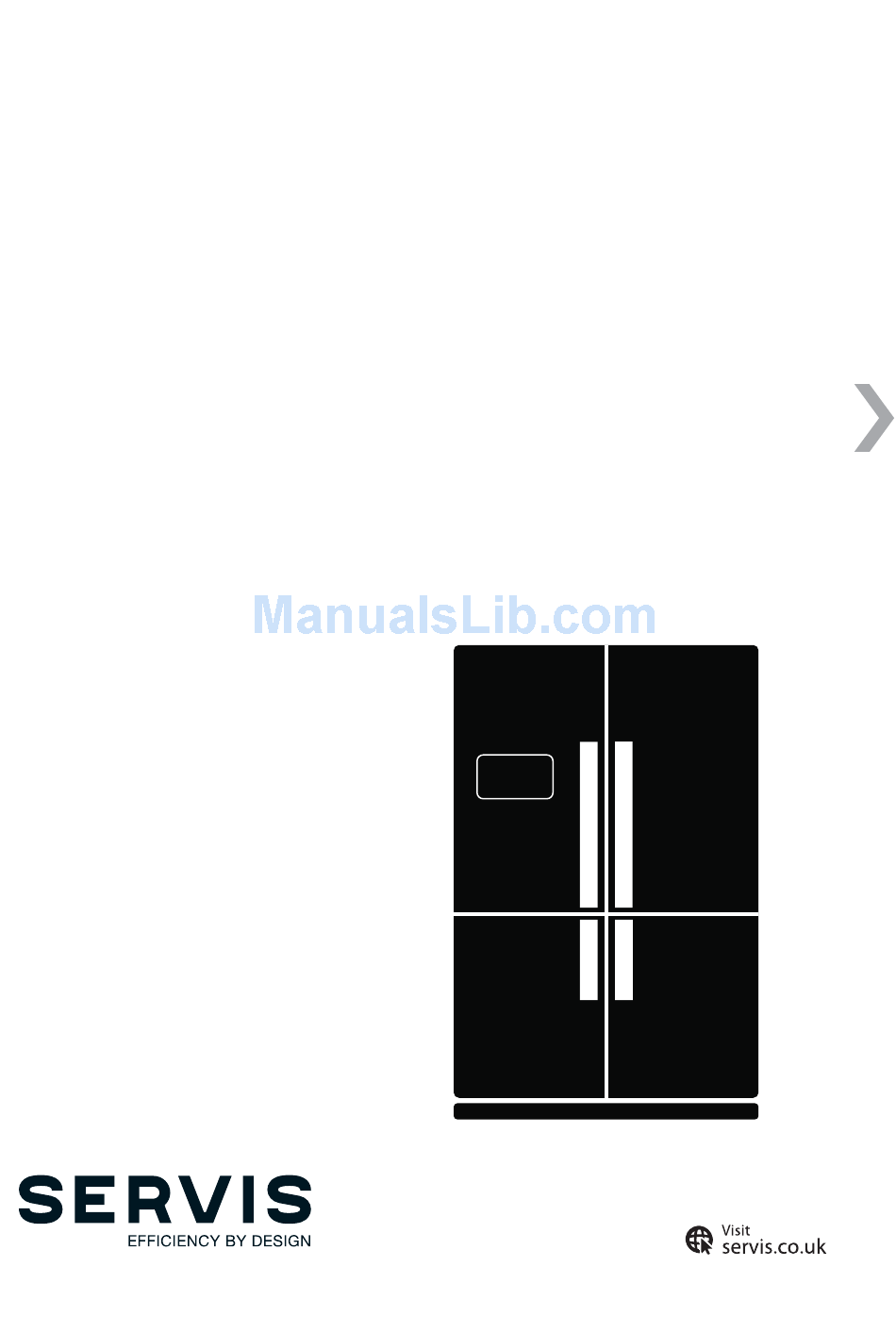

  • Page 1 AMERICAN STYLE FRIDGE FREEZER FD91185SS User Manual...
  • Page 2 REGISTER TO ACTIVATE YOUR 2 YEAR GUARANTEE NOW SERVIS.CO.UK 0800 0124382 Parts & Labour for 2 years. Go to www.servis.co.uk for more information T: 0800 0124 382...

  • Page 3: Table Of Contents

    Contents Welcome Safety Instructions Your Fridge Freezer Technical Specification Installation Usage Food Storage Tips Cleaning and Care Troubleshooting Guarantee Index T: 0800 0124 382...

  • Page 4: Welcome

    WELCOME WELCOME Thank you for choosing this Servis FD91185SS American Style Fridge Freezer, which has been designed and manufactured to give you many years of trouble-free service. You may already be familiar with using a similar product but please take time to read these instructions, which have been written to ensure you get the very best from your purchase.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS To ensure your safety and the safety of others, please read the following safety precautions before you use your Fridge Freezer. Your Fridge Freezer conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to your Fridge Freezer, read this user manual carefully before using it for the first time.
  • Page 6 WARNING: Do not use other electrical appliances inside the Fridge Freezer. Do not refreeze food once it has thawed out. Do not make any alterations to your Fridge Freezer, unless authorised to do so by Servis. T: 0800 0124 382...
  • Page 7 The packaging of the machine could be hazardous to children. Please refer to the disposal instructions on the rear cover. This Fridge Freezer is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments - Farm houses and by clients in hotels, motels and other residential type environments - Bed and breakfast type environments - Catering and similar non-retail applications...
  • Page 8 SAFETY INSTRUCTIONS Ecological Hints and Tips: We have provided a few important hints and tips, so that you can save on the cost of energy and help protect the environment. Do not install the Fridge Freezer close to sources of heat such as a radiator. Install the Fridge Freezer in a well ventilated room and keep the openings clear from obstruction.
  • Page 9 Advanced Features Your Servis Fridge Freezer contains several advanced features including: Multi-Zone Technology; this allows you to independently control the different zones of your Fridge Freezer. For example you may wish to decrease your freezer capacity while increasing your refrigerator capacity. For more information please refer to page 25.

  • Page 10: Your Fridge Freezer

    YOUR FRIDGE FREEZER FRONT VIEW Cooler Zone Adjustable glass shelf Top door (1 of 3) shelf Middle Chiller door shelves Crispers Bottom door shelf basket Zone 2: Right Freezer Bottom Zone 1: Left Freezer basket Figure 3 T: 0800 0124 382...
  • Page 11 The following information will help you to identify the different parts of your Fridge Freezer and provide suggestions on the best way to use them. Cooler Zone; the main refrigeration compartment Top door shelf; for storing butter and cheese Middle door shelf; for storing smaller items of food Bottom door shelf;...
  • Page 12 YOUR FRIDGE FREEZER CONTROL PANEL OVERVIEW Your Fridge Freezer has a touch screen control panel to allow you to easily select the required function. Buttons Screen Saver Button Mode Button Cooler (refrigerator Control Button) Beverage Cooling Alarm Button Zone 1 Control Button Zone 2 Control Button Figure 4 T: 0800 0124 382...
  • Page 13 Icons Beverage Cooling Timer Segment Beverage Cooling Alarm Door Light On Eco Mode Door Light Off Holiday Mode Night Sensor Child Lock Low Voltge Warning Alarm SC indicates that the Supercool function is in use. SF indicates that the Superfreeze function is Cooler Zone 1 Zone 2...
  • Page 14 YOUR FRIDGE FREEZER REAR VIEW Condenser Vaporisation Container Figure 6 T: 0800 0124 382...

  • Page 15: Electrical Information

    ELECTRICAL INFORMATION Condenser. Vaporisation Container; Part of the ‘No Frost’ technology which allows water collected during automatic defrosting to naturally evaporate. ELECTRICAL INFORMATION Your Fridge Freezer requires a 220-240V, 50Hz mains supply. Do not use any other supply. Your Fridge Freezer may be fitted with a moulded, earthed plug, which cannot be rewired. If the fuse cover becomes damaged, you must not use the plug.

  • Page 16: Technical Specification

    TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Model Number FD91185SS Power Source 220-240 V AC, 50Hz Power Consumption (W) 481 KW/year Energy Efficiency Rating A+ Class Climate Class T/N (16 C - 43 Refrigerant Gas R600a Star Class 4 (-18 C or cooler)

  • Page 17: Installation

    INSTALLATION INSTALLATION REQUIREMENTS Before unpacking and manoeuvring your Fridge Freezer, please take the time to read and become familiar with the following points: Make sure that your Fridge Freezer can fit through all doorways on route to its final location. The dimensions of your Fridge Freezer are 1850 mm high x 910 mm wide x 780 mm deep.

  • Page 18: Adjusting The Feet

    INSTALLATION ADJUSTING THE FEET For safe operation, it is important that your Fridge Freezer is stable and balanced. The two adjustable feet at the front are used to level your Fridge Freezer. Make sure that your Fridge Freezer is level before placing any foodstuffs inside it. To increase the height of the front of the Fridge Freezer, turn the feet clockwise (Figure 7).

  • Page 19: Before Using Your Fridge Freezer

    BEFORE USING YOUR FRIDGE FREEZER When using your Fridge Freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor. We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of sodium bicarbonate before use.

  • Page 20: Usage

    USAGE TEMPERATURE CONTROL The Control Panel (Figure 4) is used to regulate the temperature in the fridge and freezer compartments. Refrigerator Compartment You can select a temperature setting for the refrigerator compartment by using the button: Press the button until the desired temperature is reached. The available temperatures are: 2, 3, 4, 5, 6, 7 or 8 Freezer Zone 1 You can adjust the temperature of the Zone 1 compartment by pressing the...
  • Page 21 USAGE Freezer Zone 2 You can adjust the temperature of the Zone 2 compartment by pressing the button until the desired temperature is reached: If this compartment is set as a freezer the available temperatures are: -16, -17, -18, -19, -20, -21, -22, -23 or -24 If this compartment is set as a refrigerator the available temperatures are: 2, 3, 4, 5, 6, 7 or Please Note: Pressing the...
  • Page 22 USAGE FUNCTIONS Beverage Cooling Alarm This function allows you to cool beverages for up to 30 minutes before an audible alarm sounds. The coldest area of the refrigerator is the lower part. We suggest placing your beverage there. To activate the Beverage Cooling Alarm Function: Press the button once.
  • Page 23 This function will not be activated if you are using Zone 2 as a refrigerator. Important: Please remember to remove your beverages after the audible alert as there is a risk that bottles left in the refrigerator for too long may explode. Economic Mode Selecting this function ensures that your refrigerator runs within the ideal temperature range.
  • Page 24 USAGE Quick Freezing (SUPERFREEZE) Mode This mode allows you to freeze prepared meals or large amounts of food quickly. To select the quick freezing function: Ensure that the zone where you wish to activate the superfreeze function is set as a freezer (see page 25 for further information).
  • Page 25 Lights Your Fridge Freezer contains a series of LEDs hidden within the door handles and an interior light (that is illuminated upon door opening). To turn the LEDs and interior light on: Press the button for at least 3 seconds until is displayed on the Control Panel.
  • Page 26 Control Panel. Alarm If the symbol appears on the Control Panel accompanied with an audible beep, you should contact the Servis helpdesk as your Fridge Freezer may not be operating as intended. T: 0800 0124 382...
  • Page 27 You can turn the audible beep off by pressing the button. The will continue to be displayed on the Control Panel until the fault is fixed. USING THE ZONES In order to save energy you can turn off zones that you do not require. Zone 1 To turn the Zone 1 compartment off: Press the...
  • Page 28 USAGE Refrigerator To turn just the refrigerator off: Press the buttons simultaneously for at least 5 seconds until all graphics indicating the compartment on the Control Panel disappear. To turn the refrigerator compartment back on: Press the buttons simultaneously for at least 5 seconds until all graphics indicating the compartment re-appear.
  • Page 29 If you are changing a zone from a freezer to a refrigerator, empty the zone completely and leave the door open for 4 hours before refilling and using as a refrigerator. If you are changing a zone from a refrigerator to a freezer, empty the zone completely and leave the door open for 2 hours before re-filling and using.
  • Page 30 USAGE Crisper Air Adjustment Switch When you have a large amount of food in the crisper, slide the Crisper Air Adjustment Switch to the open position, as shown in Figure 8. This will increase air flow in the crisper and ensure that your food remains fresher for longer.
  • Page 31 FOOD STORAGE GUIDANCE To help you use your Fridge Freezer efficiently, please take the time to read the following tips and guidance. Storage Areas: The circulation or air within your Fridge Freezer causes areas of different temperatures. It is recommended that you make use of these areas when storing your food. The coldest area of the refrigerator compartment is at the bottom above the chiller compartment.

  • Page 32: Food Storage Tips

    FOOD STORAGE TIPS Take care when storing tropical fruit such as pineapples as they can quickly deteriorate in lower temperatures. Divide and separate food into smaller pieces before storage. Cover or wrap food to prevent odours. We recommend that you store meat loosely covered as this allows air to circulate around the meat causing the surface to dry slightly, helping to prevent the growth of bacteria.
  • Page 33 The Freezer Compartment: You should use the freezer compartments for storing food for long periods and making ice. Aim to freeze fresh food as quickly as possible so that it keeps its taste and appearance. We recommend that you place food you would like to freeze in the upper tray of the freezer compartment for 24 hours before placing it next to other frozen foods.
  • Page 34 FOOD STORAGE TIPS Food Preparation Storage Duration Thawing Period at (Months) Room Temperature (Hours) Freshwater Fish (such Until completely as trout) Cleaned well inside thawed and scaled. Washed Lean Fish (such as Until completely and dried. Cut off Sea Bass) thawed head and tail where Fatty fish (such as...

  • Page 35: Cleaning And Care

    CLEANING AND CARE Power Disruption: In the event of a power cut, please do not open any of the doors of your Fridge Freezer. Your Fridge Freezer will preserve your frozen food in an ambient environmental temperature of up to 25 C for approximately 13 hours.
  • Page 36 CLEANING AND CARE Cleaning The Vaporisation Container: Your Fridge Freezer uses ‘No Frost’ technology and performs fully automatic defrosting. The water formed as a result of this automatic defrosting flows into the vaporisation container at the rear of your Fridge Freezer and evaporates. We recommend cleaning the vaporisation container at regular intervals to prevent odours from building up.
  • Page 37 Replacing the LEDs: If the internal light or any of the LEDs need replacing please contact the Servis helpdesk as they should only be changed by authorised personnel. T: 0800 0124 382...

  • Page 38: Troubleshooting

    Fridge Freezer not operate as expected. In the event of an error, a symbol will be displayed on the Control Panel. The most common error symbols are shown below. If your Fridge Freezer displays a code not shown, consult the Servis helpdesk. Error Symbol...
  • Page 39 Error Symbol Meaning Advice The refrigerator compartment Cancel the SUPERCOOL is too cool. Food in the function if it is active. refrigerator is at risk of being Decrease the temperature of frozen. the refrigerator compartment. The supply voltage has This symbol is intended dropped below 170 V.
  • Page 40 TROUBLESHOOTING INFORMATION If your Fridge Freezer is not operating as expected, you may find a simple solution listed in the table below. If your Fridge Freezer has developed a fault not covered in this manual, please contact the Servis helpdesk. Fault...
  • Page 41 Freezer during use. They are perfectly normal from a frost free Fridge Freezer and are not damaging your Fridge Freezer. Contact the Servis helpdesk if you have any concerns. There is moisture on the inner The doors are opened and Try to reduce the number of parts of your Fridge Freezer.

  • Page 42: Guarantee

    Please refer to the rear cover for disposal instructions. GUARANTEE The Servis guarantee covers the cost of parts/labour/call out charges to repair an appliance should any covered component fail in its normal functions necessitating a repair or replacement to resume those functions.
  • Page 43 Claims in respect to routine inspection or maintenance The Servis guarantee is not transferable. For your Servis guarantee to be valid, you will need to retain your original purchase receipt and be able to provide it when you make a claim.

  • Page 44: Index

    INDEX Adjusting the feet .........15 Fault detection system .........35 Advanced features ........06 Feet, adjustment of ........15 Alarm .............23 Food storage guidance .........28 Functions ............19 Fuse ..............12 Child lock............23 Chiller .............26 Cleaning and care .........32 Crisper air adjustment switch ......27 Guarantee ............39 Door lights .............22 Holiday mode ..........20...
  • Page 45 Night sensor ..........22 Technical specification .........13 No frost technology ........06 Temperature control ........17 ..........Power disruption ...........32 Using the zones ..........24 qdrink function..........19 Quick cooling ..........21 Quick freezing ..........21 Warranty ............01 Replacing the LEDs ........34 Safety instructions ........02 Screen saver ..........23 Supercool ............21 Superfreeze ...........21...
  • Page 48 T: 0800 0124 382 E: info@servis.co.uk The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
