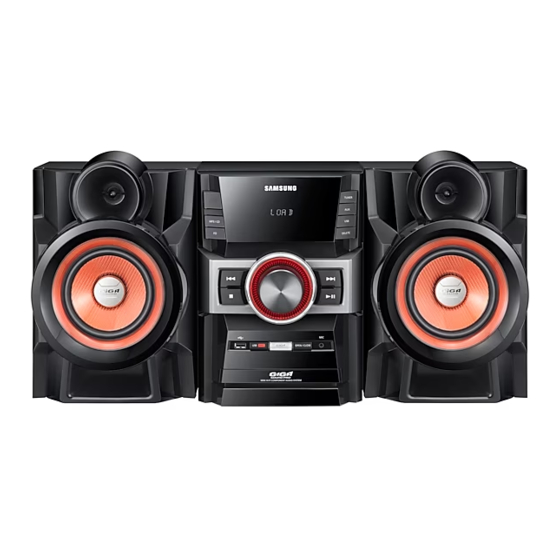

- Page 1 MX-D630 MINI-Compact System MP3-CD/WMA-CD/CD-R/RW Playback user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
-
Page 2: Safety Warnings
Safety Warnings TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates “dangerous voltage” inside cautiON : TO PREVENT ELECTRIC SHOCK, This symbol indicates important instructions the product that presents a risk of electric shock... -
Page 3: Table Of Contents
Thank you for buying this SAMSUNG mini-compact system. Contents Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features...................................... 2 AfETy ARningS nSTALLing OMPACT ySTEM Front Panel View ...................................... -
Page 4: Front Panel View
Front Panel View POWER button Search/Skip button MP3/CD button VOLUME EQ button DELETE button Search/Skip button USB button STOP/Tuning Mode button AUX button USB REC button 18. TUNER button USB jack Window Display GIGA SOUND PRO button Compact DISC Compartment OPEN/CLOSE button MIC jack PLAY/PAUSE button... -
Page 5: Rear Panel View
Rear Panel View Speaker Connector Terminals FM Antenna Connector Terminal ONLY FOR SERVICE (This jack is just for AUX IN Terminals testing, please don't use it) AM Antenna Connector Terminal(Optional) This product may not support the AM ☛ function depending on your region. Where to Install Your Mini-Compact System to take full advantage of your new mini-compact system, follow these installation instructions before connecting the unit. -
Page 6: Remote Control
Remote Control POWER PausE POWER FUNCTION 24. Mic VOl +, - cD REc sPEED REPEat a-B DisPlaY CD REC DISPLAY USB REC DISC SKIP SPEED slEEP tiMER ON/OFF tiMER/clOcK REPEat TIMER TIMER/CLOCK SLEEP Disc sKiP * ON/OFF REPEAT REPEAT usB REc MutE FuNctiON MUTE... -
Page 7: Connecting Your System To The Power Supply
Connecting to an External Source Connecting your System to the Power Supply ☛ connecting an External analog component Before plugging your system into a main socket, you must check the Example: Analog signal components such as a VCR, Camcorder, and TV. voltage. -
Page 8: Connecting The Fm Antenna
Connecting the FM Antenna Setting the Clock how to connect a cOaXial tYPE antenna. Connect an antenna to the FM antenna terminal. ◆ Your system is equipped with a clock which allows you to turn it on and Plug the connector on the FM antenna supplied into the coaxial socket ◆... -
Page 9: Cd/Mp3/Wma-Cd-P
To replay the CD/MP3/WMA-CD POWER POWER POWER FUNCTION FUNCTION POWER FUNCTION FUNCTION this is a player that enables the playback of audio cD, cD-R, cD-RW and MP3/WMa-cD. CD REC CD REC CD REC CD REC You can play 12 cm or 8 cm compact disc without using an adapter. DISPLAY DISPLAY USB REC DISC SKIP... -
Page 10: Searching For A Specific Music Passage On A Cd
POWER POWER POWER FUNCTION FUNCTION FUNCTION searching for a specific Music A-B Repeat Playback CD REC CD REC CD REC DISPLAY DISPLAY USB REC DISC SKIP USB REC DISC SKIP Passage on a cD DISPLAY SPEED SPEED USB REC DISC SKIP SPEED You can repeatedly play back a designated section of a cD. -
Page 11: Programming The Order Of Cd Playback
checking or changing Programmed Programming the Order of cD Playback cD tracks (this function is not available during playback of an MP3/WMa-cD.) You can decide: You can check or change your selection of tracks at any time. The order of the track desired to listen ◆... -
Page 12: Playing Usb
Playing USB You can play MP3/WMa files by connecting to various external usB Delay storage devices such as usB flash memory or hDD(hard Disc drives). When selecting USB function, file reading (READ-IN) may take several ◆ minutes. Connect the external USB storage device to the USB jack on your When playing a USB device, there may be a delay then advancing to the ◆... -
Page 13: To Use High Speed Search
Playing USB(continue) POWER POWER POWER FUNCTION FUNCTION FUNCTION to use high speed search to skip next 10 tracks CD REC CD REC CD REC DISPLAY DISPLAY USB REC DISC SKIP USB REC DISC SKIP DISPLAY SPEED SPEED USB REC DISC SKIP SPEED Before you begin! Connect the external USB storage device to your player. -
Page 14: Searching For And Storing The Radio Stations
searching for and storing the Radio Selecting a Stored Station stations You can listen to a stored radio station as following: You can store up to: 15 FM stations, 15 AM stations. Switch the system on by pressing the POWER ( ) button. -
Page 15: Recording Function
Recording Function Note that setting the input level too loud when recording music from an ◆ You can record sound of the cD, the Radio Broadcasting or sound from external device through the AUX and USB channel may introduce noise the external source into the usB storage device. -
Page 16: Timer Function
Timer Function the timer enables you to switch the system on or off at specific times The maximal tuner timing recording time is 5 hours. ◆ automatically. If the timer switch on and off times are identical, the word ERROR is ◆... -
Page 17: Mute Function
RDS PTY DELETE RDS DISPLAY RDS PTY DELETE RDS DISPLAY RDS PTY DELETE RDS DISPLAY MP3-CD/CD MP3-CD/CD MP3-CD/CD Mute Function POWER FUNCTION POWER FUNCTION SOUND SOUND SOUND You can turn the sound off temporarily on your system. TUNING /ALBUM TUNING /ALBUM TUNING /ALBUM Example: You wish to answer a telephone call. -
Page 18: Setting The System To Switch Off Automatically
setting the system to switch off Safety Precautions automatically the following diagrams illustrate the precautions to be taken when using or moving your mini-compact system. While listening to music, you can set the system to switch off automatically. Example: You wish to go to sleep while listening to music. Press slEEP. -
Page 19: Cleaning Your Mini-Compact System
◆ Clean the outer casing regularly using a soft cloth and a light detergent. Do not use abrasive powders, liquids or aerosol cleaners. Never let any liquids Then contact your local dealer or SAMSUNG after-sales get into the system. service. -
Page 20: Technical Specifications
Both the design specifications and these user instructions are thus subject to change without notice. RaDiO Signal/noise ratio 55 dB Usable sensitivity 12 dB Total harmonic distortion 0.6 %... - Page 21 WORlD WiDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. area contact center Web site area contact center Web site ` North America 0700 Samsung (0700 726 Serbia www.samsung.com...
