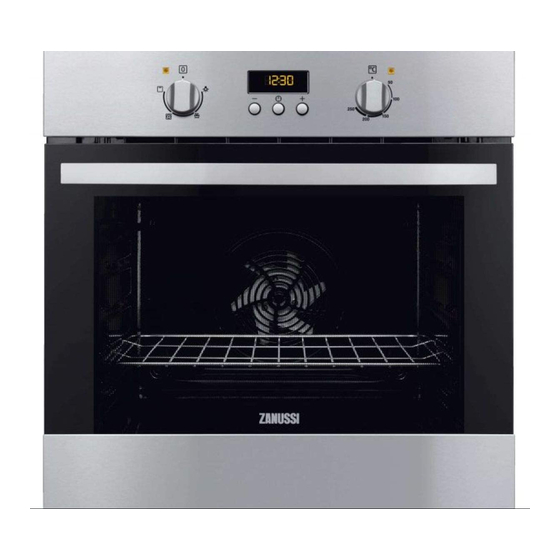

Zanussi ZOB35301 User Manual
  1. Manuals
  2. Brands
  3. Zanussi Manuals
  4. Oven
  5. ZOB35301
  6. User manual
Zanussi ZOB35301 User Manual

Zanussi ZOB35301 User Manual

Hide thumbs Also See for ZOB35301:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
EN
Oven
ZOB35301

Advertisement

Table of Contents
loading

Related Manuals for Zanussi ZOB35301

Summary of Contents for Zanussi ZOB35301

  • Page 1 User Manual Oven ZOB35301...

  • Page 2: Table Of Contents

    Contents Safety information Additional functions Safety instructions Hints and tips Product description Care and cleaning Before first use Troubleshooting Daily use Installation Clock functions Energy efficiency Using the accessories Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions.

  • Page 3: Safety Instructions

    Internally the appliance becomes hot when in operation. Do not • touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware. Before maintenance cut the power supply. • Ensure that the appliance is switched off before replacing the •...

  • Page 4: Internal Light

    • The electrical installation must have an • Discoloration of the enamel has no effect on isolation device which lets you disconnect the performance of the appliance. It is not a the appliance from the mains at all poles. defect in the sense of the warranty law. The isolation device must have a contact •...

  • Page 5: Product Description

    • Disconnect the appliance from the mains • Remove the door catch to prevent children supply. and pets to get closed in the appliance. • Cut off the mains cable and discard it. Product description General overview Control panel Knob for the oven functions Power lamp / symbol / indicator Electronic programmer Knob for the temperature...

  • Page 6: Daily Use

    Preheating Accessories can become hotter than usual. The appliance can emit an odour and smoke. This is Preheat the empty appliance to burn off the normal. Make sure that the airflow in the room is remaining grease. sufficient. 1. Set the function and the maximum temperature.

  • Page 7: Clock Functions

    Display A) Function indicators B) Time display C) Function indicator Buttons Button Function Description MINUS To set the time. CLOCK To set a clock function. PLUS To set the time. Clock functions Clock functions table Clock function Application Time of day To set, change or check the time of day.

  • Page 8: Using The Accessories

    Cancelling the clock functions For the Minute Minder function the display shows the time left. 1. Press the again and again until the 3. When the time ends the indicator of the necessary function indicator flashes. clock function flashes and an acoustic 2.

  • Page 9: Hints And Tips

    Hints and tips on the components when you cook. This can WARNING! change the baking results and cause Refer to Safety chapters. damage to the enamel. The temperature and baking times in Baking cakes the tables are guidelines only. They depend on the recipes and the •...
  • Page 10 Food True Fan Cooking Time (min) Comments Temperature Shelf position (°C) Jam-tart 2 (left and right) 30 - 40 In a 26 cm cake mould Sponge cake 50 - 60 In a 26 cm cake mould Christmas cake / 90 - 120 In a 20 cm cake mould Rich fruit cake...
  • Page 11 Bread and pizza Food True Fan Cooking Time (min) Comments Temperature Shelf position (°C) 60 - 70 1 - 2 pieces, 500 White bread gr per piece Rye bread 30 - 45 In a bread tin 2 (2 and 4) 25 - 40 6 - 8 rolls in a bak- Bread rolls...
  • Page 12 Food True Fan Cooking Time (min) Comments Temperature Shelf position (°C) English roast beef, 60 - 70 On a wire shelf medium English roast beef, 70 - 75 On a wire shelf well done Shoulder of pork 120 - 150 With rind Shin of pork 100 - 120...
  • Page 13 Food Quantity Tempera- Time (min) Shelf po- ture (°C) sition Pieces 1st side 2nd side Sausages max. 12 - 15 10 - 12 Pork chops max. 12 - 16 12 - 14 Chicken (cut 1000 max. 30 - 35 25 - 30 in 2) Kebabs max.

  • Page 14: Care And Cleaning

    Vegetables Food Temperature Time (h) Shelf position (°C) 1 position 2 positions Beans 60 - 70 6 - 8 1 / 4 Peppers 60 - 70 5 - 6 1 / 4 Vegetables for sour 60 - 70 5 - 6 1 / 4 Mushrooms 50 - 60...

  • Page 15: Replacing The Lamp

    The oven door can close if you try to remove the internal glass panel before you remove the oven door. CAUTION! Do not use the appliance without the internal glass panel. First lift carefully and then remove the glass panel. Clean the glass panel with water and soap.

  • Page 16: Troubleshooting

    The back lamp 1. Turn the lamp glass cover counterclockwise to remove it. 2. Clean the glass cover. 3. Replace the lamp with a suitable 300 °C heat-resistant lamp. 4. Install the glass cover. Troubleshooting WARNING! Refer to Safety chapters. What to do if...

  • Page 17: Installation

    Installation Securing the appliance to the cabinet WARNING! Refer to Safety chapters. Building In min. 550 min. 560 Electrical installation The manufacturer is not responsible if you do not follow the safety precautions from the Safety chapters. This appliance is supplied without a main plug and a main cable.

  • Page 18: Energy Efficiency

    Energy efficiency Product Fiche and information according to EU 65-66/2014 Supplier's name Zanussi Model identification ZOB35301BK ZOB35301WK ZOB35301XA ZOB35301XK Energy Efficiency Index 102,2 Energy efficiency class Energy consumption with a standard load, conventional mode 0,89 kWh/cycle Energy consumption with a standard load, fan-forced mode...

  • Page 19: Environmental Concerns

    ENVIRONMENTAL CONCERNS Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste.
  • Page 20 www.zanussi.com/shop...
