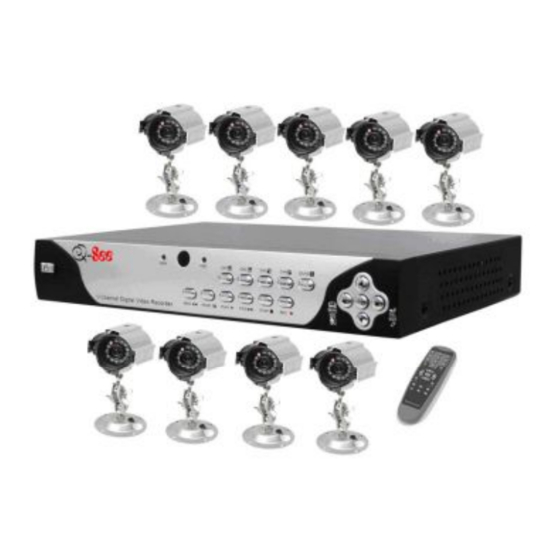

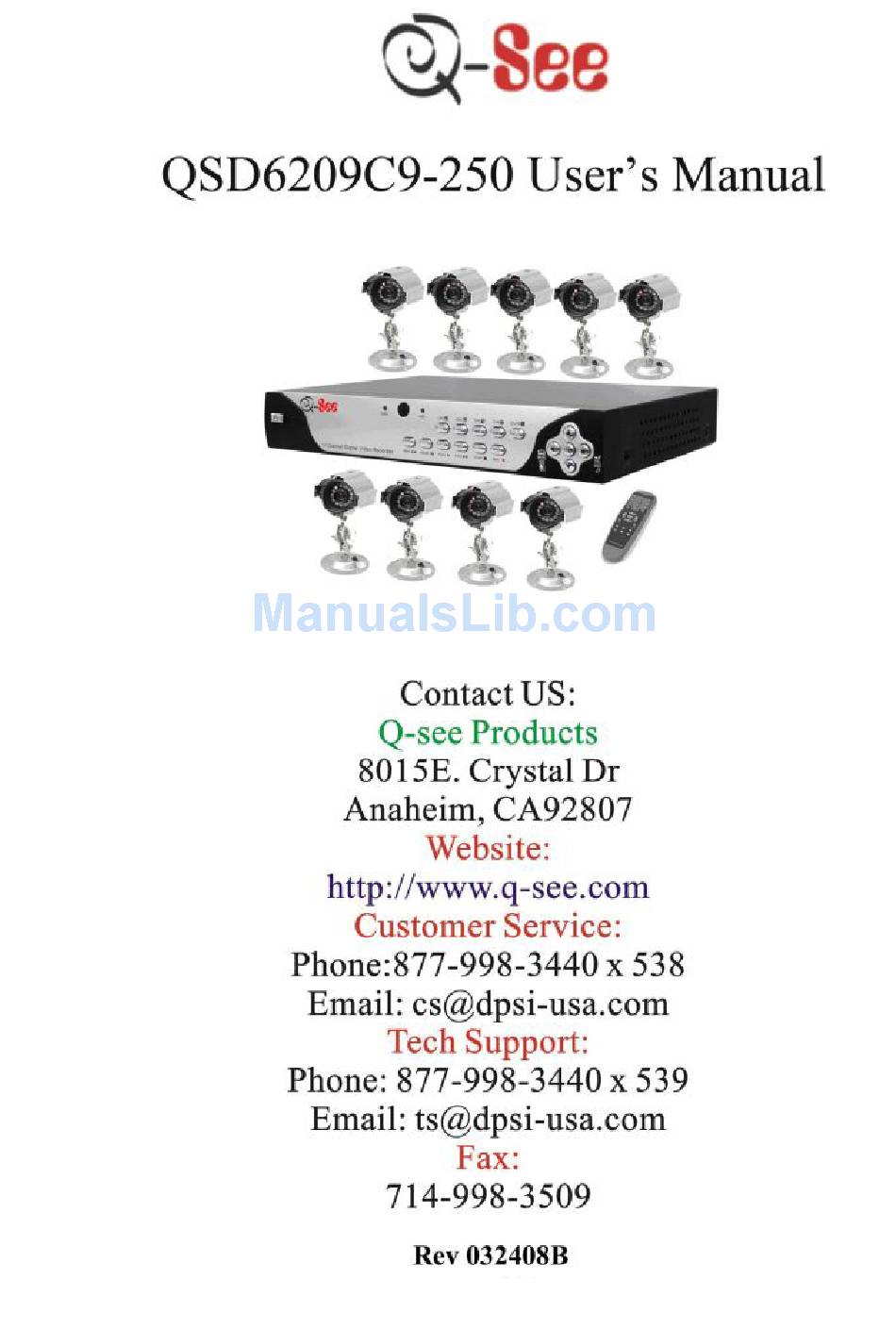

Q-See QSD6209C9-250 User Manual
Hide thumbs Also See for QSD6209C9-250:

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for Q-See QSD6209C9-250

  • Page 2: Table Of Contents

    Chapter 7: Playback ................................... 19 7.1 Playback Control ................................19 Chapter 8: USB Programming ..............................20 8.1 Install .................................... 20 8.2 Program Interface ................................20 Chapter 9: Specifications ................................23 9.1 DVR ....................................23 9.1 Camera……………………………………………………………………………………………………………………..….23 ................................. 24 Appendix .. Q-SEE Product Warranty………………………………………………………………………………………………...……..……25...
  • Page 3: Chapter 1: Dvr Features

    Chapter 1: DVR Features 9 BNC Camera Inputs,1 BNC Video Output 1 channel Audio input,1 channel Audio output View and Operate over Network (Broadband Connection Required) NTSC or PAL format. Motion Detection with Sensitivity and Area Settings Manual, Time Schedule Recording,alarm Recording,Motion Triggered Recording Supports 500GB SATA Hard Drive.
  • Page 4: Rear Panel

    2.2 Rear Panel 1. Fan 7. CH1 13. CH7 2. Audio input 8. VGA Port 14. CH6 3. Video output 9. LAN 15. CH5 4. CH4 10. Audio output 16. RS485/Sensor/Alarm 5. CH3 11. CH9 17. DC Power Input Jack 6.
  • Page 5: Chapter 3: Installation

    Chapter 3: Installation 3. Install Fixed Hard Drive (Fig1) NOTICE: Do not remove HDD while DVR is running. I. Remove the DVR cover carefully. II. Connect the power cord and data cable to HDD. III. Use the provided screws to fix hard drive on the rack, and then replace the cover.
  • Page 6: Format Hard Drive

    4.3 Format Hard Drive When the hard drive is installed in the DVR for the first time CHECKING HDD…… the DVR will request you to format the HDD, Otherwise the MASTER [WDCWD3200AAJB-00T] -NEW- DVR DVR will not be able to record to the HDD. FORMAT HDD CONFIRM (SELECT)FORMAT /(MENU)CANCEL? Press [SEL] to format or press [MENU] to cancel.
  • Page 7: Camera Setup

    5.1 Camera Setup This DVR system supports up to 9 cameras. You can 1 ON 2 OFF 3 ON configure which cameras are displayed or not displayed CAMERA SETUP in real-time monitoring. Press [▲, ▼, ] buttons to select a channel, 4 ON 5 ON 6 ON...
  • Page 8: Video Quality

    5.4 Video Quality There are four video quality settings, Highest \High\Normal\Low MAIN MENU The higher the video quality, the clearer the image will be CAMERA SETUP RECORD SETUP during playback. The lower the video quality, the more RECORD FRAMERATE VIDEO QUALITY NORMAL space you will save on the hard drive RECORD SCHEDULE...
  • Page 9: Hard Drive Setup

    HARDWARE SENSOR SETUP: This is the sub menu for setting up external motion sensor devices. H/W SENSOR SETUP There are 3 different modes for sensor setting: NOT CHANNEL-1 TYPE:NORMAL-OPEN CHANNEL-2 NOT INSTALLED INSTALLED, NORMAL-CLOSE and NORMAL-OPEN. CHANNEL-3 NOT INSTALLED CHANNEL-4 NOT INSTALLED CHANNEL-5 NOT INSTALLED...
  • Page 10: Miscellaneous Setup

    hard drive, it will erase all the data recorded on the first hard drive. (5) SLAVE HDD SIZE: This shows the space available on the secondary hard drive in the DVR. (6) SLAVE HDD USED: This shows the space used on the secondary hard drive for recording. (7) SLAVE HDD FORMAT: If you format this hard drive it will erase all the data recorded on the secondary hard drive.
  • Page 11: Set Time

    5.8.2 Set time You can change year /date /hour / minute / second by using the SET TIME menu. 2007/11/11=year/month/day 17:50:01=hour/minute SET TIME /second .Use the REW and FWD buttons on the front panel to move the cursor below the numbers right and left.
  • Page 12: Ptz Setup

    For Example: The hardware setup for the above screen is shown on the left. 5.8.5 PTZ Setup This DVR can control speed dome cameras (PTZ) which are connected to the DVR. PTZ SETUP SPEED: Set the band rate of each channel (4800, 9600, SPEED 19200, or 38400) [4800 ]...
  • Page 13: Vga Setup

    5.8.7 Password Enable MISCELLANEOUS SETUP When password enable is “ON” to stop recording or enter menu you will need password. If password enable CHANGE PASSWORD SET TIME HIDDEN CHANNEL is “OFF” there’s no need to enter a password when you AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS...
  • Page 14 IP ADDRESS: Set the IP address of the DVR manually to NETWORK SETUP match the work with your router. The DVR’s IP address MAC ADDRESS <00.11.22.33.44.55> must be the same as the gateway. The last set of numbers IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100]...
  • Page 15 DNS ADDRESS: This should be provided by your NETWORK SETUP local ISP if used. MAC ADDRESS <00.11.22.33.44.55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024 - 49151 ) MOVE (SEL)SELECT...
  • Page 16 DDNS SETUP DDNS SETUP:First, create an account at [WWW.DynDNS.COM] DDNS PROVIDER www.dyndns.com and apply for a hostname for your DDNS USER NAME DONS PASSWORD DVR. Second, fill in the info that the DVR needs. DOMAIN NAME [Note] This is an option you can use instead of using a static address to access the DVR.
  • Page 17 Accessing the DVR over a network To access the DVR through a computer you need to make sure the default gateway on the DVR is the same IP address as your router, and the first three sets of numbers of the DVR IP address are the same as the first three sets of numbers of router’s address.
  • Page 18: Reset Menu

    5.10 Reset Menu Selecting “RESET MENU” will restore all to the MAIN MENU factory default settings. CAMERA SETUP RECORD SETUP RECORD FRAMERATE VIDEO QUALITY NORMAL RECORD SCHEDULE SENSOR SETUP HARD DRIVE SETUP MISCELLANEOUS SETUP NETWORK SETUP RESET MENU (SEL)SELECT )MOVE (MENU) EXIT Chapter 6: Recording 6.
  • Page 19: Audio Recording

    [N-REC]: indicates the current record schedule is set as NO-RECORD mode. [39%]: indicates the percentage of hard drive space currently used. [M]: HDD info ([M] Master Hard Disk; [S] Slave Hard Disk) 6.2Audio Recording ]: indicates this video channel is bundled with an audio port, and the audio input is on. [ ]: indicates the audio input is off.
  • Page 20: Chapter 7: Playback

    Chapter 7: Playback 7. Playback 7.1 Playback Control When you press the [ PLAY] button the DVR goes into PLAY mode. SEARCH VIDEO When you press the MENU button during PLAY mode the SEARCH VIDEO window will open as illustrated DISK:MASTER SLAVE[NONE] on the left.
  • Page 21: Chapter 8: Usb Programming

    Chapter 8: USB Programming 8. USB Programming 8.1 Install 1. Place the USB Driver Program CD into your CD ROM. 2. If your CD ROM does not auto-run the install CD go to “My Computer”, select your CD drive, and click on “PCVIEWER.EXE”.
  • Page 22 1.PTZ Control 12.Back one frame 2.Zoom in, Zoom Out 13. Record 3.HDD Play Mode 14.stop 4.File Play Mode 15. pause 5.Net Play Mode 16. Play 6.Event List 17.fast forward 7.Control Panel 18.forward one frame 8. Remote DVR Control 19.Playback Slider 9.Change Storage Device 20.Audio Slider 10.Capture Image...
  • Page 23 Press (button 7) to configure the program’s local settings. Press (button 16) to play video.
  • Page 24: Chapter 9: Specifications

    Chapter 9: Specifications 9. Specifications 9.1 DVR Items Descriptions Video Standard NTSC, PAL Video Input/Output 9 Channels BNC/1 Channel BNC, 1 Channel VGA Audio Input/Output 1 Channel/1 Channel NTSC:720X480@30fps (Each Ch) Resolution PAL:720X576@25fps (Each Ch) Monitoring Features Full-D1,1-CH/9-CH Display NTSC:720X240@60fps (9Ch.Total) Resolution PAL:720X288@50fps (9Ch.Total) Recording...
  • Page 25: Appendix

    Appendix Appendix 1) System connect sketch map 2) Accessories Included With DVR Combo...
  • Page 26: Q-See Product Warranty

    Q-SEE Product Warranty Thank you for choosing our products. All of our product users have a conditional free warranty repair service for hardware within 12 months starting from purchase date, and a free exchange service within one month (valid for manufacturing defects). Permanent upgrading service is provided for the software.
  • Page 27: Customer Information Card

    Customer Information Card User’s Name Mr./Mrs. Company Name Postal Address Postal code Phone Number E-mail Model Number of Product Serial Number of Product Purchase Date Distributor The material in this document is the intellectual property of our company. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without our company’s prior written permission.
