SRS-D313
Ver 1.4 2002.11

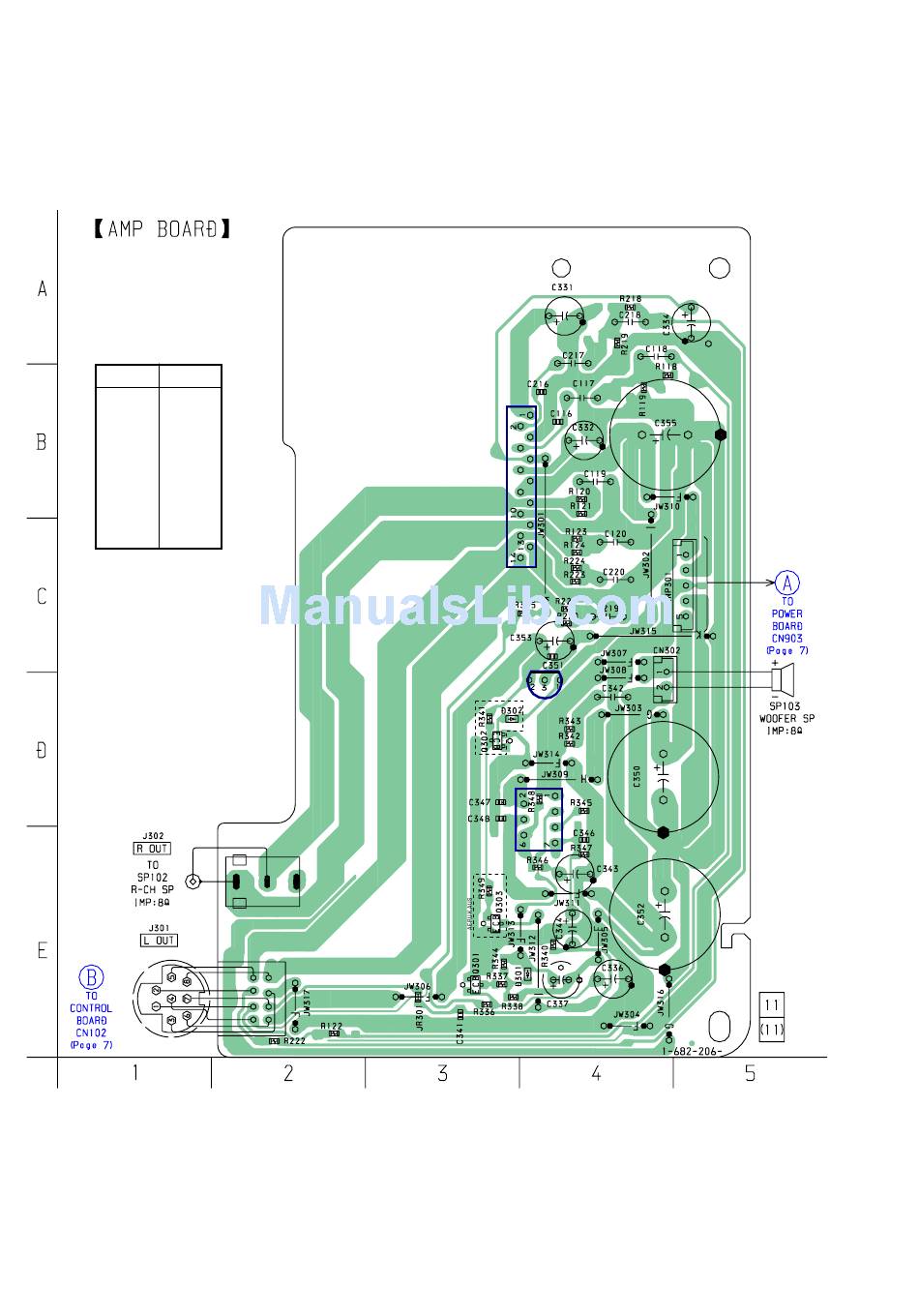

2-2. PRINTED WIRING BOARD – AMP BOARD –
• Semiconductor
Location
Ref. No. Location
D301
E-4
D302
D-3
IC301
B-4
IC302
D-4
IC303
D-4
Q301
E-3
Q302
D-3
Q303
E-3
6
IC301
AEP,UK,AUS
IC303
IC302
Table of
