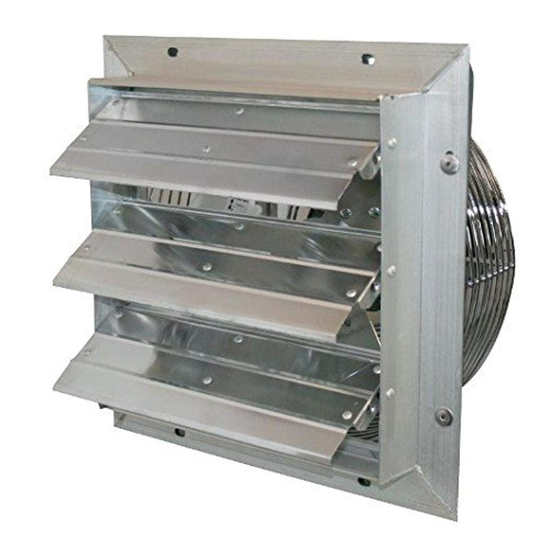

ES SHUTTER FAN
WARRANTY
J&D Manufacturing warrants all products are free from defects in materials
and workmanship under normal use for the period of one year from date of
purchase. Our warranty does not cover normal or regular wear and tear.
J&D Manufacturing can repair or replace at our option, any product or part
of the product that is found to be defective. Our warranty applies to
materials only, and does not include return freight, delivery, loss or damage
to personal property, cost of removal or installation, any incidental or
consequential damages or labor. This warranty does not apply to products
which are misused, abused, altered, improperly installed or subject to
negligence. All warranties must be approved through our warranty
department. The original purchaser must present a copy of the invoice for
the defective product. One year is our standard warranty unless specified
on our literature or in the installation instructions or user manuals.
RECOMMENDED TOOLS FOR INSTALLATION (NOT PROVIDED)
Safety Glasses
Measuring Tape
Level
INSTALLATION HARDWARE IS NOT PROVIDED
Use appropriate
fasteners and washers
IS209-11I
J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com
Drill and Drill Bit
for your structure.
PRODUCT LEGEND
SIDE VIEW
Guard
Shutter
Flange
BACK VIEW
Guard
Motor
Capacitor
Motor
Capacitor
Flange
Page 1 of 3
Advertisement
Related Manuals for J&D MAnufacturing ES Shutter
Summary of Contents for J&D MAnufacturing ES Shutter
- Page 1 PRODUCT LEGEND SIDE VIEW Guard ES SHUTTER FAN Capacitor Motor WARRANTY Shutter J&D Manufacturing warrants all products are free from defects in materials Flange and workmanship under normal use for the period of one year from date of purchase. Our warranty does not cover normal or regular wear and tear.
-
Page 2: Maintenance Instructions
INSTALLATION Please read over all instructions carefully before you The ES Shutter fan is available with or without a pre-wired cord. If the model you purchased includes an attached cord, proceed to step 4a for begin. If you have any questions please call your local instructions on powering your fan. - Page 3 ALTERNATE INSTALLATION Using appropriate hardware (not provided) for your structure and the weight of the shutter, secure the shutter to the outside of your structure using the (8) pre-drilled holes on the flange. Louvers should open to the outside. The STANDARD INSTALLATION method is the preferred method. If the wall you are using to mount your exhaust fan is exceptionally thick, or if you wish to have the shutter mounted to the outside of your building, the ALTERNATE INSTALLATION method may be used.
