Page 3: Table Of Contents
TABLE OF CONTENTS Page Important Safety Information ..................i Proper Grounding and Installation . -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read and observe the following safety points at all times. WARNING – Power Sources Do not plug this PowerCenter into a power outlet that differs from the source indicated for safe use ™ on the PowerCenter. If you don’t know the type of electrical power that is supplied to your home, consult your local power company or a qualified electrician. - Page 5 In the event of a lightning storm, it’s always a good idea to disconnect your Monster PowerCenter; there is no need to disconnect your separate components. Make sure that ALL of your components and PC products are protected with Monster Power. WARNING – No User Serviceable Parts Inside If, for any reason, your PowerCenter is not operating properly, do not remove any part of the unit (cover, etc.)
-
Page 6: Proper Grounding And Installation
PROPER GROUNDING AND INSTALLATION WARNING – Proper Grounding Monster PowerCenters require a properly grounded outlet for safety and to protect connected equipment. If you’re not sure if your home’s electrical wiring is properly grounded, have it checked by a qualified electrician. –... -
Page 7: A Note From The Head Monster
So, I decided to address the Noel Lee issue. And, with the help of Richard Marsh and other power experts, Monster Power was born. This PowerCenter’s advanced technology and innovative design provides several unique performance and convenience features. - Page 8 We know your new PowerCenter will help bring it all together with Clean Power and superior system protection. With Monster Power, you’ll enjoy the best possible sound and picture. And, that’s what home theater is all about.
-
Page 9: Monster's Exclusive T2 Technology
TECHNOLOGY ™ The Monster Power HTS 3600 MKII PowerCenter features exclusive Monster T2 technology. T2 is an active electronic microprocessor-controlled circuit that sits in front of the surge protection circuitry in select Monster Power products. T2 monitors the line, neutral and ground lines and automatically disconnects the PowerCenter from the AC power line when a long duration low-voltage sag or high-voltage swell occurs (continuous voltage below 70Vrms or above 132Vrms). -
Page 10: Monster's Patented Clean Power Stages
MONSTER’S PATENTED CLEAN POWER ™ STAGES Monster Clean Power performs two tasks that are vital to maintaining optimum home theater performance: 1) noise filtration and 2) noise isolation. The higher the Clean Power stage number (1-5), the more sophisticated and advanced the filters are that reject noise generated on the AC powerline. In addition, the higher the Clean Power stage number, the more isolation that exists between connected equipment for maximum rejection of component- generated noise. -
Page 11: The Minds Behind The Monster Powercenter Design
250 U.S. and international patents and drives the explosive growth of The Monster Group companies in more than 80 countries worldwide. Monster Power is Noel’s realization of a long-nurtured vision of making affordable power solutions that deliver the best possible sound and picture. -
Page 12: Monster Hts3600 Mkii Powercenter Features
MONSTER HTS3600 MKII POWERCENTER FEATURES HTS 3600 MKII FRONT VIEW CLEAN UNSWITCHED SWITCHED TIMED POWER ON PROTECTION GROUND WIRING ABNORMAL DIMMER VOLTAGE INPUT VOLTAGE•CURRENT USAGE MKII Home Theatre Reference PowerCenter ™ with Clean Power Stage 3 v.2.0 Filtering ™ HTS 3600 MKII REAR VIEW... - Page 13 HTS 3600 MKII POWERCENTER FEATURES 1. “Protection On” Indicator: Indicates Monster surge protection circuitry is functioning properly. 2. “Unswitched On” Indicator: Indicates power is being supplied to the unswitched outlets. 3. “Switched On” Indicator: Indicates power is being supplied to the switched outlets. 4.
- Page 14 14. Video Filter: These outlets have a specifically designed filter circuit that reduces interference to your video components. 15. Analog Audio Filter: These outlets have a specifically designed filter circuit that reduces interference to your audio components. 16. High Current Audio Filter (Switched/Timed Outlets): These outlets have a specifically designed filter circuit for high power audio components like amplifiers and pre-amplifiers.
- Page 15 24. High Current PowerLine 200 AC Power Cable: High density double shielded AC power cord specially designed ™ to maximize power transfer. 25. Ground Terminal: Provides a ground reference point for any ungrounded components.
-
Page 16: Hook-Up Guide
Digital Outlet Hook-Up These outlets have a special filter circuit that is optimized to reduce interference to your digital components. A) Attach a Monster Power identification label to each component’s power cord before you plug it into the appropriate color-coded PowerCenter outlet. -
Page 17: Video Outlets
Video Outlet Hook-Up These outlets have a special filter circuit that is optimized to reduce interference to your video components. A) Attach a Monster Power identification label to each component’s power cord before you plug it into the appropriate color-coded PowerCenter outlet. -
Page 18: Analog Audio Outlets
HOOK-UP GUIDE Analog Audio Outlet Hook-Up These outlets have a special filter circuit that is optimized to reduce interference to your audio components. A) Attach a Monster Power identification label to each component’s power cord ® before you plug it into the appropriate color-coded PowerCenter outlet. -
Page 19: High Current Audio Outlets
HOOK-UP GUIDE High Current Audio Outlet Hook-Up These outlets are designed to deliver maximum current to power hungry components like amplifiers and pre-amplifiers. A) Attach a Monster Power identification label to each component’s power cord ® before you plug it into the appropriate color-coded PowerCenter outlet. -
Page 20: Coaxial Connections
HOOK-UP GUIDE Coaxial Connections Hook-Up Coaxial Connections provide surge protection against damaging voltage surges and spikes on the incoming coax cable. Protect TV/Cable, Satellite and Antenna Connections as Follows: From properly grounded To TV/Cable Box TV /Cable Line From properly grounded To Satellite Receiver Satellite Dish From properly grounded... -
Page 21: Phone Connections
HOOK-UP GUIDE Phone Connections Hook-Up Phone connections provide surge protection against damaging voltage surges and spikes coming from the phone line. This PowerCenter also incorporates a phone splitter for convenience. Protect Phone Line Connections as Follows: From Telephone Wall Jack To Satellite Receiver, Digital Video Recorder (DVR) or Telephone... -
Page 22: Remote "Dc In" Control
HOOK-UP GUIDE Remote “DC In” Control Hook-Up This feature connects your PowerCenter to an automated Home Theater control system or allows another component with a Remote “DC Out” connection to automatically turn on and off your PowerCenter. A) Plug the AC power cable of the component you are using to control the PowerCenter into an unswitched outlet on the PowerCenter. -
Page 23: Rack Mounting
HOOK-UP GUIDE Rack Mounting Your PowerCenter This Monster PowerCenter includes two “Rack Ears” mounting plates for installation into a standard size equipment rack. A) Remove your PowerCenter trim covers using a ⁄ or 2.5 mm Allen (Hex) key (not included). Turn each Allen screw counter-clockwise until the screw is completely removed. -
Page 24: Troubleshooting
TROUBLESHOOTING Symptom Possible Cause Remedy The PowerCenter is The PowerCenter • Turn the PowerCenter switch on. not receiving power. is not turned On. • Make sure the PowerCenter’s AC power plug is plugged into a properly grounded 120 volts (nominal) wall outlet. •... - Page 25 TROUBLESHOOTING Symptom Possible Cause Remedy Component is The component is plugged into a switched outlet • Turn the PowerCenter On. not receiving power and the PowerCenter has not been turned On. • Or, plug the component into an Unswitched outlet. The PowerCenter is plugged into a Switched •...
- Page 26 TROUBLESHOOTING Symptom Possible Cause Remedy The Unswitched LED The PowerCenter is not plugged in. • Plug the PowerCenter into a properly on front panel is Off. grounded 120 volts (nominal) outlet The PowerCenter is plugged in, and make sure it is on. but the outlet is not receiving power.
- Page 27 TROUBLESHOOTING Symptom Possible Cause Remedy “Timed On” You are using the Remote Turn-On feature • Plug the plug into component you wish (Same as Switched) and haven’t plugged to use to activate the Remote Turn-On. indicator on front the plug into the component you wish to use panel is Off.
-
Page 28: Specifications
SPECIFICATIONS HTS 3600 MKII POWERCENTER Continuous Duty 120V/60Hz Electrical Rating Maximum Current Rating 15A/1800W Line-Neutral (L-N) Protection Modes Line-Ground (L-G) Neutral-Ground (N-G) Total Energy Dissipation 6500 Joules 330 Volts Clamping Level (TVSS Voltage) Clamping Response Time Less than 1 Nanosecond (<1Ns) Remote “DC In”... - Page 35 Monster en Chine. ”Monste r“ ”Monste r Cable“ ”Monster Power“ « Monster », « Monste r Cable », « Monster Power », ”Clean Power“ ”PowerCenter“”PowerLine“ “T2” « Clean Power », « PowerCenter », « PowerLine », « T2 »...
Need help?
Do you have a question about the PowerCenter HTS3600MKII and is the answer not in the manual?
Questions and answers

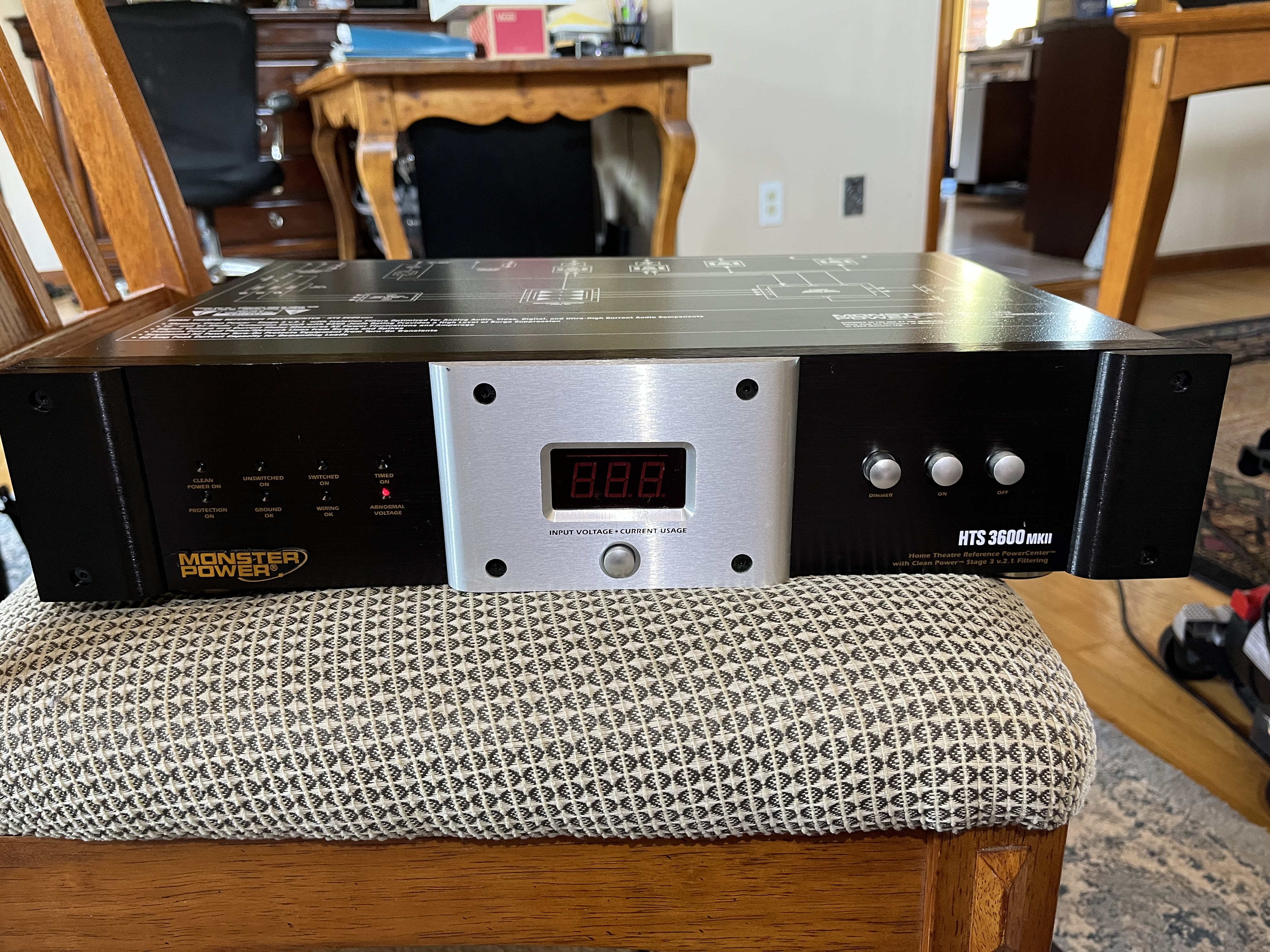

I just bought a Monster 3600 MKII….with all of my equipment off, the voltage red led and the indicator lights are mostly lit. I’ve tried the button on the far right that’s supposedly power and it seems to affect one small indicator light. Pardon my ignorance but do the other lights eventually turn off?
