Central Machinery 61373 Owner's Manual

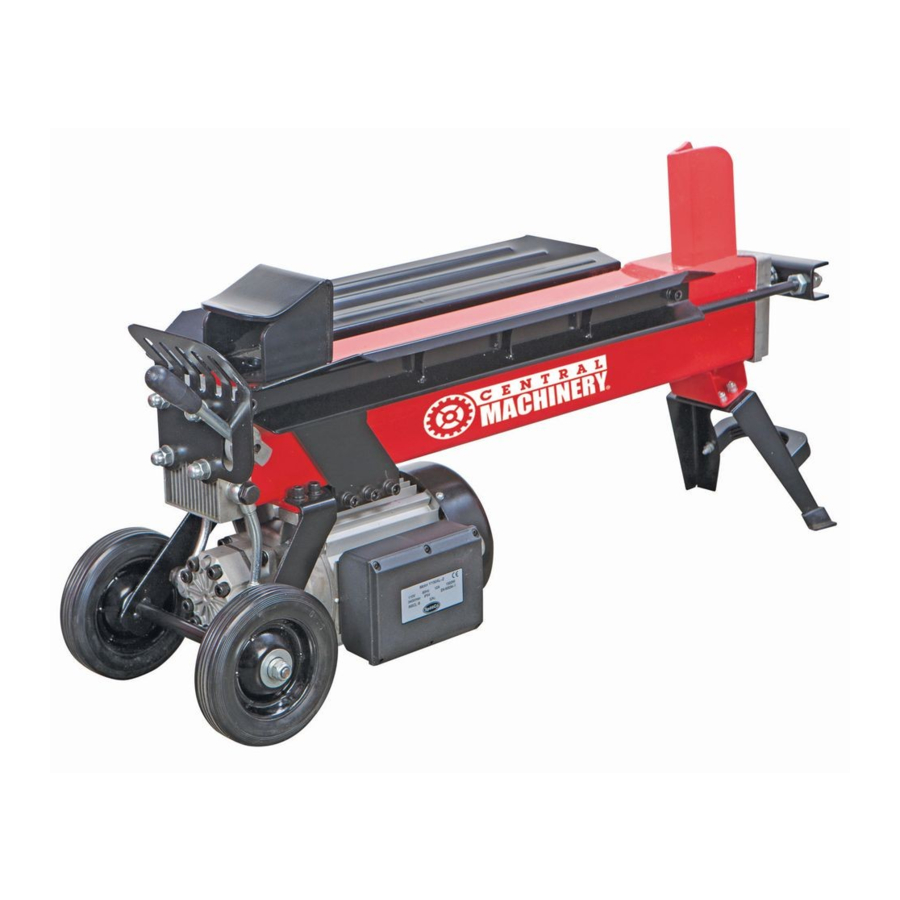

5 ton log splitter
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 61373 and is the answer not in the manual?

Questions and answers

Robert Moreno
February 15, 2025

How much for a control handle lever? Where can I order one?

0

Related Manuals for Central Machinery 61373

Summary of Contents for Central Machinery 61373

  • Page 2: Table Of Contents

    Keep work area well lighted. to do a job for which it was not designed. 4. KEEP CHILDREN AWAY. All visitors should be kept safe distance from work area. Page 2 For technical questions, please call 1-800-444-3353. Item 61373...
  • Page 3 Ram is moving. under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Industrial applications must follow OSHA guidelines. Item 61373 For technical questions, please call 1-800-444-3353. Page 3...

  • Page 4: Safety

    If unreadable or missing, contact To reduce your exposure to these chemicals: Harbor Freight Tools for a replacement. work in a well ventilated area, and work with approved safety equipment, such 18.

  • Page 5: Extension Cords

    6. If you are using an extension cord outdoors, make 150% of the rated amperes. sure it is marked with the suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use. Item 61373 For technical questions, please call 1-800-444-3353. Page 5...
  • Page 6 Shield (32) and into the shaft on the Control Handle Bracket (36). control Handle 2. Turn the Control Handle to tighten in place. Bracket (36) Figure A: control Handle Assembly Page 6 For technical questions, please call 1-800-444-3353. Item 61373...
  • Page 7 Functions cutting Wedge Lift Handle control Handle power Switch power cable Guide plate Vent plug Drain Bolt / Dipstick Rubber Feet Front Leg Item 61373 For technical questions, please call 1-800-444-3353. Page 7...

  • Page 8: Setup

    Drain Bolt / Dipstick clean and replace cycle the Ram forward and back several times it in the fluid reservoir and tighten securely. to remove excess air from the fluid reservoir. Page 8 For technical questions, please call 1-800-444-3353. Item 61373...
  • Page 9 Wedge. Manually 3. Remove the stuck log from the Cutting split with a maul, or cut with a chainsaw. Wedge manually with a pry bar. Item 61373 For technical questions, please call 1-800-444-3353. Page 9...

  • Page 10: Operation

    (Do not check for leaks during operation.) only by a qualified service technician. • any other condition that may affect its safe operation. Page 10 For technical questions, please call 1-800-444-3353. Item 61373...
  • Page 11 8. Plug in the tool, start the motor and use the Control 3. Remove the Drain Bolt / Dipstick Handle to cycle the Ram forward and back several with a hex key. times to remove excess air from the fluid reservoir. Item 61373 For technical questions, please call 1-800-444-3353. Page 11...

  • Page 12: Specifications

    3. Tighten the Drain Bolt. 4. Hydraulic fittings and/or 4. Have qualified technician service tool. seals are worn. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service. Page 12 For technical questions, please call 1-800-444-3353. Item 61373...
  • Page 13 Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Item 61373 For technical questions, please call 1-800-444-3353. Page 13...

  • Page 14: Parts List And Diagram

    Flat Washer M17 x 2 Fluid Tube Screw M14 x 30 Rubber Wheel Inner Hex Bolt M8 x 20 Flat Washer M10 x 1 Spring Washer M8 x 2.3 Lock Nut M10 Page 14 For technical questions, please call 1-800-444-3353. Item 61373...

  • Page 15: Assembly Diagram

    Assembly Diagram Item 61373 For technical questions, please call 1-800-444-3353. Page 15...

  • Page 16: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
