Installation
OFF
Before installing the
Remove the canopy. If uncertain
Universal Remote Control,
how to remove it, reference the fan's
use the pull chains to set
owner's manual. With wiring exposed,
the fan speed to HIGH
it may be helpful to note existing wire
and the light to ON.
connections or take a digital photo for
Be sure power is OFF
reference. Remove the wire connectors
before proceeding with
that connect the wires from the outlet
installation.
box to the fan, leaving the grounding
wires connected.
Wiring
blue (light out)
black (fan out)
white (common out)
CONNECT WIRES FROM RECEIVER TO FAN -Using the blue wire connectors connect the white wire from the
receiver (marked "common out") to the white wire from fan. Connect the black wire from the receiver (marked
"fan out") to the black wire from the fan. Connect the blue wire from the receiver (marked "light out") to the
blue wire (or possibly black with white stripe) from the fan.
Note: The red wire from the receiver has a pre-installed wire terminator. It will not be used.
If you're uncertain about wire colors or connections, please contact a qualified electrician.
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.

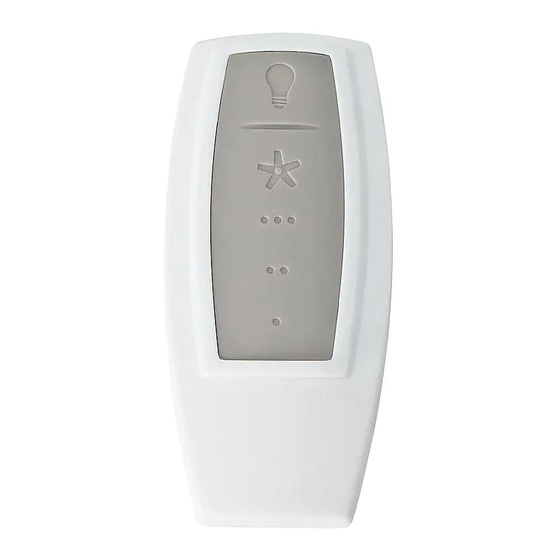

Universal Ceiling
Fan Remote Control
Model #99110
Receiver
OR
Canopy
Choose the hanging system that most closely resembles the one used by your fan and install the receiver and wire as directed.
Note: Some fans may have considerable excess lead wire. For easier canopy installation, cut the excess wire, leaving a minimum of 8" remaining. Re-strip the fan lead wires 1/2" . Place remaining excess
wire into the ceiling electrical box. The bracket and fan must remain properly grounded.
You may have installation issues if the fan is installed on an angled ceiling.
blue
black
white
M0032-01 • 09/05/12 • © Hunter Fan Company
Receiver
Ceiling
Plate
OR
Receiver
Canopy
Canopy
black (ungrounded)
black (live in)
white (grounded)
white (neutral in)
CONNECT WIRES FROM RECEIVER TO WIRES FROM OUTLET BOX - Using an orange wire connector connect
the black wire (ungrounded) from the ceiling to the black wire from the receiver (marked "live in"). Connect
the white wire (grounded) from the ceiling to the white wire from the receiver (marked "neutral in").
AFTER ALL WIRES ARE CONNECTED and secured with wire connectors, re-install the canopy.
To avoid possible electrical shock, before installing or servicing your fan, disconnect the
power by turning off the circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off position, securely fasten a
prominent warning device, such as a tag, to the service panel.
www.HunterFan.com
1.888.830.1326
For low pro le fans, the receiver should
be secured to the hanger bracket with
a cable tie.
Cable Tie
Ceiling
Bracket
OR
Receiver
Fan Body
