Denon DHT-S514 Owner's Manual

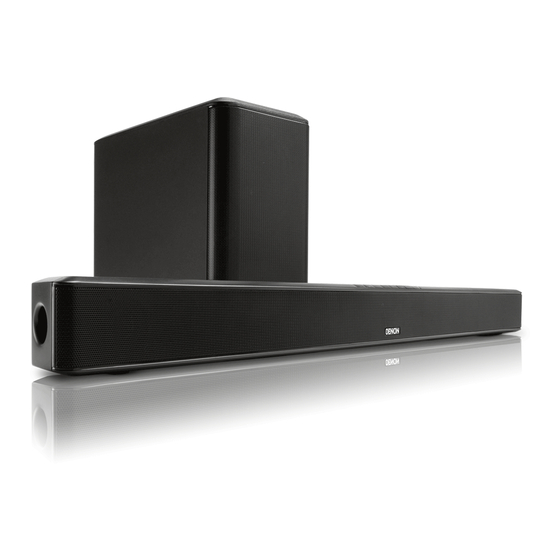

Sound bar and wireless subwoofer system
Hide thumbs Also See for DHT-S514:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , User Manual
DHT-S514
Sound Bar and Wireless Subwoofer System
Contents
Introduction ......................................................................................................................................2
Accessories .........................................................................................................................................2
Sound Bar Controls .....................................................................................................................3
Sound Bar Rear Panel ................................................................................................................3
Subwoofer Rear Panel ..............................................................................................................3
Locating DHT-S514 Components ....................................................................................4
Wall-Mounting ................................................................................................................................4
Connecting DHT-S514 to your television.................................................................5
Setting the HDMI Control Function ..............................................................................5
Disable Your Television's Speakers ..............................................................................5
HDMI Input (ARC) - First Choice .......................................................................................6
HDMI Input (without ARC) - Second Choice ..........................................................6
Digital Optical Input - Third Choice .............................................................................7
Digital Coaxial Input - Fourth Choice .........................................................................7
Analog Input - Fifth Choice..................................................................................................8
Connecting DHT-S514 to your HDMI equipment ..............................................8
Power Connections .....................................................................................................................8
The DHT-S514 Remote Control .........................................................................................9
(without the HDMI cable) ....................................................................................................10
About the DHT-S514 Control Button LEDs ..........................................................10
Adjusting the subwoofer level .......................................................................................10
Volume Change Indication ................................................................................................10
Listening Modes ..........................................................................................................................11
Night Mode ......................................................................................................................................11
Using Bluetooth ® ........................................................................................................................12
Use Any Remote to Control your DHT-S514 .......................................................12
Pairing the sound bar and subwoofer .....................................................................12
Troubleshooting DHT-S514 ..............................................................................................13
Specifications ................................................................................................................................15
Trademark information ........................................................................................................15
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DHT-S514 and is the answer not in the manual?

Questions and answers

Related Manuals for Denon DHT-S514

Summary of Contents for Denon DHT-S514

  • Page 1: Table Of Contents

    Adjusting the subwoofer level ..................10 Volume Change Indication ....................10 Listening Modes ..........................11 Night Mode ............................11 Using Bluetooth ® ........................12 Use Any Remote to Control your DHT-S514 ............12 Pairing the sound bar and subwoofer ..............12 Troubleshooting DHT-S514 ....................13 Specifications ..........................15 Trademark information ......................15...

  • Page 2: Introduction

    We’ve worked hard to make DHT-S514 the best performing product of its kind—and just as diligently to ensure it is the simplest to set up and easiest to use.

  • Page 3: Sound Bar Controls

    11) Service Port—for service only, do not use. 12) IR Blaster Output—connect the supplied IR Blaster here. See “Locating DHT-S514 Components” (vpage 4) for more information. 13) Pair Button—Pre-paired at the factory. See “Pairing the sound bar and subwoofer” (vpage 12) for more information.

  • Page 4: Locating Dht-S514 Components

    IR Blaster cable (supplied) You may also place DHT-S514 sound bar on a shelf, or furniture, above or below the screen. It should be centered with the screen, and ideally no more than a few inches above or below. The system will usually sound best when the front of the sound bar is close to, or flush with, the front edge of the furniture or shelf on which it rests.

  • Page 5: Connecting Dht-S514 To Your Television

    All five inputs are all selected by the television button on DHT-S514’ s front panel or remote, but which is active is determined by auto-priority. If only one input is receiving a signal, that input will play. If more than one input is receiving a signal, the order of priority is HDMI, Digital Optical, Digital Coaxial and Analog.

  • Page 6: Hdmi Input (Arc) - First Choice

    HDMI Input (ARC) – First Choice If your television has an ARC (audio return channel) HDMI connector, connect it to one of the HDMI output of the DHT-S514 with the supplied HDMI cable. Often, with televisions that have multiple HDMI connectors, the number one HDMI connector will be the one equipped with ARC.

  • Page 7: Digital Optical Input - Third Choice

    Digital Optical Input – Third Choice Use the supplied digital optical cable to connect your television’s optical digital output to DHT-S514’s Optical Digital Input. Other components connected to the television, such as a DVD/Blu-ray player or cable/satellite tuner, will automatically play through DHT-S514.

  • Page 8: Analog Input - Fifth Choice

    If your television has no digital audio outputs, connect its analog stereo audio output using the supplied 3.5 mm stereo cable to the analog input of the DHT-S514. The analog outputs of most televisions are dual RCA jacks (typically red for right and white or black for left). Use the supplied adaptor to connect those outputs to the 3.5 mm stereo cable.

  • Page 9: The Dht-S514 Remote Control

    The DHT-S514 Remote Control A remote control is supplied with DHT-S514. Its keys duplicate DHT-S514’s front-panel buttons (“vpage 3 “Sound Bar Controls”), with one addition (Day/Night), and one deletion (the “Learn” key). Power on/standby Select TV / HDMI input Selects the Bluetooth® wireless audio input...

  • Page 10: About Dht-S514'S Automatic Power Modes (Without The Hdmi Cable)

    Each time you repeat the Power-key X press-and-hold, it will change to the other mode. In manual power mode the DHT-S514 is turned on, or standby, with a momentary press of the Power key X.

  • Page 11: Listening Modes

    When Night Mode is engaged, the LED pattern for the current Listening Mode dimly lights. To exit Night Mode, use the same buttons in the same way. When DHT-S514 exits Night Mode, the LED pattern for the current listening mode brightly lights.

  • Page 12: Using Bluetooth

    DHT-S514’s Bluetooth input is selected and active. DHT-S514 can pair multiple Bluetooth devices; however, only one can play at a time. First come, first served. One Bluetooth Source will need to be disconnected before another paired device can play.

  • Page 13: Troubleshooting Dht-S514

    • Be sure to hold the “source” remote steady, 0.3 – 0.5 m in front of the DHT-S514, on its level, with the remote’s IR emitter (usually a smooth black-plastic area across the end you point toward the television) aimed straight and level at the center of DHT-S514’s front panel.

  • Page 14: Bluetooth Connection Problems

    Bluetooth connection problems • If a Bluetooth fault occurs (the device moves out of range, or stops playing due to low battery or user input), DHT-S514’s Bluetooth LED again blinks rapidly; the DHT-S514 will automatically attempt to re-connect, and will resume playback when the Bluetooth source is in range.

  • Page 15: Specifications

    Specifications Rated output: Sound bar 10 W + 10 W (4 Ω/ohms, 200 Hz, 0.7 % T.H.D) Subwoofer 49 W (4 Ω/ohms, 60 Hz, 0.7% T.H.D) Frequency Range: 40 Hz to 20 kHz High Frequency Drivers: 35/64” (14 mm) tweeter x 2 Mid Frequency Drivers: 2 1/64 x 5”...
  • Page 16 D&M Holdings Inc. 3520 10274 00AD...
