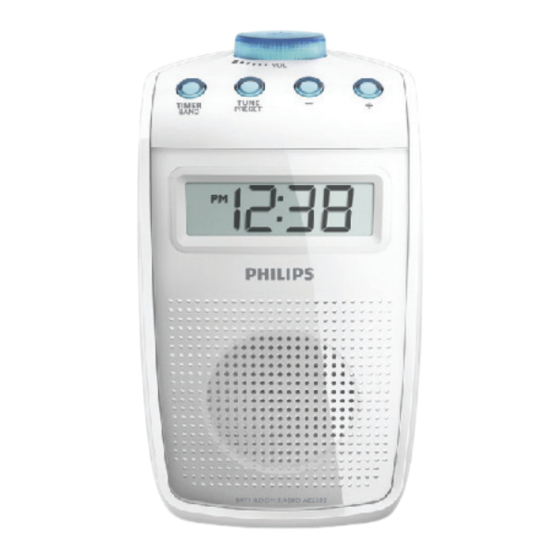

Philips AE2330 User Manual

Bathroom radio
Hide thumbs Also See for AE2330:
Table of Contents

Advertisement

Quick Links

Register your product and get support at
AE2330
EN
User manual

Advertisement

Table of Contents
loading

Related Manuals for Philips AE2330

Summary of Contents for Philips AE2330

  • Page 1 Register your product and get support at AE2330 User manual...
  • Page 2 Important • Read these instructions. • Heed all warnings. • Follow all instructions. • Clean only with dry cloth. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Only use attachments/accessories specified by the manufacturer. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way. • Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit: • Install all batteries correctly, + and - as marked on the unit. • Do not mix batteries (old and new or carbon and alkaline, etc.). •...
  • Page 3 Your Bathroom Radio Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction This bathroom radio has passed splash-proof test (IPX4) and can be used near water. With this radio, you can: • know the time • listen to FM/MW radio stations What’s in the box Check and identify the contents of your package: • Main unit • User manual...

  • Page 4: Overview Of The Main Unit

    Overview of the main unit...
  • Page 5 /VOL • Turn on/off radio. • Adjust volume. • Program radio stations automatically. • Tune to the previous or next radio station. • Select the previous or next preset radio station. • Adjust hour/minute digits. TIMER/BAND • Set time. • Activate or deactivate sleep timer. • Select FM or MW waveband. TUNE/PRESET • Tune to a radio station. • Program radio stations manually. Antenna • Improve radio reception. Display panel • Show time and radio information. • Select the previous or next preset radio stations. • Adjust hour and minute digits.

  • Page 6: Get Started

    Get started Always follow the instructions in this chapter in sequence. Modification of the product could result in hazardous radiation of EMC or other unsafe operation. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the bottom of the apparatus. Write the numbers here: Model No. __________________________ Serial No. ___________________________ Install battery Caution • Batteries contain chemical substances, so they should be disposed of properly.
  • Page 7 Open the battery compartment. Insert 3 AA batteries (not supplied) with correct polarity (+/-) as indicated. Close the battery compartment. Placement You can place the unit on a flat surface or hang it in your bathroom through the strap.
  • Page 8 • The strap is detachable.

  • Page 9: Set Time

    Turn on Press to turn on the radio. Switch to standby mode Press again to switch to standby mode. Set time In standby mode, press and hold TIMER for 3 seconds. The hour digits blink. » Press +/- to adjust the hour. Press TIMER to confirm. The minute digits blink. » Press +/- to adjust the minute. Press TIMER to confirm.

  • Page 10: Listen To Radio

    Listen to radio Select FM/MW waveband Press to turn on the radio. Press and hold BAND for 3 seconds to select FM or MW waveband. Tune to a radio station In tuner mode, press TUNE. [FM] or [MW] begins to blink. » Rotate clockwise or counter-clockwise to tune to a radio station. Press TUNE again to confirm.

  • Page 11: Program Radio Stations Automatically

    Program radio stations automatically Note • You can program a maximum of 20 preset FM radio stations and 20 preset MW radio stations. In tuner mode, press and hold for 2 seconds. All available stations are programmed in the order of » waveband reception strength. The first programmed radio station broadcasts automatically. » Program radio stations manually In tuner mode, tune to a radio station. Press and hold PRESET for 3 seconds. The number begins to blink. » Rotate to select a preset number. Press PRESET to confirm. Repeat steps 1 - 4 to program more stations.

  • Page 12: Select A Preset Radio Station

    • To overwrite a programmed station, program another station in its place. Select a preset radio station In tuner mode, press +/- to select a preset radio station. Set the sleep timer The clock radio can be turned off automatically after a preset period of time. Press TIMER repeatedly to select a time period (in minutes). To turn off the sleep timer: Press TIMER repeatedly until [OFF] (off) appears or press . is displayed when the sleep timer is on and disappears » when it is off.

  • Page 13: Product Information

    Product information Note • Product information is subject to change without prior notice. Tuner Tuning Range FM: 87.5 - 108 MHz MW: 531 - 1602 kHz Tuning Grid 50 KHz (FM); 9 KHz (MW) Number of Presets FM: 20 MW: 20 General Power Supply 3 x AA batteries Maximum Power Output 300 mW Operation Power Consumption 100 mW Dimensions - Main Unit (H x W x D) 155 x 89 x 62 mm Weight - With Packing 0.4 kg - Main Unit 0.3 kg...

  • Page 14: Troubleshooting

    Troubleshooting Warning • Never remove the casing of this device. To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.philips.com/support). When you contact Philips, make sure that the device is nearby and the model number and serial number are available. No power • Ensure that the battery is installed properly. • Replace the exhausted battery. Timer does not work • Set the clock correctly. • Switch on the timer. No sound • Adjust the volume.
  • Page 15 Notice Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. This product complies with the radio interference requirements of the European Community. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

  • Page 16: Environmental Information

    Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health. Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
  • Page 17 © 2012 Koninklijke Philips Electronics N.V. All rights reserved. AE2330_02_UM_V1.0...
