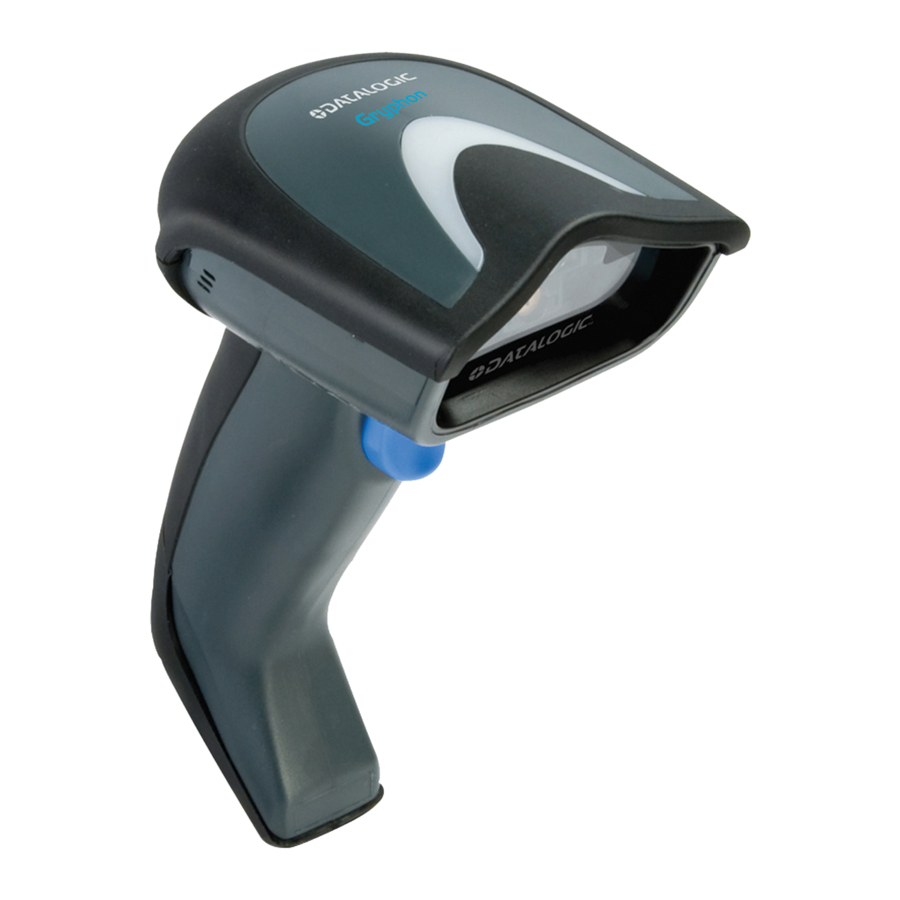

Gryphon
I GD4100/GM4100
™
General Purpose Handheld
Linear Imager Barcode Reader
Product Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gryphon I GD4100 and is the answer not in the manual?

Questions and answers

Related Manuals for Datalogic Gryphon I GD4100

Summary of Contents for Datalogic Gryphon I GD4100

  • Page 1 Gryphon I GD4100/GM4100 ™ General Purpose Handheld Linear Imager Barcode Reader Product Reference Guide ...
  • Page 2 Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.scanning.data- logic.com) or provided on appropriate media.

  • Page 3: Table Of Contents

    Introduction...................................... 9 About this Guide ................................................9 Manual Overview ................................................9 Manual Conventions ..............................................10 References ..................................................10 Technical Support ................................................11 Datalogic Website Support ..........................................11 Reseller Technical Support ..........................................11 Telephone Technical Support ..........................................11 Getting Started....................................13 About the Reader ................................................13 Unpacking ..................................................13 Setting Up the Reader ..............................................13...
  • Page 4 Contents Contrast ..................................................60 Font Size ..................................................60 Backlight ..................................................61 Display Mode .................................................62 Display Timeout ..............................................63 Keypad Select ...................................................65 Interfaces ......................................67 Interface Selection ................................................67 Configuring the Interface .............................................67 Global Interface Features .............................................71 Host Commands — Obey/Ignore ........................................71 USB Suspend Mode .............................................72 RS-232 ONLY Interface...................................
  • Page 5 Contents Wand Emulation Interface................................123 Introduction ................................................... 123 Wand Emulation Standard Factory Settings ...................................... 123 Wand Signal Speed ..............................................123 Wand Polarity ................................................124 Wand Idle State ................................................125 Transmit Noise ................................................126 Label Symbology Conversion ..........................................127 Data Editing ....................................129 Data Editing Overview ..............................................
  • Page 6 Contents UPC-E ....................................................181 UPC-E Enable/Disable ............................................181 UPC-E Check Character Transmission ......................................181 Expand UPC-E to EAN-13 ..........................................182 Expand UPC-E to UPC-A ..........................................182 UPC-E Number System Character Transmission ..................................183 UPC-E Minimum Reads ............................................ 184 GTIN Formatting ................................................185 EAN 13 (Jan 13) ................................................
  • Page 7 Industrial 2 of 5 Minimum Reads ......................................... 281 Industrial 2 of 5 Stitching ..........................................282 Industrial 2 of 5 Character Correlation ....................................... 283 Code IATA ..................................................284 IATA Enable/Disable ............................................284 IATA Check Character Transmission ......................................285 Datalogic 2 of 5 ................................................286 Product Reference Guide...
  • Page 8 Contents Datalogic 2 of 5 Enable/Disable ........................................286 Datalogic 2 of 5 Check Character Calculation ..................................286 Datalogic 2 of 5 Minimum Reads ......................................... 287 Datalogic 2 of 5 Decoding Level ........................................287 Datalogic 2 of 5 Length Control ........................................288 Datalogic 2 of 5 Set Length 1 ........................................
  • Page 9 Contents Code 93 Set Length 1 ............................................341 Code 93 Set Length 2 ............................................343 Code 93 Minimum Reads ..........................................345 Code 93 Decoding Level ..........................................346 Code 93 Quiet Zones ............................................348 Code 93 Stitching .............................................. 349 Code 93 Character Correlation ........................................349 MSI .....................................................
  • Page 10 Contents Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode ..............................414 Digital Interface ................................................416 IBM31xx 102-key ................................................418 IBM XT ....................................................420 Microsoft Windows Codepage 1252 ........................................422 Index ..................................423 Gryphon™ I GD4100/GM4100...

  • Page 11: Introduction

    Programming can alternatively be performed using the Datalogic Aladdin™ Configuration application which is downloadable from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC. It communicates to the device using a serial or USB cable and can also create configuration barcodes to print.

  • Page 12: Manual Conventions

    Current versions of the Product Reference Guide (PRG), Quick Reference Guide (QRG), the Datalogic Aladdin™ Configuration application, and any other manuals, instruction sheets and utilities for this product can be downloaded from the website listed on the back cover of this manual.

  • Page 13: Technical Support

    Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information. Product Reference Guide...
  • Page 14 Introduction NOTES Gryphon™ I GD4100/GM4100...

  • Page 15: Getting Started

    Unpacking Check carefully to ensure the reader and any accessories ordered are present and undamaged. If any damage occurred during shipment, contact Datalogic Technical Support. Information is shown on page 9. KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its original shipping container.

  • Page 16: Battery Safety

    To install, charge and/or do any other action on the battery, follow the instructions in this manual. Before installing the Battery, read “Battery Safety” on this and the following pages. Datalogic rec- ommends annual replacement of rechargeable battery packs to ensure maximum performance.
  • Page 17 Setting Up the Reader Always charge the battery at 32° – 104°F (0° - 40°C) temperature range. Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Data- logic reseller. The use of any other power supplies can damage the device and void your warranty. CAUTION Do not disassemble or modify the battery.

  • Page 18: Install The Batteries

    Getting Started Install the Batteries To install or change the battery of your reader, you must: 1. With a screwdriver, unscrew the battery cover screw. 2. Unplug the three screws securing the battery holder, and unplug the white connector. Screw Connec Screw Screw...

  • Page 19: Install The Interface Cable

    Install the Interface Cable 6. Insert the cover in the handle and screw it back into place. Install the Interface Cable For Corded versions, connect the reader cable by inserting the cable into the handle as shown in Figure 1. To remove it, insert a paper clip into the release aperture, then unplug the cable. Figure 1.
  • Page 20 Getting Started Figure 2. RS-232 Connection Keyboard Wedge Connection The Keyboard Wedge cable has a ‘Y’ connection from the reader. Connect the female to the male end from the keyboard and the remaining end at the keyboard port at the terminal/PC. Reference Figure 3.
  • Page 21 Install the Interface Cable Figure 4. USB connection Other connection types are described below and illustrated in Figure 5. Figure 5. Other Interface Connections or... or... Specific cables are required for connection to different hosts. The connec- tors illustrated above are examples only. Actual connectors may vary from those illustrated, but the steps to connect the reader remain the same.

  • Page 22: Configuring The Base Station

    Getting Started Configuring the Base Station The base charger/station may be configured in desk application to hold the reader in two different positions, either a horizontal or standing position, in order to provide the most comfortable use depending on needs. Standing Horizontal Changing the Base Station Position...
  • Page 23 Configuring the Base Station 1. Insert the appropriate parts for the desired base station position, as shown below. Standing, Horizontal Horizontal Only or Vertical 2. Using your thumbs, push open the plastic tabs on the bottom of the base to free the wing holders.

  • Page 24: Connect The Base Station

    Getting Started Connect the Base Station Figure 6 shows how to connect the Base Station to a terminal, PC or other host device. Turn off the host before connection and consult the manual for that equipment (if necessary) before proceeding. Connect the interface cable before applying power to the Base Station. Gryphon Mobile can also be Powered by the Terminal.
  • Page 25 Configuring the Base Station Figure 7. Options for routing the DC cord Please refer to the arrows depicted on the bottom of the base when placing the cables, detailed in Figure 8. Figure 8. Arrows showing routing Host Connection. Verify before connection that the reader’s cable type is compatible with your host equipment.

  • Page 26: Linking The Reader To A Base Station

    Getting Started Power Connection . Plug the AC Adapter in to an approved AC wall socket with the cable facing downwards (as shown in Figure 6) to prevent undue strain on the socket. Gryphon Mobile can also be Powered by the Terminal. The external power supply is rec- ommended but not necessary.

  • Page 27: Gryphon™ I System And Network Layouts

    GRYPHON™ I System and Network Layouts GRYPHON™ I System and Network Layouts Stand Alone Layouts Figure 11. Single Reader Layout Figure 12. Multiple Reader Layout In stand alone systems, each cradle is connected to a single Host. Product Reference Guide...
  • Page 28 Getting Started Figure 13. Multiple Stand Alone Layouts Many stand alone connections can operate in the same physical area without interference, provided all readers and cradles in the system have different addresses. Gryphon™ I GD4100/GM4100...

  • Page 29: Using The Bc40Xx™ Radio Base

    164) and reception is enabled (see "Sleep Mode Timeout" on page 37). The button can also be used to "force device connection" via the Datalogic Aladdin Software tool (available for free download from the Datalogic website). See Aladdin for details. Product Reference Guide...

  • Page 30: Display

    Getting Started Display The Gryphon GM4100 is available with an optional Display. The Display features 4 lines and 16 characters, and offers icons and three additional keys to allow a better interaction with a remote host. Fonts, contrast, backlight and other parameters can be configured for the Display. See "Display"...

  • Page 31: Select The Interface Type

    Programming Select the Interface Type Upon completing the physical connection between the reader and its host, proceed directly to "Interfaces"on page for information and programming for the interface type the reader is connected to (for example: RS-232, Keyboard Wedge, USB, etc.) and scan the appropriate barcode in that section to select your system’s correct interface type.

  • Page 32: Configure Other Features

    Getting Started Configure Other Features If your installation requires different programming than the standard factory default settings, the following sections of this manual allow configuration of non-interface-specific settings you might require: General Features. General Features includes programming for scanning, beeper and LED indicators and other such universal settings.
  • Page 33 Programming Restore Factory Configuration If you want to restore the Factory Configuration for your imager, scan either the Restore USA Factory Configuration barcode or the Restore EU Factory Configuration barcode below. Both labels restore the scanner configuration to the factory settings, including the interface type. The USA label restores Label IDs to those historically used in the USA.
  • Page 34 Getting Started NOTES Gryphon™ I GD4100/GM4100...

  • Page 35: General Features

    Chapter 3 General Features Double Read Timeout To prevent a double read of the same label, the Double Read Timeout sets the minimum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the Double Read Timeout, the second read of the label will be ignored.
  • Page 36 General Features Double Read Timeout — continued ENTER/EXIT PROGRAMMING MODE Double Read Timeout = 0.5 Second Double Read Timeout = 0.6 Second Double Read Timeout = 0.7 Second Double Read Timeout = 0.8 Second Double Read Timeout = 0.9 Second Double Read Timeout = 1 Second Gryphon™...

  • Page 37: Label Gone Timeout

    Label Gone Timeout Label Gone Timeout This feature sets the time after the last label segment is seen before the reader prepares for a new label. The timeout can be set within a range of 10 milliseconds to 2,550 milliseconds (2.55 seconds) in 10ms increments.
  • Page 38 General Features Label Gone Timeout — cont. ENTER/EXIT PROGRAMMING MODE Select Label Gone Timeout Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 016 = Timeout of 160 ms DEFAULT Gryphon™...

  • Page 39: Sleep Mode Timeout

    Sleep Mode Timeout Sleep Mode Timeout Specifies the timeout value for the reader to enter low power Sleep Mode. When Sleep Mode is enabled the reader cannot receive commands from the Host or base station. In order for the reader to enter Sleep Mode, the following conditions must be met: Corded version .
  • Page 40 General Features Sleep Mode Timeout — continued ENTER/EXIT PROGRAMMING MODE Sleep Mode Timeout = 5 Seconds Sleep Mode Timeout = 6 Seconds Sleep Mode Timeout = 7 Seconds Sleep Mode Timeout = 8 Seconds Sleep Mode Timeout = 9 Seconds Sleep Mode Timeout = 10 Seconds max.

  • Page 41: Led And Beeper Indicators

    LED and Beeper Indicators LED and Beeper Indicators Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. ENTER/EXIT PROGRAMMING MODE Power On Alert = Disable (No Audible Indication) DEFAULT Power On Alert = Four Beeps Product Reference Guide...

  • Page 42: Good Read: When To Indicate

    General Features Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a barcode. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit •...

  • Page 43: Good Read Beep Type

    LED and Beeper Indicators Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. ENTER/EXIT PROGRAMMING MODE DEFAULT Good Read Beep Type = Mono Good Read Beep Type = Bitonal Product Reference Guide...

  • Page 44: Good Read Beep Frequency

    General Features Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below. (Controls the beeper’s pitch/tone.) ENTER/EXIT PROGRAMMING MODE Good Read Beep Frequency = Low Good Read Beep Frequency = Medium DEFAULT Good Read Beep Frequency = High Good Read Beep Length...
  • Page 45 LED and Beeper Indicators Good Read Beep Length — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Good Read Beep Length = 80 msec Good Read Beep Length = 100 msec Good Read Beep Length = 120 msec Good Read Beep Length = 140 msec Good Read Beep Length = 160 msec Good Read Beep Length = 180 msec Good Read Beep Length = 200 msec...

  • Page 46: Good Read Beep Volume

    General Features Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. ENTER/EXIT PROGRAMMING MODE Good Read Beep Volume = Beeper Off Good Read Beep Volume = Low Good Read Beep Volume = Medium DEFAULT Good Read Beep Volume = High Gryphon™...

  • Page 47: Good Read Led Duration

    LED and Beeper Indicators Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.
  • Page 48 General Features Good Read LED Duration — cont. ENTER/EXIT PROGRAMMING MODE Select Good Read LED Duration Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 020 = Good Read LED DEFAULT...

  • Page 49: Scanning Features

    Scanning Features Scanning Features Scan Mode Selects the scan operating mode for the reader. Selections are: Trigger Single. When the trigger is pulled, scanning is activated until one of the following occurs: - Scanning Active Time has elapsed - a label has been read - the trigger is released This mode is associated with typical handheld reader operation: when the trigger is pulled, scanning starts and the product scans until the trigger is released, or a label is read, or the...
  • Page 50 General Features Scan Mode — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Scan Mode = Trigger Single Scan Mode = Trigger Hold Multiple Scan Mode = Trigger Pulse Multiple Scan Mode = Flashing Scan Mode = Always On Scan Mode = Stand Mode Scan Mode = Trigger Object Sense Gryphon™...

  • Page 51: Stand Mode Triggered Timeout

    Scanning Features Stand Mode Triggered Timeout This feature specifies the time to remain in Trigger Single mode after the trigger is pulled while Stand Mode. This timeout is only used when the Scan Mode is configured as Stand Mode This feature is valid only for corded models. NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT...
  • Page 52 General Features Stand Mode Triggered Timeout — continued ENTER/EXIT PROGRAMMING MODE Stand Mode Triggered Timeout = 6 Seconds Stand Mode Triggered Timeout = 8 Seconds Stand Mode Triggered Timeout = Switch back to Trig- ger Single on trigger pull Gryphon™ I GD4100/GM4100...

  • Page 53: Stand Detection

    Scanning Features Stand Detection Specifies the behavior of the scanner when placed in a stand that contains autorecognition hardware. ENTER/EXIT PROGRAMMING MODE Ignore Autorecognition DEFAULT Switch to Stand Mode Switch to Always On Switch to Flashing Product Reference Guide...

  • Page 54: Stand Mode Sensitivity

    General Features Stand Mode Sensitivity Sets the sensitivity level for stand mode wakeup. Choices are low, medium and high. ENTER/EXIT PROGRAMMING MODE Stand Mode Sensitivity = Low DEFAULT Stand Mode Sensitivity = Medium Stand Mode Sensitivity = High Gryphon™ I GD4100/GM4100...

  • Page 55: Scanning Active Time

    Scanning Features Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
  • Page 56 General Features Scanning Active Time — cont. ENTER/EXIT PROGRAMMING MODE Select Scanning Active Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL DEFAULT 005 = Scanning is active for 5 Seconds Gryphon™...

  • Page 57: Flash On Time

    Flash On Time Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
  • Page 58 General Features Flash On Time — cont. ENTER/EXIT PROGRAMMING MODE Select Flash ON Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 10 = Flash is ON for 1 Second DEFAULT Gryphon™...

  • Page 59: Flash Off Time

    Flash Off Time Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
  • Page 60 General Features Flash Off Time — cont. ENTER/EXIT PROGRAMMING MODE Select Flash OFF Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 06 = Flash is OFF for 600ms DEFAULT Gryphon™...

  • Page 61: Green Spot Duration

    Green Spot Duration Green Spot Duration Specifies the duration of the good read pointer beam after a good read. ENTER/EXIT PROGRAMMING MODE Green Spot Duration = Disable (Green Spot is Off ) DEFAULT Green Spot Duration = Short (300 msec) Green Spot Duration = Medium (500 msec) Green Spot Duration = Long (800 msec) Product Reference Guide...

  • Page 62: Display

    General Features Display Contrast Read the code until the desired contrast is reached. Lighter Darker Font Size ENTER/EXIT PROGRAMMING MODE DEFAULT Font size = small Font size = Medium Font size = Large Gryphon™ I GD4100/GM4100...

  • Page 63: Backlight

    Display Backlight ENTER/EXIT PROGRAMMING MODE DEFAULT Display backlight = off Display backlight = on Product Reference Guide...

  • Page 64: Display Mode

    General Features Display Mode The user can control the reader display behavior according to the following selections: Local Echo mode: When a barcode is read with the reader: • The code is sent to the Host. • The reader display is cleared. •...

  • Page 65: Display Timeout

    Display Display Timeout Specifies how long the display will remain on after a display write. Display is forced on after any display write or after any reading phase. Display and backlight are turned off after this timeout expires. ENTER/EXIT PROGRAMMING MODE DEFAULT Display Timeout = Disable Display Timeout = 1 Second...
  • Page 66 General Features Display Timeout (continued) ENTER/EXIT PROGRAMMING MODE Display Timeout = 5 Seconds Display Timeout= 6 Seconds Display Timeout = 7 Seconds Display Timeout = 8 Seconds Display Timeout = 9 Seconds Display Timeout = 9.9 Seconds (9,900ms max.) Gryphon™ I GD4100/GM4100...

  • Page 67: Keypad Select

    Keypad Select Keypad Select This parameter specifies the character that has to be sent from the scanner when one of the three keys are pressed. For example, when key1 is pressed a 0x3C '<' character is sent. Follow these instructions to set this feature: 1.
  • Page 68 General Features NOTES Gryphon™ I GD4100/GM4100...

  • Page 69: Interfaces

    Chapter 4 Interfaces Interface Selection Each reader model will support one of the following sets of host interfaces: General Purpose Models RS-232 RS-232 OPOS Keyboard Wedge Wand Emulation Retail Point of Sale Models RS-232 RS-232 OPOS IBM 46XX Configuring the Interface Scan the programming barcode from this section which selects the appropriate interface type matching the system the reader will be connected to.
  • Page 70 117 IBM-46xx Port 9B reader interface Select IBM-P9B USB-OEM FEATURES Set USB-OEM Interface USB-OEM Features (can be used for OPOS/UPOS/JavaPOS) starting on page 113 Select USB-OEM a. Download the correct USB Com driver from www.datalogic.com Gryphon™ I GD4100/GM4100...
  • Page 71 Configuring the Interface KEYBOARD FEATURES AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, Set KEYBOARD 80, 90 &...
  • Page 72 Interfaces KEYBOARD — cont. FEATURES Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make only key- board Select KBD-IBM-M Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break key- board Select KBD-IBM-MB Keyboard Wedge for DIGITAL Termi- nals VT2xx, VT3xx, VT4xx Set KEYBOARD WEDGE...

  • Page 73: Global Interface Features

    Global Interface Features Global Interface Features The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual: • RS-232 ONLY Interface on page 73 • Keyboard Interface on page 99 •...

  • Page 74: Usb Suspend Mode

    Interfaces USB Suspend Mode This setting enables/disables the ability of USB interfaces to enter suspend mode. ENTER/EXIT PROGRAMMING MODE DEFAULT USB Suspend Mode = Disable USB Suspend Mode = Enable Gryphon™ I GD4100/GM4100...

  • Page 75: Rs-232 Only Interface

    Chapter 5 RS-232 ONLY Interface Introduction Use the programming barcodes in this chapter if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in Chapter 6, RS-232/USB-Com Interfaces.
  • Page 76 RS-232 ONLY Interface Baud Rate — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Baud Rate = 9600 Baud Rate = 19,200 Baud Rate = 38,400 Baud Rate = 57,600 Baud Rate = 115,200 Gryphon™ I GD4100/GM4100...

  • Page 77: Data Bits

    Data Bits Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data. ENTER/EXIT PROGRAMMING MODE 7 Data Bits DEFAULT 8 Data Bits Stop Bits The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream.

  • Page 78: Parity

    RS-232 ONLY Interface Parity This feature specifies parity required for sending and receiving data. A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. • Select None when no parity bit is required. •...

  • Page 79: Handshaking Control

    Handshaking Control Handshaking Control The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Handshaking Control includes the following options: • RTS — RTS is asserted during transmissions. CTS is ignored. •...
  • Page 80 RS-232 ONLY Interface NOTES Gryphon™ I GD4100/GM4100...

  • Page 81: Rs-232/Usb-Com Interfaces

    Chapter 6 RS-232/USB-Com Interfaces Introduction The programming barcodes in this chapter allow modifications to the standard RS-232 and USB-Com interfaces. Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings. Product Reference Guide...

  • Page 82: Intercharacter Delay

    RS-232/USB-Com Interfaces Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay. To set the delay: 1.
  • Page 83 Intercharacter Delay Intercharacter Delay — cont. ENTER/EXIT PROGRAMMING MODE Intercharacter Delay = No Delay Select Intercharacter Delay Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 84: Beep On Ascii Bel

    RS-232/USB-Com Interfaces Beep On ASCII BEL When this parameter is enabled, the reader issues a beep when a <BEL> character is detected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event.

  • Page 85: Ack Nak Options

    ACK NAK Options ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...

  • Page 86: Ack Character

    RS-232/USB-Com Interfaces ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these Data characters.
  • Page 87 ACK NAK Options ACK Character — cont. ENTER/EXIT PROGRAMMING MODE Select ACK Character Setting 0x06 ‘ACK’ Character DEFAULT Product Reference Guide...

  • Page 88: Nak Character

    RS-232/USB-Com Interfaces NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these Data characters.
  • Page 89 ACK NAK Options NAK Character — cont. ENTER/EXIT PROGRAMMING MODE Select NAK Character Setting 0x15 ‘NAK’ Character DEFAULT Product Reference Guide...

  • Page 90: Ack Nak Timeout Value

    RS-232/USB-Com Interfaces ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1.
  • Page 91 ACK NAK Options ACK NAK Timeout Value — cont. ENTER/EXIT PROGRAMMING MODE Select ACK NAK Timeout Value Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 92: Ack Nak Retry Count

    RS-232/USB-Com Interfaces ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries.
  • Page 93 ACK NAK Options ACK NAK Retry Count — cont. ENTER/EXIT PROGRAMMING MODE Select ACK NAK Retry Count Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 94: Ack Nak Error Handling

    RS-232/USB-Com Interfaces ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host. Options are: • Ignore errors detected • Process error as valid ACK character •...

  • Page 95: Indicate Transmission Failure

    Indicate Transmission Failure Indicate Transmission Failure This option enables/disables the reader’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode ENTER/EXIT PROGRAMMING MODE Indicate Transmission Failure = Disable Indication DEFAULT Indicate Transmission Failure = Enable Indication Product Reference Guide...

  • Page 96: Disable Character

    RS-232/USB-Com Interfaces Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these Data characters.
  • Page 97 Disable Character Disable Character — cont. ENTER/EXIT PROGRAMMING MODE Select Disable Character Setting 0x44 = Disable Character is ‘D’ DEFAULT Product Reference Guide...

  • Page 98: Enable Character

    RS-232/USB-Com Interfaces Enable Character Specifies the value of the RS-232 host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these Data characters.
  • Page 99 Enable Character Enable Character — cont. ENTER/EXIT PROGRAMMING MODE Select Enable Character Setting 0x45 = Enable Character is ‘E’ DEFAULT Product Reference Guide...
  • Page 100 RS-232/USB-Com Interfaces NOTES Gryphon™ I GD4100/GM4100...

  • Page 101: Keyboard Interface

    Chapter 7 Keyboard Interface Introduction Use the programming barcodes in this chapter to select options for USB Keyboard and Wedge Interfaces. Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings. Scancode Tables Information about control character emulation which applies to keyboard interfaces is listed in Appendix F, Scancode Tables.

  • Page 102: Country Mode

    Keyboard Interface Country Mode This feature specifies the country/language supported by the keyboard. Only the following interfaces support ALL Country Modes. • USB Keyboard (without alternate key encoding) • AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Std Key Encoding •...
  • Page 103 Country Mode Country Mode — continued ENTER/EXIT PROGRAMMING MODE Supports only the interfaces listed in the Country Mode feature description. Country Mode = Denmark Country Mode = France Country Mode = Germany Supports only the interfaces listed in the Country Mode fea- ture description.
  • Page 104 Keyboard Interface Country Mode — continued ENTER/EXIT PROGRAMMING MODE Supports only the interfaces listed in the Country Mode feature description. Country Mode = Poland Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = Portugal Supports only the interfaces listed in the Country Mode feature description.

  • Page 105: Caps Lock State

    Caps Lock State Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard is selected. ENTER/EXIT PROGRAMMING MODE DEFAULT Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable...

  • Page 106: Send Control Characters

    Keyboard Interface Send Control Characters This feature Specifies how the reader transmits ASCII control characters to the host. Reference Appendix F, Scancode Tables for more information about control characters. Options are as follows: Control Character 00 . Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.

  • Page 107: Wedge Quiet Interval

    Wedge Quiet Interval Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the reader breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
  • Page 108 Keyboard Interface Wedge Quiet Interval — cont. ENTER/EXIT PROGRAMMING MODE Select Wedge Quiet Interval Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 10 = Quiet Interval of 100 ms DEFAULT Gryphon™...

  • Page 109: Intercharacter Delay

    Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay. This feature applies ONLY to the Keyboard Wedge interface.
  • Page 110 Keyboard Interface Intercharacter Delay — cont. ENTER/EXIT PROGRAMMING MODE Intercharacter Delay = No Delay Select Intercharacter Delay Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 111: Intercode Delay

    Intercode Delay Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.
  • Page 112 Keyboard Interface Intercode Delay — cont. ENTER/EXIT PROGRAMMING MODE Set Intercode Delay Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 00 = No Wedge Intercode Delay DEFAULT Gryphon™...

  • Page 113: Usb Keyboard Speed

    USB Keyboard Speed USB Keyboard Speed This option specifies the USB poll rate for a USB keyboard. This feature applies ONLY to the USB Keyboard interface. NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT USB Keyboard Speed = 1ms USB Keyboard Speed = 2ms USB Keyboard Speed = 3ms USB Keyboard Speed = 4ms USB Keyboard Speed = 5ms...
  • Page 114 Keyboard Interface USB Keyboard Speed — continued ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed = 6ms USB Keyboard Speed = 7ms USB Keyboard Speed = 8ms USB Keyboard Speed = 9ms USB Keyboard Speed = 10ms Gryphon™ I GD4100/GM4100...

  • Page 115: Usb-Oem Interface

    Chapter 8 USB-OEM Interface Introduction Feature settings for USB interfaces differ depending upon which host type the reader will be connected with. Use the feature settings in this chapter and Chapter 9, IBM 46XX Interface specifically configure for the USB-OEM interface. Other USB interfaces are included in the appropriate chapter for their host type.

  • Page 116: Usb-Oem Device Usage

    USB-OEM Interface USB-OEM Device Usage The USB-OEM protocol allows for the reader to be identified as one of two different types of barcode scanners. Depending on what other scanners you may already have connected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate. Options are: •...

  • Page 117: Interface Options

    Interface Options Interface Options This feature provides for an interface-specific control mechanism. ENTER/EXIT PROGRAMMING MODE Obey Scanner Configuration Host Commands DEFAULT Ignore Scanner Configuration Host Commands Product Reference Guide...
  • Page 118 USB-OEM Interface NOTES Gryphon™ I GD4100/GM4100...

  • Page 119: Ibm 46Xx Interface

    Chapter 9 IBM 46XX Interface Introduction Use the barcodes in this section to configure programmable features for available IBM 46XX interfaces. IBM Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings. Product Reference Guide...

  • Page 120: 46Xx Number Of Host Resets

    IBM 46XX Interface 46xx Number of Host Resets Specifies how many consecutive resets are processed before the reader starts a five-second period to allow the user to enter Programming Mode and configure the reader. The configurable range for this feature is 1 to 15 resets. ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets = 1 46xx Number of Host Resets = 2...
  • Page 121 46xx Number of Host Resets 46xx Number of Host Resets — cont. ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets = 7 46xx Number of Host Resets = 8 46xx Number of Host Resets = 9 46xx Number of Host Resets = 10 46xx Number of Host Resets = 11 46xx Number of Host Resets = 12 Product Reference Guide...
  • Page 122 IBM 46XX Interface 46xx Number of Host Resets — cont. ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets = 13 46xx Number of Host Resets = 14 46xx Number of Host Resets = 15 Gryphon™ I GD4100/GM4100...

  • Page 123: Transmit Labels In Code 39 Format

    Transmit Labels in Code 39 Format Transmit Labels in Code 39 Format This feature enable/disables translation to Code 39 before transmitting label data to an IBM- 46XX or a USB-OEM host. Only the symbology identifier is modified for the translation. The data is not converted to Code 39 or verified to be valid for Code 39.

  • Page 124: Interface Options

    IBM 46XX Interface Interface Options This feature provides for an interface-specific control mechanism. ENTER/EXIT PROGRAMMING MODE Obey Scanner Configuration Host Commands DEFAULT Ignore Scanner Configuration Host Commands Gryphon™ I GD4100/GM4100...

  • Page 125: Wand Emulation Interface

    Chapter 10 Wand Emulation Interface Introduction This chapter provides feature/settings configuration for the Wand Emulation interface. Wand Emulation Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings. Wand Signal Speed This feature specifies the speed of the Wand output signal per nominal bar or space. Choices are: •...

  • Page 126: Wand Polarity

    Wand Emulation Interface Wand Polarity This option specifies the polarity of the Wand output signal. Choices are: • Quiet zones and spaces are high, bars are low • Quiet zones and spaces are low, bars are high TTL logic levels: 0V <= Low <= 0.7V...

  • Page 127: Wand Idle State

    Wand Idle State Wand Idle State This feature specifies the level of the Wand output signal when the reader is idle. TTL logic levels: 0V <= Low <= 0.7V 2.4V <= High <= 5.25V NOTE ENTER/EXIT PROGRAMMING MODE Wand Idle State = Low DEFAULT Wand Idle State = High Product Reference Guide...

  • Page 128: Transmit Noise

    Wand Emulation Interface Transmit Noise This option specifies the leading/trailing noise for the Wand interface. Choices are: • Disable (no leading/trailing noise) • Enable leading noise • Enable trailing noise • Enable leading and trailing noise ENTER/EXIT PROGRAMMING MODE DEFAULT Transmit Noise = Disable Transmit Noise = Transmit leading noise Transmit Noise = Transmit trailing noise...

  • Page 129: Label Symbology Conversion

    Label Symbology Conversion Label Symbology Conversion When this feature is enabled for the Wand Emulation interface, all barcode labels are converted to a single symbology. Options are: • No conversion • Convert to Code 39 symbology • Convert to Code 39 Full ASCII •...
  • Page 130 Wand Emulation Interface NOTES Gryphon™ I GD4100/GM4100...

  • Page 131: Data Editing

    ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) Additional advanced editing is available. See the Advanced formatting features in the Datalogic Aladdin configuration software, or contact Technical Support (described on page 11) for more information. NOTE Product Reference Guide...

  • Page 132: Please Keep In Mind

    Data Editing Please Keep In Mind... • Modifying a message string is not a mandatory requirement. Data editing is sophisticated feature allowing highly customizable output for advanced users. Factory default settings for data editing is typically set to NONE. • A prefix or suffix may be applied (reference the Symbologies chapter for these settings)
  • Page 133 Global Prefix/Suffix 6. Scan the ENTER/EXIT barcode once again to exit Programming Mode. 7. The resulting message string would appear as follows: Scanned barcode data:12345 Resulting message string output: $12345 This option sets up to 20 characters each from the set of ASCII characters or any hex value from 00 to FF.

  • Page 134: Global Aim Id

    Data Editing Global AIM ID This feature enables/disables addition of AIM IDs for all sym- bology types. NOTE AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: •...
  • Page 135 Global AIM ID Global AIM ID — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Global AIM ID = Disable Global AIM ID = Enable Product Reference Guide...

  • Page 136: Gs1-128 Aim Id

    Data Editing GS1-128 AIM ID If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled independently. The AIM ID for GS1-128 is a ]C1, ]C2 or ]C3. AIM IDs for other symbologies can be enabled/disabled independently as well. Contact Customer Support for assistance If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled independently.

  • Page 137: Label Id

    Label ID Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01- 0xFF), used to identify a barcode (symbology) type. It can be appended previous to or following the transmitted barcode data depending upon how this option is enabled.
  • Page 138 580000 CODE39 2A0000 560000 CODE39 CIP 590000 590000 CODE4 340000 340000 CODE5 6A0000 6A0000 CODE93 & 260000 550000 DATALOGIC 2OF5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN13 P8 460000 230000 EAN8 464600 410000...

  • Page 139: Label Id: Set Individually Per Symbology

    Label ID Symbology USA Label ID set EU Label ID set ISBN 490000 400000 ISBT128 660000 660000 ISSN 6E0000 6E0000 400000 5A0000 Plessey 610000 610000 730000 500000 UPCA 410000 430000 UPCA P2 410000 460000 UPCA P5 410000 470000 UPCA P8 410000 510000 Label ID: Set Individually Per Symbology...
  • Page 140 Data Editing Figure 19. Label ID Position Options Prefix Label ID Aim ID Bar Code Data Label ID Suffix Table 18. Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT (Scanner enters Programming Mode) barcode Determine placement of the Label ID characters BEFORE or AFTER with Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix...
  • Page 141 Label ID STEP ACTION EXAMPLES Scan the ENTER/EXIT (Scanner enters Programming Mode) barcode Determine placement of the Label ID characters BEFORE or AFTER with Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix regard to scanned data using Label ID Control, starting on page 140 Scan the barcode selecting...

  • Page 142: Label Id Control

    Data Editing Label ID Control This option controls whether a Label ID is disabled, or sent as a prefix or suffix for a given symbology type. ENTER/EXIT PROGRAMMING MODE DEFAULT Label ID Transmission = Disable Label ID Transmission = Enable as Prefix Label ID Transmission = Enable as Suffix Make a mistake? Scan the CANCEL barcode to abort and not save the entry string.

  • Page 143: Label Id Symbology Selection

    Label ID Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See "Label ID"on page for full instructions. ENTER/EXIT PROGRAMMING MODE Set UPC-A Label ID Character(s) Set UPC-A/P2 Label ID Character(s) Set UPC-A/P5 Label ID Character(s) Set UPC-A/GS1-128 Label ID Character(s) Set UPC-E Label ID Character(s)
  • Page 144 Data Editing Label ID Symbology Selection — continued ENTER/EXIT PROGRAMMING MODE Set UPC-E/P5 Label ID Character(s) Set UPC-E/GS1-128 Label ID Character(s) Set EAN 13 Label ID Character(s) Set EAN 13/P2 Label ID Character(s) Set EAN 13/P5 Label ID Character(s) Set EAN 13/GS1-128 Label ID Character(s) Gryphon™...
  • Page 145 Label ID Label ID Symbology Selection — continued ENTER/EXIT PROGRAMMING MODE Set EAN 8 Label ID Character(s) Set EAN 8/P2 Label ID Character(s) Set EAN 8/P5 Label ID Character(s) Set EAN 8/GS1-128 Label ID Character(s) Set GTIN Label ID Character(s) Set GTIN/P2 Label ID Character(s) Product Reference Guide...
  • Page 146 Data Editing Label ID Symbology Selection — continued ENTER/EXIT PROGRAMMING MODE Set GTIN/P5 Label ID Character(s) Set GTIN/GS1-128 Label ID Character(s) Set Code 39 Label ID Character(s) Set Code 32 Label ID Character(s) Set Code 39 CIP Label ID Character(s) Set Code 128 Label ID Character(s) Set GS1-128 Label ID Character(s) Gryphon™...
  • Page 147 Label ID Label ID Symbology Selection — continued ENTER/EXIT PROGRAMMING MODE Set ISBT 128 Label ID Character(s) Set Codablock F Label ID Character(s) Set Interleaved 2 of 5 Label ID Character(s) Set Follett 2 of 5 Label ID Character(s) Set Interleaved 2 of 5 CIP HR Label ID Character(s) Set Standard 2 of 5 Label ID Character(s) Product Reference Guide...
  • Page 148 ENTER/EXIT PROGRAMMING MODE Set Industrial 2 of 5 Label ID Character(s) Set IATA Label ID Character(s) Set Datalogic 2 of 5 Label ID Character(s) Set Codabar Label ID Character(s) Set ABC Codabar Label ID Character(s) Set Code 11 Label ID Character(s)
  • Page 149 Label ID Label ID Symbology Selection — continued ENTER/EXIT PROGRAMMING MODE Set DataBar Omnidirectional Label ID Character(s) Set DataBar Expanded Label ID Character(s) Set DataBar Limited Label ID Character(s) Set Code 93 Label ID Character(s) Set MSI Label ID Character(s) Set Plessey Label ID Character(s) Set Anker Plessey Label ID Character(s) Product Reference Guide...
  • Page 150 Data Editing Label ID Symbology Selection — continued ENTER/EXIT PROGRAMMING MODE Set Code 4 Label ID Character(s) Set Code 5 Label ID Character(s) Gryphon™ I GD4100/GM4100...

  • Page 151: Case Conversion

    Case Conversion Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. Case conversion affects ONLY scanned barcode data, and does not affect Label ID, Prefix, Suffix, or other appended data. NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT Case Conversion = Disable (no case conversion)

  • Page 152: Character Conversion

    Data Editing Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the character to convert in a pair is FF, then no conversion is done.
  • Page 153 Character Conversion Character Conversion — continued ENTER/EXIT PROGRAMMING MODE Configure Character Conversion 0xFFFFFFFFFFFFFFFF DEFAULT (No character conversion) Product Reference Guide...
  • Page 154 Data Editing NOTES Gryphon™ I GD4100/GM4100...

  • Page 155: Rf Features

    Chapter 12 RF Features Introduction This section provides options and programming related to the reader’s radio communication features. Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings. Product Reference Guide...

  • Page 156: Rf Beeper Features

    RF Features RF Beeper Features Several options are available to configure beeper behavior for RF operation. Good Transmission Beep Enables/disables the Good Transmission Beep indication. When enabled, a beep occurs when a Label is correctly transmitted to the base. ENTER/EXIT PROGRAMMING MODE Good Transmission Beep = Disable DEFAULT Good Transmission Beep = Enable...

  • Page 157: Beep Frequency

    RF Beeper Features Beep Frequency Adjusts radio-specific beep indications to sound at a low, medium or high frequency, selectable from the list below. (Controls the beeper’s pitch/tone.) ENTER/EXIT PROGRAMMING MODE DEFAULT Beep Frequency = Low Beep Frequency = Medium Beep Frequency = High Product Reference Guide...

  • Page 158: Beep Duration

    RF Features Beep Duration This feature controls the duration of radio-specific beep indications. ENTER/EXIT PROGRAMMING MODE Beep Duration = 60 msec DEFAULT Beep Duration = 80 msec Beep Duration = 100 msec Beep Duration = 120 msec Beep Duration = 140 msec Gryphon™...
  • Page 159 RF Beeper Features Beep Duration — cont. ENTER/EXIT PROGRAMMING MODE Beep Duration = 160 msec Beep Duration = 180 msec Beep Duration = 200 msec Product Reference Guide...

  • Page 160: Beep Volume

    RF Features Beep Volume Selects the beeper volume (loudness) of radio-specific beep indications. There are three selectable volume levels. ENTER/EXIT PROGRAMMING MODE Beep Volume = Low Beep Volume = Medium DEFAULT Beep Volume = High Gryphon™ I GD4100/GM4100...

  • Page 161: Disconnect Beep

    RF Beeper Features Disconnect Beep Enables/disables the beep indication that a handheld has become disconnected from a Base Station. ENTER/EXIT PROGRAMMING MODE Disconnect Beep = Disable DEFAULT Disconnect Beep = Enable Base Station Beep Enables/disables a beep indication when the handheld is placed in the Base Station. ENTER/EXIT PROGRAMMING MODE BT Base Station Beep = Disable DEFAULT...

  • Page 162: Leash Alarm

    RF Features Leash Alarm This setting specifies the number of seconds to sound the Leash Mode beeps (three per second) when the handheld goes out of range. This is especially useful in instances where the reader might inadvertently have been placed in a bag or cart. For this mode to be effective, the feature "Sleep Mode Timeout"...
  • Page 163 RF Beeper Features Leash Alarm — cont. ENTER/EXIT PROGRAMMING MODE Leash Alarm = 5 Seconds Leash Alarm = 10 Seconds Leash Alarm = 25 Seconds Leash Alarm = 30 Seconds Product Reference Guide...

  • Page 164: Configuration Update

    RF Features Configuration Update Automatic Configuration Update When this feature is enabled, a reader and its linked Base Station can automatically ensure they stay in sync with regard to application hardware and/or configuration. This is accomplished by the linked reader and Base Station comparing application version number and configuration file check sum.

  • Page 165: Copy Configuration To Scanner

    Configuration Update Copy Configuration to Scanner Scan the following label to copy the current Base Station configuration to the scanner. Use this method when the Auto Configuration Update feature is disabled and you want a one-time configuration update to be performed on the scanner. Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunc- tion with this barcode.

  • Page 166: Powerdown Timeout

    RF Features Powerdown Timeout The Powerdown Timeout feature sets the time for automatically switching the unit off when the imager has been idle. ENTER/EXIT PROGRAMMING MODE Powerdown Timeout = Disable Powerdown Timeout = 10 minutes Powerdown Timeout = 20 minutes Powerdown Timeout = 40 minutes DEFAULT Powerdown Timeout = 60 Minutes (1 Hour)
  • Page 167 Powerdown Timeout Powerdown Timeout — continued ENTER/EXIT PROGRAMMING MODE Powerdown Timeout = 120 Minutes (2 Hours) Powerdown Timeout = 4 Hours Powerdown Timeout = 6 Hours Powerdown Timeout = 8 Hours Powerdown Timeout = 16 Hours Powerdown Timeout = 24 Hours Product Reference Guide...

  • Page 168: Batch Features

    RF Features Batch Features Batch Mode This option specifies whether to store labels in the handheld while disconnected from the base. Options are as follows: • Disabled — The handheld will not store/batch labels. • Manual — The handheld will always store labels to Flash memory. The user must manu- ally send the stored labels to the remote device using a special "batch send"...

  • Page 169: Send Batch

    RF Address Stamping Batch Features — cont. Send Batch Use this barcode to initiate sending of labels stored in batch memory. Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunc- tion with this barcode. NOTE Send Batch Erase Batch Memory Use this barcode to erase any labels stored in batch memory.
  • Page 170 RF Features When included as a prefix, the source-radio ID is displayed after all label formatting has been applied. The 6 byte hex address is sent as 12 ascii characters, i.e., an address NOTE 00 06 66 00 1A ED will be sent as (shown in hex): 30 30 30 36 36 36 30 30 31 41 45 44 ENTER/EXIT PROGRAMMING MODE...

  • Page 171: Source Radio Address Delimiter Character

    RF Address Stamping Source Radio Address Delimiter Character This option specifies the delimiter character to be placed between the label data and radio address when address stamping is enabled. This feature only applies if "Source Radio Address Transmission"on page is enabled. NOTE Follow these instructions to select the delimiter character: 1.
  • Page 172 RF Features Source Radio Address Delimiter Character — cont. ENTER/EXIT PROGRAMMING MODE Set Source Radio Address Delimiter Character Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 173: Radio Protocol Timeout

    Radio Protocol Timeout Radio Protocol Timeout This parameter sets the valid wait time before transmission between the handheld reader and Base Station is considered failed. When setting this parameter, take into consideration the radio traffic (number of readers in the same area).
  • Page 174 RF Features Radio Protocol Timeout - continued ENTER/EXIT PROGRAMMING MODE Set Radio Protocol Timeout Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 02 = 2 Seconds Radio Protocol Timeout DEFAULT Gryphon™...

  • Page 175: Radio Transmit Mode

    Radio Transmit Mode Radio Transmit Mode Specifies the transmission protocol for Star communications. Options are: • ACK from cradle to scanner — signals a good transmission as soon as the Base Station receives a label • ACK when sent to host — scanner signals a good transmission as soon as the Base Station has sent the label to the host •...

  • Page 176: Rf Batch Mode Transmit Delay

    RF Features RF Batch Mode Transmit Delay Specifies the delay in 10 msec increments between transmitting labels stored in batch memory . ENTER/EXIT PROGRAMMING MODE DEFAULT RF Batch Mode Transmit Delay = No Delay RF Batch Mode Transmit Delay = 0.5 seconds RF Batch Mode Transmit Delay = 1 second RF Batch Mode Transmit Delay = 2.5 seconds Gryphon™...

  • Page 177: Symbologies

    Standard 2 of 5 • Coupon Control Industrial 2 of 5 • UPC-A • Code IATA • UPC-E Datalogic 2 of 5 • EAN 13 (Jan 13) Codabar • ISSN • ABC Codabar • EAN 8 (Jan 8) Code 11 •...

  • Page 178: Standard Factory Settings For Symbologies

    Symbologies Standard Factory Settings for Symbologies Default settings are indicated at each feature/option with a green arrow. Also reference Appendix C, Standard Defaults for a listing of the most widely used set of standard factory settings. That section also provides space to record any custom settings needed or implemented for your system.

  • Page 179: Code Ean/Upc

    Code EAN/UPC Code EAN/UPC Coupon Control This feature is used to control the reader’s method of processing coupon labels. Options are: • Allow all coupon barcodes to be decoded • Enable only UPC/EAN coupon decoding • Enable only GS1 DataBar™ coupon decoding To set this feature: 1.

  • Page 180: Upc-A

    Symbologies UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A barcodes. ENTER/EXIT PROGRAMMING MODE UPC-A = Disable DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A barcode data. ENTER/EXIT PROGRAMMING MODE UPC-A Check Character Transmission = Don’t Send DEFAULT...

  • Page 181: Expand Upc-A To Ean-13

    UPC-A Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-A to EAN-13 = Don’t Expand UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.

  • Page 182: Upc-A Minimum Reads

    Symbologies UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as a good read. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-A Minimum Reads = 1 UPC-A Minimum Reads = 2 UPC-A Minimum Reads = 3 UPC-A Minimum Reads = 4 Gryphon™...

  • Page 183: Upc-E

    UPC-E UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E barcodes. ENTER/EXIT PROGRAMMING MODE UPC-E = Disable DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E barcode data. ENTER/EXIT PROGRAMMING MODE UPC-E Check Character Transmission = Don’t Send DEFAULT...

  • Page 184: Expand Upc-E To Ean-13

    Symbologies Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-E to EAN-13 = Don’t Expand UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.

  • Page 185: Upc-E Number System Character Transmission

    UPC-E UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number character. ENTER/EXIT PROGRAMMING MODE UPC-E Number System Character = Do not transmit DEFAULT UPC-E Number System Character = Transmit Product Reference Guide...

  • Page 186: Upc-E Minimum Reads

    Symbologies UPC-E Minimum Reads This feature specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE UPC-E Minimum Reads = 1 DEFAULT UPC-E Minimum Reads = 2 UPC-E Minimum Reads = 3 UPC-E Minimum Reads = 4 Gryphon™...

  • Page 187: Gtin Formatting

    GTIN Formatting GTIN Formatting This feature enables/disables the ability to convert UPC-E, UPC-A, EAN 8, and EAN 13 labels into the GTIN 14-character format. If add-on information is present on the base label prior to the conversion taking place, the add-on information will be appended to the converted GTIN label.

  • Page 188: Ean 13 (Jan 13)

    Symbologies EAN 13 (Jan 13) The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 barcodes. ENTER/EXIT PROGRAMMING MODE EAN 13 = Disable DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission Enable this option to transmit the check character along with EAN 13 barcode data.

  • Page 189: Ean-13 Flag 1 Character

    EAN 13 (Jan 13) EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label. ENTER/EXIT PROGRAMMING MODE EAN-13 Flag 1 Char= Don’t transmit DEFAULT EAN-13 Flag 1 Char= Transmit EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels.

  • Page 190: Ean 13 Minimum Reads

    Symbologies EAN 13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT EAN 13 Minimum Reads = 1 EAN 13 Minimum Reads = 2 EAN 13 Minimum Reads = 3 EAN 13 Minimum Reads = 4 Gryphon™...

  • Page 191: Issn

    ISSN ISSN The following options apply to the ISSN symbology. ISSN Enable/Disable Enables/disables conversion of EAN/JAN13 Bookland labels starting with 977 to ISSN labels. ENTER/EXIT PROGRAMMING MODE DEFAULT ISSN = Disable ISSN = Enable Product Reference Guide...

  • Page 192: Ean 8 (Jan 8)

    Symbologies EAN 8 (Jan 8) The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the reader will not read EAN 8/JAN 8 barcodes. ENTER/EXIT PROGRAMMING MODE EAN 8 = Disable DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Enable this option to transmit the check character along with EAN 8 barcode data.

  • Page 193: Expand Ean 8 To Ean 13

    EAN 8 (Jan 8) Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13. ENTER/EXIT PROGRAMMING MODE DEFAULT Expand EAN 8 to EAN 13 = Disable Expand EAN 8 to EAN 13 = Enable Product Reference Guide...

  • Page 194: Ean 8 Minimum Reads

    Symbologies EAN 8 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 8 (Jan 8) label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT EAN 8 Minimum Reads = 1 EAN 8 Minimum Reads = 2 EAN 8 Minimum Reads = 3 EAN 8 Minimum Reads = 4...

  • Page 195: Upc/Ean Global Settings

    UPC/EAN Global Settings UPC/EAN Global Settings This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
  • Page 196 Symbologies UPC/EAN Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE UPC/EAN Decoding Level = 1 DEFAULT UPC/EAN Decoding Level = 2 UPC/EAN Decoding Level = 3 UPC/EAN Decoding Level = 4 UPC/EAN Decoding Level = 5 Gryphon™ I GD4100/GM4100...

  • Page 197: Upc/Ean Correlation

    UPC/EAN Global Settings UPC/EAN Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.

  • Page 198: Upc/Ean Price Weight Check

    Symbologies UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits. Options are • Disabled • Enable 4-digit price-weight check-digit calculation • Enable 5-digit price-weight check-digit calculation • Enable European 4-digit price-weight check-digit calculation • Enable European 5-digit price-weight check-digit calculation ENTER/EXIT PROGRAMMING MODE DEFAULT Price Weight Check = Disabled...

  • Page 199: In-Store Minimum Reads

    UPC/EAN Global Settings In-Store Minimum Reads This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read. In-store labels are defined as UPC-A labels with a number-system character of 2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.

  • Page 200: Add-Ons

    Symbologies Add-Ons The following features apply to optional add-ons. Contact Customer Support for advanced programming of optional and conditional add-ons. NOTE Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): • • • GS1-128 If a UPC/EAN base label and a an add-on are both decoded, the reader will transmit the base label and add-on.
  • Page 201 Add-Ons Add-Ons — cont. Optional Add-ons — cont. ENTER/EXIT PROGRAMMING MODE Optional Add-Ons = Enable P5 DEFAULT Optional Add-Ons = Disable GS1-128 Optional Add-Ons = Enable GS1-128 Product Reference Guide...

  • Page 202: Optional Add-On Timer

    Symbologies Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. (Also see "Optional GS1-128 Add-On Timer"on page 203.) ENTER/EXIT PROGRAMMING MODE Optional Add-on Timer = 10ms Optional Add-on Timer = 20ms Optional Add-on Timer = 30ms Optional Add-on Timer = 40ms...

  • Page 203: Product Reference Guide

    Add-Ons Optional Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional Add-on Timer = 60ms DEFAULT Optional Add-on Timer = 70ms Optional Add-on Timer = 100ms Optional Add-on Timer = 120ms Optional Add-on Timer = 140ms Optional Add-on Timer = 160ms Product Reference Guide...
  • Page 204 Symbologies Optional Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional Add-on Timer = 180ms Optional Add-on Timer = 200ms Optional Add-on Timer = 220ms Optional Add-on Timer = 240ms Optional Add-on Timer = 260ms Optional Add-on Timer = 280ms Optional Add-on Timer = 300ms Gryphon™...

  • Page 205: Optional Gs1-128 Add-On Timer

    Add-Ons Optional GS1-128 Add-On Timer This option sets the timer expiration value to read the added part after reading the linear EAN/ UPC part. For UPC/EAN add-ons other than those of that type, see "Optional Add-On Timer"on page 200. ENTER/EXIT PROGRAMMING MODE DEFAULT Optional GS1-128 Add-On Timer = Disable Optional GS1-128 Add-On Timer = 10ms...
  • Page 206 Symbologies Optional GS1-128 Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer = 60ms Optional GS1-128 Add-On Timer = 70ms Optional GS1-128 Add-On Timer = 100ms Optional GS1-128 Add-On Timer = 120ms Optional GS1-128 Add-On Timer = 140ms Optional GS1-128 Add-On Timer = 160ms Gryphon™...
  • Page 207 Add-Ons Optional GS1-128 Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer = 180ms Optional GS1-128 Add-On Timer = 200ms Optional GS1-128 Add-On Timer = 220ms Optional GS1-128 Add-On Timer = 240ms Optional GS1-128 Add-On Timer = 260ms Optional GS1-128 Add-On Timer = 280ms Optional GS1-128 Add-On Timer = 300ms Product Reference Guide...

  • Page 208: P2 Add-Ons Minimum Reads

    Symbologies P2 Add-Ons Minimum Reads This feature specifies the minimum number of times a P2 add-on must be read before it is marked as valid and then combined with a base label ENTER/EXIT PROGRAMMING MODE P2 Add-Ons Minimum Reads = 1 DEFAULT P2 Add-Ons Minimum Reads = 2 P2 Add-Ons Minimum Reads = 3...

  • Page 209: P5 Add-Ons Minimum Reads

    Add-Ons P5 Add-Ons Minimum Reads This feature specifies the minimum number of times a P5 add-on must be read before it is marked as valid and then combined with a base label ENTER/EXIT PROGRAMMING MODE DEFAULT P5 Add-Ons Minimum Reads = 1 P5 Add-Ons Minimum Reads = 2 P5 Add-Ons Minimum Reads = 3 P5 Add-Ons Minimum Reads = 4...

  • Page 210: Gs1-128 Add-Ons Minimum Reads

    Symbologies GS1-128 Add-Ons Minimum Reads This feature specifies the minimum number of times an GS1-128 add-on must be read before it is marked as valid and then combined with a base label ENTER/EXIT PROGRAMMING MODE DEFAULT GS1-128 Add-Ons Minimum Reads = 1 GS1-128 Add-Ons Minimum Reads = 2 GS1-128 Add-Ons Minimum Reads = 3 GS1-128 Add-Ons Minimum Reads = 4...

  • Page 211: Code 39

    Code 39 Code 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the reader will not read Code 39 barcodes. ENTER/EXIT PROGRAMMING MODE Code 39 = Disable DEFAULT Code 39 = Enable Product Reference Guide...

  • Page 212: Code 39 Check Character Calculation

    Symbologies Code 39 Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Code 39 check character. When disabled, any check character in the label is treated as a data character ENTER/EXIT PROGRAMMING MODE Code 39 Check Character Calculation = Don’t Calculate DEFAULT Code 39 Check Character Calculation = Calculate Std Check Code 39 Check Character Calculation = Calculate Mod 7 Check...

  • Page 213: Code 39 Check Character Transmission

    Code 39 Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 barcode data. ENTER/EXIT PROGRAMMING MODE Code 39 Check Character Transmission = Don’t Send DEFAULT Code 39 Check Character Transmission = Send Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters ENTER/EXIT PROGRAMMING MODE...

  • Page 214: Code 39 Full Ascii

    Symbologies Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 39 Full ASCII = Disable Code 39 Full ASCII = Enable Gryphon™ I GD4100/GM4100...

  • Page 215: Code 39 Quiet Zones

    Code 39 Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.

  • Page 216: Code 39 Minimum Reads

    Symbologies Code 39 Minimum Reads This feature specifies the minimum number of consecutive times a Code 39 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 39 Minimum Reads = 1 Code 39 Minimum Reads = 2 Code 39 Minimum Reads = 3 Code 39 Minimum Reads = 4 Gryphon™...

  • Page 217: Code 39 Decoding Level

    Code 39 Code 39 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
  • Page 218 Symbologies Code 39 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 39 Decoding Level = 1 Code 39 Decoding Level = 2 DEFAULT Code 39 Decoding Level = 3 Code 39 Decoding Level = 4 Code 39 Decoding Level = 5 Gryphon™...

  • Page 219: Code 39 Length Control

    Code 39 Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 39 Length Control = Variable Length...

  • Page 220: Code 39 Set Length 1

    Symbologies Code 39 Set Length 1 This feature specifies one of the barcode lengths for Code 39 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 221 Code 39 Code 39 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 39 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 02 = Length 1 is 2 Characters DEFAULT...

  • Page 222: Code 39 Set Length 2

    Symbologies Code 39 Set Length 2 This feature specifies one of the barcode lengths for Code 39 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
  • Page 223 Code 39 Code 39 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 39Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT...

  • Page 224: Code 39 Interdigit Ratio

    Symbologies Code 39 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 39 labels. ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio = Disable Code 39 Interdigit Ratio = 1 Code 39 Interdigit Ratio = 2 Code 39 Interdigit Ratio = 3 DEFAULT Code 39 Interdigit Ratio = 4...
  • Page 225 Code 39 Code 39 Interdigit Ratio — cont. ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio = 6 Code 39 Interdigit Ratio = 7 Code 39 Interdigit Ratio = 8 Code 39 Interdigit Ratio = 9 Code 39 Interdigit Ratio = 10 Product Reference Guide...

  • Page 226: Code 39 Character Correlation

    Symbologies Code 39 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.

  • Page 227: Code 32 (Italian Pharmaceutical Code)

    Code 32 (Italian Pharmaceutical Code) Code 32 (Italian Pharmaceutical Code) The following options apply to the Code 32 (Italian Pharmaceutical Code) symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 32 = Disable Code 32 = Enable Code 32 Feature Setting Exceptions The following features are set for Code 32 by using these Code 39...

  • Page 228: Code 32 Check Character Transmission

    Symbologies Code 32 Check Character Transmission Enable this option to transmit the check character along with Code 32 barcode data. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 32 Check Character Transmission = Don’t Send Code 32 Check Character Transmission = Send Code 32 Start/Stop Character Transmission This option enables/disables transmission of Code 32 start and stop characters ENTER/EXIT PROGRAMMING MODE DEFAULT...

  • Page 229: Code 39 Cip (French Pharmaceutical)

    Code 39 CIP (French Pharmaceutical) Code 39 CIP (French Pharmaceutical) The following options apply to the Code 39 CIP symbology. Code 39 CIP Enable/Disable Enables/Disables ability of the reader to decode Code 39 CIP labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 39 CIP = Disable Code 39 CIP = Enable Product Reference Guide...

  • Page 230: Code 128

    Symbologies Code 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the reader will not read Code 128 barcodes. ENTER/EXIT PROGRAMMING MODE Code 128 = Disable DEFAULT Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.

  • Page 231: Code 128 Check Character Transmission

    Code 128 Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 barcode data. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Check Character Transmission = Don’t Send Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.

  • Page 232: Code 128 Sub-Code Change Transmission

    Symbologies Code 128 Sub-Code Change Transmission Enables/disables the transmission of “Sub-Code exchange” characters (NOT transmitted by standard decoding). ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Sub-Code Change Transmission = Disable Code 128 Sub-Code Change Transmission = Enable Gryphon™ I GD4100/GM4100...

  • Page 233: Code 128 Quiet Zones

    Code 128 Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.

  • Page 234: Code 128 Minimum Reads

    Symbologies Code 128 Minimum Reads This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Minimum Reads = 1 Code 128 Minimum Reads = 2 Code 128 Minimum Reads = 3 Code 128 Minimum Reads = 4 Gryphon™...

  • Page 235: Code 128 Decoding Level

    Code 128 Code 128 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
  • Page 236 Symbologies Code 128 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 128 Decoding Level = 1 Code 128 Decoding Level = 2 DEFAULT Code 128 Decoding Level = 3 Code 128 Decoding Level = 4 Code 128 Decoding Level = 5 Gryphon™...

  • Page 237: Code 128 Length Control

    Code 128 Code 128 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 128 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Length Control = Variable Length...

  • Page 238: Code 128 Set Length 1

    Symbologies Code 128 Set Length 1 This feature specifies one of the barcode lengths for Code 128 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 239 Code 128 Code 128 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 128 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT...

  • Page 240: Code 128 Set Length 2

    Symbologies Code 128 Set Length 2 This feature specifies one of the barcode lengths for Code 128 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.

  • Page 241: Code 128 Character Correlation

    Code 128 Code 128 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 128 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 80 = Length 2 is 80 Characters DEFAULT...

  • Page 242: Code 128 Stitching

    Symbologies Code 128 Stitching This option enables/disables stitching for Code 128 labels. When parts of a Code 128 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met. ENTER/EXIT PROGRAMMING MODE Code 128 Stitching = Disable DEFAULT...

  • Page 243: Gs1-128

    GS1-128 GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GS1-128, GTIN-128, UCC-128, EAN-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: • Transmit GS1-128 labels in Code 128 data format.

  • Page 244: Code Isbt 128

    Symbologies Code ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Use this option to enable/disable ISBT128 concatenation of 2 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT ISBN 128 Concatenation = Disable ISBN 128 Concatenation = Enable Gryphon™...

  • Page 245: Isbt 128 Force Concatenation

    Code ISBT 128 ISBT 128 Force Concatenation When enabled, this feature forces concatenation for ISBT. This option is only valid when ISBT 128 Concatenationis enabled (see page 242). NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT ISBT 128 Force Concatenation = Disable ISBT 128 Force Concatenation = Enable Product Reference Guide...

  • Page 246: Isbt 128 Concatenation Mode

    Symbologies ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic. This option is only valid when ISBT 128 Concatenationis enabled (see page 242). NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT ISBT 128 Concatenation Mode = Static ISBT 128 Concatenation Mode = Dynamic Gryphon™...

  • Page 247: Isbt 128 Dynamic Concatenation Timeout

    ISBT 128 Dynamic Concatenation Timeout = 750 msec ISBT 128 Dynamic Concatenation Timeout = 1 second ISBT 128 Advanced Concatenation Options To set up pairs of label types for concatenation, use the Datalogic Aladdin configu- ration application or contact Datalogic Technical Support, as described on page...

  • Page 248: Codablock F

    Symbologies Codablock F The following options apply to the Codablock F symbology. Codablock F Enable/Disable Enables/Disables ability of reader to decode Codablock F labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Codablock F = Disable Codablock F = Enable Gryphon™ I GD4100/GM4100...

  • Page 249: Codablock F Ean Enable/Disable

    Codablock F Codablock F EAN Enable/Disable Enables/Disables the Codablock F EAN subtype (code with FNC1 in the first position).. ENTER/EXIT PROGRAMMING MODE DEFAULT Codablock F EAN = Disable Codablock F EAN = Enable Codablock F AIM Check Specifies if Check Digit calculation algorithm is AIM compliant or not. ENTER/EXIT PROGRAMMING MODE Codablock F AIM Check = Disable DEFAULT...

  • Page 250: Codablock F Length Control

    Symbologies Codablock F Length Control This feature specifies either variable length decoding or fixed length decoding for the Codablock F symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. ENTER/EXIT PROGRAMMING MODE DEFAULT Codablock F Length Control = Variable Length...

  • Page 251: Codablock F Set Length 1

    Codablock F Codablock F Set Length 1 This feature specifies one of the barcode lengths for Codablock F Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 252 Symbologies Codablock F Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Codablock F Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 03 = Length 1 is 3 Characters DEFAULT...

  • Page 253: Codablock F Set Length 2

    Codablock F Codablock F Set Length 2 This feature specifies one of the barcode lengths for Codablock F Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
  • Page 254 Symbologies Codablock F Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Codablock F Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 100 = Length 2 is 100 Characters DEFAULT...

  • Page 255: Interleaved 2 Of 5 (I 2 Of 5)

    Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) The following options apply to the I 2 of 5 symbology. I 2 of 5 Enable/Disable When disabled, the reader will not read I 2 of 5 barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT I 2 of 5 = Disable...

  • Page 256: I 2 Of 5 Check Character Calculation

    Symbologies I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE DEFAULT I 2 of 5 Check Character Calculation = Disable I 2 of 5 Check Character Calculation = Check Standard (Modulo 10) I 2 of 5 Check Character Calculation = Check German Parcel I 2 of 5 Check Character Calculation = Check DHL...

  • Page 257: I 2 Of 5 Check Character Transmission

    Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 barcode data. ENTER/EXIT PROGRAMMING MODE I 2 of 5 Check Character Transmission = Don’t Send DEFAULT I 2 of 5 Check Character Transmission = Send Product Reference Guide...

  • Page 258: I 2 Of 5 Minimum Reads

    Symbologies I 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an I 2 of 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT I 2 of 5 Minimum Reads = 1 I 2 of 5 Minimum Reads = 2 I 2 of 5 Minimum Reads = 3 I 2 of 5 Minimum Reads = 4...

  • Page 259: Of 5 Decoding Level

    Interleaved 2 of 5 (I 2 of 5) 2 of 5 Decoding Level This configuration item applies to Interleaved 2 of 5, Datalogic 2 of 5 and Standard 2 of 5. NOTE Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
  • Page 260 Symbologies 2 of 5 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE 2 of 5 Decoding Level = 1 2 of 5 Decoding Level = 2 DEFAULT 2 of 5 Decoding Level = 3 2 of 5 Decoding Level = 4 2 of 5 Decoding Level = 5 Gryphon™...

  • Page 261: I 2 Of 5 Length Control

    Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length.

  • Page 262: I 2 Of 5 Set Length 1

    Symbologies I 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 263 Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select I 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 264: I 2 Of 5 Set Length 2

    Symbologies I 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
  • Page 265 Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select I 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 266: I 2 Of 5 Character Correlation

    Symbologies I 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.

  • Page 267: Follett 2 Of 5

    Follett 2 of 5 Follett 2 of 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of imager to decode Follett 2 of 5 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Follett 2 of 5 = Disable Follett 2 of 5 = Enable Product Reference Guide...

  • Page 268: Interleaved 2 Of 5 Cip Hr

    Symbologies Interleaved 2 of 5 CIP HR The following options apply to the Interleaved 2 of 5 CIP HR symbology. Interleaved 2 of 5 CIP HR Enable/Disable Enables/Disables ability of reader to decode Interleaved 2 of 5 CIP HR labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Interleaved 2 of 5 CIP HR = Disable...

  • Page 269: Standard 2 Of 5

    Standard 2 of 5 Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT Standard 2 of 5 = Disable Standard 2 of 5 = Enable Standard 2 of 5 Check Character Calculation...

  • Page 270: Standard 2 Of 5 Check Character Transmission

    Symbologies Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Check Character Transmission = Don’t Send DEFAULT Standard 2 of 5 Check Character Transmission = Send Gryphon™...

  • Page 271: Standard 2 Of 5 Minimum Reads

    Standard 2 of 5 Standard 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times a Standard 2 of 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Standard 2 of 5 Minimum Reads = 1 Standard 2 of 5 Minimum Reads = 2 Standard 2 of 5 Minimum Reads = 3 Standard 2 of 5 Minimum Reads = 4...

  • Page 272: Standard 2 Of 5 Decoding Level

    Symbologies Standard 2 of 5 Decoding Level The Standard 2 of 5 Decoding Level feature is set using "2 of 5 Decoding Level"on page 257. NOTE Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Standard 2 of 5 symbology.

  • Page 273: Standard 2 Of 5 Set Length 1

    Standard 2 of 5 Standard 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 274 Symbologies Standard 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Standard 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 08 = Length 1 is 8 Characters DEFAULT...

  • Page 275: Standard 2 Of 5 Set Length 2

    Standard 2 of 5 Standard 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
  • Page 276 Symbologies Standard 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Standard 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT...

  • Page 277: Standard 2 Of 5 Character Correlation

    Standard 2 of 5 Standard 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.

  • Page 278: Industrial 2 Of 5

    Symbologies Industrial 2 of 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable Enables/Disables ability of reader to decode Industrial 2 of 5 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Industrial 2 of 5 = Disable Industrial 2 of 5 = Enable Industrial 2 of 5 Check Character Calculation Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character.

  • Page 279: Industrial 2 Of 5 Check Character Transmission

    Industrial 2 of 5 Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Check Character Transmission = Disable DEFAULT Industrial 2 of 5 Check Character Transmission = Enable Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Industrial 2 of 5 symbology.

  • Page 280: Industrial 2 Of 5 Set Length 1

    Symbologies Industrial 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Industrial 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

  • Page 281: Industrial 2 Of 5 Set Length 2

    Industrial 2 of 5 Industrial 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Industrial 2 of 5 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT...
  • Page 282 Symbologies Industrial 2 of 5 Set Length 2 — cont. 4. Scan the appropriate two digits from the keypad in the Keypad Appendix that represent the length setting which was determined in the steps above. You will hear a two-beep indi- cation after the last character.

  • Page 283: Industrial 2 Of 5 Minimum Reads

    Industrial 2 of 5 Industrial 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Industrial 2 of 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Industrial 2 of 5 Minimum Reads = 1 Industrial 2 of 5 Minimum Reads = 2 Industrial 2 of 5 Minimum Reads = 3 Industrial 2 of 5 Minimum Reads = 4...

  • Page 284: Industrial 2 Of 5 Stitching

    Symbologies Industrial 2 of 5 Stitching Enables/disables fixed length stitching for Industrial 2 of 5. ENTER/EXIT PROGRAMMING MODE DEFAULT Industrial 2 of 5 Stitching = Disable Industrial 2 of 5 Stitching = Enable Gryphon™ I GD4100/GM4100...

  • Page 285: Industrial 2 Of 5 Character Correlation

    Industrial 2 of 5 Industrial 2 of 5 Character Correlation Enable/disables character correlation for Industrial 2 of 5. ENTER/EXIT PROGRAMMING MODE DEFAULT Industrial 2 of 5 Character Correlation = Disable Industrial 2 of 5 Character Correlation = Enable Product Reference Guide...

  • Page 286: Code Iata

    Symbologies Code IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. ENTER/EXIT PROGRAMMING MODE DEFAULT IATA = Disable IATA = Enable Gryphon™ I GD4100/GM4100...

  • Page 287: Iata Check Character Transmission

    Code IATA IATA Check Character Transmission Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE IATA Check Character Transmission = Disable DEFAULT IATA Check Character Transmission = Enable Product Reference Guide...

  • Page 288: Datalogic 2 Of 5

    DEFAULT Datalogic 2 of 5 = Disable Datalogic 2 of 5 = Enable Datalogic 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Datalogic 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE DEFAULT Datalogic 2 of 5 Check Character Calculation = Disable Datalogic 2 of 5 Check Character Calculation = Enable Gryphon™...

  • Page 289: Datalogic 2 Of 5 Minimum Reads

    Datalogic 2 of 5 Datalogic 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Datalogic 2 of 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT I 2 of 5 Minimum Reads = 1...

  • Page 290: Datalogic 2 Of 5 Length Control

    Symbologies Datalogic 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Datalogic 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.

  • Page 291: Datalogic 2 Of 5 Set Length 1

    6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Programming Mode. This completes the procedure. See Table for some examples of how to set this feature. Table 33. Datalogic 2 of 5 Length 1 Setting Examples STEP ACTION EXAMPLES Desired Setting...
  • Page 292 Symbologies Datalogic 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Datalogic 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 293: Datalogic 2 Of 5 Set Length 2

    20, etc. 3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Programming Mode. 4. Scan the barcode: SELECT Datalogic 2 of 5 LENGTH 2 SETTING. 5. Scan the appropriate two digits from the keypad in Appendix E, Keypad, that represent the length setting which was determined in the steps above.
  • Page 294 Symbologies Datalogic 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Datalogic 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 295: Datalogic 2 Of 5 Character Correlation

    I 2 of 5 Character Correlation = Enable Datalogic 2 of 5 Stitching This option enables/disables stitching for Datalogic 2 of 5 labels. When parts of a Datalogic 2 of 5 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing...

  • Page 296: Codabar

    Symbologies Codabar The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar = Disable Codabar = Enable Gryphon™ I GD4100/GM4100...

  • Page 297: Codabar Check Character Calculation

    Codabar Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character. When disabled, any check character in the label is treated as a data character ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Check Character Calculation = Don’t Calculate Codabar Check Character Calculation = Enable AIM standard check char.

  • Page 298: Codabar Check Character Transmission

    Symbologies Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar barcode data. ENTER/EXIT PROGRAMMING MODE Codabar Check Character Transmission = Don’t Send DEFAULT Codabar Check Character Transmission = Send Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Start/Stop Character Transmission = Don’t Transmit...

  • Page 299: Codabar Start/Stop Character Set

    Codabar Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters ENTER/EXIT PROGRAMMING MODE Codabar Check Character Set = ABCD/TN*E Codabar Check Character Set = ABCD/ABCD Codabar Check Character Set = abcd/tn*e DEFAULT Codabar Check Character Set = abcd/abcd Product Reference Guide...

  • Page 300: Codabar Start/Stop Character Match

    Symbologies Codabar Start/Stop Character Match When enabled, this option requires that start and stop characters match ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Start/Stop Character Match = Don’t Require Match Codabar Start/Stop Character Match = Require Match Gryphon™ I GD4100/GM4100...

  • Page 301: Codabar Quiet Zones

    Codabar Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.

  • Page 302: Codabar Minimum Reads

    Symbologies Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Minimum Reads = 1 Codabar Minimum Reads = 2 Codabar Minimum Reads = 3 Codabar Minimum Reads = 4 Gryphon™...

  • Page 303: Codabar Decoding Level

    Codabar Codabar Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative, depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.

  • Page 304: Codabar Length Control

    Symbologies Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Length Control = Variable Length...

  • Page 305: Codabar Set Length 1

    Codabar Codabar Set Length 1 This feature specifies one of the barcode lengths for Codabar Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s start, stop, check and data characters. The length must include at least one data character.
  • Page 306 Symbologies Codabar Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Codabar Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 03 = Length 1 is 3 Characters DEFAULT Gryphon™...

  • Page 307: Codabar Set Length 2

    Codabar Codabar Set Length 2 This feature specifies one of the barcode lengths for Codabar Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. The length includes the barcode’s start, stop, check and data characters. The length must include at least one data character.
  • Page 308 Symbologies Codabar Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Codabar Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT Gryphon™...

  • Page 309: Codabar Interdigit Ratio

    Codabar Codabar Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Codabar labels. ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio = Disable Codabar Interdigit Ratio = 1 Codabar Interdigit Ratio = 2 Codabar Interdigit Ratio = 3 DEFAULT Codabar Interdigit Ratio = 4 Codabar Interdigit Ratio = 5...
  • Page 310 Symbologies Codabar Interdigit Ratio — cont. ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio = 6 Codabar Interdigit Ratio = 7 Codabar Interdigit Ratio = 8 Codabar Interdigit Ratio = 9 Codabar Interdigit Ratio = 10 Gryphon™ I GD4100/GM4100...

  • Page 311: Codabar Character Correlation

    Codabar Codabar Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.

  • Page 312: Abc Codabar

    Symbologies ABC Codabar The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. ENTER/EXIT PROGRAMMING MODE DEFAULT ABC Codabar = Disable ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.

  • Page 313: Abc Codabar Dynamic Concatenation Timeout

    ABC Codabar ABC Codabar Dynamic Concatenation Timeout Specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. ENTER/EXIT PROGRAMMING MODE ABC Codabar Dynamic Concatenation Timeout = 50 msec ABC Codabar Dynamic Concatenation Timeout = 100 msec DEFAULT ABC Codabar Dynamic Concatenation Timeout = 200 msec ABC Codabar Dynamic Concatenation Timeout = 500 msec...

  • Page 314: Abc Codabar Force Concatenation

    Symbologies ABC Codabar Force Concatenation Forces labels starting or ending with D to be concatenated. ENTER/EXIT PROGRAMMING MODE DEFAULT ABC Codabar Force Concatenation = Disable ABC Codabar Force Concatenation = Enable Gryphon™ I GD4100/GM4100...

  • Page 315: Code 11

    Code 11 Code 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 11 = Disable Code 11 = Enable Product Reference Guide...

  • Page 316: Code 11 Check Character Calculation

    Symbologies Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character. ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Calculation = Disable Code 11 Check Character Calculation = Check C Code 11 Check Character Calculation = Check K DEFAULT Code 11 Check Character Calculation = Check C and K Gryphon™...

  • Page 317: Code 11 Check Character Transmission

    Code 11 Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Transmission = Don’t Send DEFAULT Code 11 Check Character Transmission = Send Product Reference Guide...

  • Page 318: Code 11 Minimum Reads

    Symbologies Code 11 Minimum Reads This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 11 Minimum Reads = 1 Code 11 Minimum Reads = 2 Code 11 Minimum Reads = 3 Code 11 Minimum Reads = 4 Gryphon™...

  • Page 319: Code 11 Length Control

    Code 11 Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 11 Length Control = Variable Length...

  • Page 320: Code 11 Set Length 1

    Symbologies Code 11 Set Length 1 This feature specifies one of the barcode lengths for Code 11 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 321 Code 11 Code 11 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 11 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 04 = Length 1 is 4 Characters DEFAULT...

  • Page 322: Code 11 Set Length 2

    Symbologies Code 11 Set Length 2 This feature specifies one of the barcode lengths for Code 11 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
  • Page 323 Code 11 Code 11 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 11 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT...

  • Page 324: Code 11 Interdigit Ratio

    Symbologies Code 11 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 11 labels. ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio = Disable Code 11 Interdigit Ratio = 1 Code 11 Interdigit Ratio = 2 Code11 Interdigit Ratio = 3 DEFAULT Code 11 Interdigit Ratio = 4...
  • Page 325 Code 11 Code 11 Interdigit Ratio — cont. ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio = 6 Code 11 Interdigit Ratio = 7 Code 11 Interdigit Ratio = 8 Code 11 Interdigit Ratio = 9 Code 11 Interdigit Ratio = 10 Product Reference Guide...

  • Page 326: Code 11 Decoding Level

    Symbologies Code 11 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
  • Page 327 Code 11 Code 11 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Codabar Decoding Level = 1 Codabar Decoding Level = 2 DEFAULT Codabar Decoding Level = 3 Codabar Decoding Level = 4 Codabar Decoding Level = 5 Product Reference Guide...

  • Page 328: Code 11 Character Correlation

    Symbologies Code 11 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.

  • Page 329: Gs1 Databar™ Omnidirectional

    GS1 DataBar™ Omnidirectional GS1 DataBar™ Omnidirectional The following options apply to the GS1 DataBar™ Omnidirectional (formerly RSS-14) symbology. GS1 DataBar™ Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar™ Omnidirectional barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar™ Omnidirectional = Disable GS1 DataBar™...

  • Page 330: Gs1 Databar™ Omnidirectional Minimum Reads

    Symbologies GS1 DataBar™ Omnidirectional Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Omnidirectional label must be decoded before it is accepted as good read ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar™ Omnidirectional Minimum Reads = 1 GS1 DataBar™...

  • Page 331: Gs1 Databar™ Expanded

    GS1 DataBar™ Expanded GS1 DataBar™ Expanded The following options apply to the GS1 DataBar™ Expanded (formerly RSS Expanded) symbology. GS1 DataBar™ Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar™ Expanded barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar™ Expanded = Disable GS1 DataBar™...

  • Page 332: Gs1 Databar™ Expanded Minimum Reads

    Symbologies GS1 DataBar™ Expanded Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Expanded label must be decoded before it is accepted as good read ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar™ Expanded Minimum Reads = 1 GS1 DataBar™...

  • Page 333: Gs1 Databar™ Expanded Length Control

    GS1 DataBar™ Expanded GS1 DataBar™ Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar™ Expanded symbology. Variable Length. For variable-length decoding, a minimum length may be set. Fixed Length. For fixed-length decoding, two different lengths may be set. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar™...

  • Page 334: Gs1 Databar™ Expanded Set Length 1

    Symbologies GS1 DataBar™ Expanded Set Length 1 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 335 GS1 DataBar™ Expanded GS1 DataBar™ Expanded Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select GS1 DataBar™ Expanded Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 336: Gs1 Databar™ Expanded Set Length 2

    Symbologies GS1 DataBar™ Expanded Set Length 2 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if Fixed Length Mode.
  • Page 337 GS1 DataBar™ Expanded GS1 DataBar™ Expanded Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select GS1 DataBar™ Expanded Set Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.

  • Page 338: Gs1 Databar™ Limited

    Symbologies GS1 DataBar™ Limited The following options apply to the GS1 DataBar™ Limited (formerly RSS Limited) symbology. GS1 DataBar™ Limited Enable/Disable When disabled, the reader will not read GS1 DataBar™ Limited barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar™ Limited = Disable GS1 DataBar™...

  • Page 339: Gs1 Databar™ Limited Minimum Reads

    GS1 DataBar™ Limited GS1 DataBar™ Limited Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Limited label must be decoded before it is accepted as good read ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar™ Limited Minimum Reads = 1 GS1 DataBar™...

  • Page 340: Code 93

    Symbologies Code 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 93 = Disable Code 93 = Enable Gryphon™ I GD4100/GM4100...

  • Page 341: Code 93 Check Character Calculation

    Code 93 Code 93 Check Character Calculation Enables/disables calculation and verification of an optional Code 93 check character. ENTER/EXIT PROGRAMMING MODE Code 93 Check Character Calculation = Disable Code 93 Check Character Calculation = Enable Check C Code 93 Check Character Calculation = Enable Check K DEFAULT Code 93 Check Character Calculation = Enable Check C and K Product Reference Guide...

  • Page 342: Code 93 Check Character Transmission

    Symbologies Code 93 Check Character Transmission Enables/disables transmission of an optional Code 93 check character. ENTER/EXIT PROGRAMMING MODE Code 93 Check Character Transmission = Disable DEFAULT Code 93 Check Character Transmission = Enable Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology.

  • Page 343: Code 93 Set Length 1

    Code 93 Code 93 Set Length 1 This feature specifies one of the barcode lengths for Code 93 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 344 Symbologies Code 93 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 93 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT...

  • Page 345: Code 93 Set Length 2

    Code 93 Code 93 Set Length 2 This feature specifies one of the barcode lengths for Code 93 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
  • Page 346 Symbologies Code 93 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 93 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT...

  • Page 347: Code 93 Minimum Reads

    Code 93 Code 93 Minimum Reads This feature specifies the minimum number of consecutive times a Code 93 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 93 Minimum Reads = 1 Code 93 Minimum Reads = 2 Code 93 Minimum Reads = 3 Code 93 Minimum Reads = 4 Product Reference Guide...

  • Page 348: Code 93 Decoding Level

    Symbologies Code 93 Decoding Level Decoding Levels are used to configure a barcode Specifies the decoding level for Code 93. symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
  • Page 349 Code 93 Code 93 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 93 Decoding Level = 4 Code 93 Decoding Level = 5 Product Reference Guide...

  • Page 350: Code 93 Quiet Zones

    Symbologies Code 93 Quiet Zones Enables/disables quiet zones for Code 93. ENTER/EXIT PROGRAMMING MODE Code 93 Quiet Zones = No Quiet Zones Code 93 Quiet Zones = Quiet Zone on one side Code 93 Quiet Zones = Quiet Zones on two sides DEFAULT Code 93 Quiet Zones = Auto Code 93 Quiet Zones = Virtual Quiet Zones on two sides...

  • Page 351: Code 93 Stitching

    Code 93 Code 93 Stitching Disable/enable fixed or variable length stitching for Code 93. ENTER/EXIT PROGRAMMING MODE Code 93 Stitching = Disable DEFAULT Code 93 Stitching = Enable Code 93 Character Correlation Enables/disables Character Correlation for Code 93. ENTER/EXIT PROGRAMMING MODE Code 93 Character Correlation = Disable DEFAULT Code 93 Character Correlation = Enable...

  • Page 352: Msi

    Symbologies The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. ENTER/EXIT PROGRAMMING MODE DEFAULT MSI = Disable MSI = Enable Gryphon™ I GD4100/GM4100...

  • Page 353: Msi Check Character Calculation

    MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. ENTER/EXIT PROGRAMMING MODE MSI Check Character Calculation = Disable DEFAULT MSI Check Character Calculation = Enable Mod10 MSI Check Character Calculation = Enable Mod11/10 MSI Check Character Calculation = Enable Mod10/10 Product Reference Guide...

  • Page 354: Msi Check Character Transmission

    Symbologies MSI Check Character Transmission Enables/disables transmission of an MSI check character. ENTER/EXIT PROGRAMMING MODE MSI Check Character Transmission = Disable DEFAULT MSI Check Character Transmission = Enable MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.

  • Page 355: Msi Set Length 1

    MSI Set Length 1 This feature specifies one of the barcode lengths for MSI Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s data characters only. The length can be set from 01 to 50 characters.
  • Page 356 Symbologies MSI Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select MSI Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT Gryphon™...

  • Page 357: Msi Set Length 2

    MSI Set Length 2 This feature specifies one of the barcode lengths for MSI Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the barcode’s check, data, and full-ASCII shift charac- ters.
  • Page 358 Symbologies MSI Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select MSI Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT Gryphon™...

  • Page 359: Msi Minimum Reads

    MSI Minimum Reads This feature specifies the minimum number of consecutive times an MSI label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE MSI Minimum Reads = 1 MSI Minimum Reads = 2 MSI Minimum Reads = 3 DEFAULT MSI Minimum Reads = 4 Product Reference Guide...

  • Page 360: Msi Decoding Level

    Symbologies MSI Decoding Level Specifies the decoding level for MSI. Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.

  • Page 361: Msi Stitching

    MSI Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE MSI Decoding Level = 4 MSI Decoding Level = 5 MSI Stitching Enables/disables fixed length stitching for MSI. ENTER/EXIT PROGRAMMING MODE DEFAULT MSI Stitching = Disable MSI Stitching = Enable Product Reference Guide...

  • Page 362: Msi Character Correlation

    Symbologies MSI Character Correlation Enables/disables Character Correlation for MSI. ENTER/EXIT PROGRAMMING MODE DEFAULT MSI Character Correlation = Disable MSI Character Correlation = Enable Gryphon™ I GD4100/GM4100...

  • Page 363: Plessey

    Plessey Plessey The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of reader to decode Plessey labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Plessey = Disable Plessey = Enable Product Reference Guide...

  • Page 364: Plessey Check Character Calculation

    Symbologies Plessey Check Character Calculation Enables/Disables calculation and verification of an optional Plessey check character. ENTER/EXIT PROGRAMMING MODE Plessey Check Character Calculation = Disable DEFAULT Plessey Check Character Calculation = Enable Plessey std. check char. verification Plessey Check Character Calculation = Enable Anker check char.

  • Page 365: Plessey Check Character Transmission

    Plessey Plessey Check Character Transmission Enables/disables transmission of an MSI check character. ENTER/EXIT PROGRAMMING MODE Plessey Check Character Transmission = Disable DEFAULT Plessey Check Character Transmission = Enable Plessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology.

  • Page 366: Plessey Set Length 1

    Symbologies Plessey Set Length 1 This feature specifies one of the barcode lengths for Plessey Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s data characters only. The length can be set from 01 to 50 characters.
  • Page 367 Plessey Plessey Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Plessey Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT Product Reference Guide...

  • Page 368: Plessey Set Length 2

    Symbologies Plessey Set Length 2 This feature specifies one of the barcode lengths for Plessey Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the barcode’s check, data, and full-ASCII shift characters.
  • Page 369 Plessey Plessey Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Plessey Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT Product Reference Guide...

  • Page 370: Plessey Minimum Reads

    Symbologies Plessey Minimum Reads This feature specifies the minimum number of consecutive times a Plessey label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE Plessey Minimum Reads = 1 Plessey Minimum Reads = 2 Plessey Minimum Reads = 3 DEFAULT Plessey Minimum Reads = 4 Gryphon™...

  • Page 371: Plessey Decoding Level

    Plessey Plessey Decoding Level Specifies the decoding level for Plessey. Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.

  • Page 372: Plessey Stitching

    Symbologies Plessey Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Plessey Decoding Level = 4 Plessey Decoding Level = 5 Plessey Stitching Enables/disables fixed length stitching for Plessey. ENTER/EXIT PROGRAMMING MODE DEFAULT Plessey Stitching = Disable Plessey Stitching = Enable Gryphon™ I GD4100/GM4100...

  • Page 373: Plessey Character Correlation

    Plessey Plessey Character Correlation Enables/disables Character Correlation for Plessey. ENTER/EXIT PROGRAMMING MODE DEFAULT Plessey Character Correlation = Disable Plessey Character Correlation = Enable Product Reference Guide...

  • Page 374: Code 4

    Symbologies Code 4 The following options apply to the Code 4 symbology. Code 4 Enable/Disable Enables/Disables ability of imager to decode Code 4 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 4 = Disable Code 4 = Enable Code 4 Check Character Transmission This feature enables/disables transmission of an optional Code 4 check character.

  • Page 375: Code 4 Hex To Decimal Conversion

    Code 4 Code 4 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label data. ENTER/EXIT PROGRAMMING MODE Code 4 Hex to Decimal Conversion = Disable DEFAULT Code 4 Hex to Decimal Conversion = Enable Product Reference Guide...

  • Page 376: Code 5

    Symbologies Code 5 The following options apply to the Code 5 symbology. Code 5 Enable/Disable Enables/Disables ability of imager to decode Code 5 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 5 = Disable Code 5 = Enable Code 5 Check Character Transmission This feature enables/disables transmission of an optional Code 5 check character.

  • Page 377: Code 5 Hex To Decimal Conversion

    Code 5 Code 5 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label data. ENTER/EXIT PROGRAMMING MODE Code 5 Hex to Decimal Conversion = Disable DEFAULT Code 5 Hex to Decimal Conversion = Enable Product Reference Guide...

  • Page 378: Code 4 And Code 5 Common Configuration Items

    Symbologies Code 4 and Code 5 Common Configuration Items The following options apply to both Code 4 and Code 5 symbologies. Code 4 and 5 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
  • Page 379 Code 4 and Code 5 Common Configuration Items Code 4 and 5 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 4 and Code 5 Decoding Level = 1 Code 4 and Code 5 Decoding Level = 2 DEFAULT Code 4 and Code 5 Decoding Level = 3 Code 4 and Code 5 Decoding Level = 4 Code 4 and Code 5 Decoding Level = 5 Product Reference Guide...

  • Page 380: Code 4 And Code 5 Minimum Reads

    Symbologies Code 4 and Code 5 Minimum Reads This feature specifies the minimum number of consecutive times a Code 4 or Code 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 4 or Code 5 Minimum Reads = 1 Code 4 or Code 5 Minimum Reads = 2 Code 4 or Code 5 Minimum Reads = 3 Code 4 or Code 5 Minimum Reads = 4...

  • Page 381: Message Formatting

    Chapter 14 Message Formatting Message Formatting Message Formatting is only available for the Gryphon™ Mobile model. NOTE A message from the Host to the base must follow these rules: • If Address stamping options or address delimiter are enabled on the base, the Host replay must have address field and delimiter too.

  • Page 382: Cursor Control

    Message Formatting • If you want to control the Scanner's beeper from the host, you will also probably want to disable the good transmission beep that is emitted when the code is received from the cra- dle. (See RF Beeper Features on page 154).

  • Page 383: Clearing Display

    Message Formatting Clearing Display From cursor position to end of line inclusive ESC [ 0 K ESC [ 1 K From beginning of line to cursor position (not inclusive) ESC [ 2 K Entire line From cursor position to end of display inclusive ESC [ 0 J ESC [ 1 J From beginning of display to cursor position (not inclusive)

  • Page 384: Messages From Scanner Command Keys

    Message Formatting Messages from Scanner Command Keys The Gryphon™ I series scanners with display have 3 command keys that can each be associated with a character to send to the host. By pressing the keys on the scanner, the associated character with its relative message formatting is sent to the Host.

  • Page 385: Technical Specifications

    Appendix A Technical Specifications Table contains Physical and Performance Characteristics, User Environment and Regulatory information. Table provides Standard Cable Pinouts. Table 47. Technical Specifications Item Description Physical Characteristics White/Gray Color Gray/Gray Height 7.1”/181 mm Dimensions Length 3.9”/100 mm Width 2.8”/71 mm GD 41x0: Approximately 6.0 ounces/169 g...
  • Page 386 Italian Pharmacode 39, Code39 CIP; Code 128, GS1-128; C128 ISBT; Code 128 addons;I 2 of 5; Standard 2 of 5; I 2 of 5 CIP HR; Industrial 2 of 5; IATA; Datalogic 2 of 5; Follet 2 of 5; Code 11; Decode Capability Plessey, Anker Plessey;...
  • Page 387 Technical Specifications Item Description Regulatory Electrical Safety IEC 60950-1 , CAN/CSA-C22.2 No. 60950-1-03; UL 60950-1 GD41x0  North America (FCC) : Part 15 Class B, Canada ( IC) : ICES-003  Class B, European Union EMC Directive, Australian (SMA) ,  Taiwan EMC ( BSMI) , Russia ( Gost) GM4100/BC40x0 ...

  • Page 388: Standard Cable Pinouts

    Technical Specifications Standard Cable Pinouts Figure 20 and Table provide standard pinout information for the Base Station’s interface cable. Figure 20. Standard Cable Pinouts Bottom of Scanner Cable Strain Relief Pin 10 To Host Pin 1 Cable Cable Clip (Latch) Interface Cable Port The signal descriptions in Table apply to the connector on the reader and are for reference...

  • Page 389: Led And Beeper Indications

    Appendix B LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The tables below list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are programmable, and may or may not be turned on.

  • Page 390: Error Codes

    LED and Beeper Indications Table 50 . Programming Mode Indications Programming Mode - The following indications ONLY occur when the reader is in Programming Mode. Label Program- A valid programming label has ming Mode LED blinks continuously Reader sounds four low frequency beeps. been scanned.

  • Page 391: Base Station Indications

    LED and Beeper Indications Base Station Indications INDICATION LEDS Power-up Complete Yellow LED on Reader Disabled by the HOST or the communica- Yellow LED blinking ~1Hz tion with HOST is not established Data/labels are transmitted to the HOST Yellow LEDs turned off for 100mSec Programming Mode Yellow LED blinks quickly Base and handheld are exchanging data...
  • Page 392 LED and Beeper Indications NOTES Gryphon™ I GD4100/GM4100...

  • Page 393: Standard Defaults

    Appendix C Standard Defaults The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming barcodes for each parameter. A column has also been provided for recording of your preferred default settings for these same configurable features.
  • Page 394 Standard Defaults Page Parameter Default Your Setting Number Flash Off Time 600 ms Green Spot Duration 300 ms Display Font Size Small Backlight Display Mode Local Echo mode Display Timeout Disable Interfaces Host Commands — Obey/Ignore USB Suspend Mode RS-232 Baud Rate 9600 Data Bits...
  • Page 395 Standard Defaults Page Parameter Default Your Setting Number Caps Lock State Caps Lock OFF Numlock Numlock Key Unchanged Send Control Characters Disable Wedge Quiet Interval 100 ms Intercharacter Delay No Delay Intercode Delay 100 ms USB Keyboard Speed 1 ms USB-OEM USB-OEM Device Usage Handheld Scanner...
  • Page 396 Standard Defaults Page Parameter Default Your Setting Number Automatic Configuration Update Enable Powerdown Timeout 60 minutes (1 hour) Batch Mode Disable Source Radio Address Transmission Do not include Source Radio Address Delimiter Character Enable Radio Protocol Timeout 2 seconds Radio Transmit Mode ACK from cradle RF Batch Mode Transmit Delay No Delay...
  • Page 397 Standard Defaults Page Parameter Default Your Setting Number EAN-13 ISBN Conversion Disable EAN 13 Minimum Reads ISSN ISSN Enable/Disable Disable EAN 8 EAN 8 Enable/Disable Enable EAN 8 Check Character Transmission Send Expand EAN 8 to EAN 13 Disable EAN 8 Minimum Reads UPC/EAN Global Settings UPC/EAN Decoding Level UPC/EAN Correlation...
  • Page 398 Standard Defaults Page Parameter Default Your Setting Number Code 39 Length Control Variable Code 39 Set Length 1 Code 39 Set Length 2 Code 39 Interdigit Ratio Code 39 Character Correlation Disable Code 39 Stitching Enable Code 32 (Italian Pharmaceutical Code) Code 32 Enable/Disable Disable Code 32 Feature Setting Exceptions...
  • Page 399 Standard Defaults Page Parameter Default Your Setting Number ISBT 128 ISBT 128 Concatenation Disable ISBT 128 Force Concatenation Disable ISBT 128 Concatenation Mode Static ISBT 128 Dynamic Concatenation Time- 200 msec ISBT 128 Advanced Concatenation Disable Options Codablock F Codablock F Enable/Disable Disable Codablock F EAN Enable/Disable Disable...
  • Page 400 Industrial 2 of 5 Character Correlation Disable Code IATA IATA Enable/Disable Disable IATA Check Character Transmission Enable Datalogic 2 of 5 Datalogic 2 of 5 Enable/Disable Disable Datalogic 2 of 5 Check Character Calcula- Disable tion Datalogic 2 of 5 Minimum Reads Gryphon™ I GD4100/GM4100...
  • Page 401 Your Setting Number Datalogic 2 of 5 Decoding Level Datalogic 2 of 5 Length Control Variable Datalogic 2 of 5 Set Length 1 6 characters Datalogic 2 of 5 Set Length 2 Datalogic 2 of 5 Character Correlation Disable Datalogic 2 of 5 Stitching...
  • Page 402 Standard Defaults Page Parameter Default Your Setting Number Code 11 Check Character Calculation Check C and K Code 11 Check Character Transmission Send Code 11 Minimum Reads Code 11 Length Control Variable Code 11 Set Length 1 Code 11 Set Length 2 Code 11 Interdigit Ratio Code 11 Decoding Level Code 11 Character Correlation...
  • Page 403 Standard Defaults Page Parameter Default Your Setting Number Code 93 Check Character Calculation Enable Check C and K Code 93 Check Character Transmission Enable Code 93 Length Control Variable Code 93 Set Length 1 Code 93 Set Length 2 Code 93 Minimum Reads Code 93 Decoding Level Code 93 Quiet Zones Auto...
  • Page 404 Standard Defaults Page Parameter Default Your Setting Number Plessey Stitching Disable Plessey Character Correlation Disable Code 4 Code 4 Enable/Disable Disable Code 4 Check Character Transmission Send Code 4 Hex to Decimal Conversion Enable Code 5 Code 5 Enable/Disable Disable Code 5 Check Character Transmission Send Code 5 Hex to Decimal Conversion...

  • Page 405: Sample Barcodes

    Appendix D Sample Barcodes The sample barcodes in this appendix are typical representations for their symbology types. 12345 67890 UPC-A 3 4 5 67 8 9 0 1 2 3 4 0 EAN-13 123ABC Code 39 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 Code 128 12345678901231 Interleaved 2 of 5...
  • Page 406 Sample Barcodes Sample Barcodes — continued A020096020 Code 32 Codabar Code 93 Code 11 Gryphon™ I GD4100/GM4100...
  • Page 407 Sample Barcodes GS1 DataBar™ (RSS) GS1 DataBar™ GS1 DataBar™ variants must be enabled to read the barcodes below (see Omnidirectional on page 327 NOTE 10293847560192837465019283746029478450366523 (GS1 DataBar™ Expanded Stacked) 1234890hjio9900mnb (GS1 DataBar™ Expanded) 08672345650916 (GS1 DataBar™ Limited) GS1 DataBar™-14 55432198673467 (GS1 DataBar™...
  • Page 408 Sample Barcodes NOTES Gryphon™ I GD4100/GM4100...

  • Page 409: Keypad

    Appendix E Keypad Use the barcodes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
  • Page 410 Keypad Gryphon™ I GD4100/GM4100...
  • Page 411 Keypad Product Reference Guide...
  • Page 412 Keypad NOTES Gryphon™ I GD4100/GM4100...

  • Page 413: Scancode Tables

    Appendix F Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms. Control Character 00 .
