8.39 Speaker Unit/Front Cover Top Base

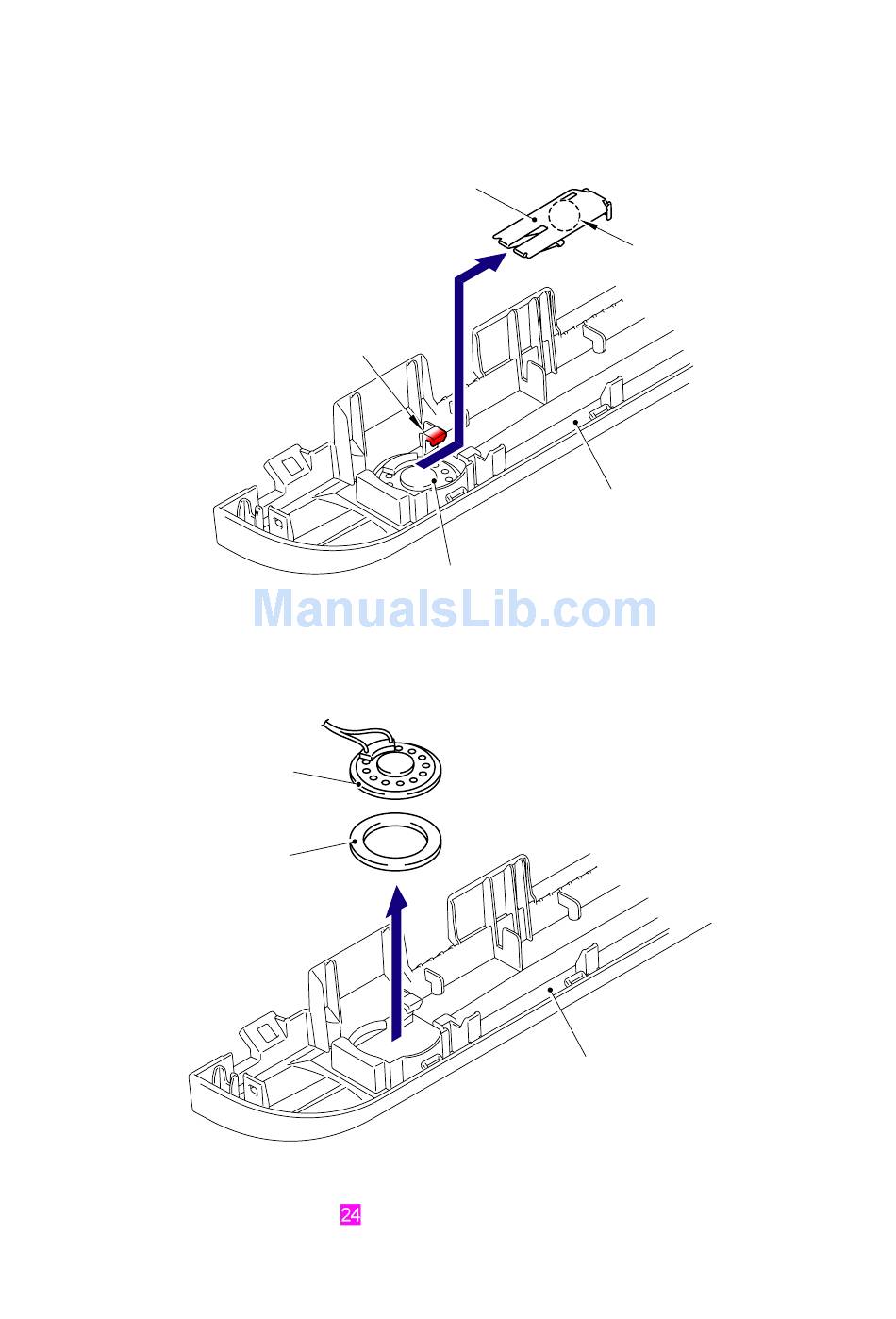

(1) Release the Hook by pushing the "A" and remove the Speaker spring from the Front cover
top base by sliding it in the direction of the arrow.
(2) Remove the Speaker unit and Speaker spacer from the Front cover top base.
Speaker unit
Speaker spacer
Harness routing: Refer to
Speaker spring
Hook
Speaker unit
Fig. 5-101
Fig. 5-102
" Front Cover Top ASSY (Wireless LAN PCB ASSY, Speaker
Unit)."
5-98
"A"
Front cover top base
Front cover top base
