Addonics

T E C H N O L O G I E S

Multilane 4X RAID5/JBOD PCI-E 8x Controller

ADSA3GPX8-ML

User's Guide

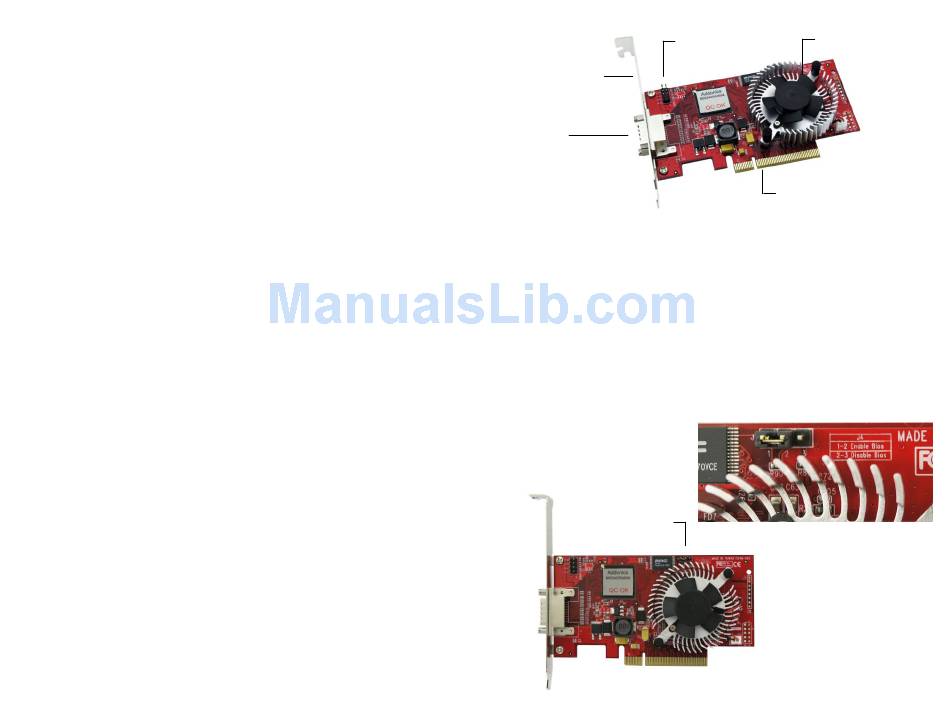

Overview

Drive activity LED

pin connections

Standard height

mounting bracket

Multilane 4x SATA

interface

To switch between RAID and non-RAID mode

The controller card comes with jumper pins that would allow you to switch

between RAID and non-RAID mode. The RAID mode means you can create

RAID volumes using the SATARAID5 array manager. The non-RAID mode

means you can only configure individual drives.

The RAID mode uses the SATARAID5 array manager and the raid driver version.

The non-RAID mode uses the base driver.

Detailed View of J4

Enable / Disable BIOS

Fan

PCI-Express 8x

Need help?

Do you have a question about the ADSA3GPX8-ML and is the answer not in the manual?

Page 1 PCI-Express 8x Multilane 4X RAID5/JBOD PCI-E 8x Controller ADSA3GPX8-ML To switch between RAID and non-RAID mode The controller card comes with jumper pins that would allow you to switch between RAID and non-RAID mode. The RAID mode means you can create RAID volumes using the SATARAID5 array manager.
Page 2 Windows Software Installation for RAID mode ADSA3GPX8-ML Installing under Mac OSX. Note: Install the SATA Utilities from the CD that came with your package first Below are the instructions to install drivers for Mac OSX compatible SATA before installing the Host Controller.
Page 3 Locate the downloaded driver and extract the contents. Double click on the extracted installer to begin the installation process. Continue through the installation process, entering in your desired settings. The Silicon Image SATARaid5 Manager has been installed at the same time When the installation process is finished, the RAID controller driver and RAID as the controller driver.
Page 4 B. Within this folder, click on "SATARaid5Manager" to execute the RAID creation Technical Support and management utility. If you need assistance to get your unit functioning properly, please call Addonics Technical Support. Our technical staff will be happy to assist you, but they will need your help to do so.
