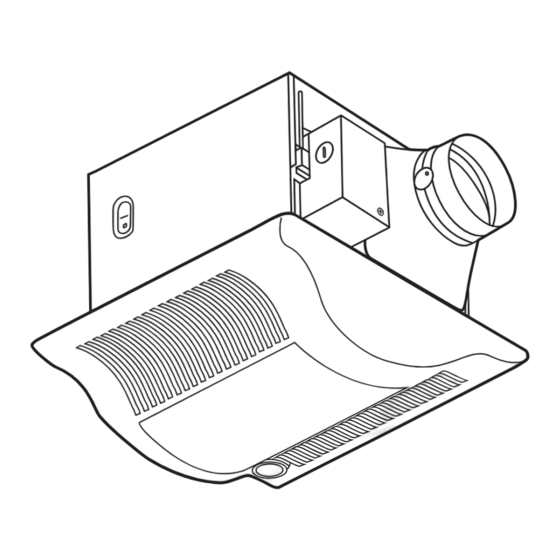

FV-08VKML1
READ AND SAVE THESE INSTRUCTIONS.
R
Thank you very much for having purchased our Ventilating Fan.
Please read these instructions carefully before attempting to install,
operate or service the Panasonic Ventilating Fan. Failure to comply
with instructions could result in personal injury and/or property
damage. Please retain this booklet for future reference.
Table of Contents
Please Read Prior To Installing This Fan
Wiring Diagram
Operation
General Safety Information
Installation
II
III
IV
V
VI
Practical Guide to Installation
Product Service
Model No.
II
Ventilating Fan
FV-08VKML1
FV-08VKSL1
FV-08VKSL1
2
3
3
3
4
5
5
6
6
7
8-10
11-12
12
13
14
14
15-16
16
16
Advertisement
Table of Contents
Related Manuals for Panasonic FV-08VKML1
Summary of Contents for Panasonic FV-08VKML1
-
Page 1: Table Of Contents
Thank you very much for having purchased our Ventilating Fan. Please read these instructions carefully before attempting to install, operate or service the Panasonic Ventilating Fan. Failure to comply with instructions could result in personal injury and/or property damage. Please retain this booklet for future reference. - Page 2 FV-08VKSL1 FV-08VKML1 only). efficient than the minimum ENERGY STAR requirements.
-
Page 3: Unpacking
100W incandescent lamp. This Panasonic ventilating fan (FV-08VKML1) is equipped with a motion sensor that runs automatically when motion is detected. It is user-adjustable to operate 0.5~60 minutes after motion is no longer detected. -
Page 4: Dimensions
DIMENSIONS FV-08VKML1 Unit: inches mm 1 (25) 2 3/4 70 3 1/2 (90) 1 26 4 3/5 (116) 5 1/8 130 7 7/8 200 13 330 10 1/4 261 3 1/2 (90) FV-08VKSL1 1 (25) 2 3/4 70 3 1/2 (90) -
Page 5: Switch Indication
WI ING DIAG AM WI ING DIAG AM FV-08VKML1 FV-08VKSL1 SWITCH INDICATION High / Low delay time Low speed air vol- preset switch ume preset switch C F M Switch indications on blower unit Low speed air-volume preset switch positions... -
Page 6: Specifications
SPECIFICATIONS Specifications Duct Noise Lighting unit diameter (sones) Fan body (inches) (rpm) (cfm) 16.5 7.5 FV-08VKML1 13.0 16.5 7.5 FV-08VKSL1 14.0 HVI Certified Performance based on HVI Procedures 915, 916, and 920. Reference specifications Duct Noise Lighting unit diameter (sones) - Page 7 GENE AL SAFETY INFO MATION GENE AL SAFETY INFO MATION 1. Do not install this ventilating fan where air temperature may exceed 40 C (104 F). 2. Make certain that the electric service supply voltage is AC 120V, 60 Hz. Prohibited 3.
-
Page 8: I ( Joist Mounting- ) I
INSTALLATION INSTALLATION JOIST MOUNTING- JOIST MOUNTING- IMPORTANT : Remove the tape from damper and adaptor before installation. As shown below: Adaptor Damper Suspension bracket I Tape Fan body Fig.1-1 1. Insert the suspension bracket into the fan body and adaptor. (select the suspension bracket as shown below) Suspension Suspension bracket I... - Page 9 INSTALLATION INSTALLATION JOIST MOUNTING- JOIST MOUNTING- ) CONTINUED ) CONTINUED 2. Install the suspension bracket and the flange of fan body to joists by using long screws (ST4.2X20) ( If spacing A Joist between joists is 12 inches, install the flange of fan body according to Fig.2-1, others according to Fig.2-2 to install the product) Fan body...
- Page 10 Sensor unit Grille Fig.6-1 11. Insert the sensor unit into the housing of the grille and insert other mounting spring into the slot as Ceiling shown and mount grille to fan body (FV-08VKML1) (Fig.6-2, Fig.6-3) Sensor unit Grille Gloves Fig.6-2...
-
Page 11: Installation Iii ( -Joist Mounting ) I
INSTALLATION INSTALLATION JOIST MOUNTING- JOIST MOUNTING- 1. Remove the machine screw by using screw driver, Machine screw disconnect plug connector from receptacle and remove adaptor from fan body before installation. (Fig.8) 2. Insert the suspension bracket into the adaptor and secure it to joists by using long screws (ST4.2X20) (Fig.9) Suspension bracket I... - Page 12 INSTALLATION INSTALLATION JOIST MOUNTING- JOIST MOUNTING- CONTINUED CONTINUED 6. Secure the fan body to adaptor by using machine screw and plug connector to receptacle (Fig.11) Screw driver Machine screw Receptacle I Plug connector I Fig.11 7. Secure the suspension bracket to joists by using Screw (ST4.2X12) long screws(ST4.2X20) and secure it to fan body by...
- Page 13 INSTALLATION INSTALLATION IV ( BETWEEN IV ( BETWEEN JOIST MOUNTING JOIST MOUNTING 1. Before installation, secure the lighting unit to fan body 16 inches and 19.2 inches (refering to Fig.5 of page 10). Suspension bracket I horizental joist 2. Insert the suspension bracket into bracket cover of adaptor side and the back of the fan body.
-
Page 14: Installation V ( Wooden Header )
INSTALLATION INSTALLATION WOODEN HEADE WOODEN HEADE 1. Before installation, secure the lighting unit to fan body Joist (refering to Fig.5 of page 10). Header Joist 2. Install header between joists by using nails or screws. ( 2 7 Adaptor Fan body Fig.19 inches (mm) 3. -
Page 15: Maintenance
MAINTENANCE MAINTENANCE CLEANING CLEANING WARNING: Ceiling Mounting spring Disconnect power source before working on unit. Routine maintenance must be done every year. Gloves Grille CAUTION: Fig.21-1 1. Never use gasoline, benzene, thinner or any other such chemicals for cleaning the ventilating fan. Ceiling 2. - Page 16 1. Remove grille. (Squeeze mounting spring and pull down) (Fig.21 of page 15) 2. Remove the 4 W night lamp. (Fig.26) Fig.26 3. Change the fluorescent lamps (Panasonic FDS 18E27/4,18W or FDS18E35/4, 18W or FDS18E42/4, 18W ) or the 4W night lamp, connect the plug connector and replace the grille.(Fig.27)
