Spacelabs 90207 Operation Manual

Ambulatory blood pressure monitors
Hide thumbs Also See for 90207:
Table of Contents

Advertisement

Quick Links

Ambulatory Blood Pressure
Monitors
90207/90217
Operations Manual
070-0137-03 Rev. F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90207 and is the answer not in the manual?

Questions and answers

Related Manuals for Spacelabs 90207

Summary of Contents for Spacelabs 90207

  • Page 1 Ambulatory Blood Pressure Monitors 90207/90217 Operations Manual 070-0137-03 Rev. F...
  • Page 2 Copyright 2002 Spacelabs Medical, Inc. All rights reserved. Contents of this publication may not be reproduced in any form without the written permission of Spacelabs Medical, Inc. Products of Spacelabs Medical are covered by U.S. and foreign patents and/or pending patents. Printed in U.S.A.

  • Page 3: Table Of Contents

    Contents Chapter Page Contents Operation Overview ..............1-1 Preparing the Patient and Precautions for Use .

  • Page 5: Getting Started

    Spacelabs Medical is committed to providing comprehensive customer support beginning with your initial inquiry through purchase, training, and service for the life of your Spacelabs Medical equipment. If you need our help along the way, we offer these guidelines for fast, efficient response.

  • Page 7: Operation

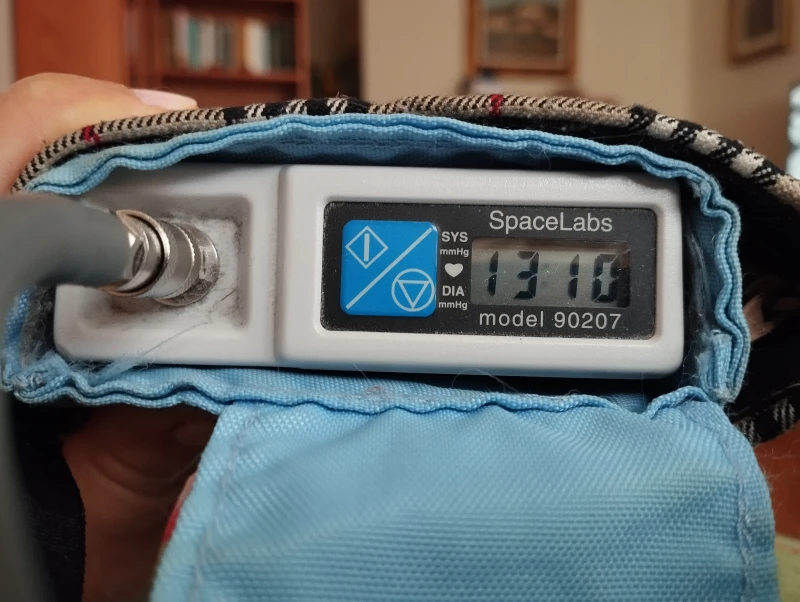

    Event Codes................14 Overview The Spacelabs Medical Models 90207 and 90217 Ambulatory Blood Pressure (ABP) monitors are small, lightweight battery-powered units designed to take blood pressure and heart rate measurements for 24 or 48 hours, or for longer periods of time.

  • Page 8: Replacing The Batteries

    The rear panels of both monitors contain program input and data output communication ports. On the 90207 the power ON/OFF switch is also located on the rear panel. On the 90217 the ON/OFF switch is located on the top panel.

  • Page 9: Initializing The Monitor

    Connecting Directly to a Local Report Generator For a direct connection to the 90207 or 90217 monitor, place the monitor into the chute on the Report Generator (Model 90239A or equivalent) as shown below.

  • Page 10: Connecting To The Base Station Via Modem

    90207/90217 ABP Monitors Connecting Directly to the PC Interface For a direct connection to a PC-compatible computer via a Model 90121, 90219-02, or 90219-03: Connect the ABP interface cable to the serial port on the 90219 or 90121 system and to the monitor.
  • Page 11 9600 2999/9999 Newer 90217 9600 Any Hayes 0999/9999 Connection Procedure If you are using an older 90207 with a 1200 modem, set the switches on the modem as follows: SETTING AT SWITCH # MONITOR SITE down down down...
  • Page 12 • When instructed by the base station operator, turn the ABP monitor on. • The modem link must be established within 10 to 20 seconds for the 90207, and 45 seconds for the 90217. If this does not occur, turn the monitor off and then on again to retry.
  • Page 13 Reinstating Office Check Mode The office check mode can be reinstated in the 90217, and in versions 2.14 and later of the 90207. To reinstate the office check mode without initialization of the monitor follow the steps below.

  • Page 14: Preparing The Patient And Precautions For Use

    90207/90217 ABP Monitors Preparing the Patient and Precautions for Use • Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultation method, within the limits prescribed by the American National Standard, Electronic or automated sphygmomanometers.
  • Page 15 • Use only Spacelabs Medical cuffs with this monitor. Using other manufacturer’s cuffs may result in inaccurate readings even if the manufacturer’s recommended size is observed.
  • Page 16 To verify proper monitor operation, take one or more blood pressure readings. Push the START/STOP key to begin a measurement. Spacelabs Medical recommends taking three readings in the office so that the patient becomes comfortable with operation of the monitor and the measurement process.

  • Page 17: Patient Instructions

    If the cuff is not properly positioned, event codes may appear on the monitor. • The patient should make every effort to keep the monitor dry. However, there is no hazard if the monitor does get wet. If this occurs, turn the monitor off and return it to Spacelabs Medical for service. 1-11...

  • Page 18: Data Transfer And Reports

    90207/90217 ABP Monitors Data Transfer and Reports After monitoring is complete, connect the monitor to either a PC Direct or Base Station interface to transmit patient data and generate blood pressure reports. Refer to 90121 ABP Report Management, 90219-02/03 ABP PC Interface/Base Station, or 90239 ABP Report Generator Operations Manuals for more details.
  • Page 19 Operation Re-install the bladder into the cuff wrap in reverse order. Make certain that all folds in the bladder have been removed, and that the long end of the bladder fits into the long end of the cuff (see the figure below).

  • Page 20: Event Codes

    90207/90217 ABP Monitors Event Codes The monitor will display an event code whenever an event prevents the unit from successfully completing a blood pressure measurement. The two numerical digits of the event code indicate the reason the measurement was aborted. The table below lists event codes that are displayed on the monitor, as well as event codes that appear on the Event Code Report.
  • Page 21 EC05 The individual blood pressure result has been corrupted and cannot be recovered. EC15 Equipment malfunction. Return to Spacelabs Medical for service. EC25 Unit failed to initialize. Please initialize. 90207 At least one of the blood pressures or time readings obtained before the EC35 event code is erroneous.
  • Page 22 Low battery detected after measurement started. Usually caused by the pump drawing enough current to lower the battery voltage. The report does not print an event code for this condition, which is a low backup battery. Contact Spacelabs Medical for replacement of the battery. 1-16...

  • Page 23: Accuracy

    If the monitor pressure values fall outside of the allowed tolerance call your local Customer Service Representative or Spacelabs Medical for servicing. At the end of the procedure, the monitor displays an event code indicating that no dynamic blood pressure...
  • Page 24 90207/90217 ABP Monitors Disconnect the T-tube splitter from the monitor. Disconnect the air hose and sphygmomanometer.

  • Page 25: Troubleshooting

    (90207 only) Cuff too tight Cuff placed on the patient too Reposition the cuff tightly Air pump staying on too long Return unit to Spacelabs Medical for service Cuff too loose Cuff placed on the patient too Reposition the cuff loosely...

  • Page 26: Servicing

    There is a 12 month warranty on this product. Field service of the ABP monitor is limited to replacing batteries and accessories. If other repair is required, return the monitor to Spacelabs Medical. Contact your Spacelabs Medical Customer Service Representative for shipping details.

  • Page 27: Symbols

    Symbols The following list of international and safety symbols describes all symbols used on Spacelabs Medical products. No one product contains every symbol. Symbol Description Symbol Description UCW or Ultraview 1700 UCW or Ultraview 1700 HELP Key MONITOR SETUP Key...
  • Page 28 90207/90217 ABP Monitors Symbol Description Symbol Description ON — Part of the Instrument Only OFF — Part of the Instrument Only Partial ON/OFF STAND-BY Key All batteries should be disposed of properly to protect the environment. Caution - hazardous voltages. To reduce...
  • Page 29 Symbols Symbol Description Symbol Description ENTER Key PRINT REPORT Key Attention - Consult Operations or Risk of Explosion if Used in the Service Manual for Description Presence of Flammable Anesthetics Indicator — Remote control Indicator — Local Control Return Unit to Monitor Mode Indicator —...
  • Page 30 90207/90217 ABP Monitors Symbol Description Symbol Description Electrocardiograph or Gas Exhaust Defibrillator Synchronization IEC 601-1 Type BF equipment. The unit displaying this symbol contains an F- Arterial Pulse type isolated (floating) patient-applied part providing an adequate degree of protection against electric shock.
  • Page 31 Symbols Symbol Description Symbol Description Open Padlock Closed Padlock Down Arrow Up Arrow TEMP Event Temperature temp 12,200 m Environmental Shipping/Storage Antenna Altitude Limitations Network Connection Audio Output, Speaker Remote Alarm; Nurse Alert Nurse Call Serial Port 1 Serial Port 2 SDLC External marker push button connection SDLC Port...
  • Page 32 90207/90217 ABP Monitors Symbol Description Symbol Description Microphone Mermaid Connector Note Video Output Warning About Potential Danger to Caution About Potential Danger to Human Beings Equipment Non-Invasive Blood Pressure (NIBP), Fetal Monitor Connection (Analog) Neonate Fetal Monitor Connection Physiological Monitor Connection...
  • Page 33 Symbols Abbreviations used as symbols are shown below. Symbol Description Symbol Description Access Codes 1 - 32 1 Through 32 ANT 1 Diversity Antenna System 1 Arr1 Arrhythmia Net 1 ANT 2 Diversity Antenna System 2 ArrNet2 Arrhythmia Net 2 EEG, EMG, or ECG Channel EEG Channels - CH1, CH2, CH3, CH4 Centimeters of Water...
  • Page 34 Quicknet, Spaceview, Sensorwatch, TRU-CAP, TRU-CUFF, TRU-LINK, UCW, Ultralite, Ultraview, Ultraview Care Network, Ultraview Clinical Messenger, Uni-Pouch, Universal Flexport, Varitrend, Vita-Stat, Web Source and WinDNA are trademarks of Spacelabs Medical, Inc. Other brands and product names are trademarks of their respective owners.
