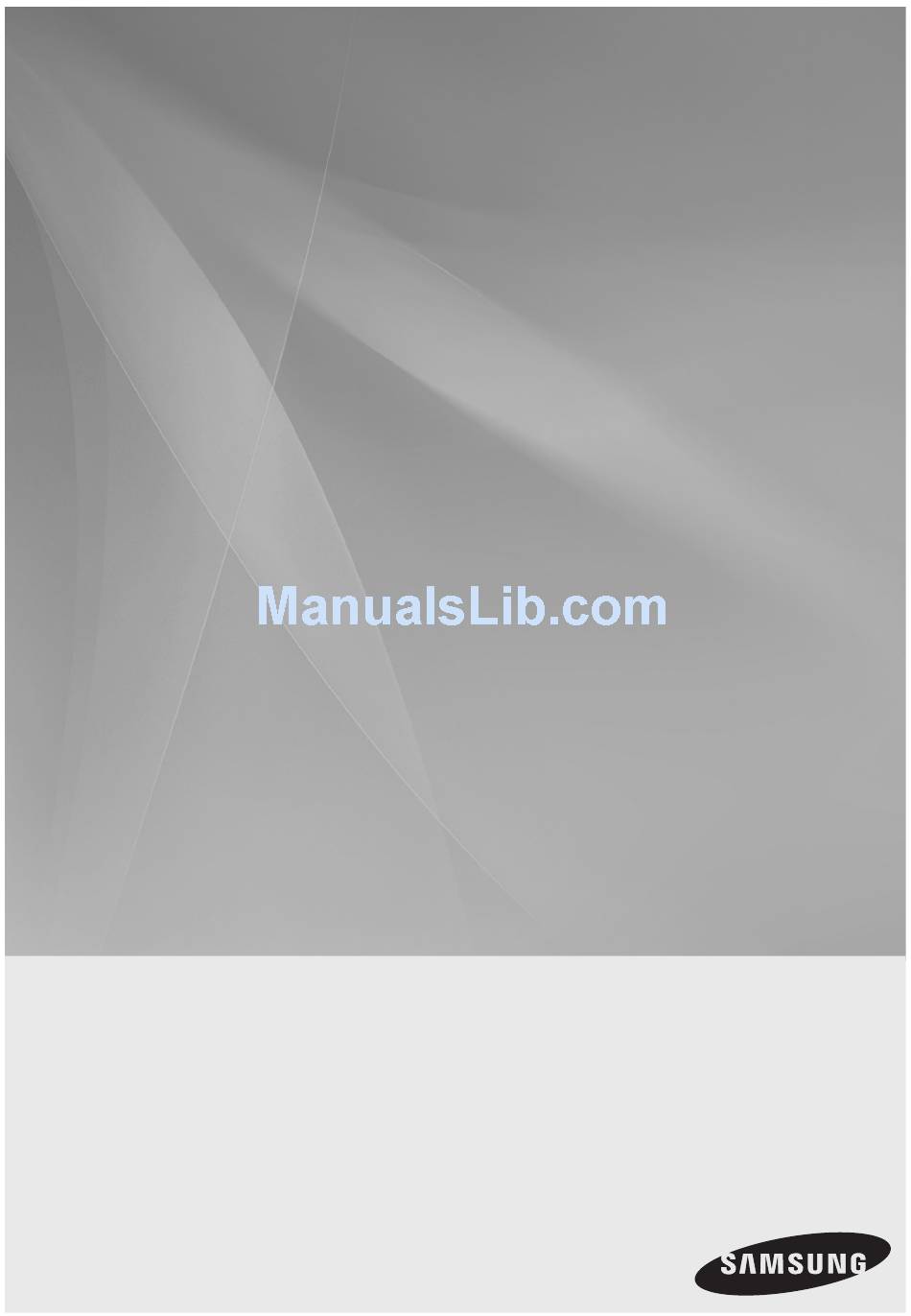

- Page 1 MX-C830D DVD MINI COMPONENT SYSTEM user manual Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
-
Page 2: Safety Warnings
Safety Information Safety Warnings TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates “dangerous voltage” CAUTION : TO PREVENT ELECTRIC SHOCK, This symbol indicates important inside the product that presents a risk of... -
Page 3: Cautions On Handling And Storing Discs
Copyright ✎ NOTE © 2010 Samsung Electronics Co., Ltd. All rights Condensation may form if warm air comes into contact reserved. with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If... -
Page 4: Table Of Contents
Contents SAfety InformAtIon Safety Warnings Accessories Cautions on Handling and Storing Discs Precautions When Using Audio Cassettes License Copyright Copy Protection GettInG StArteD Precautions Icons that will be used in manual Disc Types and Characteristics Description Front Panel Rear Panel Remote control ConneCtIonS Connecting the Speakers... -
Page 5: Getting Started
ADvAnCeD fUnCtIonS USB Function Recording Function otHer InformAtIon Troubleshooting Specifications Getting Started Precautions Icons that will be used in manual Ensure that the AC power supply in your house complies with • Make sure to check the following terms before the identification sticker located on the back of your product. -
Page 6: Disc Types And Characteristics
Getting Started Getting Started Disc types that can be played Disc types and Characteristics Disc Types & Recorded Disc Region Code Max. Playing Time Mark (Logo) Signals Size The product and the discs are coded by region. These Approx. 240 min. regional codes must match in order for the disc to play. - Page 7 CD-R MP3 Discs If a DVD-R/-RW disc has not been recorded • properly in DVD Video format, it will not be Only CD-R discs with MP3 files in ISO 9660 or • playable. Joliet format can be played. MP3 file names should contain no blank spaces DivX (Digital internet video express) •...
- Page 8 Getting Started USB Host Specification - If you install multiple memory devices into a multi card reader, you may experience problems. USB Host Specification Supported file Formats • Supports USB 1.1 or USB 2.0 compliant devices. • Supports devices connected using the USB A type Still Format Music...
-
Page 9: Description
Description Front Panel OPEN/CLOSE Standby/on button USB jack 2 Search/Skip Function Search/Skip Function MIC jack VOLUME DVD/CD button MIC VOL knob Tuning/Jog Control TUNER button CASSETTE DECK GIGA SOUND button TAPE button REC TO TAPE button Window Display STOP/Tuning Mode button REC TO USB button DISC Tray DEMO &... -
Page 10: Rear Panel
Getting Started Rear Panel FM ANT FRONT SPEAKERS OUT (IMPEDANCE3Ω FM AnTennA JACK Connect the FM antenna. COMPOnenT VIDeO OUTPUT JACKS Connect a TV with Component video inputs to these jacks. VIDeO OUT JACK Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack. LeD TeRMInALS OF THe FROnT Connect the LED cables of the Front Speakers to each LED Terminals of SPeAKeRS... -
Page 11: Remote Control
remote control Tour of the Remote Control FUNCTION button POWER button DISC SKIP button MO/ST, B button DSP/EQ, C button TUNING MODE, A button GIGA, D button TIMER/CLOCK button SLEEP button TIMER ON/OFF button TITLE MENU button DISC MENU button Number(0~9) button REPEAT button RECORDING SPEED button... -
Page 12: Connections
Connections RADIO ANT Before moving or installing the product, be sure to turn off the power and disconnect the power cord. RADIO ANT Connecting the Speakers Speaker FRONT Speaker SPEAKERS OUT (IMPEDANCE3Ω FRONT ※Use the cable tie on the rear panel so that the LED SPEAKERS OUT cables are not loose. -
Page 13: Connecting The Video Out To Your Tv
Connections Connecting the video out to your tv Choose one method for connecting to a TV. METHOD 1 ( not supplied) COMPONENT IN FM ANT VIDEO INPUT METHOD 2 (supplied) FRONT SPEAKERS OUT (IMPEDANCE3Ω METHOD 1 : Component Video (BETTER QUALITY) If your television is equipped with Component Video inputs, connect a Component video cable (not supplied) from the COMPONENT OUT (Pr, Pb and Y) Jacks on the back of the product to the Component Video Input Jacks on your TV. -
Page 14: Connecting Audio From External Components
Connections Connecting Audio from external Components Audio Cable (not supplied) AUX : Connecting an External Component/MP3 player Components such as an MP3 Player. Connect AUX IN (Audio) on the front of the product to the Audio Out of the external component/ MP3 player. -
Page 15: Connecting The Fm Antenna
Connections Connecting the fm Antenna FM ANT FM Antenna (supplied) FRONT SPEAKERS OUT (IMPEDANCE3Ω Connect the FM antenna supplied to the FM Antenna jack. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. -
Page 16: Setup
Setup Before Starting (Initial Setting) Setting the Setup menu The access step may differ depending on the selected Press the POWER button when it is plugged in menu. The GUI (Graphical User Interface) in this TV for the first time. manual may differ, depending on the firmware version. -
Page 17: Display
Display Audio Settings Display TV Aspect : WIDE DRC (Dynamic Range Compression) You can configure various display options such as Audio the TV Aspect. System Language This feature balances the range between the loudest Security and quietest sounds. You can use this function to Suppor TV Aspect enjoy Dolby Digital sound when watching movies at... -
Page 18: System
Setup System Security The Parental Lock function works in conjunction with Initial Setting DVDs that have been assigned a rating which helps you control the types of DVDs that your family watches. By using the Initial Setting, you can set language and There are up to 8 rating levels on a disc. -
Page 19: Basic Functions
Basic Functions Audio CD(CD-DA)/mP3/WmA Playback Disc Playback Press the OPEN/CLOSE (^) button. Place a disc gently into the tray with the disc's label facing up. Press the OPEN/CLOSE (^) button to close Track01 the disc tray. 1/17 ✎ NOTE Resume function: When you stop disc play, the product remembers where you stopped, so when 0:15 / 3:59 you press PLAY button again, it will pick up where... -
Page 20: Jpeg File Playback
Basic Functions JPeG file Playback Using the Playback function Forward/Reverse Search Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this product. dBAD Insert a JPEG disc on the disc tray. Press the _+ buttons to select the Photo, and Press the () buttons for Search Function. -
Page 21: Using The Disc Menu
5 Minute Skip function Using the Title Menu For DVDs containing multiple titles, you can view the During playback, press the _,+ button. title of each movie. Playback skips 5 minutes forward whenever you • During playback, press and hold the TITLE press the + button. -
Page 22: Repeat Playback
Basic Functions Repeat Playback A-B Repeat Playback dBAD You can repeatedly play back a designated section of a DVD or CD. DVD/DivX Repeat During the DVD disc or CD playback, press and You can repeat the title, chapter or the section(A-B hold the REPEAT button on the remote control. -
Page 23: Displaying Disc Information
Displaying Disc Information when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified as a Title. Chapter ) : Most DVD discs are recorded in chapters so that you can quickly find a specific chapter. -
Page 24: Selecting The Subtitle Language
Basic Functions Selecting the Subtitle Language Angle Function Press the TOOLS button. Press the ▲▼ buttons to select SUBTITLE ( display. This function allows you to view the same scene in different angles. Press the _+ buttons or numeric buttons to select the desired subtitle language. -
Page 25: Sound Mode
Sound mode ✎ DSP (Digital Signal Processor)/EQ NOTE When CD Recording, the DSP/EQ function can't DSP (Digital Signal Processor) : DSP modes have • work and the DSP/EQ automatically covery to been designed to simulate different acoustic "PASS" mode. environments. This function is not available during playback of •... -
Page 26: Listening To Radio
Basic Functions Presetting Stations Listening to radio Example : Presetting FM 89.10 in the memory Using buttons on the Remote Control Press the FUNCTION button to select FM. Press the STOP ( @ ) button on the front panel to Press the FUNCTION button to select FM select <MANUAL>... -
Page 27: Before You Start
CT (Clock Time) : Decodes the real time clock from the FM PTY (Program Type) indication and • frequency. Some stations may not transmit PTY, RT or CT PTY-SEARCH function information therefore this may not be displayed in all cases. One of the advantages of the RDS service is that ✎... -
Page 28: Listening To A Cassette Tape
Basic Functions • Select TUNER by pressing the TUNER button on the Listening to a Cassette tape main unit. Adjust the Radio frequency you want to record. • Always treat your cassettes with care; refer, if USB Device (See page 32) necessary, to the section entitled “Precautions When Connect the external USB storage device to the USB •... -
Page 29: Setting The Clock
Setting the Clock timer function For each step, you have a few seconds to set the The timer enables you to switch the system on or off required options. If you exceed this time, you must at specific times automatically. start again. -
Page 30: Party Function
Basic Functions Party function PARTY Press the ENTER ( ) button to confirm the timer. The product has a special effect light. When you select Press the STANDBY/ON ( ) button to set the PARTY mode, the light will changed with the music system to standby mode playback. -
Page 31: Mute Function
mute function Connecting the Headphones You can connect a set of headphones to your mini- This is useful when answering a doorbell or telephone call. compact system so that you can listen to music or radio programme without disturbing other people in Press MUTE button: the room. -
Page 32: Advanced Functions
Advanced Functions recording function USB function Playing Media Files using the USB Host Feature You can record sound of the CD/Cassette Tape, the Radio Broadcasting or sound from the external You can enjoy media files such as pictures, movies source into the USB storage device. and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 2.0 Switch the system on by pressing the... -
Page 33: Recording Speed
If you record the MP3 CD, the file is copied into the Recording Speed USB device totally. “CHECK FILE” “FILE COPY” “COMPLITE” is You can adjust the recording speed during the CD displayed. When the recording is done, “STOP” will recording. -
Page 34: Other Information
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom Check/Remedy I cannot eject the disc. - Page 35 Other Information Symptom Check/Remedy • The product is not working. • While “NO DISC” message appears on the display of the product, press and hold the (example: The power goes out or STOP (@) button on the main unit for longer than the front panel key doesn't work 5 seconds with no disc (reset function).
- Page 36 60dB (AUX)400mV Input sensitivity *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - Design and specifi cations are subject to change without prior notice. English...
- Page 37 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region Country Customer Care Center Web Site CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca MEXICO 01-800-SAMSUNG (726-7864) www.samsung.com/mx North America U.S.A...
- Page 38 Code No. AH68-02264P...
