OPERATOR'S MANUAL

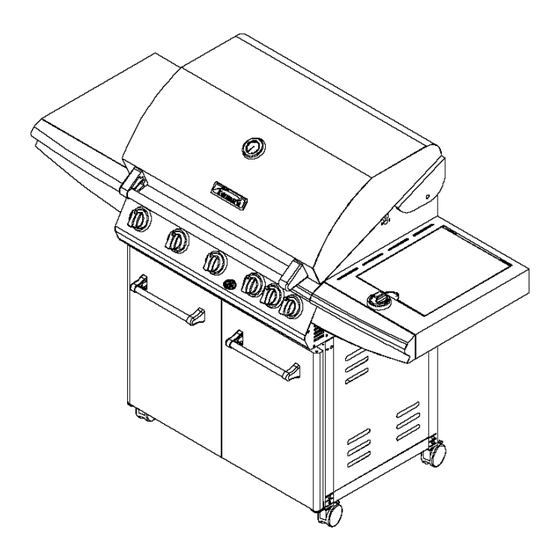

Liquid PropaneGas(LPG)Grill
Model 141.16233
KmartNo. 640-117694-117
Model 141.16235
• Safety
• Assembly
• Use and Care
• Cooking Guide
• Frequently Asked Questions
Call us first if you have any problem with
this product.
We can help you with ques-
tions about assembly and grill operation
or
if there
are damaged
or missing
parts
when you unpack this unit from the ship-
ping box. Please
call before
contacting
your local retailer.
1 - 888-317-7642
8am-8pm
CST,
Monday
throuqh
Friday
• NOTE TO ASSEMBLER/INSTALLER:
Leave this manual with the consumer.
• NOTETO CONSUMER:
Keep this manual for future reference.
• RECORD YOURSERIAL #
(see silver CSA label on main body of grill)
• Failure to comply with these instructions could
result in a fire or explosion
that could cause
serious bodily injury, death or property damage.
Whether
this grill was assembled
by you or
someone else, you must read this entire manual
before using your grill to ensure the grill is
properly assembled, installed and maintained.
Use your grill at least 3 feet away from any
wall or surface. Use your grill at least 3 feet
away from combustible objects that can melt or
catch fire (such as vinyl or wood siding, fences
and overhangs) or sources of ignition including
pilot lights on water heaters and live electrical
appliances.
• THIS GAS APPLIANCE
IS DESIGNED
FOR
OUTDOOR USE ONLY.
Combustion
byproducts
produced when using
this product contain chemicals
known to the
State of California
to cause cancer, birth
defects, or other reproductive
harm.
This product contains
chemicals
known to
the State of California
to cause cancer, birth
defects, or other reproductive
harm.
Manual # P80165004L - Date:2007/01/31
Sears,
Roebuck
and
Co.,
Hoffman
Estates,
IL 60179,
USA
www.sears.com

Advertisement

Table of Contents
loading

Summary of Contents for Kenmore 141.16233

  • Page 1 OPERATOR'S MANUAL Liquid PropaneGas(LPG)Grill Model 141.16235 Model 141.16233 KmartNo. 640-117694-117 • Safety • Assembly • Use and Care • Cooking Guide • Frequently Asked Questions • Failure to comply with these instructions could Call us first if you have any problem with...
  • Page 2 1. Do not store or use gasoline other flammable liquids in the vicin- ity of this or any other appliance. One-Year Full Warranty on Kenmore Grill 2. Any LP cylinder not connected If this grill fails due to a defect in material or work-...
  • Page 3 Failure to comply with these instructions 1. Do not store spare LP cylinder result in a hazardous situation which, if not within 10 feet (3m) of this appliance. avoided, may result in injury. 2. Do not store or use gasoline Spiders small insects...
  • Page 4 PART # PART DESCRIPTION PURPOSE OF PART P06001052A Hardware Pack For use in assemblyof Model 16233 P06001053A Hardware Pack For use in assemblyof Model 16235 S112G0432A Phillips Head Screw 1/4"x2" Attaches Cart Legs with Side Panel to Cart Bottom Shelf $233G04572 Wing Bolt 1/4"x6-11/16"...
  • Page 5: Table Of Contents

    Phillips Head Screw 1/4"xl/2" Phillips Head Screw 1/4"xl-3/16" Phillips Head Screw 1/4"x3/4" Qty. 4 (Model 16233) Qty. Qty. 4 Qty: 11 (Model 16235) Part # S112G0412A Part # S112G0419A Part # S112G0408A (Black Painted) (Black Painted) (Black Painted) Phillips Head Screw 1/4"x2"...
  • Page 6 >...
  • Page 7 16235 16233 PART # PART DESCRIPTION PART P0014704EA P0014607EA P0011453QJ Lid Trim Plate P0011452QJ P055180011 Protective P055180011 Protective P055180041 P055180041 P00601071A P00601071A Temperature Gauge P00410041C Name Plate P00410041C Lid Handle P00205085B P00205084B P00303062A Lid Handle Bracket P00303062A P01506005G P01505008E Cooking Rack/Secondary P01615029H P01615029H...
  • Page 8 2. Part Number 3. Part Description 4. Quantity of parts needed Important: only Kenmore replacement parts. of any part that is not a Kenmore replacement part be dangerous and will also void your product warranty. Keep this Operator's Manual convenient referral part replacement.
  • Page 9: Phillips Head Screw 1/4

    Install Casters [] Place the Cart Side Panels on the cardboard. Install the 4 Casters into the Caster Seats as shown. Wrench/No.17 Customized Qty. 1 Part # P05515101L Scale Weight Install underside Cart Bottom Shelf Turn the Bottom Cart Shelf over with the top...
  • Page 10 Install Cart Rear Panel Install the Cart Rear Panel between rear cart Legs as shown. [] Tighten all screws securely. Phillips Head Screw 1/4"xl/2" Qty. 4 Part # S112G0408A (Black Painted) (For only) Install Partition Panel Model 16235 install the Partition Panel to Left Cart...
  • Page 11 (For 16235 Model) Install Door Install Door Handle to Right Door using screws $112G04081 [] Hold the Right Door and install the Right Door Hinge Bracket to Right Cart Leg using screws S112G0306A. Insert Door bottom post into Bottom Door Hinge Bracket.
  • Page 12: Phillips Head Screw 1/4"X3/4" Qty

    Install Grill Bowl Remove cooking components from Grill Head. With assistant, lift position Grill Head on the Cart. Tighten securely using screws S112G0419A. Phillips Head Screw 1/4"xl-3/16" Qty. 4 Part # S112G0419A (Black Painted) nstall Side Shelf Side Burner Frame Align the 2 holes on Front...
  • Page 13: Part # P03426083H Scale 1:2

    nstall Side Burner Valve Side Burner Electrode Wire [] insert the Side burner Gas Valve Assembly into Side Burner Tube (See Figure 1 ). Be sure the orifice is inside the Burner Tube properly (see warning on Page 3), or lighting burner may cause explosion...
  • Page 14 Install Ignitor Battery [] Unscrew ignitor from Control Panel. [] Place supplied battery into Ignitor Slot with positive pole facing you. [] Position Spring over the AA battery tighten onto Control Panel. AA Battery Main Burners Electrode Check Perform this Electrode Check with assistance...
  • Page 15 LP tank. Only regulator hose assembly supplied with your grill. Replacement regulators hose assemblies must be those specified Kenmore. Parts List. • your grill at least 3 feet away from Have your LP Gas dealer check the release...
  • Page 16 Install Tank: Exchange Programs NOTE about LP Gas Tank Secure a 201b Tank Grill • Many retailers that sell grills offer you the option replacing your empty LP Gas tank through an ex- Screw the Wing Bolt Special to Cart change service.
  • Page 17 Check all connections for LP Gas Leaks only: Model Regulator Connect with Hose to your LP Gas Tank Never test for leaks with a flame. Prior to first use, Turn Burner Valves position. at the beginning of each season, or every time Inspect valve...
  • Page 18 Lighting Lighting Back Burner Instructions Grill Instructions 1. Before each use, check all hoses for cracks, nicks, cuts, 1. Follow steps 1 through 6 of the Grill Lighting Instructions. burns or abrasions. If a hose is damaged in any way, 2.
  • Page 19 Troubleshooting purge from your line and/or reset regulator excess flow device: If the grill fails to light : Turn Control Knobs to the OFF position. 1. Turn gas off at source and turn Control Knobs to OFF. Wait at least 5 minutes for gas to clear, then Turn off the gas at the tank...
  • Page 20 10. Replace Savor Plates@ and Cooking Grids. 11. Reconnect the gas source and observe Proper care and maintenance will keep your grill in top Burner flame for correct operation. operating condition and prolong its life. Follow these Cleaning Exterior Surfaces: cleaning procedures on a timely...
  • Page 21 To reduce the chance of FLASHBACK FIRE you must Regardless of which Burner cleaning procedure clean the Burner Tubes as follows at least once a month use, we recommend you also complete the following in summer and fall or whenever spiders are active in your...
  • Page 22 Burn-Off Indirect Cooking Before cooking on your gas grill for the first time, you should "burn off" the grill to eliminate any odor The indirect cooking method can also be used with foreign matter, ignite the burners, lower the Lid, and the supplied Cooking Grids.
  • Page 23 Cut of Meat Approximate Cooking Times Grilling Steak and Ribs Rare: 4-8 minutes T-bone steak Turn the grill Burners on HIGH, close the Lid and preheat Medium: 10-14 minutes Sirloin steak your grill 3 to 5 minutes. Open Lid and place the meat on Well done: 15-20...
  • Page 24 An Important Note About Heat Settings Food preparation The suggested heat settings shown are approximate. Trim meat of excess fat. Truss meat and poultry with cooking string to retain shape if desired. Bacon strips can There are many factors such as outside temperature, be used to cover the outside surface...
  • Page 25 Preparing to Smoke Slow Cooking with a Rotisserie A Rotisserie Kit is made to fit your grill model. Rotis- Smoking gives food a distinctive, delicious flavor. You will serie cooking produces foods that are moist, flavorful find a variety of wood chips available for use in smoking...
  • Page 26 DEEP-FRYINGTECHNIQUES STIR-FRYING TECHNIQUES This method of cooking is popular around the world A wide variety of foods can be deep-fried outdoors can be easily accomplished outdoors on your gas grill, it's your grill, from potatoes, to seafood and chicken. Deep- frying uses a large portion...
  • Page 27 Kenmore Premium or Kenmore Elite grill as an outdoor kitchen. Versatile cast-iron Not all locations carry all items and availability is Lid set is ideal limited to supplies on hand. Accessory fit will vary...
  • Page 28 Question: Question: Sometimes I hear a humming sound coming from my Can I convert my grill from one fuel type to another in regulator. What causes this? And - My grill has a low other words from LPG to NG or vice versa? flame and sometimes will not light.
  • Page 29 Question: The Regulator and Hose supplied with my gas grill does not fit the older LP Gas tank I've used years. Why not? Answer: The U.S. Government regulates gas appliances LP Gas tanks. When regulations are changed the LP Gas tank fittings are altered to insure compliance.
  • Page 30 Congratulations on making a smart purchase. Your new Kenmore cR> product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master...
