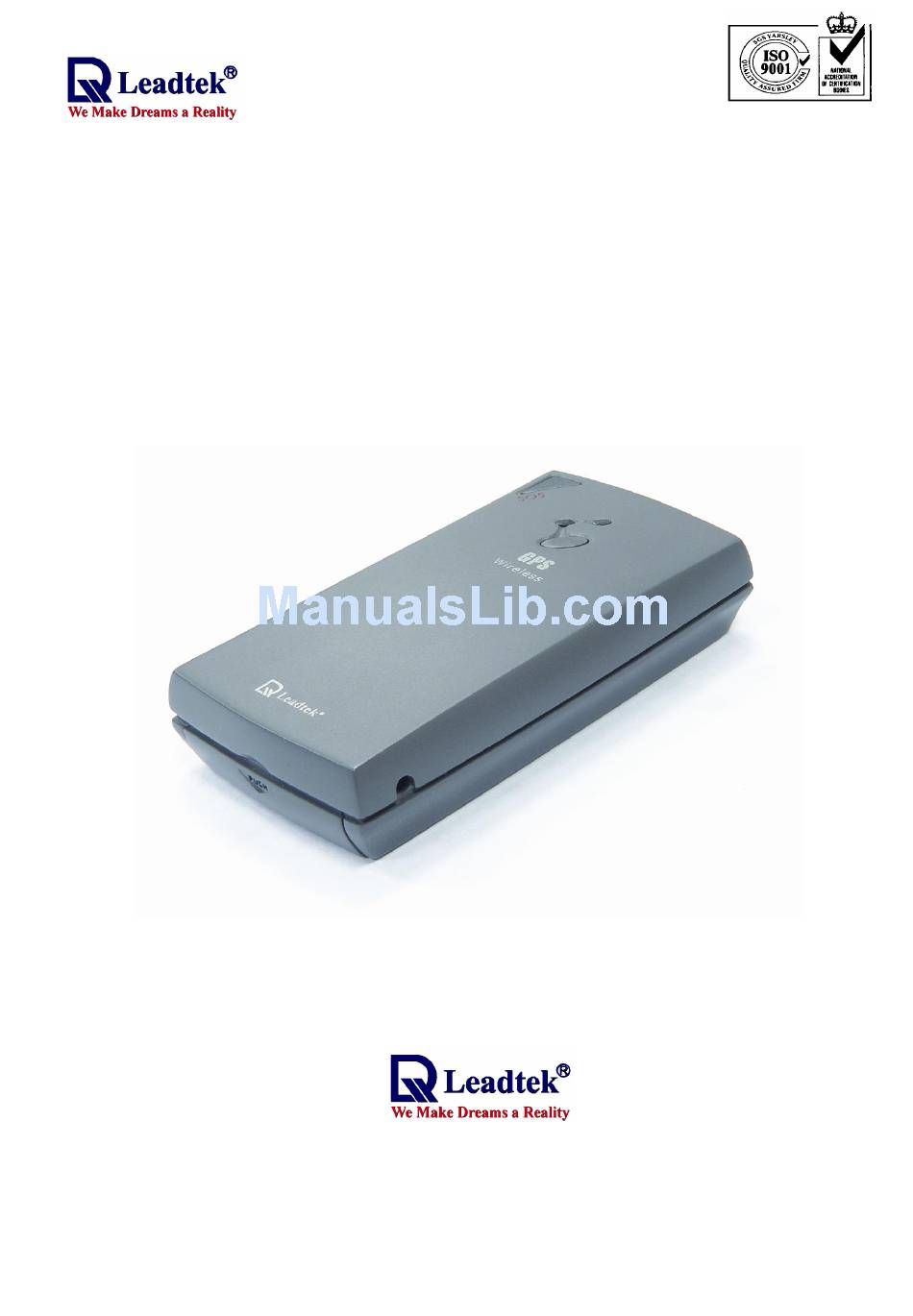

- Page 1 LEADTEK Bluetooth GPS Receiver User’s Manual GPS 9537 Version 1.0 22 January 2003 All Rights Reserved...
-
Page 2: Table Of Contents
Contents INTRODUCTION...........................1 1.1..........................1 VERVIEW 1.2........................1 EATURES TECHNICAL SPECIFICATIONS ....................1 2.1....................1 LECTRICAL HARACTERISTICS 2.2..................3 NVIRONMENTAL HARACTERISTICS 2.3....................3 HYSICAL HARACTERISTICS APPLICATIONS ..........................3 OPERATION AND TEST......................4 4.1......................4 ARDWARE ESCRIPTION 4.2. ?....................5 HAT DO YOU GET IN THE BOX 4.3. -
Page 3: Introduction
The advent of Bluetooth GPS receiver will become the next level of GPS receivers. The Leadtek BT GPS receiver integrates Bluetooth module into GPS device. It shows the high performance, low power consumption, easily portable, rechargeable & removable battery function and wireless data transmission. -
Page 4: Dynamic Conditions
Frequency L1, 1575.42 MHz C/A code 1.023 MHz chip rate Channels 12 channel all-in-view tracking Antenna Type Built-in Ceramic patch antenna (External antenna optional) 2.1.2 Accuracy Position 10 meters, 2D RMS 7 meters 2D RMS, WAAS corrected 1-5 meters, DGPS corrected Velocity 0.1 meters/second Time... -
Page 5: Main Interface
MC PLUG type <Note>: The device disable internal antenna when connected with external antenna. 3. Applications Leadtek GPS 9537 Bluetooth GPS receiver is a high performance, low power consumption product. The product applications are as follow. Vehicle Tracking & Location-based Services... -
Page 6: Operation And Test
4. Operation and Test 4.1. Hardware Description The Bluetooth GPS has two LED light which each has two colors. One is GPS & Charge status LED and the other is Bluetooth & low power status LED. The status table of LED shows as follows: Status BT(Blue) Low Power(Red) -
Page 7: What Do You Get In The Box
4.2. What do you get in the box? The Leadtek BT GPS receiver A power supply Three adapters for the power supply A power supply of CLA(cigarette lighter adapter) 4.3. Software Install iPAQ Bluetooth Setup with Pocket PC software <Note 1> These steps apply to the PDA with Bluetooth function, for example iPAQ 3870 or 3970 PDA <Note2>... - Page 8 To configure the virtual serial port which the application software use with. <1> On the client, make sure the Bluetooth device is available. <2> Click the Bluetooth RF icon and select Bluetooth manager.
- Page 9 <3> Click tool and select setup the device. <4> Select the serial port panel and you can see the output serial port which should be used by application for specified Bluetooth device.
- Page 10 To establish a Bluetooth serial port connection: Connections are initiated from the client: <1> Click search to find available device. <2> Select the device which you want to establish connection to and then click save button. Another window will popup and you can choose at least one place to save the selected device. After that, click...
- Page 11 <3> Click the device you want to establish connection to. The device information will show and at the same time iPAQ Bluetooth will search for available service in the selected device for a short time. After that, if there is any service found you can click action and select connect to the found service.
- Page 12 Appendix A Installing WinFast Navigator for Pocket PC Note : Microsoft ActiveSync has to be installed on your computer when you install WinFast Navigator. The application interface is shown in the figure to the right. Step 1. Insert the software CD in your CD-ROM drive. The setup screen appears as shown in the figure to the right.
- Page 13 Step 2. The Add/Remove Programs dialog box appears. An information box on top of it tells you the application is Retrieving application data from the mobile device. Step 3. The application will next determine the destination location. A dialog box appears asking if you want to install the application at the default location, which is Main Memory on your PDA/pocket PC.
- Page 14 Step 4. A dialog box appears showing the progress of installation.
- Page 15 Step 5. When the installation is completed, a dialog box tells you to check your mobile device screen to see if additional steps are necessary to complete this installation. Click OK.
-
Page 16: Appendix B Test Reference For Only
Appendix B Test Reference for Only PC Bluetooth Setup with Widcomm BTW <Note>This software does belong to copyright reserved of Widcomm company and you have to get the authorized software to use it. The follow method is only for reference. The Bluetooth Serial Port service allows two Bluetooth devices to establish a wireless connection through virtual communications ports and then use that connection as if it were a hardwired serial cable between the devices. - Page 17 <2> In the right pane of Entire Bluetooth Neighborhood, right-click anywhere except on a device name and select Refresh from the pop-up menu.
- Page 18 <3> In the Folders pane of My Bluetooth Places, right-click the server you want to establish a connection with and select Discover Available Services from the popup menu to update the available services list. The available services will be displayed in the right pane of My Bluetooth Places. <4>...
- Page 20 Fax: +886-(0)2 8226 5801 Leadtek U.S.A.: 46721 Fremont Blvd., Fremont, CA94538, U.S.A. Phone: +510 490 8076 Fax: +510 490 7759 Leadtek Research Europe B.V.： Antennestraat 16 1322 AB, Almere – The Netherlands Tel:+31(0)36 536 55 78 Fax:+31(0)36 536 22 15 E-mail: service@leadtek.com.tw Home Page: www.leadtek.com.tw...
