Summary of Contents for Rocktron BLACK MOAN CAT
- Page 2 This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website - www.rocktron.com). Precautions Read all instructions contained in this manual.
-
Page 3: Operating Temperature

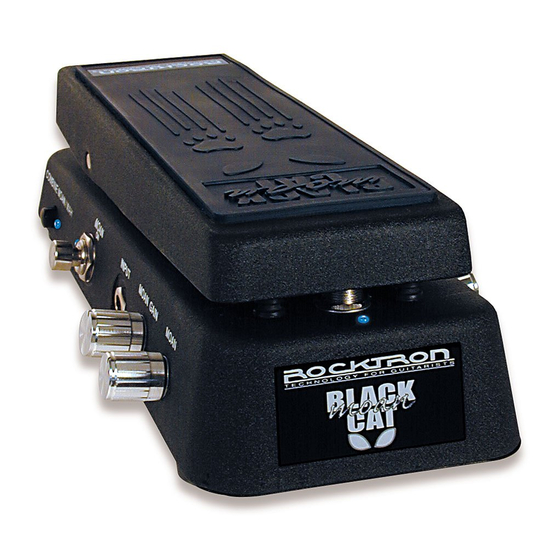

Precautions Continued..Do not block any ventilation openings (if applicable). Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. This product is not equipped with a plug or cable. This pedal runs on a 9 Volt Battery, if a 9Volt DC adapter is the used please follow adapter manufacturer’s operation instructions. - Page 4 Introduction Congratulations on your purchase of the Rocktron Black Cat Moan. The Black Cat Moan is a multifunc- tion wah pedal with extremely useful and musical features. Built-in germanium diodes provide a unique sweepable sonic effect that can act as a stand alone distortion and can be combined with the wah for an effect that cries harder and sweeter than a baby.
- Page 5 Connection...
- Page 6 Connection when using with other stomp boxes or effects:...
- Page 7 Controls and Descriptions:...
- Page 9 Controls and Function Descriptions Rocker Footpedal - Place your foot on the rocker footpedal and rock it up and down (toe to heel - heel to toe) to work the “ wah” effect. Wah ON/OFF Switch - is located under the toe of the rocker footpedal.
- Page 10 MOAN ON/OFF LED - When the LED is lit the MOAN effect will be ON. When the LED is not lit the MOAN effect is bypassed. COMBINE LED - When this Red LED is lit the COMBINE function is activated. When the LED is not lit, the COMBINE function is bypassed.
- Page 11 PEDAL ROCKER TENSION ADJUSTMENT - This screw will allow you to adjust the “action” of the pedal to suit your taste with a allen wrench (not included). If you would like a tighter or heavier movement of the pedal using an allen wrench turn the screw clockwise.
-
Page 12: Specifications
WAH ON LED - This super bright blue LED will be lit when the “wah” effect is activated. To activate the wah - see point 2. The blue LED will not be lit when the wah is bypassed. 9-VOLT BATTERY COMPARTMENT - to access pull on small tab labeled “OPEN”. -
Page 13: Hints And Tips
Hints and Tips The Black Cat Moan (as with all Wah Wah pedals) are normally put in the beginning of your signal chain. Although, you may place your wah at any place in your signal chain, it usually sounds best at the beginning - directly from your guitar (or bass). -
Page 14: Other Rocktron Products
Other Rocktron Products Rack Gear: Gainiac (preamp w/12ax7 tube) Chameleon 2000 (preamp w/multi-effects) RepliTone MP(modelling preamp w/multi-effects) Xpression (multi-effects processor) Blue Thunder (bass preamp w/multi-effects) Voodu Valve (preamp w/12ax7 tube and multi-effects) Prophesy (our top of the line preamp with multi-effects) - Page 15 Foot Controllers: MIDI Mate (Midi Foot Controller) MIDI XChange(MIDI Footcontroller) All Access (Midi Foot Controller ) HEX (Expression Pedal) RMM900(7-pin Din MIDI Cable) RM4 (MIDI Controller for Vendetta amps) RFS1 and RFS2 (Single and Double Latching Footswitches for Rampage Amps) Electric Guitar - Acoustic Guitar and Bass Amplifiers: Vendetta Head(100 W Head 4-Channels All Tube - MIDI Switchable) Vendetta Combo (100W 2x12 Combo Celestion 90s all Tube4-Channel MIDI Switchable)
- Page 16 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49015 Rocktron Phone: 1-(269)-968-3351 Email: info@rocktron.com www.rocktron.com 2003-0001 Rev. 02/01/03...
