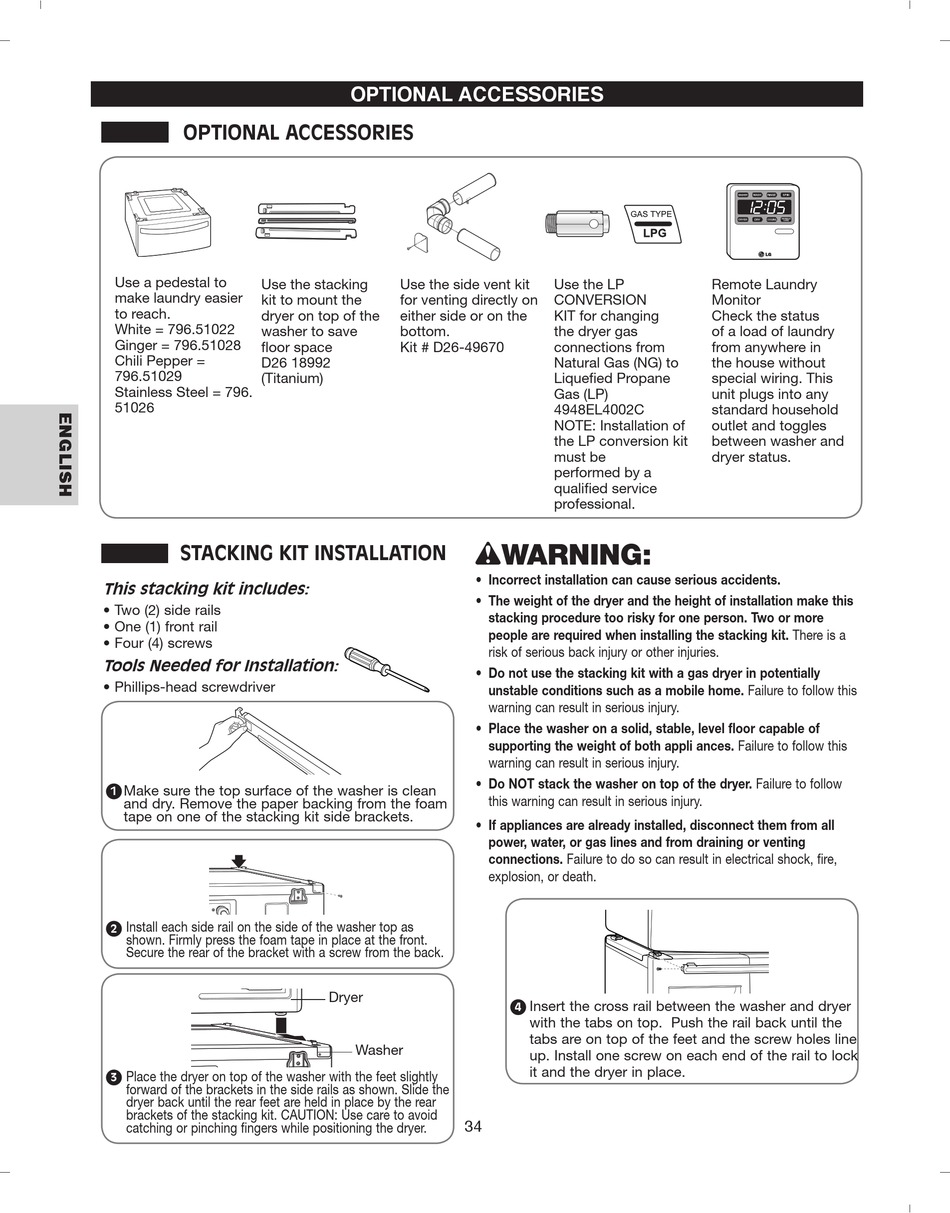

OPTIONAL ACCESSORIES
Use a pedestal to
Use the stacking
make laundry easier
kit to mount the
to reach.
dryer on top of the
White = 796.51022
washer to save
Ginger = 796.51028
floor space
Chili Pepper =
D26 18992
796.51029
(Titanium)
Stainless Steel = 796.
51026

STACkING kIT INSTALLATION

This stacking kit includes:
• Two (2) side rails
• One (1) front rail
• Four (4) screws
Tools Needed for Installation:
• Phillips-head screwdriver
Make sure the top surface of the washer is clean
1
and dry. Remove the paper backing from the foam
tape on one of the stacking kit side brackets.
Install each side rail on the side of the washer top as
2
shown. Firmly press the foam tape in place at the front.
Secure the rear of the bracket with a screw from the back.
Place the dryer on top of the washer with the feet slightly
3
forward of the brackets in the side rails as shown. Slide the
dryer back until the rear feet are held in place by the rear
brackets of the stacking kit. CAUTION: Use care to avoid
catching or pinching fingers while positioning the dryer.
OPTIONAL ACCESSORIES
Use the side vent kit
for venting directly on
either side or on the
bottom.
Kit # D26-49670
wWARNING:
• Incorrect installation can cause serious accidents.
• The weight of the dryer and the height of installation make this
stacking procedure too risky for one person. Two or more
people are required when installing the stacking kit. There is a
risk of serious back injury or other injuries.
• Do not use the stacking kit with a gas dryer in potentially
unstable conditions such as a mobile home. Failure to follow this
warning can result in serious injury.
• Place the washer on a solid, stable, level floor capable of
supporting the weight of both appli ances. Failure to follow this
warning can result in serious injury.
• Do NOT stack the washer on top of the dryer. Failure to follow
this warning can result in serious injury.
• If appliances are already installed, disconnect them from all
power, water, or gas lines and from draining or venting
connections. Failure to do so can result in electrical shock, fire,
explosion, or death.
Dryer
Washer
34
Use the LP
CONVERSION
KIT for changing
the dryer gas
connections from
Natural Gas (NG) to
Liquefied Propane
Gas (LP)
4948EL4002C
NOTE: Installation of
the LP conversion kit
must be
performed by a
qualified service
professional.
Insert the cross rail between the washer and dryer
4
with the tabs on top. Push the rail back until the
tabs are on top of the feet and the screw holes line
up. Install one screw on each end of the rail to lock
it and the dryer in place.
Remote Laundry
Monitor
Check the status
of a load of laundry
from anywhere in
the house without
special wiring. This
unit plugs into any
standard household
outlet and toggles
between washer and
dryer status.
