Fuse Block F34 - Mercedes-Benz Vito Operating Instructions Manual

No. Consumer
F 1 Terminal 30 electrical
system, alternator
F 4 Air-conditioning fan (in
cooling unit)
F 5 Secondary air pump

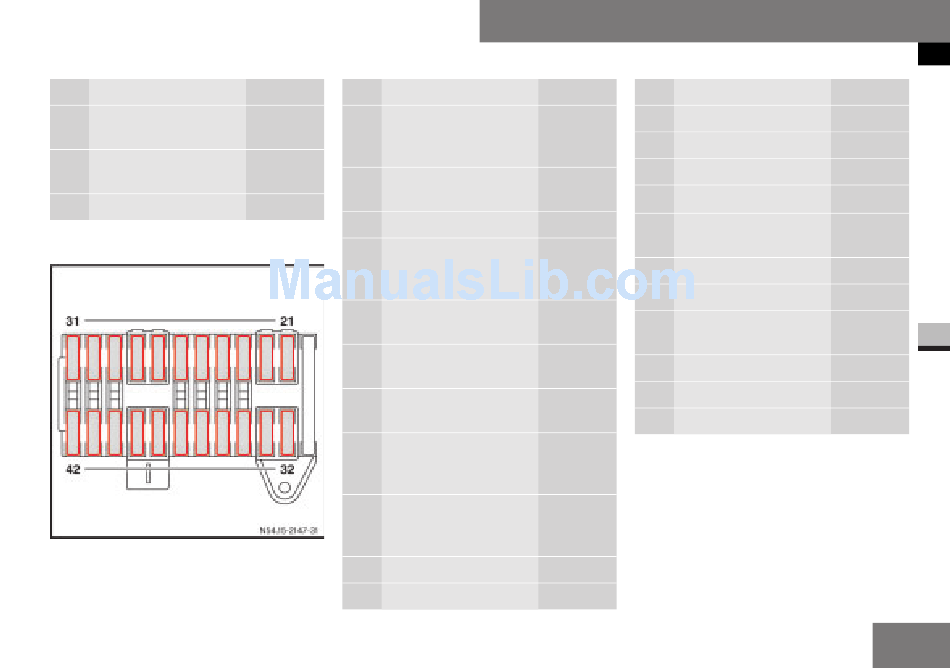

Fuse block F 34
Rating No. Consumer
225 A 21 Light switch and upper
section of control pan-
el
60 A
22 Rear-compartment en-
tertainment
40 A
23 Interior light
24 Overhead control pan-
el and sliding/tilting
sunroof
25 Rear-compartment
sliding/tilting roof
26 Auxiliary heating, radio
receiver
27 Front-compartment air
conditioning
28 Socket for rear-com-
partment entertain-
ment
29 Mobile phone/CD
changer/microphone
control module
30 Seat heating controls
31 Tachograph
Nur fuer internen Gebrauch
Rating No. Consumer
5 A 32 Diagnostics gateway
33 Diagnostics socket
34 Audio gateway
7.5 A
35 Unassigned
10 A
36 Headlamp cleaning
system
7.5 A/25
A
37 ATA battery horn
38 Steering column lock
25 A
39 Front-compartment
blower
5 A
40 ABS control unit
41 ABS control unit
7.5 A
42 Radio/COMAND
15 A
7.5 A
30 A
5 A
Practical advice
Electrical system
Rating
5 A
10 A
15 A
30 A
10 A
20 A
40 A
5
25 A
40 A
15 A
333
