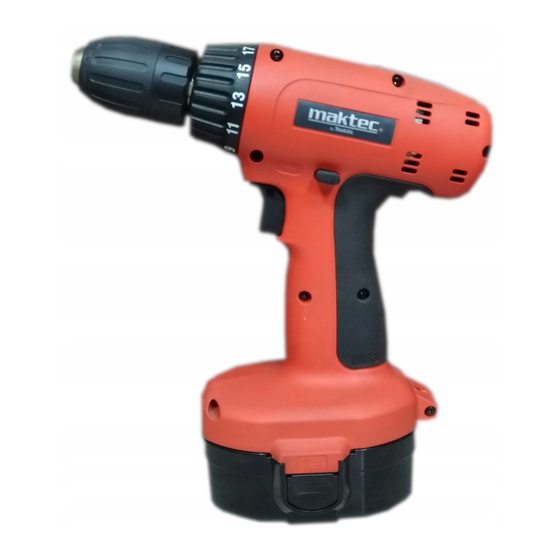

- Page 1 Cordless Driver Drill MODEL MT064 MODEL MT065 003947 I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Specifications
SPECIFICATIONS Model MT064 MT065 Steel 10 mm 13 mm Wood 25 mm 28 mm Capacities Wood screw 6 x 75 mm 6 x 75 mm Machine screw 6 mm 6 mm High 0 - 1,300 0 - 1,300 No load speed... -
Page 3: General Safety Rules
EC-DECLARATION OF CONFORMITY Yasuhiko Kanzaki CE 2005 We declare under our sole responsibility that this product is in compliance with the Director following standards of standardized docu- ments, EN60745, EN55014 in accordance MAKITA INTERNATIONAL EUROPE LTD. with Council Directives, 89/336/EEC, 98/37/ Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND Responsible manufacturer:... - Page 4 6. Do not expose power tools to rain or wet 15. If devices are provided for the connection conditions. Water entering a power tool will of dust extraction and collection facilities, increase the risk of electric shock. ensure these are connected and properly used.
-
Page 5: Specific Safety Rules
for operations different from those intended small metal objects that can make a con- could result in a hazardous situation. nection from one terminal to another. Shorting the battery terminals together may Battery tool use and care cause burns or a fire. 23. - Page 6 SAVE THESE INSTRUCTIONS WARNING: MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CARTRIDGE ENC006-1 1. Before using battery cartridge, read all A battery short can cause a large current instructions and cautionary markings on flow, overheating, possible burns and (1) battery charger, (2) battery, and (3)
-
Page 7: Tips For Maintaining Maximum Battery Life
SAVE THESE INSTRUCTIONS Tips for maintaining maximum battery life 1. Charge the battery cartridge before com- Overcharging shortens the battery service pletely discharged. life. Always stop tool operation and charge the 3. Charge the battery cartridge with room battery cartridge when you notice less temperature at 10°C - 40°C (50°F - 104°F). -
Page 8: Functional Description
FUNCTIONAL CAUTION: DESCRIPTION • Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge 003948 • Always switch off the tool before insertion or removal of the battery cartridge. - Page 9 • Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool. • When not operating the tool, always set the reversing switch lever to the neutral position. Speed change 003952 To change the speed, first switch off the tool and then slide...
-
Page 10: Operation
Installing or removing driver bit or drill bit 003954 Hold the ring and turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Hold the ring firmly and turn the sleeve clockwise to tighten the chuck. -
Page 11: Maintenance
Drilling operation First, turn the adjusting ring so that the pointer points to the marking. Then proceed as follows. Drilling in wood When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the bit into the workpiece. - Page 12 Makita Corporation Anjo, Aichi, Japan 884489C224...
