Panasonic CZ-RD52CP User Manual

ENGLISH
TABLE OF CONTENTS
Product Overview
Remote Control Preparation
Operations
How to Select the Timer
Daily Timer Setting
Weekly Timer Setting
Troubleshooting
© Panasonic HA Air-Conditioning (M) Sdn. Bhd. 2008.
Unauthorized copying and distribution is a violation
of law.
Panasonic Corporation
Website: http://panasonic.net/
REMOTE CONTROL PREPARATION REMOTE CONTROL PREPARATION
SETTING CURRENT DAY AND TIME
The current day and time need to be set when you turn on the power for the fi rst time or after a long time has
elapsed since the power was last turned on.
The current time becomes the standard time for all the Timer operations.
Set the current time and day accurately.
Example: Current Day is Wednesday and Current Time is 8:00
1
Turn on the power supply
2
CLOCK
Press
TIMER/CLOCK
MODE UP SELECT
OFF/ON DOWN SET
CLOCK CANCEL
3
Select Current Day
UP DOWN
Press or to select current day. (Refer to the above example; select WED)
SET
To confi rm the selected day, press .
4
Select Current Time
UP DOWN
Press or to select current time. (Refer to the above example; select 8:00)
SET
To confi rm the selected time, press .
Note:
UP DOWN
- Press to increase or to decrease (1-minute step) or hold the button to change the time
faster.
UP DOWN
- If or is not pressed for 30 seconds during the day or time setting or if
setting at that moment is confi rmed and setting will end.
Final CLOCK Display
F566767-OSTH0901-01_1EN.indd 1 F566767-OSTH0901-01_1EN.indd 1
F566767

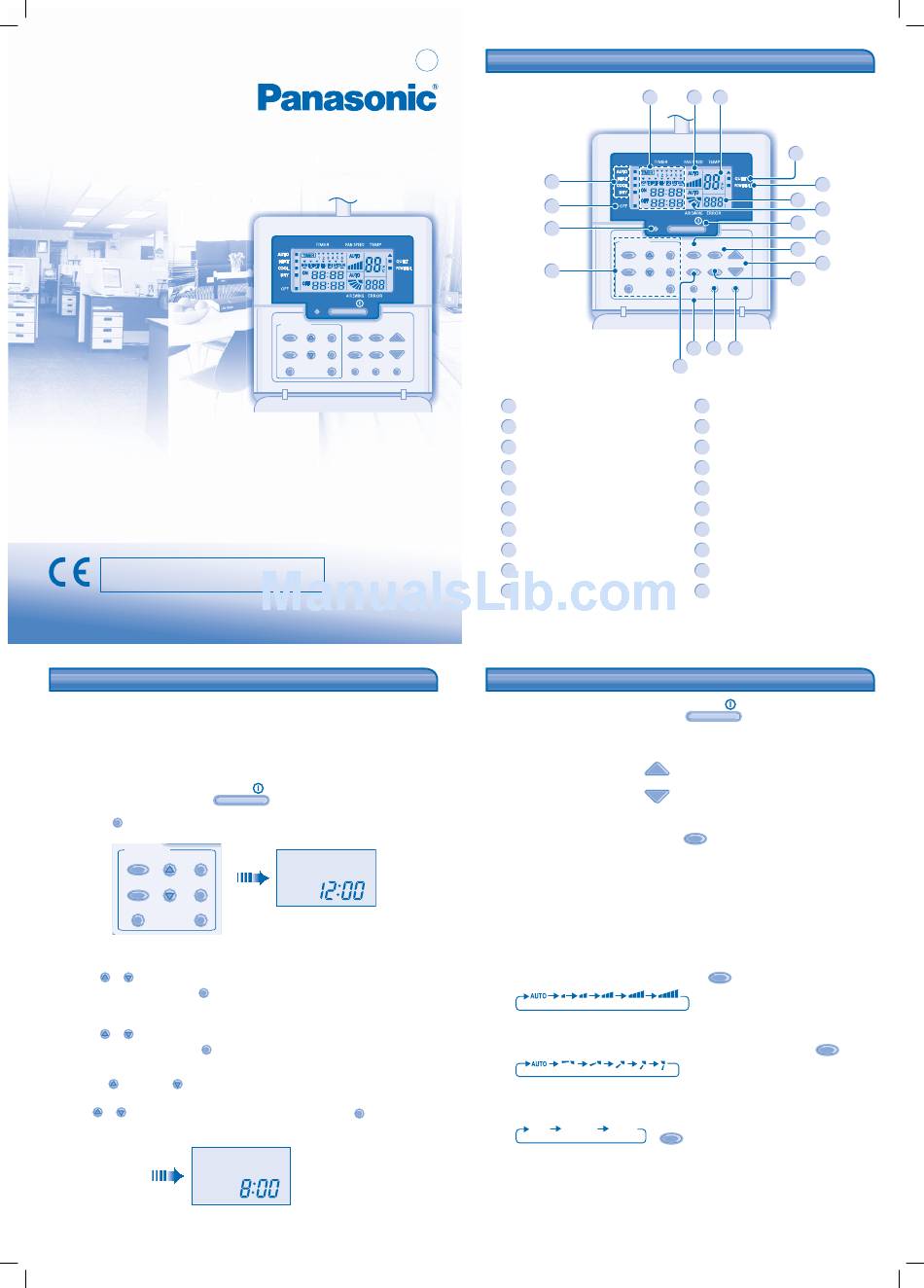

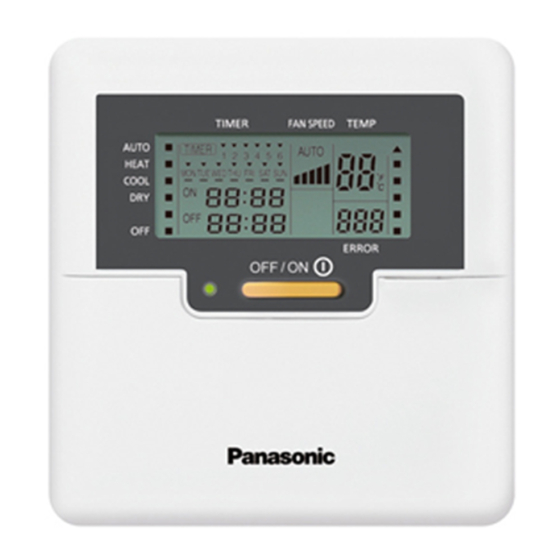

User Manual
Wired Remote Control
OFF / ON
TIMER/CLOCK
MODE UP SELECT
FAN SPEED MODE
QUIET/
OFF/ON DOWN SET
AIR SWING POWERFUL
CLOCK CANCEL
AC
CHECK RESET
CZ - RD52CP
2
3
4
5
6
7~8
8
OFF / ON
MON
"MON" and "12:00" will be
blinking
SET
is pressed, the
WED
":" will be blinking
PRODUCT OVERVIEW PRODUCT OVERVIEW
01/13
13
12
1
8
TEMP
RC
1
Operation LED
2
OFF/ON Button
3
Temperature Setting Button
4
Operation Mode Button
5
Fan Speed Button
6
Airfl ow Direction Selection Button
7
Quiet/Powerful Operation Button
8
Timer Setting Button Group
9
Check Button
10
Air Conditioner Reset Button
OPERATIONS OPERATIONS
1
TO TURN ON OR OFF THE UNIT
• Please be aware of the OFF indication on the remote control display to prevent the unit from
starting/stopping improperly.
• For normal operation, OFF indicator shown on remote control display when the unit is turn off.
2
TO SET TEMPERATURE
• Selection range: 16°C ~ 30°C.
3
TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects operation mode according to temperature setting, outdoor and room temperature.
HEAT mode - To enjoy warm air
• Unit takes a while to warm up.
COOL mode - To enjoy cool air
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling operation.
• During soft dry operation, the indoor fan operates at a low fan speed.
• The louvers movement might not align with the remote control display.
4
TO SELECT FAN SPEED (5 options)
• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.
5
TO ADJUST VERTICAL AIRFLOW DIRECTION (5 options)
• Keeps the room ventilated.
• If AUTO is set, the louvers swing up/down automatically.
• In heat mode, the air blows horizontally for a while, then starts to blow downwards.
6
QUIET POWERFUL
QUIET - TO ENJOY QUIET ENVIRONMENT
• This operation reduces airfl ow noise.
POWERFUL - TO ACHIEVE TEMPERATURE QUICKLY
3
14 15 17
OFF / ON
TIMER/CLOCK
MODE UP SELECT
FAN SPEED MODE
QUIET/
TEMP
OFF/ON DOWN SET
AIR SWING POWERFUL
CLOCK CANCEL
AC RC
CHECK RESET
9 10 11
6
11
Remote Control Reset Button
12
OFF Indicator
13
Operation Mode Selection Indicators
14
Timer/Clock Setting Display
15
Fan Speed Display
16
Airfl ow Direction Setting Display
17
Temperature Setting Display
18
Quiet Operation Indicator
19
Powerful Operation Indicator
20
System Error Display
OFF / ON
TEMP
MODE
FAN SPEED
QUIET/
NORMAL
POWERFUL
18
19
20
16
2
5
4
3
7
2
AIR SWING
4
1/13/2009 11:06:31 AM 1/13/2009 11:06:31 AM
