Iris Camera

Operating Instructions

BM-ET500E
Model No.
ACCEPT
REJECT
READY
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic BM-ET500E

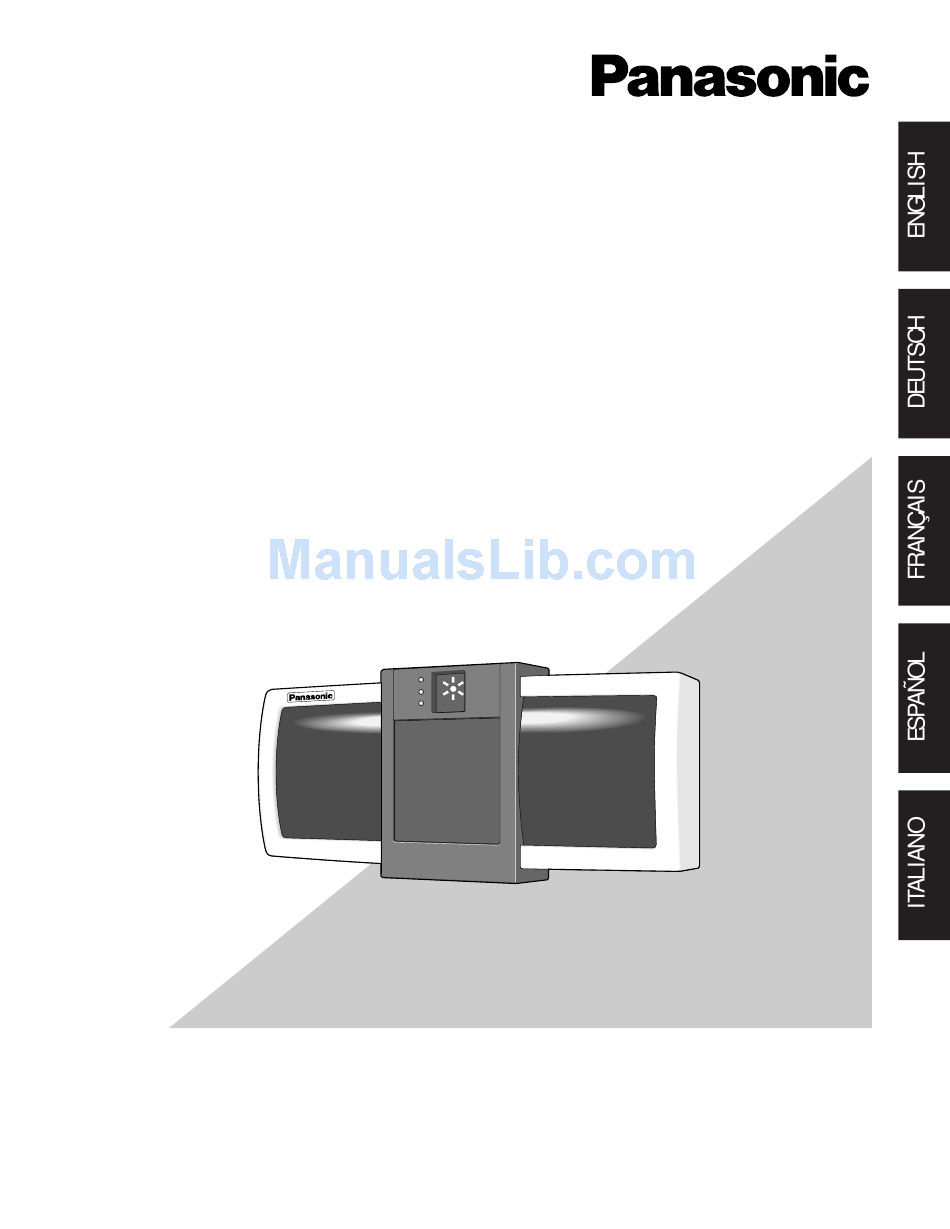

  • Page 1: Operating Instructions

    Iris Camera Operating Instructions BM-ET500E Model No. ACCEPT REJECT READY Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
  • Page 2 (servicing) instructions in the literature accom- panying the appliance. Model No. BM-ET500E Serial No. WARNING: To prevent fire or electric shock hazard, do not expose this appliance to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not use near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ............................3 PREFACE ...................................... 5 FEATURES ....................................5 PRECAUTIONS ..................................... 6 DOCUMENT CONVENTION ................................. 7 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ...................... 8 INSTALLATIONS AND CONNECTIONS ............................9 DIMENSIONS OF THE MOUNTING BRACKET ..........................12 ADJUSTMENTS AND MAINTENANCE ............................13 Adjustment .....................................
  • Page 5: Preface

    PREFACE Iris Camera BM-ET500E is designed for an iris physical access system, which identifies the person with one’s iris pattern. FEATURES • This system is composed of an iris camera, control unit, and the administration PC (you need the optional soft- ware BM-ES500E).
  • Page 6: Precautions

    PRECAUTIONS • Refer all work related to the installation of this • When you use an external power control unit, do the product to qualified service personnel or system following: installers. Turn on the external power control unit before turning Consult an expert on the load bearing capacity of the on Control Unit BM-ED500.
  • Page 7: Document Convention

    DOCUMENT CONVENTION These operating instructions use the following convention when describing the use and operation of this system. Unit: Panasonic Iris Camera BM-ET500E Control unit: Panasonic Control Unit BM-ED500 Administration software: Panasonic Administration Software BM-ES500E Caution: Text with this appearance is a special instruction which you should heed for your safety.
  • Page 8: Major Operating Controls And Their Functions

    MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS w User guidance indicators q Status indicator ACCEPT e Built-in color REJECT READY CCTV camera r Operation indicators t Front panel y 10 key cover u LED indicator CANCEL ENTER o Buzzer-level adjustment hole i Numeric keys q Status Indicator r Operation indicators...
  • Page 9: Installations And Connections

    INSTALLATIONS AND CONNECTIONS WARNING 2. Remove the shipping lock as follows: The installation described in these figures should be made by qualified service personnel or trained system installers. Locked Belt Cautions: • This system must be installed within the protected promise accordance with...
  • Page 10 4. Attach the unit to the mounting bracket. (1) Attach the mounting bracket to the wall. Video output cable and Provide access for power cable * cables to be routed (from the control unit) through the wall. (2) Remove the numeric (3) Remove the shipping lock.
  • Page 11 400 mm (16 in.) 900 mm (35 in.) 1 300 mm (51 in.) 1 300 mm (51 in.) Floor System Instruction (Maximum System) Coaxial cable(BNC) Coaxial cable(BNC) Camera power cable BM-ET500E (For identification) BM-ET500E (For enrollment) General-purpose BM-ED500 power supply (24V DC,UL listed)
  • Page 12: Dimensions Of The Mounting Bracket

    DIMENSIONS OF THE MOUNTING BRACKET 180.5 174.5 4- 10 22.5 180.5 186.5 (Unit of length: mm)
  • Page 13: Adjustments And Maintenance

    ADJUSTMENTS AND MAINTENANCE Adjustment 3. When finished, connect the control cable to the numeric keyboard. Adjusting the Buzzer Level Adjust the buzzer level, which informs you of recognition Cleaning the Inside of the Camera Unit results, as follows. There are a mirror, proximity sensor, and two cameras 1.
  • Page 14: Recognition Procedures

    RECOGNITION PROCEDURES There is two ways of identification: 3. Status indicator (1) will light up. • Iris recognition • ID-and-password authorization The indicator lights up. Note: When “READY” is blinking, recognition will be unavailable. Wait until the indicator is on, not blinking. ACCEPT REJECT READY...
  • Page 15: Id-And-Password Authorization

    Notes: • The capturing range is as follows. Top View Side View 1 765 mm (69 in.) Upside limit of the eye position 90 mm (3-1/2 in.) (Right-side limit) 0 mm (0 in.) 1 490 mm (59 in.) (Center of the camera unit) Center of optical axis 90 mm (3-1/2 in.) (Left-side limit)
  • Page 16: Additional System Components

    ADDITIONAL SYSTEM COMPONENTS Control Unit BM-ED500 Administration Software BM- ES500E Administration Software BM-ES500E This product is necessary for administering iris data, IDs, and passwords. This product is necessary for iris data recognition/enroll- ment and controlling an electric lock.
  • Page 17: Troubleshooting

    TROUBLESHOOTING Check to see the following before request for repair. If a trouble cannot be corrected even after checking and trying remedy, contact your dealer. Problem Check item Remedy System does not power up. The power of the control unit may be Confirm if the power of the control unit turned off.
  • Page 18: Specifications

    SPECIFICATIONS General Power source: 32 V, 3 A DC (when supplied from Control Unit BM-ED500) 24 V, 4 A DC (when supplied from an external power control unit Power consumption: 30 W (while waiting) 60 W (max. while operating) Iris recognition time: 3 seconds Ambient operating temperature: 0 °C to +40 °C (32 °F to 104 °F)
  • Page 19 Matsushita Electric Industrial Co., Ltd. Web Site : http://www.panasonic.co.jp/global/ NM1002-1122 3TR001095BAA Printed in Japan Gedruckt in Japan Imprimé au Japon Impreso en Japón Stampat in Jiappone 2002 © Matsushita Electric Industrial Co., Ltd. All rights reserved.
