VQT9014

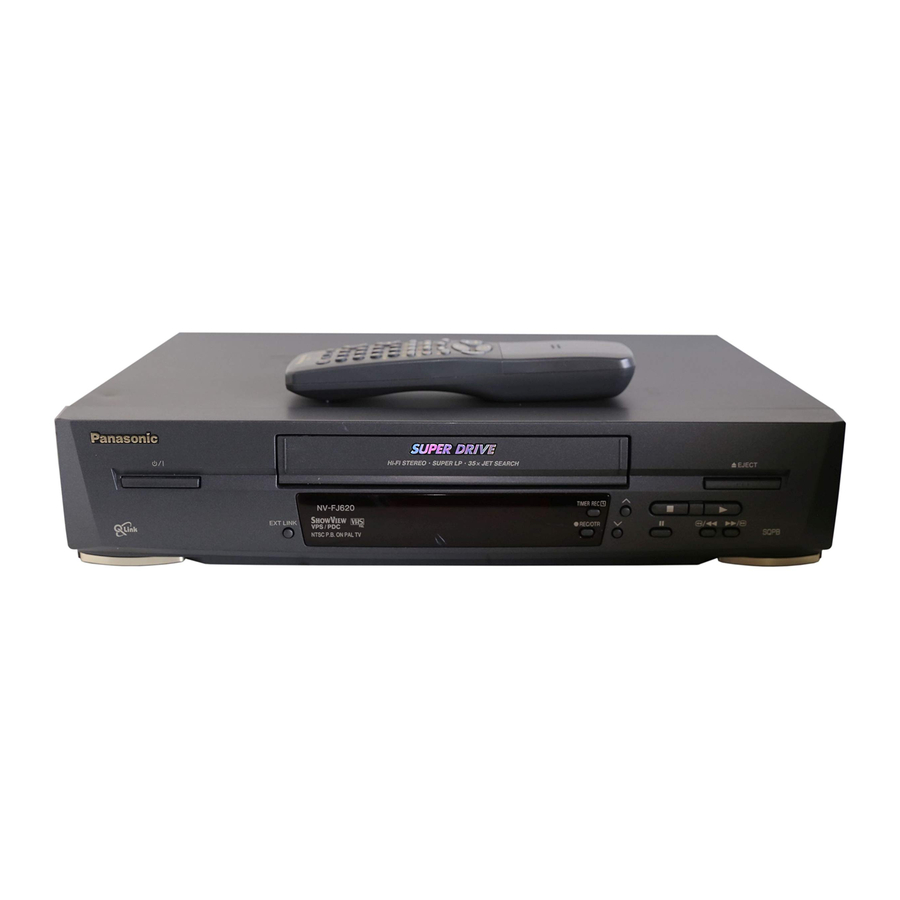

NV-FJ620 Series
NV-FJ621 Series
NV-FJ616 Series
NV-SJ220 Series
Contents
Please read through all these operating instructions
(especially the safety information) before connecting
or operating the video cassette recorder, or adjusting
any settings.
Video Cassette Recorder
Operating Instructions
Page
2
3
4
4
4
5
8
9
11
12
14
14
15
15
17
17
19
20
23
Back cover
Advertisement
Table of Contents
Related Manuals for Panasonic NV-FJ620
Summary of Contents for Panasonic NV-FJ620
-
Page 1: Table Of Contents
