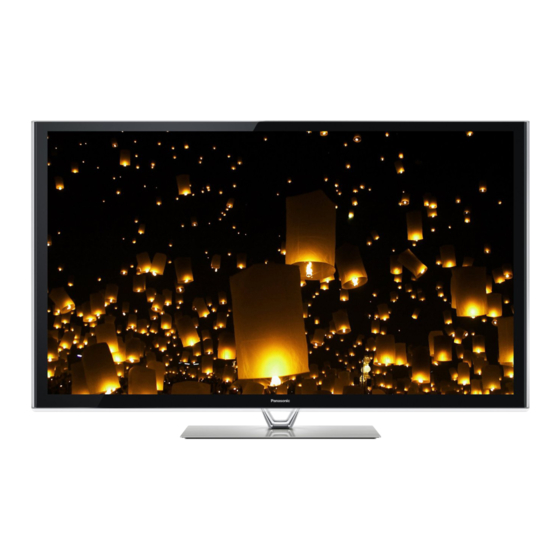

TX-P50VT60E
TX-P55VT60E
TX-P65VT60E
TX-P50VTW60
TX-P55VTW60
TX-P65VTW60
e HELP
English

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TXP50VT60E

Summary of Contents for Panasonic TXP50VT60E

  • Page 1 TX-P50VT60E TX-P55VT60E TX-P65VT60E TX-P50VTW60 TX-P55VTW60 TX-P65VTW60 e HELP English...

  • Page 2: Table Of Contents

    Watching my Home Screen • Information • How to use • Settings Basic • Satellite connection • Basic connection • Selecting channel • Information banner • Option Menu • Subtitle • Off Timer • Last view External equipment • External connection • Watching external input • Operating with TV’s remote control • HDMI features • Terminal information • Valid input signals For best picture • Viewing Mode...
  • Page 3 TV Guide • Using TV Guide • Timer Programming Teletext • Viewing Teletext • Teletext mode • Note • 3D Eyewear - Functions • 3D Eyewear - Registration • 3D Eyewear - Replacing battery • Viewing 3D • 3D Mode Selection • 3D Settings • Source image format Tuning and editing channels • Setting menu • Favourites Edit • Channel List...
  • Page 4 Timer Programming • Setting timer programming • Editing timer programming • Note Technical information • USB HDD Internet service Internet content • Information • Selecting internet content • Note Network connections • Internet connection • Note Network settings • Network Connection • Custom - Wireless • Custom - Wired • Network Status • VIERA remote Settings • Network Link Settings • Software Update • New Software Message...
  • Page 5 Network settings • Network Connection • Custom - Wireless • Custom - Wired • Custom - Wireless Access Point • Network Status • VIERA remote Settings • Network Link Settings • Software Update • New Software Message Photos • Selecting file • Viewing photo • Using slideshow Videos • Selecting file • Watching video • Video Setup • Audio output settings Music...
  • Page 6 • Selecting device / mode Photo mode • Selecting file • Viewing photo • Sorting photos • Multi Shot 3D • Using slideshow Video mode • Selecting file • Watching video • Video Setup • Audio output settings Recorded TV mode • Selecting content • Watching recorded TV • Grouping contents • Deleting content • Changing device • Chapter List • Audio output settings...
  • Page 7 Functions APPS List • Information • How to use • Settings Multi Window • Information • How to use • Note VIERA Link “HDAVI Control™” • Summary of VIERA Link • Preparations • Easy playback • Power on Link • Power off Link • Standby Power Save • Intelligent Auto Standby • VIERA Link Control • Speaker Selection • Note Child Lock...
  • Page 8 Updating the TV Software • Information • Auto update • Manual update Setting characters • Using numeric buttons Built-in Camera • Using built-in Camera Voice Control • Preparations • How to use Electronic Touch Pen • Information • Touch Pen Setup • Using Electronic Touch Pen Bluetooth devices • Bluetooth Setup Keyboard / Gamepad • Keyboard • Gamepad...
  • Page 9 • Intelligent Frame Creation • 24p Smooth Film • Advanced Settings • Option Settings • Screen Settings • 3D Settings • Lock Settings • Copy Adjustment • Reset to Defaults Sound • Mode • Basic settings • Volume settings • Voice Guidance Settings • Advanced settings • Reset to Defaults Network • Network Connection • Network Status • VIERA remote Settings • Network Link Settings • Other settings...
  • Page 10 • Touch Pen Setup • VIERA Touch Pad Controller • Bluetooth Setup • Child Lock • Tuning Menu • Language • Display Settings • Common Interface • VIERA Link Settings • Professional Mode (isfccc) • Data Service Application • System Menu • Other Settings Support FAQs • Picture • Digital TV • Analogue TV • Sound • 3D • HDMI • Network • Other...
  • Page 11 Licence • Licence Letters enclosed in a box indicate remote control buttons. Menu Letters in cyan indicate on-screen display items. References in this eHELP The images shown in this eHELP are for illustrative purposes only. ● - 11 -...

  • Page 12: My Home Screen

    Watching my Home Screen Information “my Home Screen” is a gateway to the TV, applications, and more. It provides easy access to special features such as the Media Player, videos, games, communication tools, etc. as shown below (example). HOME HOME Home Screen Selected content screen (TV, application, etc.) Home Screen Selection...

  • Page 13: How To Use

    How to use Home Screen provides access to special features such as the Media Player, TV, internet content, data services, communication tools, etc. 1. Display Home Screen with HOME (Example) The last viewed Home Screen is displayed when the TV is turned on. ●...

  • Page 14: Settings

    Settings Select the setup menu from the tool guide on the top of the screen, or use coloured button to display the setup menu. (Example) ■ Home Screen Selection 1. Display Home Screen Selection with HOME (Example) 2. Select the screen with and press to set Full Screen...
  • Page 15 ■ Settings You can customise any Home Screen. (For example, changing the wallpaper, renaming freely, editing applications, setting the screen launched when the TV is turned on, etc.) 1. Select Settings from the tool guide 2. Follow the on-screen instructions ■...

  • Page 16: Basic

    Basic Satellite connection Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables. For DVB-S ● ■ Dual tuner (DiSEqC) Connect the both of satellite IN 1 / IN 2 terminals to the satellite dish with Multi Switcher, and you can watch or record 2 DVB-S programmes simultaneously, etc.
  • Page 17 ■ Single tuner Connect the satellite IN 1 terminal to the satellite dish. Watching or recording 2 DVB-S programmes simultaneously, etc. are not ● available. Satellite IN 1 terminal Satellite cable Satellite dish = Note = To ensure your satellite dish is correctly installed, please consult your local ●...

  • Page 18: Basic Connection

    Basic connection Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables. ■ Aerial Terrestrial / cable terminal RF cable Terrestrial aerial or cable For DVB-C, DVB-T, Analogue ● ■ DVD Recorder / VCR Terrestrial / cable terminal RF cable DVD Recorder / VCR...
  • Page 19 ■ DVD Recorder / VCR and Set top box HDMI terminal HDMI cable Set top box Cable AV1 (SCART) terminal SCART cable – AV1 (SCART) adaptor (supplied) is necessary when connecting to the Terrestrial / cable terminal RF cable DVD Recorder / VCR Terrestrial aerial For VIERA Link connections ●...

  • Page 20: Selecting Channel

    Selecting channel 1. Display the TV Selection screen with 2. Select the mode with and press to set DVB-S DVB-C DVB-T Analogue The selectable modes vary depending on the channels stored. ● You can also select the mode pressing repeatedly on the remote ●...

  • Page 21: Information Banner

    4. Press to exit TV Guide Watching TV Guide Using TV Guide ■ To watch pay-TV For information of the encrypted channels ● Functions Common Interface Using Common Interface Consult the operator / broadcaster or CI module manufacturer for more ●...
  • Page 22 Dolby Dolby D, HE-AAC: Dolby Digital Plus, Dolby Digital or HE-AAC audio track Subtitle service available Teletext service available Multiple audio available Multiple video available Multiple audio and video available Stereo, Mono: Audio mode Data service (Hybrid Broadcast Broadband TV application) available Functions Data Service Application Using Data Service Application...

  • Page 23: Option Menu

    Option Menu Confirm or change the current status. 1. Display Option Menu with OPTION 2. Select one of the following items with and press to access Voice Guidance Settings Multi Video Multi Audio Dual Audio Channel Subtitle Language Teletext Character Set Teletext Language Volume Correction CAM Selection...

  • Page 24: Subtitle

    For DVB mode ● Not valid on the sub screen in multi window mode ● Teletext Character Set Sets the teletext language font. Settings Setup Display Settings Teletext Language Selects between alternative languages for teletext (if available). For DVB mode ●...

  • Page 25: Off Timer

    Off Timer Turn the TV Standby mode automatically after a fixed period. 1. Display the menu with MENU 2. Select Timer Off Timer with and press to access 3. Select the time in 15-minute increments with and press to set (minutes) To cancel, set to or turn the TV off.

  • Page 26: External Equipment

    External equipment External connection These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment. For basic connection ● Watching Basic Basic connection To use the specific devices supporting Bluetooth wireless technology ●...

  • Page 27: Usb Devices

    ■ AV devices AV2 (COMPONENT) terminals Component cables – AV2 (COMPONENT / VIDEO) adaptor (supplied) is necessary. DVD player AV2 (VIDEO) terminals Composite cables – AV2 (COMPONENT / VIDEO) adaptor (supplied) is necessary. Camcorder / Game equipment ■ USB devices USB port USB cable USB HDD...

  • Page 28: Watching External Input

    You cannot connect any devices by using USB card reader. ● Additional information for the devices may be on the following website. ● (English only) http://panasonic.net/viera/support ■ To listen with speakers DIGITAL AUDIO Optical digital audio cable Amplifier with speaker system To enjoy the sound from the external equipment in multi-channel sound ●...

  • Page 29: Operating With Tv's Remote Control

    playback starts. – Input signals are automatically identified by the SCART (pin 8) terminal. – This function is also available for HDMI connections. – When input mode is not switched automatically, perform as above or check the setup of the equipment. You can also select the input pressing on the remote control or ●...
  • Page 30 One Touch Recording ■ How to change the code Each Panasonic product has its own remote control code. Change the code according to the product for operation. 1. Press and hold Standby On / Off switch during the following operations 2.

  • Page 31: Hdmi Features

    HDMI features HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment with an HDMI or DVI output terminal, such as a DVD player, a set top box or game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.

  • Page 32: Terminal Information

    = Note = Audio settings can be made on HDMI1 / 2 / 3 Input in the Sound Menu. ● Settings Sound Advanced settings If the connected equipment has an aspect adjustment function, set the ● aspect ratio to “16:9”. These HDMI connectors are “type A”.

  • Page 33: Valid Input Signals

    ■ HDMI terminal 1 : TMDS Data2+ 11 : TMDS Clock Shield 2 : TMDS Data2 Shield 12: TMDS Clock− 3 : TMDS Data2− 13: CEC 4 : TMDS Data1+ 14: Utility 5 : TMDS Data1 Shield 15: SCL 6 : TMDS Data1− 16: SDA 7 : TMDS Data0+ 17: DDC/CEC Ground...

  • Page 34: For Best Picture

    For best picture Viewing Mode 1. Display the menu with MENU 2. Select Picture Viewing Mode with and press to access 3. Select the mode with and press to set Viewing Mode (Dynamic Normal Cinema THX Cinema THX Bright Room Custom Professional1 / Professional2)

  • Page 35: Ambient Sensor

    Remaster, Resolution Remaster, Caption Smoother, Brilliance Enhancer, Intelligent Frame Creation 24p Smooth Film can be adjusted and stored. When in Custom Professional1 / 2 mode, Advanced Settings can be adjusted additionally. The settings in Custom Professional1 / 2 mode can be stored for each input.

  • Page 36: Aspect

    Aspect Change the aspect ratio (image size) with ASPECT. ■ To change the aspect ratio manually 1. Display Aspect Selection list with ASPECT 2. Select the mode with and press to set You can also change the mode pressing ASPECT. ●...

  • Page 37: Aspect Control Signal

    completely. Aspect mode can be memorised separately for SD (Standard definition) ● and HD (High definition) signals. Aspect cannot be changed in teletext service and 3D mode. ● Aspect Control Signal Programmes usually contain an “Aspect Control Signal” (Widescreen signal, Control signal through SCART / HDMI terminal).

  • Page 38: Advanced Settings

    PAL 525/60 M.NTSC NTSC : Control signal through SCART (pin 8) / HDMI terminal only ● AV2 (COMPONENT) terminals (WSS only) Valid input signal format: 625 (576) / 50i, 50p Invalid input signal format: 525 (480) / 60i, 60p 750 (720) / 60p, 50p 1,125 (1,080) / 60i, 50i ●...
  • Page 39 ■ Adjust the detailed picture settings 1. Display the menu with MENU 2. Select Picture Advanced Settings Panel Luminance Setting Adaptive Gamma Control Black Expander Colour Gamut White Balance Colour Management Gamma with and press to access 3. Set with and press to store ■...
  • Page 40 For HDMI input or video contents of Media Player (when Colour Remaster ● is set to Off.) ■ White Balance R-Gain G-Gain B-Gain Adjusts the white balance of bright red / green / blue areas. R-Cutoff G-Cutoff B-Cutoff Adjusts the white balance of dark red / green / blue areas. More Detailed Adjustment Adjusts more detailed White Balance items.

  • Page 41: Reset To Defaults

    Y-Hue C-Hue / M-Hue: Adjusts the picture hue of yellow / cyan / magenta areas. Y-Saturation C-Saturation / M-Saturation: Adjusts the saturation of yellow / cyan / magenta areas. Y-Luminance C-Luminance / M-Luminance: Adjusts the luminance of yellow / cyan / magenta areas. Reset to Defaults: Resets to the default detailed Colour Management.

  • Page 42: Lock Settings

    Lock Settings Locks the settings of Professional1 / 2 mode for each input. 1. Display the menu with MENU 2. Select Picture Lock Settings with and press to access 3. Enter the PIN number (4 digits) with numeric buttons Enter the PIN number twice at first setting. ●...

  • Page 43: For Best Audio

    For best audio Sound mode 1. Display the menu with MENU 2. Select Sound Mode with and press to access 3. Select the mode with and press to set Mode (Standard Music Ambience / User) Selects your favourite sound mode for each input. Standard: Provides the suitable sound quality for all types of scenes.

  • Page 44: Tv Guide

    TV Guide Using TV Guide TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters). 1. Display the TV Selection screen with 2.
  • Page 45 To watch the programme ● 1) Select the current programme with and press access 2) Select View with and press to access (DVB) – To use timer programming, select Timer Programming. (Depending on the country you select, you can also set Signal Supported Recording.)

  • Page 46: Timer Programming

    DVB-T and Analogue channels are displayed on the same TV Guide ● screen. may be displayed to distinguish DVB-T and Analogue channels. There will be no programme listings for Analogue channels. Timer Programming The Timer Programming menu allows you to choose programmes that you want to remind watching or record to the USB HDD.
  • Page 47 The availability of this function depends on the country and TV mode you ● select. is displayed on the Timer Programming screen if Signal Supported ● Recording is set. = Note = If you edit the start time or end time of a signal supported recording event ●...

  • Page 48: Teletext

    Teletext Viewing Teletext 1. Switch to teletext with TEXT Displays the index page (content varies depending on the ● broadcasters). Current / sub page numbers are displayed on the top left of the screen. ● Time / date is displayed on the top right of the screen. ●...

  • Page 49: Teletext Mode

    ■ Watch TV and teletext in two windows at once 1. Press MENU twice 2. Set Picture and text with Operations can be made only in teletext screen. ● ■ Store frequently viewed pages in the colour bar (List mode) 1.
  • Page 50 ■ FLOF (FASTEXT) mode In FLOF mode, four differently coloured subjects are situated on the bottom of the screen. To access more information about one of these subjects, press the appropriate coloured button. This facility enables fast access to information on the subjects shown. ■...

  • Page 51: Note

    Note Display the image (TV, external input, etc.) full-screen for viewing 3D. ● If light appears to flicker under fluorescents or dimmers when using the 3D ● Eyewear, change the setting of 3D Refresh Rate. Watching 3D Settings Do not exert pressure on or scratch the lens of the 3D Eyewear. ●...
  • Page 52 Indicator lamp ● – Lights or flashes during use to show the status (see below). Protection film – Peel off the protection film on both side of the lens. Insulating sheet Battery cover – When using for the first time, remove the insulating sheet. Pull the insulating sheet.

  • Page 53: 3D Eyewear - Registration

    Do not use benzene, thinner or wax on the 3D Eyewear, otherwise this ● may cause peeling of the paint. Do not dunk the 3D Eyewear in liquid such as water. ● 3D Eyewear - Registration ■ First registration Perform the first registration when the 3D Eyewear is used for the first time. 1.

  • Page 54: 3D Eyewear - Replacing Battery

    3D Eyewear - Replacing battery When the battery is running low, the indicator lamp flashes 5 times on turning the 3D Eyewear on. In this case, early battery replacement is recommended. Dispose of the old batteries as non-burnable rubbish, or in line with the ●...
  • Page 55 ■ 3D-supported broadcast Please consult the suppliers of contents or programmes for availability of ● this service. ■ 3D photos and 3D videos taken by 3D-compatible Panasonic products Available in Media Player and Network services ● Media Player Home network ■...

  • Page 56: 3D Mode Selection

    3D Mode Selection You can easily change the viewing mode between 2D and 3D with 3D. 1. Display the 3D Mode Selection screen with 2. Select the mode with and press to set Items of 3D Mode Selection vary depending on the condition. ●...

  • Page 57: 3D Settings

    3D Settings 1. Display the menu with MENU 2. Select Picture 3D Settings with and press to access 3. Select one of the following items with and press to access 3D Detection 3D Signal Message 3D Refresh Rate 2D 3D Depth 3D Adjustment L/R Picture Swap Edge Smoother...
  • Page 58 2D 3D Depth (Max / Min) Selects a level of 3D-image depth for viewing converted 2D images. 3D Adjustment / Off) Adjustment of the 3D effect (except in 2D 3D mode). Set to to enable Effect setting. When setting to On, a safety precaution message will appear. Read it ●...

  • Page 59: Source Image Format

    Source image format If the picture appears to be abnormal, refer to the table of images that can be seen for each 3D Mode Selection (Manual) and the source image format, and select the correct 3D mode. 3D images are displayed correctly with appropriate 3D format as following ●...

  • Page 60: Tuning And Editing Channels

    Tuning and editing channels Setting menu You can retune channels, create your favourite channel lists, skip unwanted channels, etc. 1. Display the TV Selection screen with 2. Select the mode with and press to set DVB-S DVB-C DVB-T Analogue 3. Display the menu with MENU 4.
  • Page 61 To change the category ● (blue) 3. Press to add it to Favourite List To add all channels to the list ● 1) Press (yellow) 2) Press (green) to add all To add consecutive channels to the list at once ●...

  • Page 62: Channel List

    Channel List ■ Skip unwanted DVB / Analogue channels You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function. 1. Select Channel List with and press to access 2. Select a channel with 3. Press to set Reveal Hide...

  • Page 63: Auto Setup

    3) Press BACK/RETURN to store = Note = If a VCR is connected only with the RF cable in Analogue mode, edit VCR. ● Auto Setup Automatically retunes the channels received in the area. This function is available if channel tuning is already performed. ●...
  • Page 64 – If you set to MiniDiSEqC Single Cable, select from LNB AA and – If you set to DiSEqC 1.0, select from LNB AA, AB, BA and BB. 2) Set Satellite for the selected LNB – Select No Satellite if you do not know the connected satellite (available satellite will be searched in Auto Setup).

  • Page 65: Manual Tuning

    Normally set Frequency, Symbol Rate Network ID to Auto. If Auto ● is not displayed or if necessary, enter each value specified by your cable provider with numeric buttons. After settings, select Start scan with and press to search. ● 3.
  • Page 66 ■ DVB-C 1. Enter the frequency with numeric buttons Normally set Symbol Rate Service ID to Auto. ● 2. Select Start scan with and press to search ■ DVB-T 1. Select a channel with and adjust frequency with for each channel Set where the level of Signal Quality...

  • Page 67: Update Channel List

    Update Channel List By updating the DVB channel list, you can add new channels, delete removed channels or change channel names and positions automatically. The channel list is updated while keeping your settings in Favourites Edit, ● Channel List, Child Lock, etc.

  • Page 68: Selectable Satellites

    Selectable satellites ■ Selectable satellites and dish alignment to tune DVB-S channels To ensure your satellite dish is correctly installed, please consult your local dealer. Also please consult the received satellite broadcasting companies for details. Intelsat at 85.2° East Hot Bird at 13° East ●...

  • Page 69: Recording

    Recording USB HDD setup Preparations You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways. Prepare the USB HDD for the exclusive use of recording with this TV. ● Connect the USB HDD to the USB 3 port with the USB cable. ●...

  • Page 70: Setting For Usb Hdd

    the TV of the same model number) or any equipment. Do not turn the TV off, pull out the mains plug or remove the USB HDD ● during operation (formatting, recording, etc.). Doing so may cause malfunction of the device or damage the recorded data. (An electric outage may also be a cause of malfunction.) = Note = Analogue TV programme cannot be recorded on the USB HDD.
  • Page 71 The name for the USB HDD is created automatically. If you want to edit ● the name, select Yes. 1) Enter characters with or numeric buttons, and press to set 2) Press BACK/RETURN to store 6. When the confirmation screen to enable USB HDD for recording is displayed, select with and press...

  • Page 72: One Touch Recording

    Recording current programme One Touch Recording Records the current programme to the USB HDD immediately. Confirm the remote control code is “73”. ● Watching External equipment Operating with TV’s remote control 1. Display the menu with MENU 2. Select Setup Recording Setup One Touch Recording with...

  • Page 73: Rew Live Tv

    REW LIVE TV Records the current programme to the USB HDD constantly within the maximum recordable time. Confirm the remote control code is “73”. ● Watching External equipment Operating with TV’s remote control 1. Display the menu with MENU 2. Select Setup Recording Setup REW LIVE TV...
  • Page 74 If you stop REW LIVE TV, the recorded content for REW LIVE TV will be ● deleted. REW LIVE TV will be stopped and the recorded content will be deleted ● automatically in the following conditions: (Even if REW LIVE TV stops for the following conditions, as long as the setting is Auto, a new recording will start automatically in a condition that makes the recording available.)

  • Page 75: Timer Programming

    Timer Programming Setting timer programming The Timer Programming menu allows you to select programmes that you want to be reminded to watch or record to the USB HDD. Not valid in Analogue mode ● 1. Display the TV Selection screen with 2.
  • Page 76 (Example) !: Overlapped timer programming events Function (USB HDD Rec. / Reminder) TV mode S: DVB-S C: DVB-C D: DVB-T – You cannot change the mode within the menu. Channel position and name <TIMER>: Timer Programming STTL: Displays subtitles (if available) –...

  • Page 77: Editing Timer Programming

    Editing timer programming 1. Display the menu with MENU 2. Select Timer Timer Programming with and press to access 3. Select the event with To change a timer programming event ● – Correct as necessary. Recording Timer Programming Setting timer programming To delete a timer programming event ●...

  • Page 78: Note

    Note TV Guide may also be used to set timer programming event. ● Watching TV Guide Timer Programming Timer Programming can store up to 15 events. ● Timer Programming only works reliably if correct time information is ● received via the signal from the broadcaster or service provider. For recording using Timer Programming, the TV must be either on or in...

  • Page 79: Technical Information

    Regarding performance, not all USB HDDs are guaranteed. Check the ● USB HDDs that have been tested for compatibility with this TV at the following website. (English only) http://panasonic.net/viera/support = Note = Data modified with a PC may not be displayed. ●...

  • Page 80: Internet Service

    Internet service Internet content Information You can access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, communication tools, etc. from APPS List. (Example) To enable this function, you need a broadband network environment. ●...

  • Page 81: Note

    The services through APPS List are operated by their respective service ● providers and such service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the contents or the continuity of the services. Some contents may be inappropriate for some viewers.

  • Page 82: Network Connections

    Network connections Internet connection To use internet service, you need a broadband network environment. If you do not have any broadband network services, please consult your ● retailer for assistance. Dial-up internet connections cannot be used. ● Required speed (effective): at least 1.5 Mbps for SD (Standard Definition) ●...

  • Page 83: Note

    Note Ensure to use a LAN straight cable. ● Set up and connect equipment required for the network environment. You ● cannot make such settings on this TV. Read the manual of the equipment. If your modem has no broadband router functions, use a broadband router. ●...

  • Page 84: Network Settings

    Network settings Network Connection Ensure the connections are completed before starting network setup. Internet service Network connections ■ Quick setup - Wireless 1. Display the menu with MENU 2. Select Network Network Connection with and press to access Confirm the encryption key, settings and position of your access point ●...

  • Page 85: Custom - Wireless

    To set manually ● Internet service Network settings Custom - Wireless ■ Quick setup - Wired 1. Display the menu with MENU 2. Select Network Network Connection with and press to access 3. Select Quick setup with and press to access 4.
  • Page 86 Manual ● 1) Press (yellow) 2) You can set up SSID, security type, encryption type, and encryption key manually 3) Follow the on-screen instructions and set manually – When you use 11n (5 GHz) for the wireless system between the built-in wireless LAN and access point, select for the encryption type.

  • Page 87: Custom - Wired

    Proxy: This is the address of the relay server connected between the browser and the target server and sends data to the browser. 1) Select Proxy with and press to access 2) Enter the address with or numeric buttons, and press to set 3) Press BACK/RETURN...
  • Page 88 Available settings are displayed automatically. ● To set manually, select and set IP Address Subnet Mask Default ● Gateway Address. Proxy Settings It is not required for normal household use. ● Some internet services may not be available depending on the proxy ●...

  • Page 89: Network Status

    Network Status Displays and checks the network status (MAC Address, current network settings, etc.). 1. Display the menu with MENU 2. Select Network Network Status with and press to access 3. Automatically testing is done and the Network Status screen is displayed Again: Performs automatic testing of the network connection for the TV and displays the current status again.

  • Page 90: Home Network

    Home network DLNA Information This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA ® Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org. To enable this function, connect this TV to your home network.
  • Page 91 And you need to install the application for controlling VIERA on your smartphone. For information of the application (English only): http://panasonic.net/viera/support For the operations, refer to the support information of the application. “Windows 7 / Windows 8” are the OS that have been tested for ●...
  • Page 92 : To use this function with your smartphone, you need to install the application for controlling VIERA in your smartphone. For information of the application (English only): http://panasonic.net/viera/support For the operations, refer to the support information of the application. Sharing the current programme may not be available when selecting radio ●...

  • Page 93: Using Dlna

    Using DLNA To use DLNA features, ensure the preparations of the media server, network ® connections and network settings are completed. Home network DLNA Information Home network Network connections Home network Network settings 1. Display APPS List with APPS 2. Select Media Server with and press...

  • Page 94: Network Connections

    Network connections DLNA connection To use DLNA features, you need a home network environment and you can operate the features without a broadband network environment. To use internet service, you need a broadband network environment. ● Internet service Network connections Internet connection ■...
  • Page 95 ■ Wired connection (For DLNA and internet service) ETHERNET terminal LAN cable (Unshielded) Use the Unshielded Twist Pair (UTP) LAN cable. ● Hub or Router Internet environment DLNA Certified media server ■ Wireless connection (For DLNA) To use the TV as a wireless access point ●...

  • Page 96: Note

    Note Ensure to use a LAN straight cable. ● Set up and connect equipment required for the network environment. You ● cannot make such settings on this TV. Read the manual of the equipment. If you use the equipment compatible only with 100BASE-TX, category 5 or ●...

  • Page 97: Network Settings

    Network settings Network Connection Ensure the connections are completed before starting network setup. Home network Network connections ■ Quick setup - Wireless 1. Display the menu with MENU 2. Select Network Network Connection with and press to access Confirm the encryption key, settings and position of your access point ●...

  • Page 98: Custom - Wireless

    To set manually ● Home network Network settings Custom - Wireless ■ Quick setup - Wired 1. Display the menu with MENU 2. Select Network Network Connection with and press to access 3. Select Quick setup with and press to access 4.
  • Page 99 Manual ● 1) Press (yellow) 2) You can set up SSID, security type, encryption type, and encryption key manually 3) Follow the on-screen instructions and set manually – When you use 11n (5 GHz) for the wireless system between the built-in wireless LAN and access point, select for the encryption type.

  • Page 100: Custom - Wired

    Proxy: This is the address of the relay server connected between the browser and the target server and sends data to the browser. 1) Select Proxy with and press to access 2) Enter the address with or numeric buttons, and press to set 3) Press BACK/RETURN...
  • Page 101 Available settings are displayed automatically. ● To set manually, select and set IP Address Subnet Mask Default ● Gateway Address. Proxy Settings It is not required for normal household use. ● Some internet services may not be available depending on the proxy ●...

  • Page 102: Custom - Wireless Access Point

    Custom - Wireless Access Point You can use the TV as a wireless access point and connect the network equipment without an access point. Confirm the PIN code, network settings of the equipment before starting ● setup. For details, read the manual of the equipment. 1.

  • Page 103: Network Status

    For the operations, refer to the support information of the application. Device to upload contents Selects device to upload contents from the network equipment (smartphone, etc.). = Note = Depending on the area, this function may not be available. For details, ● consult your local Panasonic dealer. - 103 -...

  • Page 104: Network Link Settings

    To use this function with your smartphone, you need to install the ● application for controlling VIERA on your smartphone. For information of the application (English only): http://panasonic.net/viera/support For the operations, refer to the support information of the application. Registration Type (Auto...

  • Page 105: Software Update

    = Note = Depending on the area, this function may not be available. For details, ● consult your local Panasonic dealer. Software Update Accesses the specific website to update the TV’s software if any updates are available. 1. Display the menu with MENU 2.

  • Page 106: Selecting File

    Photos Selecting file Ensure the preparations of the media server, network connections and network settings are completed. Home network DLNA Information Home network Network connections Home network Network settings 1. Display APPS List with APPS 2. Select Media Server with and press to access 3.

  • Page 107: Using Slideshow

    To display / hide the operation guide ● To rotate 90° ● (blue) To return to list ● BACK/RETURN Using slideshow Slideshow ends when all photos within the list are viewed. 1. Select the file from the thumbnail of photos for the first view with 2.
  • Page 108 Motion: Each photo is displayed with an effect of enlarging, reducing, moving up or moving down. Random: The transition effect is selected at random. Auto Makeup / Off) Automatically detects the face in the photo and improves luminance and contrast. Interval (Long Normal...

  • Page 109: Selecting File

    Videos Selecting file Ensure the preparations of the media server, network connections and network settings are completed. Home network DLNA Information Home network Network connections Home network Network settings 1. Display APPS List with APPS 2. Select Media Server with and press to access 3.

  • Page 110: Video Setup

    : Rewind : Fast forward : Stop : Pause (displays the time seek bar) / Playback To display / hide the operation guide and information banner ● To the previous content ● (red) To the next content ● (green) To change aspect ●...

  • Page 111: Audio Output Settings

    Video Preview / Off) Sets to start the preview of the title or scene in the thumbnail view. Images may not be displayed for an instant in the thumbnail view. Set the ● preview to solve this. Multi Audio, Dual Audio, Dual Mono Audio Selects for selectable sound tracks (if available).
  • Page 112 SPDIF Selection (Auto / PCM) Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals. SPDIF is a standard audio transfer file format. ● Auto: Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as Dolby Digital Bitstream.

  • Page 113: Music

    Music Selecting file Ensure the preparations of the media server, network connections and network settings are completed. Home network DLNA Information Home network Network connections Home network Network settings 1. Display APPS List with APPS 2. Select Media Server with and press to access 3.

  • Page 114: Music Setup

    To display / hide the operation guide ● To the previous track ● (red) To the next track ● (green) To return to list ● BACK/RETURN Music Setup Set up the settings for music file operations on this TV. 1. Display the option menu with OPTION 2.

  • Page 115: Diga Recorder

    DIGA Recorder Controlling DIGA Recorder Ensure the preparations of the media server, network connections and network settings are completed. Home network DLNA Information Home network Network connections Home network Network settings 1. Display APPS List with APPS 2. Select Media Server with and press to access...

  • Page 116: Technical Information

    Technical information Photo format ■ Supported Photo formats ● JPEG (.jpg, .jpeg, .mpo) Image resolution (pixel): 8 × 8 to 30,719 × 17,279 Sub-sampling: 4:4:4, 4:2:2, 4:2:0 DCF and EXIF standards ● Progressive JPEG is not supported. ● = Note = Some files may not be played back even if they fulfil these conditions.
  • Page 117 Audio codec: Dolby Digital, MPEG Audio SD-Video Standard Ver. 1.31 (Entertainment Video Profile) ● The data may not be available if a folder structure on the device is ● modified. ● AVI (.avi) Video codec: H.264 BP/MP/HP, MPEG1, MPEG2, MPEG4 SP/ASP, VC-1, Windows Media Video Ver.
  • Page 118 This TV supports this container recorded with Panasonic products. For ● details, read the manual of the products. ● FLV (.flv) Video codec: H.264 BP/MP/HP Audio codec: AAC, MP3 ● 3GPP (.3gp, .3g2) Video codec: H.264 BP/MP/HP, MPEG4 SP/ASP Audio codec: AAC, HE-AAC ●...

  • Page 119: Music Format

    = Note = Some files may not be played back even if they fulfil these conditions. ● Do not use two-byte characters or other special codes for file names. ● Connected devices may become unusable with this TV if the file or folder ●...

  • Page 120: Media Player

    Media Player Using Media Player Information Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory with this TV, and contents recorded with this TV to the formatted USB HDD. (Example) Photo mode: Still pictures recorded with digital cameras will be displayed.
  • Page 121 Folder and file names may be different from those on the digital camera or ● digital video camera used. ■ To insert or remove the SD Card Gently insert the SD Card with the label surface facing front. Push the centre of the card until a click is heard.

  • Page 122: Selecting Device / Mode

    Selecting device / mode 1. Insert the SD Card or USB Flash Memory to the TV When you insert the SD Card, Media Player will start automatically. ● Media Player Using Media Player Information To play back contents in the USB HDD, ensure the connection and ●...
  • Page 123 You can use the following buttons during playback. Confirm the remote ● control code is “73”. Watching External equipment Operating with TV’s remote control ■ To change the device You can change the current device to another device directly in the same mode when two or more available devices are connected.

  • Page 124: Photo Mode

    Photo mode Selecting file Select the file in the thumbnail view with and press to start playback. : Error display To change the size of photos in the thumbnail view ● 1) Display the option menu with OPTION 2) Select Change Size with and press...

  • Page 125: Sorting Photos

    To rotate 90° ● (blue) To return to thumbnail ● BACK/RETURN Sorting photos ■ To sort by folder, recorded date or recorded month 1. Display the view selection in the thumbnail view with (green) 2. Select Folder view Sort by Date Sort by Month with and press...

  • Page 126: Using Slideshow

    You can only select photos of the same recorded date and the same ● pixels. You may not be able to view the created 3D photo properly if you select ● photos for L and R in reverse. 4. Create the 3D photo with If your selected photos are not suitable for the 3D photo, the error ●...
  • Page 127 Burst Playback Interval Repeat Back Ground Music 4. Set with and press to store Frame (Off Multi Collage Drift (+ calendar) Drift Gallery (+ calendar) Gallery Cinema) Selects the frame type of the slideshow. Multi: 9 photos are displayed orderly at once. Collage: Each photo is displayed at a random position and random scale.
  • Page 128 up or moving down. Random: The transition effect is selected at random. This function is available when Frame is set to Off. ● Auto Makeup / Off) Automatically detects the face in the photo and improves luminance and contrast. Screen Mode (Normal / Zoom) Selects enlarged or normal viewing in Single view and Slideshow.
  • Page 129 Back Ground Music (Off Type1 Type2 Type3 Type4 Type5 User / Auto) Selects the background music during Photo mode. Type1 - Music files installed on this TV at the factory settings will be played back. Auto: Music files stored in the root folder of the current device will be played back randomly.

  • Page 130: Video Mode

    Video mode Selecting file 1. Select the title in the thumbnail view with : Error display : The file does not support thumbnail view. The preview will start when the title / scene is highlighted in the ● thumbnail view if it supports a preview. To turn off the preview, set Video Preview to Off.
  • Page 131 camera used. To repeat playback ● Media Player Video mode Video Setup ■ Playback To operate playback ● : Rewind : Fast forward : Stop : Pause (displays the time seek bar) / Playback To jump to the specified time point ●...

  • Page 132: Video Setup

    – Aspect cannot be changed depending on the content. To return to thumbnail ● BACK/RETURN Video Setup Set up the settings for Video mode. 1. Display the option menu with OPTION 2. Select Video Setup with 3. Select one of the following items with and press to access Video Preview...

  • Page 133: Audio Output Settings

    Repeat / Off) Playback repeat within the title or selected file (depending on the content) Audio output settings You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal. To confirm or change the current sound status ●...

  • Page 134: Recorded Tv Mode

    Recorded TV mode Selecting content For exclusive USB HDD ● To play back contents in the USB HDD, ensure the connection and ● settings are completed. Recording USB HDD setup 1. Contents list of the selected device is displayed in Recorded TV mode Remaining capacity of the selected device is displayed on the top right.
  • Page 135 – Press to skip forward approx. 30 seconds. – Press and hold to skip backward approx. 15 seconds. : Rewind : Fast forward : Stop : Pause (displays the time seek bar) / Playback To jump to the specified time point ●...

  • Page 136: Grouping Contents

    Grouping contents 1. Select the content to edit with and press (blue) to tick in the contents list 2. Display the option menu with OPTION 3. Select Create Group Release Group Exclude from Group Change Protect Status with and press to set Create Group:...

  • Page 137: Chapter List

    2) Select Contents Select with and press to access Chapter List You can start playback from the chapter list you select. 1. Display the chapter list with (yellow) 2. Select the chapter with and press to start playback = Note = The chapter list is not displayed while the selected content is being ●...

  • Page 138: Music Mode

    Music mode Selecting file 1. Select the folder in the thumbnail view with 2. Start playback with (red) For supported file formats ● Media Player Technical information Music format ■ Thumbnail view To display / hide information of the highlighted content ●...

  • Page 139: Music Setup

    To the next track ● (green) To return to thumbnail ● BACK/RETURN Music Setup Set up the setting for Music mode. This function is available in the thumbnail view. ● 1. Display the option menu with OPTION 2. Select Music Setup Repeat with 3.

  • Page 140: Technical Information

    Back up the recorded data at regular intervals to prevent data ● deterioration, data damage or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data. SD Card ■...

  • Page 141: Usb Devices

    You cannot connect any devices using a USB card reader. ● Additional information for the devices may be found on the following ● website. (English only) http://panasonic.net/viera/support ■ USB Flash Memory (for playing back in Media Player) USB Flash Memory format: FAT16, FAT32 or exFAT USB HDDs formatted on a PC are not guaranteed to work in Media Player.

  • Page 142: Video Format

    DCF and EXIF standards ● Progressive JPEG is not supported. ● = Note = Some files may not be played back even if they fulfil these conditions. ● Do not use two-byte characters or other special codes for file names. ●...
  • Page 143 Video codec: H.264 BP/MP/HP, MPEG1, MPEG2, MPEG4 SP/ASP Audio codec: AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, MPEG Audio, MP3 This TV supports this container recorded with Panasonic products. For ● details, read the manual of the products. ● FLV (.flv) Video codec: H.264 BP/MP/HP...
  • Page 144 ● 3GPP (.3gp, .3g2) Video codec: H.264 BP/MP/HP, MPEG4 SP/ASP Audio codec: AAC, HE-AAC ● PS (.mod, .mpg, .mpeg, .vob, .vro) Video codec: H.264 BP/MP/HP, MPEG1, MPEG2, VC-1 Audio codec: AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, LPCM, MPEG Audio, ●...

  • Page 145: Music Format

    Music format ■ Supported Music formats ● MP3 (.mp3) ● AAC, Apple Lossless (.m4a) Copy-protected files cannot be played back. ● ● WMA / WMA Pro (.wma) Copy-protected files cannot be played back. ● ● LPCM (.wav) ● FLAC (.flac) = Note = Some files may not be played back even if they fulfil these conditions.

  • Page 146: Information

    Functions APPS List Information Various applications (internet contents, network contents, Media Player, etc.) can be accessed easily from APPS List. ■ APPS List (Example) = Note = APPS List is subject to change without notice. ● How to use You can access special features such as internet contents, network contents, Media Player, etc.

  • Page 147: Settings

    Recorded TV Media Player Recorded TV mode Media Server Home network DLNA Using DLNA VIERA Link Functions VIERA Link “HDAVI Control™” Multi Window Functions Multi Window Settings You can customise APPS List (screen settings, etc.). 1. Display APPS List with APPS 2.

  • Page 148: Information

    Multi Window Information Displays two windows at once for viewing the TV programmes or external input (AV, Component or HDMI) as shown below (example). (green) Zapping View Watching View Zapping View Zapping View To swap windows ● To exit multi window ●...
  • Page 149 ■ Zapping View (Example) Main screen TV mode / input mode / channel position and name (for main screen) TV mode / input mode (for sub screen) – You can select the TV mode / input mode of the sub screen with Current programme information (if available) (for sub screen) –...

  • Page 150: Summary Of Viera Link

    ● VIERA Link “HDAVI Control™” Summary of VIERA Link Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control™” function. VIERA Link (HDAVI Control) connects the TV and the equipment with VIERA Link function, and enables easy control, playback, energy saving, creating home theatre, etc., without complicated settings.
  • Page 151 ● Connect the equipment supporting VIERA Link to the TV’s HDMI terminal ● via an HDMI cable. About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment. HDMI terminal HDMI cable Equipment with VIERA Link function (DIGA Recorder / DVD Player / Blu- ray Disc Player / HD Video Camera / LUMIX Camera) ■...
  • Page 152 HD Video Camera / LUMIX Camera Easy playback ● Power on link ● Power off link ● VIERA Link Control ● : For equipment which has “HDAVI Control 2 or later” function. : For equipment which has “HDAVI Control 4 or later” function. ■...
  • Page 153 – AV1 (SCART) adaptor (supplied) is necessary when connecting to the DIGA Recorder with VIERA Link function HDMI cable / Optical digital audio cable or SCART cable – AV1 (SCART) adaptor (supplied) is necessary when connecting to the HDMI cable Amplifier with VIERA Link function Speaker system Player theatre / Blu-ray Disc theatre with VIERA Link function...

  • Page 154: Preparations

    Power off link ● Intelligent Auto Standby ● Speaker Selection ● : For equipment which has “HDAVI Control 2 or later” function. : For equipment which has “HDAVI Control 4 or later” function. : While playing a disc. : Except for watching a disc. ■...

  • Page 155: Easy Playback

    TV on. Select the HDMI input from Input Selection with and make sure that an image is displayed correctly. (This setup should be done each time the following conditions occur.) – first time operation – adding or reconnecting equipment – changing setup Easy playback Automatic input switching - When the connected equipment is operating, the input mode is switched automatically.

  • Page 156: Intelligent Auto Standby

    Intelligent Auto Standby Intelligent Auto Standby in the Setup Menu to use this function. Settings Setup VIERA Link Settings When the TV is on, non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI or when Speaker Selection is changed to...

  • Page 157: Speaker Selection

    For example, when two recorders are connected to HDMI2 and HDMI3, the recorder connected to HDMI2 is displayed as Recorder1, and the recorder connected to HDMI3 is displayed as Recorder2. ■ If you access non-VIERA Link equipment The type of the connected equipment is displayed. Although you can access the connected equipment, you cannot operate it.

  • Page 158: Note

    ■ Multi-channel sound If you want to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect it with an HDMI cable and Optical digital audio cable, and then select Home Cinema. If your Amplifier has the “HDAVI Control 5” function, you only need to connect it with an HDMI cable to the TV’s HDMI2 terminal.

  • Page 159: Using Child Lock

    Child Lock Using Child Lock You can lock specific channels / AV input terminals to restrict access to them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch. 1. Display the menu with MENU 2.

  • Page 160: Parental Rating

    = Note = Setting Shipping Condition erases the PIN number and all settings. ● Parental Rating To watch the DVB programme that has rating information on the selected age, enter the PIN number (depending on the broadcaster). 1. Select Parental Rating with and press to access...

  • Page 161: Using Data Service Application

    Data Service Application Using Data Service Application You can enjoy Hybrid Broadcast Broadband TV application that is one of the interactive data services for digital broadcasting. 1. Display the TV Selection screen with 2. Select the mode with and press to set DVB-S DVB-C...

  • Page 162: Note

    Note To use Hybrid Broadcast Broadband TV application fully, you need a ● broadband network environment. Ensure the network connections and network settings are completed. Internet service Network connections Internet service Network settings Not all the data services are available depending on the country, area and ●...

  • Page 163: Caution

    Common Interface Caution Turn the TV off with Mains power On / Off switch whenever inserting or ● removing the Common Interface (CI) Module. If a view card and a card reader come as a set, first insert the card reader, ●...
  • Page 164 DVB-C DVB-T 3. Display the menu with MENU 4. Select Setup Common Interface with and press to access 5. Select Slot 1: Slot 2: with , press and follow the on-screen instructions On-screen instructions may not correspond to the remote control buttons. ●...

  • Page 165: Shipping Condition

    Shipping Condition Shipping Condition Resets the TV to its original condition (i.e. no channels tuned in). All settings other than USB Device Setup are reset (channels, picture, sound settings, etc.). 1. Display the menu with MENU 2. Select Setup System Menu Shipping Condition with and press...

  • Page 166: Information

    Updating the TV Software Information A new version of software may be released for download to enhance the performance or operations of the TV. If there is an update available and the channel has the update information, a notification message is displayed. To install new software, select Standby with...

  • Page 167: Manual Update

    can set the reservation for update. The update will not start when the TV is off. Manual update You can update new software manually. 1. Display the menu with MENU 2. Select Setup System Menu System Update System Update Search with and press to access...

  • Page 168: Setting Characters

    Setting characters Using numeric buttons You can enter characters for free input items using numeric buttons. Press the numeric button repeatedly until you reach the desired character. : . @ / 1 ! : # + - * _ ( ) “ ‘ % & ? , ; = $ [ ] ~ < > { } | ` ^ \ : a b c 2 A B C : d e f 3 D E F : g h i 4 G H I...

  • Page 169: Built-In Camera

    Built-in Camera Using built-in Camera You can use the built-in Camera as a communication tool for specific applications such as face recognition, video message, etc. Watching my Home Screen Settings ■ Auto pop-up When the application for camera operation is activated, the built-in Camera automatically pops up.

  • Page 170: Voice Control

    Voice Control Preparations Voice Control function allows you to operate the TV (e.g. selecting a channel), search the content from various features, etc. with your speech. To use this function fully, you need a broadband network environment. ● Ensure the network connections and network settings are completed. Internet service Network connections Internet service...

  • Page 171: How To Use

    of internet environment, consult your Internet Service Provider (ISP) or telecommunications company.) How to use 1. Press of VIERA Touch Pad Controller When the confirmation screen is displayed, read carefully and start ● Voice Control function. 2. The operation guide is displayed and follow the on-screen instructions To display voice command list ●...

  • Page 172: Electronic Touch Pen

    Electronic Touch Pen Information This function allows you to paint or play games on the TV screen using Electronic Touch Pen (hereafter referred to as “Touch Pen”). Touch Pen is not included. Please purchase as necessary. ● Support Optional accessories Electronic Touch Pen The Touch Pen is available only for specific applications.
  • Page 173 – HDMI input – Photo / video contents of Media Player / Network services 3. Touch the pen tip to the TV screen for a few seconds 4. The confirmation screen is displayed and follow the on-screen instructions = Note = You can save the image into the SD card / USB Flash Memory after ●...

  • Page 174: Bluetooth Devices

    Bluetooth devices Bluetooth Setup You can use Bluetooth keyboards and Bluetooth audio devices (headphones, etc.) with this TV by setting Bluetooth Setup in the Setup Menu. Settings Setup Bluetooth Setup : HID (Human Interface Device Profile) compliant keyboards can be used. : A2DP (Advanced Audio Distribution Profile) compliant audio devices can be used.

  • Page 175: Keyboard / Gamepad

    Pad Controller and Electronic Touch Pen supporting Bluetooth wireless technology. Additional information for the devices may be found on the following ● website. (English only) http://panasonic.net/viera/support Keyboard / Gamepad Keyboard Keyboards requiring the drivers are not supported. ● To change the language type, set Keyboard Layout.

  • Page 176: Gamepad

    Gamepad Check the gamepads that have been tested for compatibility with this TV ● at the following website. (English only) http://panasonic.net/viera/support Some of the keys of gamepads correspond to the operation of the remote ● control. Volume Up / Down...

  • Page 177: Setting Menu

    Settings Setting menu How to use Various menus allow you to make settings for the picture, sound, and other functions. 1. Display the menu with MENU Displayed items vary depending on the input signal. ● 2. Select the menu with and press to access 3.
  • Page 178 To change menu pages ● = Note = A different menu will be displayed in the mode of Media Player or Network ● services. Media Player Using Media Player Home network DLNA Using DLNA ■ Using control panel buttons 1. Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to display the menu 2.

  • Page 179: Viewing Mode

    Picture Viewing Mode Selects your favourite picture mode for each input. (Dynamic Normal Cinema THX Cinema THX Bright Room Custom Professional1 / Professional2) Dynamic: Improves contrast and sharpness for viewing in a bright room. Normal: Normal use for viewing in a normal lighting condition. Cinema: Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.

  • Page 180: Basic Settings

    : THX modes are used to mirror the picture settings used by professional filmmakers, faithfully reproducing the image quality of THX Certified movies. THX Certified movies have the THX logo on the disc. THX modes are not available for photo contents or internet services. Basic settings Contrast, Brightness, Colour, Tint, Sharpness...

  • Page 181: Noise Reduction Settings

    Noise reduction settings Noise Reduction (Auto / Off) Reduces unwanted picture noise. MPEG Remaster (Auto / Off) Reduces flicker noise in contoured parts of a picture and block noise. Resolution Remaster Enhances picture resolution to make the image sharper. (Max / Off) Caption Smoother Makes caption contours smooth.

  • Page 182: P Smooth Film

    24p Smooth Film Automatically compensates the picture frame rate to make the 24p source movie images smooth. (Max / Off) This function is available only for 24p signal input and displayed instead of ● Intelligent Frame Creation. Not valid in multi window mode or when Game Mode is set to ●...
  • Page 183 HDMI Content Type (Graphics Photos Auto / Off) Adjusts the picture settings of each HDMI input according to the selected content type. Auto: Automatically adjusts the picture settings according to the received HDMI content if the connected equipment supports HDMI Content Type.

  • Page 184: Screen Settings

    Screen Settings 16:9 Overscan / Off) Selects the screen area displaying the image for 16:9 aspect. Enlarges the image to hide the edge of the image. Off: Displays the image in the original size. Set to if noise occurs on the edge of the screen. ●...

  • Page 185: D Settings

    Side Panel (High / Off) Adjusts the brightness of the side panel. The recommended setting is High to prevent panel “image retention”. ● Pixel Orbiter / Auto) Selects the mode for wobbling of the image to prevent panel “image retention”. Auto: Automatically works only for the appropriate images and you rarely recognise the wobbling.
  • Page 186 For DVB, Component and HDMI input ● 3D Refresh Rate (Auto 100Hz / 120Hz) Reduces juddering and flicker noises of the 3D images when using the 3D Eyewear. 100Hz: If light appears to flicker under fluorescents (or dimmers) of 50 Hz. 120Hz: If light appears to flicker under fluorescents (or dimmers) of 60 Hz.

  • Page 187: Copy Adjustment

    Edge Smoother / Off) Set to if you feel the contoured parts of an image are not smooth enough (except in 2D 3D mode). Safety Precautions Displays the precautions for viewing 3D images. Lock Settings Locks the settings of Professional1 / 2 mode for each input.

  • Page 188: Mode

    Sound Mode Selects your favourite sound mode for each input. (Standard Music Ambience / User) Standard: Provides the suitable sound quality for all types of scenes. Music: Improves sound quality for watching music videos, etc. Ambience: Improves spatial effects and provides clear sounds. User: Adjusts the sounds manually using the equaliser to suit your favourite sound quality.

  • Page 189: Volume Settings

    Balance Adjusts volume level of right and left speakers. Surround (Stadium Hall Natural / Off) Selects surround sound settings. Stadium: Provides the sound effect such as a stadium. Hall: Provides the sound effect such as a concert hall. Natural: Controls the reverberation to make the voice sound clearer. This function is effective only for the sound from TV speakers.

  • Page 190: Voice Guidance Settings

    Volume Correction Adjusts the volume of each individual channel or input mode. Speaker Distance to Wall (Up to 30cm Over 30cm) Compensates for the low frequency sound due to the distance between the speakers and the wall. If the back space between the TV and wall is within 30 cm, Up to 30cm ●...

  • Page 191: Advanced Settings

    Advanced settings Selects multiplex sound mode (if available). Stereo: Use this normally. Mono: When stereo signal cannot be received / M2: Available while mono signal is transmitted. For Analogue mode ● Audio Preference (Auto Multichannel Stereo / MPEG) Selectable options vary depending on the country you select. ●...
  • Page 192 Audio Type (Standard Visual Impaired) Narration settings for visually impaired users (only available in some countries). Set to Visual Impaired to activate the narration sound track when available ● on the broadcast. For DVB mode ● SPDIF Selection (Auto / PCM) Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.

  • Page 193: Reset To Defaults

    Analogue: When sound is not carried via the HDMI-DVI adaptor cable connection For HDMI input ● Reset to Defaults Resets the current Sound Mode to the default settings. - 193 -...

  • Page 194: Other Settings

    Sets to control the TV with devices connected to the network. Home network Network settings Network Link Settings Other settings Software Update Checks for available software updates from the Panasonic website. Internet service Network settings Software Update Home network Network settings...

  • Page 195: Time Zone

    Timer Off Timer Sets the duration of time until the TV automatically goes into Standby mode. (minutes)) Watching Basic Off Timer Timer Programming Sets a timer to record or remind forthcoming programmes. Recording Timer Programming For DVB mode ● Time Zone Adjusts the time data.

  • Page 196: Eco Navigation

    Setup Eco Navigation Automatically sets the TV to the most suitable energy-saving mode. The concerned items and their current settings are displayed. Select Set to to set them to the energy-saving settings at once. Voice Control Settings Settings for Voice Control function. Functions Voice Control Preparations...

  • Page 197: Bluetooth Setup

    Bluetooth Setup Settings for the specific devices supporting Bluetooth wireless technology Functions Bluetooth devices Bluetooth Setup Child Lock Applies access control for channels or inputs to prevent unwanted access. Functions Child Lock Tuning Menu Favourites Edit Creates a list of favourite channels. Watching Tuning and editing channels Favourites Edit...
  • Page 198 New Channel Message / Off) Selects whether to give a notification message when a new channel is found or not. Watching Tuning and editing channels New Channel Message For DVB mode ● Service Replacement / Off) Set to to display a message to switch to the available service (only available in some countries).

  • Page 199: Language

    Add TV Signal Adds the TV mode. This function is available if you skip any modes to tune in Auto Setup ● first using the TV. = Note = The settings in Tuning Menu are applicable only for the selected TV mode. ●...

  • Page 200: Display Settings

    Display Settings Preferred Subtitle Type (Standard Hard of Hearing) Selects the preferred subtitle type. Preferred Subtitles 1 / 2 Language are given priority. ● Hard of Hearing provides aids in understanding and enjoyment with DVB ● subtitles (depending on the broadcaster). Teletext (TOP (FLOF) / List)
  • Page 201 Input Labels Accesses the input labels list to select the label of each input mode or set to skip unconnected one for easier identification and selection in Selection, Input Selection or banner. Watching Basic Selecting channel Watching External equipment Watching external input To name each input mode freely, select User input and set characters...

  • Page 202: Common Interface

    Common Interface Sets to watch encrypted channels, etc. Functions Common Interface VIERA Link Settings VIERA Link / Off) Sets to use VIERA Link functions. Functions VIERA Link “HDAVI Control™” Power on Link / Off) Sets to use Power on Link functions. Functions VIERA Link “HDAVI Control™”...

  • Page 203: Professional Mode (Isfccc)

    Professional Mode (isfccc) Enables the professional picture settings. Set to to display the modes of Professional1 Professional2 Viewing Mode. isfccc is the picture setting for the certified professional dealer. For details, ● consult your local dealer. Data Service Application Service (Auto Start On Auto Start Off / Off)

  • Page 204: Other Settings

    Licence Menu Displays the software licence information. Other Settings GUIDE Plus+ Settings Update Performs the update of the GUIDE Plus+ schedule for the GUIDE Plus+ system (only available in some countries). Postcode Sets your postcode to receive local information in the GUIDE Plus+ system (only available in some countries).

  • Page 205: Picture

    Picture Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Auto aspect Auto aspect is designed to provide you with the best ratio to fill the screen.

  • Page 206: Digital Tv

    Digital TV Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Block noise, frozen or disappearing image occurs / Some channels cannot be tuned Check the position, direction and connection of the aerial or dish.

  • Page 207: Analogue Tv

    Analogue TV Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. White spots or shadow image (ghosting) occurs / Some channels cannot be tuned Check the position, direction and connection of the aerial.

  • Page 208: Sound

    Sound Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. No sound is produced Is “Sound mute” active? Press MUTE to switch sound mute on or off.
  • Page 209 Check the remaining battery level of the 3D Eyewear. (Battery status is ● displayed on the screen when the 3D Eyewear is turned on.) When the battery is running low, replace it with a new one. Use the 3D Eyewear within approx. 3.2 m from the TV. (The range may be ●...

  • Page 210: Hdmi

    HDMI Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Sound is unusual Set the sound setting of the connected equipment to “2ch L.PCM”.

  • Page 211: Other

    ● Other Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. VIERA Link function does not work and an error message appears Check the connections.
  • Page 212 ● An error message appears Follow the message’s instructions. ● If the problem persists, contact your local Panasonic dealer or the ● authorised service centre. Built-in Camera does not work Ensure the built-in Camera is held up. When the application for camera ●...
  • Page 213 Register again. ● Settings Setup VIERA Touch Pad Controller Use the touch pad controller within approx. 3.2 m from the TV. (The range ● may be shortened depending on the obstacles between the TV and the controller, or the surrounding environment.) Voice Control function does not work Voice Control function may not work properly depending on the ●...

  • Page 214: Care And Cleaning

    Maintenance Care and Cleaning First, remove the mains plug from the socket outlet. ■ Display panel, Cabinet, Pedestal Regular care: Gently wipe the surfaces of the display panel, cabinet, or pedestal using a soft cloth to clean the dirt or fingerprints. For stubborn dirt: First clean the dust on the surface.

  • Page 215: Using Help Menu

    Information Using Help menu 1. Display the menu with MENU 2. Select Help with and press to access 3. Select TV Self Test System Information Device Information with and press to access TV Self Test Makes a diagnosis of picture or sound problems. Follow the on-screen instructions.

  • Page 216: Optional Accessories

    3D Eyewear ■ 3D Eyewear TY-ER3D4ME, TY-ER3D4SE (Rechargeable type) ● – If you need 3D Eyewear additionally, please purchase this optional accessory. – Use Panasonic 3D Eyewear supporting Bluetooth wireless technology. – For more information (English only): http://panasonic.net/viera/eu/ - 216 -...

  • Page 217: Wall-Hanging Bracket

    Wall-hanging bracket ■ Wall-hanging bracket TY-WK4P1RW ● – For 42 / 50 inches model – Tilting angle for the TV: 0 (vertical) to 20 degrees (42 inches model) 0 (vertical) to 10 degrees (50 inches model) TY-WK5P1RW ● – For 55 / 60 inches model –...
  • Page 218 The Bluetooth word mark and logos are registered trademarks owned by ® Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. SDXC Logo is a trademark of SD-3C, LLC.
  • Page 219 HDMI Licensing LLC in the United States and other countries. x.v.Colour™ is a trademark. HDAVI Control™ is a trademark of Panasonic Corporation. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
  • Page 220 Please refer to the detailed terms and conditions thereof shown in the “Software Licence” menu on this product. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below,...
  • Page 221 Ver.1.01...

This manual is also suitable for:

Txp65vt60eTxp55vtw60Txp50vtw60Txp65vtw60Txp55vt60e

Table of Contents
