Summary of Contents for Michley Tivax LSS-338
-
Page 1: Instruction Manual

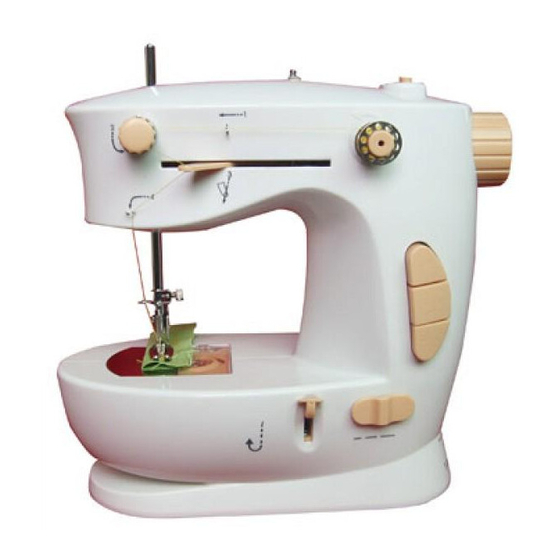

Mini Sewing Machine Instruction Manual Model: LSS-338 Please read the instruction manual carefully before operating the machine. - Page 2 Introduction Thread Spindle (C)) Take Up Lever (D) Thread Spool (E) Bobbin Holder (V) Bobbin Winder Spindle (T) Tension Screw (Q) Handwheel (K) Bobbin Spindle (U) Needle Clamp Screw (O) Speed Button (L) Needle Clamp (P) ON/OFF Switch (A) Light Button Needle (R) Stitch Length Adjustment Button...
-
Page 3: Parts And Accessories
Parts & Accessories AC/DC Adapter (DC 6V) Foot Pedal (M) -
Page 4: Battery Installation
Battery Installation Battery Installation 1. Caution: Make certain the power switch is in the OFF position before inserting the batteries. 2. Inser (4)AA batteries in the battery slot compartment in the bottom of the machine. Be certain the batteries are in the correct polarities as marked on the machine. Then replace the battery compartment cover. -
Page 5: Threading The Machine
Threading the machine 1. Raise thread spindle (C) by grasping the exposed top and pulling upward until thread spindle (C) is fully extended. 2. Place thread spool (E) on the thread spindle (C) as shown. 3. Pull thread from the thread spool (E) on the thread spindle (C) and put it through the thread holder (1) in the direction... - Page 6 Bobbin Winding and Insertion Winding the bobbin You can wind your own bobbins with thread from spools you purchase separately to have a virtually unlimited thread color selection. Match your fabrics or contrast with the thread shades of your choice. 1.
-
Page 7: Operating The Sewing Machine
Operating the Sewing Machine ALWAYS TURN THE HANDWHEEL COUNTERCLOCKWISE (toward you). Rotate the handwheel to bring the needle to the highest position. Lift the presser foot and place fabric under the presser foot. Press the power switch to begin sewing. Don’t Lower the presser foot. - Page 8 Operating the Sewing Machine Controlling the Sewing Speed The machine has two speeds of sewing control. In the “H” position the switch is in, while in the “L” position the switch is out. We recommend using the slow speed at the beginning.
- Page 9 Operating the Sewing Machine Adjusting thread tension Tension for maximum performance has been set and adjusted at the factory. However, if you should find that stitches are too loose, or too tight, you can adjust the stitch. 1. Loosen stitch by turning the tension screw (Q) counterclockwise.
-
Page 10: Changing The Needle
Changing the Needle 1. Turn the handwheel (K) clockwise to raise the needle (R) to its highest position. 2. Loosen the needle clamp screw (O) by turning it counterclockwise (toward you). You may need to use a short slotted screwdriver or small pliers. -
Page 11: Troubleshooting
Precautions Set the power switch to OFF and don’t touch the switch when inserting batteries or plugging in or replacing the needle. Keep the unit away from children. If operated by a child, an adult shall watch the operation. Set the switch to OFF after usage and remove the batteries or pull off the plug. Don’t mix old batteries with new ones. - Page 12 This warranty shall be void upon transfer of ownership of this product and is effective only when used in the United States. Michley/Tivax agrees to repair or replace this unit at no charge, within the warranty period, providing that the product is delivered to Michley/Tivax in its original package or equivalent, fully insured, with all shipping charges prepaid and a return authorization number listed on the outside of the packaging.
